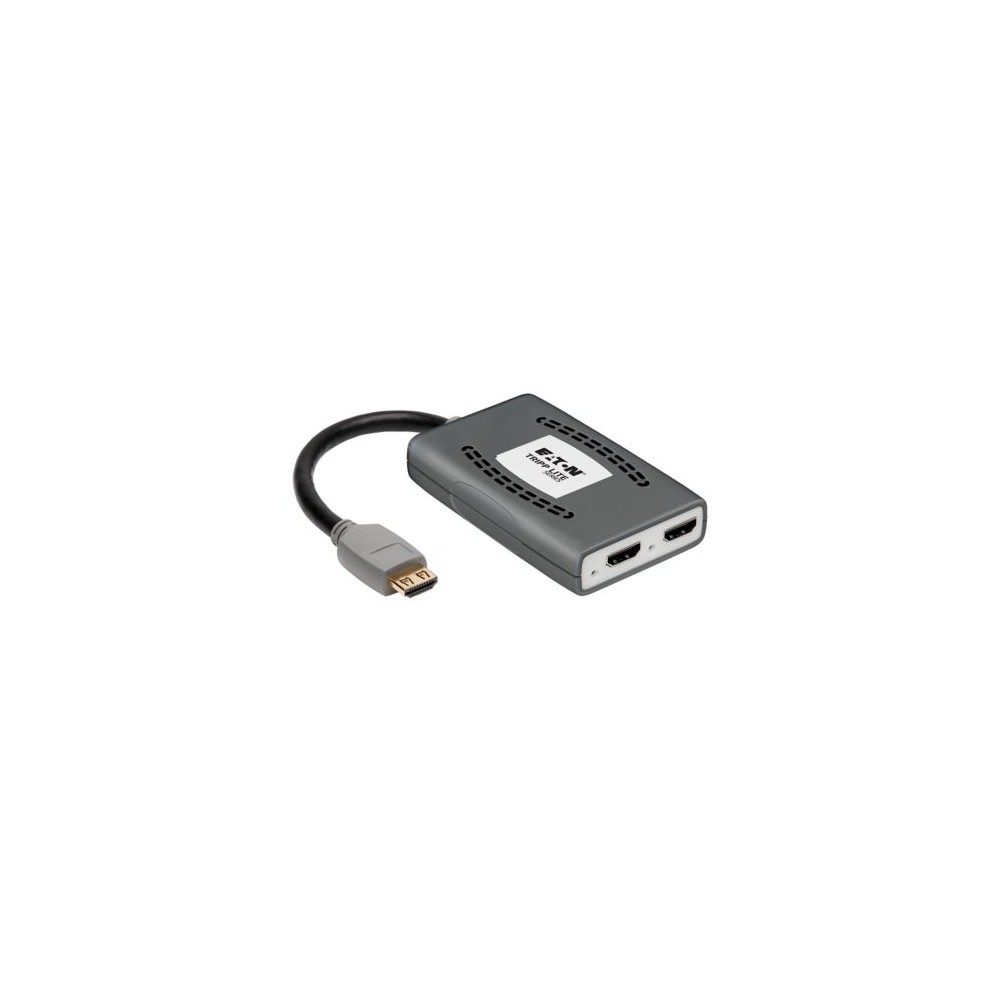

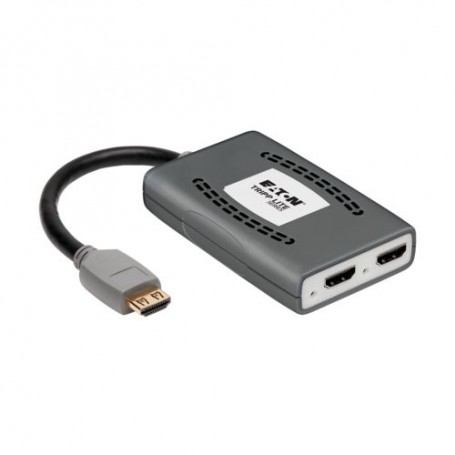

Eaton Tripp Lite B118-002-HDR-V2 2-Port HDMI Splitter
The Eaton Tripp Lite B118-002-HDR-V2 is a 1 x 2 HDMI splitter that distributes video and audio from one HDMI source to two HDMI displays simultaneously. It supports UHD resolutions up to 4096 x 2160 at 60 Hz with 4:4:4 chroma subsampling, along with HDR, HDCP 2.2 and multi-resolution output.
Video and Audio Distribution
The splitter provides one HDMI male input and two HDMI female outputs. Its multi-resolution support allows displays with different supported resolutions to be used together. It also supports 36-bit Deep Color, 3D video and HDR signals, while compatible audio formats include DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound.
Power and Connectivity
The B118-002-HDR-V2 is USB powered and includes a 3-foot USB Micro-B cable. It does not require additional software and is designed for plug-and-play operation. The splitter can be cascaded through up to three levels for configurations supporting up to 32 displays.
Compatibility and Applications
The unit is intended for HDMI source devices connected to HDMI-equipped monitors, HDTVs, projectors or other compatible displays. Typical applications include conference rooms, classrooms, offices, trade shows, retail environments and digital signage installations.
Key Features
- Splits one HDMI source to two HDMI displays
- Supports 4K resolution up to 4096 x 2160 at 60 Hz with 4:4:4 chroma subsampling
- Supports HDR, HDCP 2.2 and 36-bit Deep Color
- Multi-resolution output supports displays with different resolution capabilities
- USB powered and cascadeable up to three levels for up to 32 displays
Applications
- Conference room display distribution
- Classroom and lecture-room video presentation
- Digital signage and retail displays
- Trade show and event display systems
- Office environments requiring simultaneous HDMI display output
DC Supplies Product Note
Because the splitter supports multi-resolution output, it can accommodate a combination of displays with different supported resolutions rather than requiring both connected displays to use the same resolution.
Specifications
| Specification | Details |
|---|
| Brand | Eaton Tripp Lite |
| Part Number / MPN | B118-002-HDR-V2 |
| Product Type | 2-Port HDMI Splitter |
| Input x Output | 1 x 2 |
| Input Connector | HDMI Male |
| Output Connectors | 2 x HDMI Female |
| Power Connector | Micro USB-B Female |
| Maximum Resolution | 4096 x 2160 (4K) at 60 Hz |
| Maximum Video Resolution | 4K/60 |
| Chroma Subsampling | 4:4:4 |
| HDCP | HDCP 2.2 |
| HDR Support | Yes |
| Color Depth | 36-bit Deep Color |
| 3D Video | Supported |
| Audio Support | DTS-HD, Dolby TrueHD, Dolby Digital Plus, LPCM 7.1 |
| Power Source | USB |
| Daisy-Chain / Cascade | Up to 3 levels / up to 32 displays |
| Transmission Range | Up to 15 ft. |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 122°F (-15°C to 50°C) |
| Relative Humidity | 0% to 85%, non-condensing |
| Material | Metal |
| Color | Black |
| Product Dimensions | 3.7 x 2.4 x 0.7 in. |
| Product Weight | 0.17 lb. |
| Compliance | TAA, FCC, CE, RoHS, REACH |
| Warranty | 3-year limited warranty |
Frequently Asked Questions
How many displays can the B118-002-HDR-V2 connect to?
The splitter has two HDMI outputs and can drive two displays from one HDMI source. It can also be cascaded through up to three levels for configurations supporting up to 32 displays.
Does it support 4K at 60 Hz?
Yes. The B118-002-HDR-V2 supports resolutions up to 4096 x 2160 at 60 Hz with 4:4:4 chroma subsampling.
Does the splitter support HDR?
Yes. The B118-002-HDR-V2 supports HDR signals and HDCP 2.2.
Can the two connected displays use different resolutions?
Yes. Multi-resolution support allows compatible displays with different resolution capabilities to be connected to the splitter.
How is the splitter powered?
The B118-002-HDR-V2 is USB powered and includes a 3-foot USB Micro-B cable.
