Samsung MZWLR30THBLA-00A07 30TB Dual Port NVMe SSD View larger
Previous Next

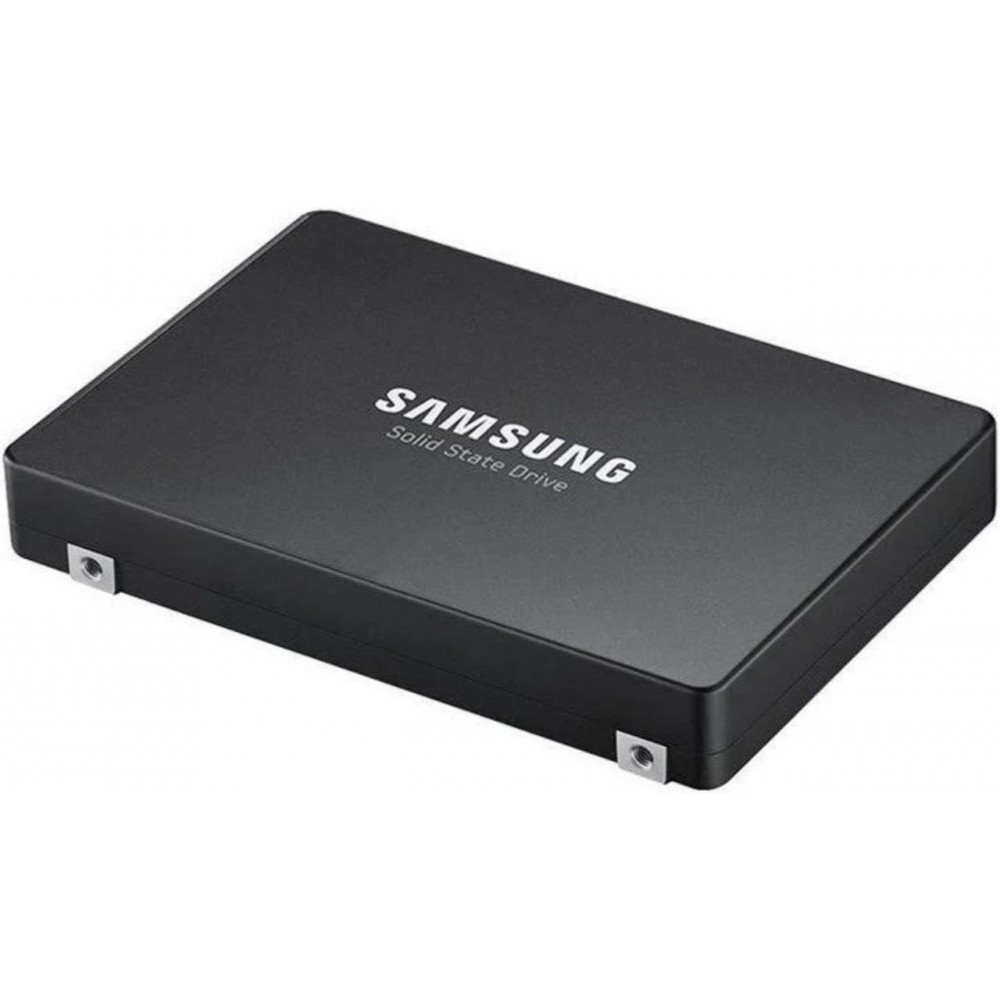

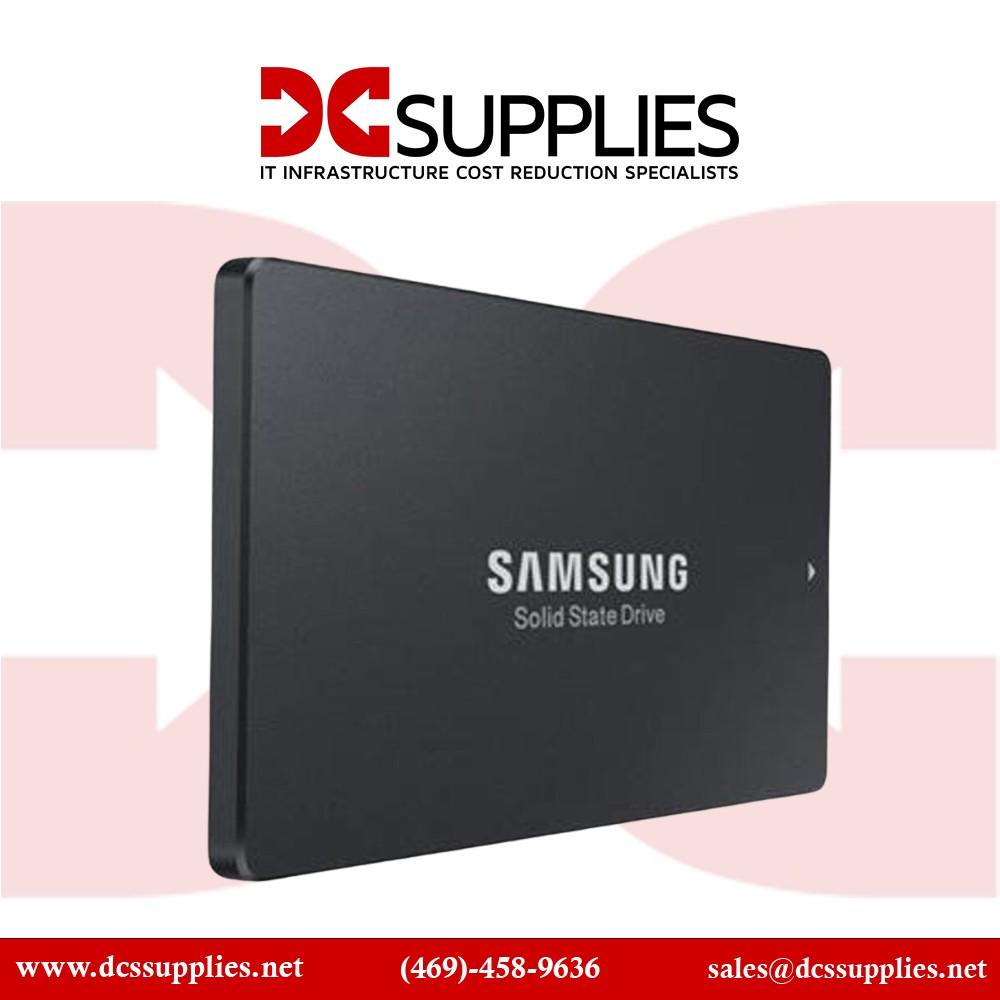

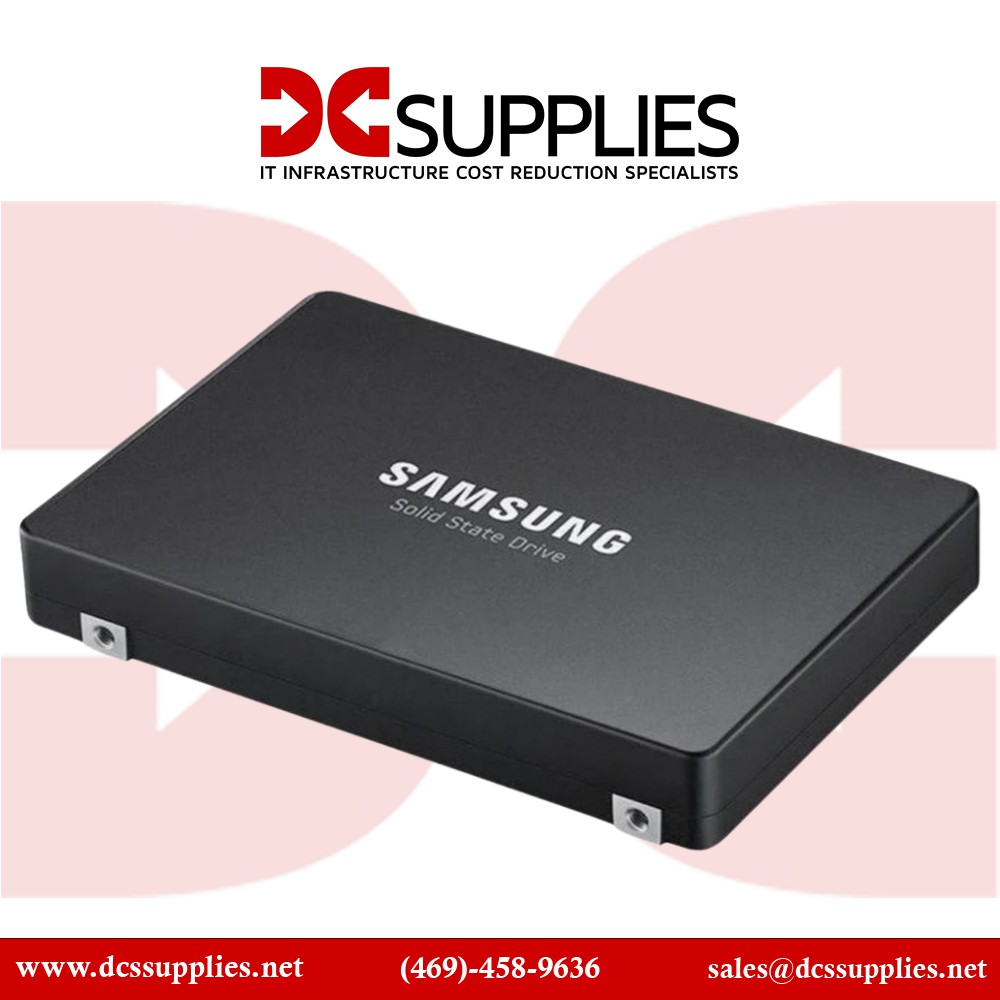

Samsung MZWLR30THBLA-00A07 30TB Dual Port NVMe SSD

New

×




  • New

Detailed Specifications

Samsung

MZWLR30THBLA‑00A07 (30.72 TB, Dual‑Port NVMe) Enterprise PM1733a SSD – U.2 / 2.5″ PCIe 4.0 NVMe

The Samsung PM1733a Solid State Drive (model MZWLR30THBLA‑00A07) is a next‑generation enterprise NVMe solid-state drive offering an industry-leading 30.72 TB capacity in a 2.5-inch U.2 form factor. Equipped with a dual-port PCIe 4.0 x4 interface, this Solid State Drive delivers up to 7.5 GB/s sequential read and 4.1 GB/s sequential write speeds, while sustaining up to 1.6 million random read IOPS and 170K random write IOPS. Designed for read-intensive and general-purpose data center workloads, it supports powerful features like hot-plug capability, hardware encryption (256-bit AES‑XTS), power-loss data protection, and enterprise-grade ECC with LDPC. Built for uptime-critical environments, this drive delivers deterministic performance and data integrity across multi-year deployments

Features

Part of Samsung PM1733a family, the MZWLR30THBLA‑00A07 is engineered to exploit the full bandwidth of PCIe Gen 4, offering approximately twice the throughput of Gen 3 Solid State Drives—making it one of the fastest enterprise NVMe drives available. Dual-port NVMe support ensures high availability and redundancy, enabling concurrent access paths in dual-controller server or storage environments. The Solid State Drive features Samsung V‑NAND multi-level cell (MLC) with advanced management firmware, ensuring consistent read/write performance and endurance rated at 1 Drive Write Per Day (DWPD) for 5 years (approx. 56 PBW total writes). With robust PLP circuitry and power-handling mechanisms, it guards data during unexpected power loss while minimizing inrush stress during insertion or removal. MTBF is rated at 2 million hours for continuous 24/7 uptime

Advanced Options

Supported operating temperatures range from 0 °C to 70 °C (storage down to –40 °C), and it tolerates shock up to 1500 g and vibration at 20 g (10–2000 Hz), making it suited for enterprise rack and edge deployments. End-to-end SAS/SCSI sanitize command support, SMART monitoring, and erase/sanitize features further enhance manageability and compliance. With a U.2 interface, it fits standard 2.5″ drive bays for compatibility with popular server platforms including Lenovo ThinkSystem, Dell EMC, HPE, and other OEMs validated with U.2 bays .

Product Key Features

  • Massive 30.72 TB storage capacity in dual-port NVMe Solid State Drive

  • PCIe 4.0 x4 U.2 interface with full backward PCIe 3.0 support

  • Sequential read up to 7,500 MB/s; write up to 4,100 MB/s

  • Random Read/Write IOPS: 1.6M / 170K (4 KB, QD32)

  • Endurance: 1 DWPD for 5 years (~56 PBW total writes)

  • Dual-port design for path redundancy and high availability

  • Power Loss Protection and inrush current handling circuitry

  • Hardware self‑encryption: 256-bit AES‑XTS

  • Hot-pluggable U.2 2.5″ form factor; enterprise SAS backplane compatible

  • Built-in ECC with LDPC and sanitize support

Reliability & Performance

The Samsung PM1733a MZWLR30THBLA‑00A07 is purpose‑built for enterprise environments requiring extreme reliability, ultra-high throughput, and deterministic latency. Its advanced flash management and MLC V‑NAND reduce wear rate while delivering consistent performance over life‑cycle heavy workloads such as virtualization, database caching, data analytics, and large‑scale storage arrays. Dual-port capabilities ensure continuous operation even in failover situations, dramatically reducing risk in critical applications. Performance-wise, under sustained loads it operates efficiently under typical active power consumption (~20–21W), with lower idle power (~8–9W). These characteristics optimize both performance and energy usage in dense rack servers. The inrush current protection allows safe hot-swap insertion/removal without damaging the Solid State Drive or host system. With a robust hardware architecture delivering an MTBF rating of 2 million hours, support for SMART, sanitize, and ECC features, and a limited lifetime manufacturer warranty, this Solid State Drive is built for mission-critical deployments that demand uptime, endurance, and uncompromising throughput

Key Features (Bullet List)

  • 30.72 TB dual-port NVMe enterprise Solid State Drive

  • PCIe 4.0 x4, backward-compatible with PCIe 3.0

  • Up to 7,500 MB/s read and 4,100 MB/s write speeds

  • High performance: 1.6M random read IOPS / 170K random write IOPS

  • Endurance rating: 1 DWPD for 5 years (~56 PBW)

  • U.2 hot-pluggable 2.5″ form factor; dual-port redundancy

  • Power Loss Protection and inrush current handling

  • Hardware AES-XTS 256-bit encryption

  • ECC LDPC, sanitize support, SMART monitoring

  • MTBF: 2 million hours; enterprise-grade components

  • Operating: 0 °C–70 °C; Storage: –40 °C–85 °C

Specifications :

SpecificationDetails
Model Number MZWLR30THBLA‑00A07
Product Type Enterprise NVMe Solid State Drive
Capacity 30.72 TB
Interface PCIe 4.0 x4 NVMe (U.2 dual-port)
Form Factor 2.5″ (U.2, hot-swappable)
Sequential Read Up to 7,500 MB/s
Sequential Write Up to 4,100 MB/s
Random Read IOPS Up to 1,600,000 at QD32
Random Write IOPS Up to 170,000 at QD32
Endurance 1 DWPD over 5 years (~56 PBW)
ECC / Data Protection LDPC, End-to-End, Power Loss Protection
Encryption Hardware AES‑XTS 256-bit (FIPS-capable)
MTBF ~2,000,000 hours
Operating Temp 0 °C to 70 °C
Storage Temp –40 °C to 85 °C
Shock / Vibration 1500 g / 20 g @10–2000 Hz
Compliance RoHS, SMART, sanitize commands support
Power Consumption Active ~20–21 W; Idle ~8–9 W
Weight ~190 g
Dimensions ~100.2 × 69.85 × 15 mm
Warranty Manufacturer Limited Lifetime
