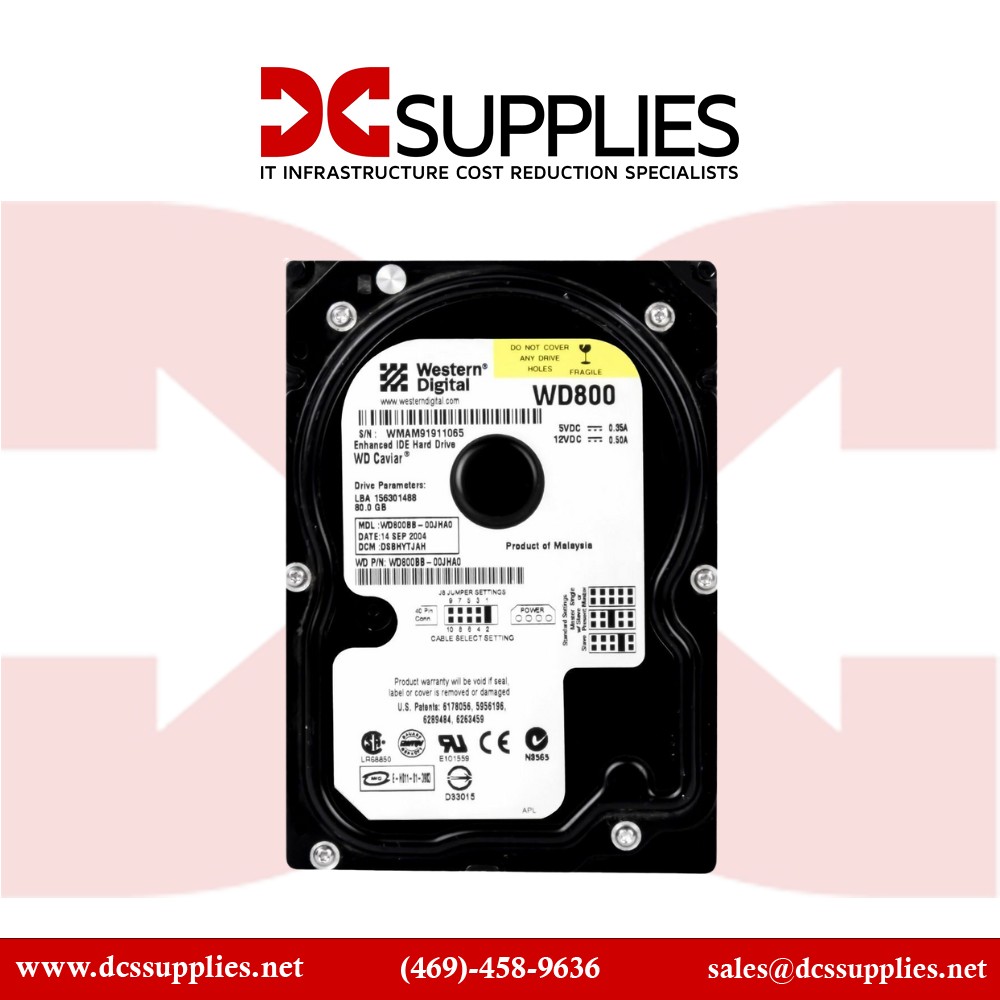

Western Digital WD800BB Caviar 80Gb 7200Rpm 2Mb Cache IDE Ultra ATA-100 3.5-Inch Internal Hard Drive View larger

Western Digital WD800BB Caviar 80Gb 7200Rpm 2Mb Cache IDE Ultra ATA-100 3.5-Inch Internal Hard Drive

WD800BB

New

Western Digital WD800BB Caviar 80Gb 7200Rpm 2Mb Cache IDE Ultra ATA-100 3.5-Inch Internal Hard Drive

×




Detailed Specifications

Western Digital WD800BB Caviar 80Gb 7200Rpm 2Mb Cache IDE Ultra ATA-100 3.5-Inch Internal Hard Drive

Overview :

The Western Digital WD800BB Caviar is an 80GB internal hard drive designed to provide reliable storage and efficient performance for desktop computers. Featuring a 7200 RPM spindle speed, this drive offers quicker data access and transfer rates, ensuring smooth operation for various computing tasks. The 2MB cache enhances performance by providing a buffer for frequently accessed data, reducing the time it takes to retrieve files and applications.

This hard drive utilizes the IDE Ultra ATA-100 interface, which is a widely used standard in older computer systems. This makes it an ideal upgrade option for legacy systems that require additional storage without the need for modern SATA connections. With a 3.5-inch form factor, the WD800BB is designed to fit into standard desktop drive bays, making installation straightforward and compatible with many desktop enclosures.

Western Digital’s reputation for durability and quality is reflected in the WD800BB, ensuring long-term reliability. The drive is built to handle the demands of daily computing, from running operating systems and applications to storing important data. Its design also focuses on low power consumption and quiet operation, making it a suitable choice for maintaining a quiet and energy-efficient environment.

Overall, the Western Digital WD800BB Caviar 80GB hard drive is a solid choice for users needing dependable storage in an older desktop setup. It combines efficient performance, reliable data handling, and ease of integration, making it a practical solution for extending the life and capabilities of legacy systems.

Specifications :

Model Number WD800BB
Series Caviar
Capacity 80GB
RPM (Revolutions Per Minute) 7200 RPM
Cache 2MB
Interface IDE Ultra ATA-100
Form Factor 3.5-Inch
Average Seek Time 8.9 ms
Track-to-Track Seek Time 2.0 ms
Full Stroke Seek 21 ms
Buffer to Host (Max) 100 MB/s
Buffer to Disk (Max) 488 Mbits/s
Dimensions (L x W x H) 147 x 101.6 x 25.4 mm
Weight 0.62 kg
Power Consumption Active: 8.75W, Idle: 4.5W
Operating Temperature 5°C to 55°C
Non-Operating Temperature -40°C to 70°C
Shock (Operating) 65G for 2 ms
Shock (Non-Operating) 250G for 2 ms
Acoustics (Idle) 35 dBA
Acoustics (Seek) 39 dBA
