HPEP11091-001

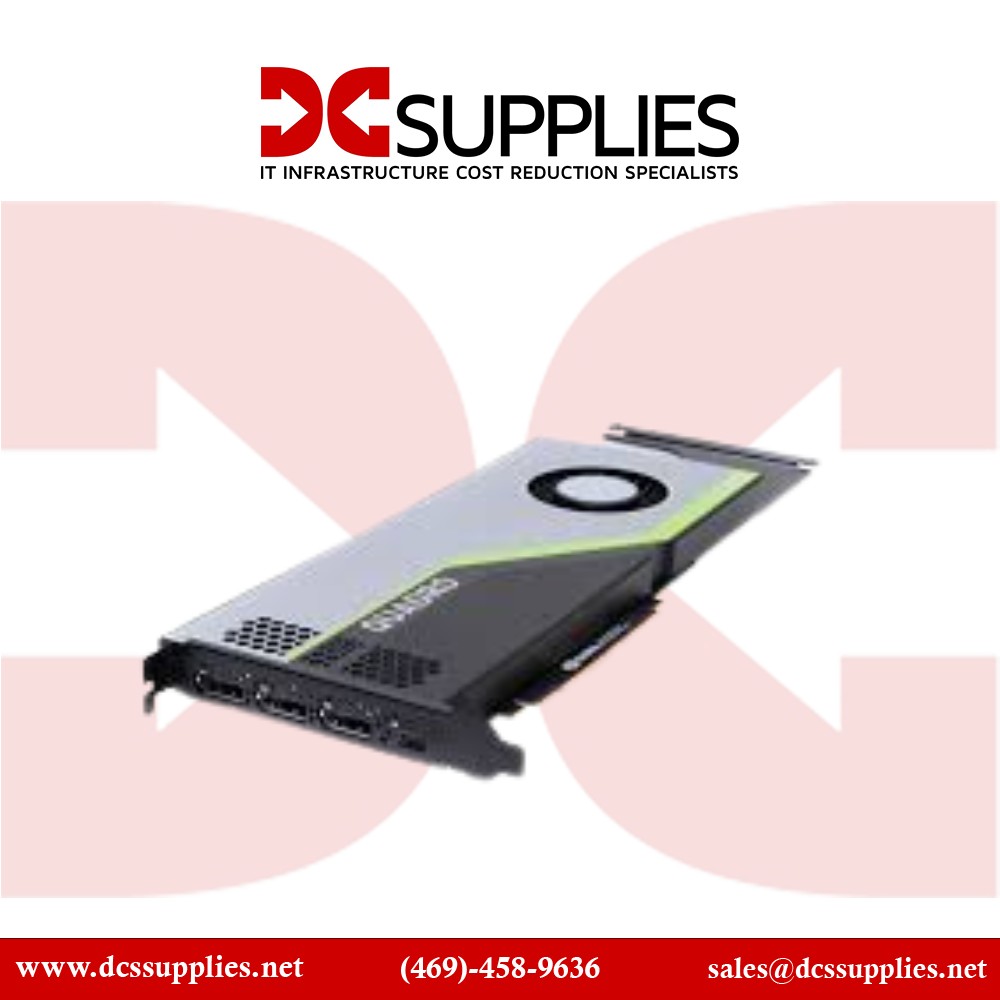

Quadro RTX 4000 Graphics CardAccelerator

The HPEHPEP11091-001 is a professional-grade Quadro RTX 4000 Graphics Card featuring 8 GB of GDDR6 memory and a PCIe 3.0 x16 interface. Designed for advanced workstation applications, it excels in handling complex 3D modeling, CAD, AI-accelerated workflows, and real-time ray tracing. Its compact single-slot form factor makes it especially suitable for HP ProLiant servers and space-constrained workstation environments. With ISV certifications and mature driver support, it offers reliability and performance for designers, engineers, scientists, and visual computing professionals.

Features

This high-end workstation GPU leverages NVIDIA's Turing architecture, featuring ray tracing cores, tensor cores, and CUDA cores to accelerate rendering, simulation, and compute workloads. It supports real-time ray tracing at up to 7.1 TFLOPS of single-precision compute power and up to 57 TFLOPS for tensor-based operations. The card allows multi-display setups via three DisplayPort 1.4 outputs and a VirtualLink USB-C connector, enabling both ultra-high-resolution monitors and next-gen VR headsets. Compatible with industry-standard APIs such as OpenGL 4.6, Vulkan 1.1, DirectX 12, CUDA, and OpenCL', it integrates seamlessly into complex graphics and compute pipelines.

Advanced Options

Its single-slot card design simplifies deployment in compact chassis or server configurations. Active fan cooling ensures stable thermal operation under work-intensive conditions. Whether used in engineering, content creation, or virtual desktop infrastructure (VDI), this GPU delivers consistent performance and reliability across certified professional applications.

Product Key Features

• 8 GB GDDR6 memory on a 256-bit bus


• NVIDIA Turing architecture with 2304 CUDA, 288 Tensor & 36 RT cores


• PCI Express 3.0 x16 host interface

• Supports real-time ray tracing and AI-enhanced rendering


• Outputs: 3× DisplayPort 1.4 + 1× VirtualLink (USB-C)


• VR-ready with ISV certifications

---

Reliability & Performance

This Graphics Card is engineered for consistent reliability in professional environments. Its Turing architecture, complete with RT and tensor cores, significantly accelerates rendering and AI workloads, reducing project turnaround times and boosting productivity. With driver support and certification across a wide range of ISV applications, it ensures predictable performance for mission-critical operations. The 160 W board power is thermally managed by an active cooling solution to sustain performance under continuous load. Its robust architecture and efficient 4-point display handling support multi-monitor ultra-HD workflows, while VirtualLink compatibility streamlines VR deployment. The card's pro-grade build quality and thermal stability make it well-suited for extended use in servers or compact workstations, offering both longevity and dependable operation in professional settings.

Key Features :

• • 8 GB GDDR6 memory, 256-bit

  • 2304 CUDA cores, 288 Tensor cores, 36 RT cores

  • PCIe 3.0 x16 interface

  • Real-time ray tracing and AI rendering

  • 3× DisplayPort 1.4 + VirtualLink (USB-C) output

  • ISV-certified, VR-ready, active cooling

Specification	Details
Model Number	P11091-001
Product Type	Quadro RTX 4000 Graphics CardAccelerator
GPU Architecture	NVIDIA Turing
CUDA Cores	2304
Tensor Cores	288
RT Cores	36
Memory	8 GB GDDR6
Memory Interface	256-bit
Memory Bandwidth	Up to 416 GB/s
Bus Interface	PCIe 3.0 x16
Display Outputs	3× DisplayPort 1.4, 1× VirtualLink (USB-C)
Power Consumption	Board: ~160 W; Graphics: ~125 W
Cooling	Active fan cooling
Form Factor	Single-slot, low-profile (≈9.5" × 4.4")
Max Resolution	Up to 7680×4320 @60 Hz
Operating Temperature	0 °C to 55 °C
Compatibility	ISV-certified, VR-ready, CUDA / OpenCL / DirectX / Vulkan support
