HPEP11092-B21

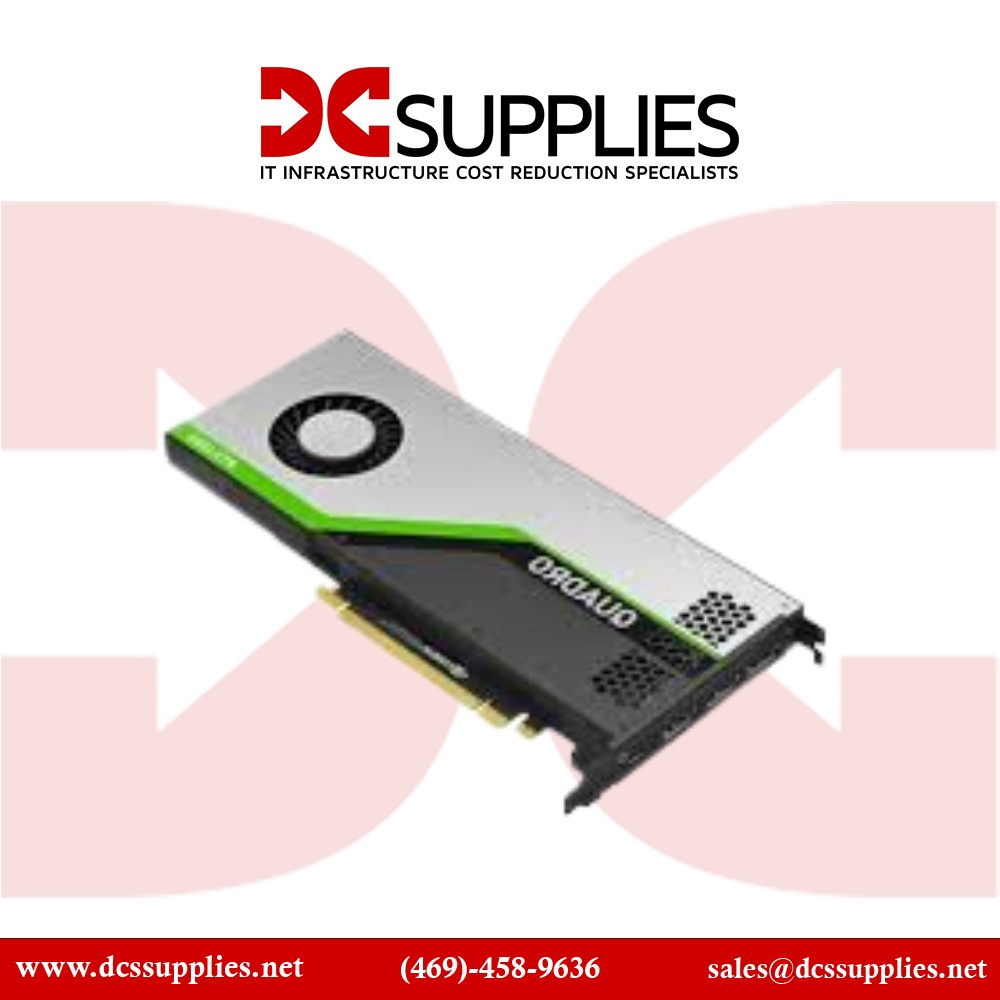

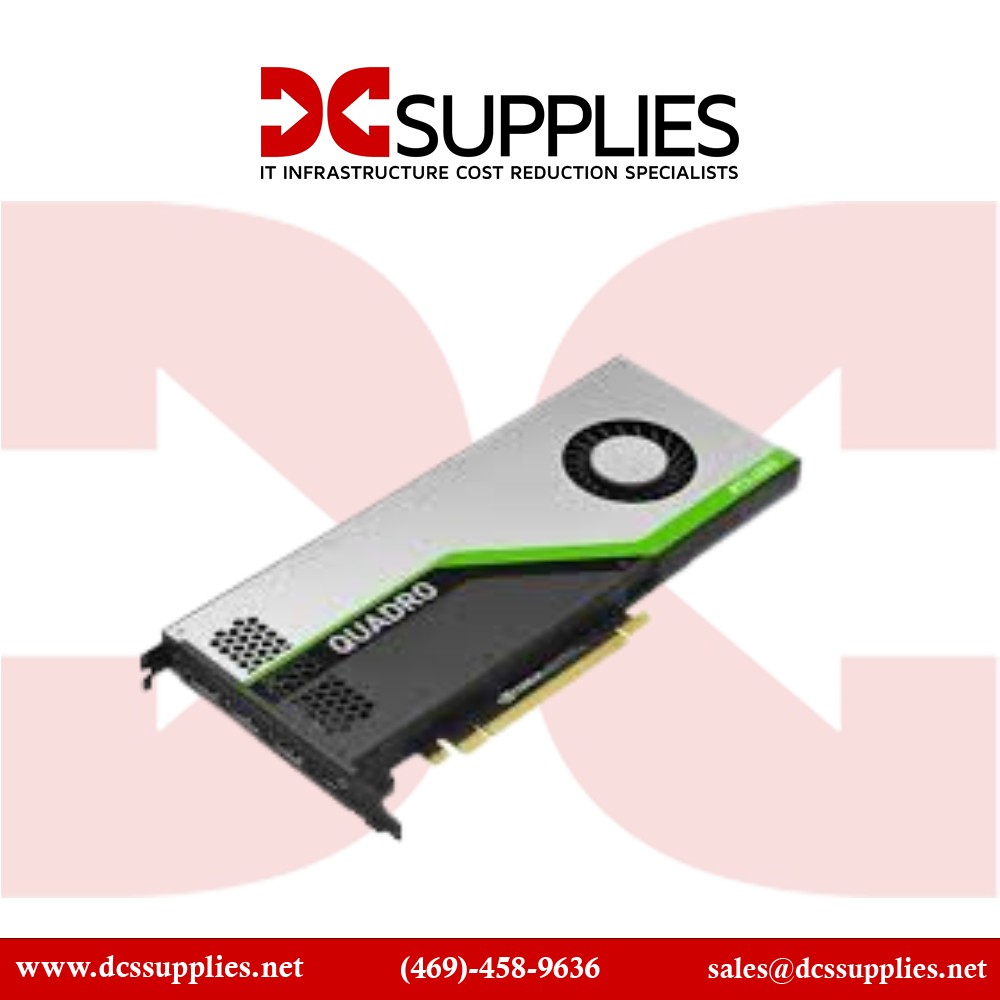

NVIDIAQuadro RTX 4000 Graphics Accelerator(8 GB GDDR6, Turing GPU)

The HPE P11092-B21 Quadro RTX 4000 brings professional GPU performance to HPEservers, featuring NVIDIATuring architecture with 2304 CUDA cores, 288 Tensor cores, and 36 RT cores. Backed by 8 GB of GDDR6 ECC memory and a 256-bit interface delivering ~416 GB/s bandwidth, it delivers real-time ray tracing, AI inferencing, and high-performance virtualization. Ideal for ProLiant DL/ML Gen10 servers, it's perfect for CAD, medical imaging, simulation, and VR-based workflows requiring both compute and visual fidelity.

Features

Built on NVIDIAefficient Turing platform, this GPU supports advanced APIs such as CUDA, OpenCL, Vulkan, and DirectX 12. It includes three DisplayPort 1.4 outputs and USB-C VirtualLink, enabling up to four high-resolution displays or direct VR connections. With a single-slot, low-profile form factor and PCIe 3.0 x16 interface, it's ideal for compute-dense server chassis. Compatible with ISV-certified applications and manageable via HPEInsight CMU, this card integrates smoothly into enterprise environments.

Advanced Options

Designed for sustained performance in enterprise server environments, this card operates efficiently under 125 W GPU power and ~160 W board draw. ECC memory ensures data integrity,

Product Key Features

• • 8 GB ECC GDDR6 memory @ ~416 GB/s

  • 2304 CUDA, 288 Tensor, 36 RT cores for real-time ray tracing & AI

  • PCIe 3.0 x16, single-slot low-profile design

  • 3 × DisplayPort 1.4 + 1 × USB-C VirtualLink

  • ~7.1 TFLOPS (FP32) compute performance

  • Certified for HPEProLiant Gen10 DL/ML servers

---

Reliability & Performance

while hardware offload lowers CPU overhead during rendering or AI compute workloads. With full compatibility in HPEplatforms and remote GPU monitoring via Insight CMU, it's a reliable choice for production-critical tasks requiring both visualization and compute acceleration.

Key Features :

• 8 GB ECC GDDR6 memory

• Turing architecture: CUDA, Tensor, RT cores

• PCIe 3.0 x16, single-slot low-profile card

• Multi-display support: 3 × DP1.4 + VirtualLink

• Real-time ray tracing and AI inferencing

• HPEInsight CMU GPU management, ISV certified

Specification	Details
Model Number	P11092-B21
GPU	NVIDIAQuadro RTX 4000 (Turing architecture) Accelerator
Memory Capacity	8 GB GDDR6 ECC
Memory Bandwidth	~416 GB/s
CUDA / Tensor / RT Cores	2304 / 288 / 36
Peak Compute	~7.1 TFLOPS FP32
Interface (Bus)	PCI Express 3.0 ×16
Display Outputs	3 × DisplayPort 1.4 + USB-C VirtualLink
Form Factor	Single-slot, low-profile
Power Consumption	~125 W GPU; ~160 W board
Cooling	Active blower-style
Compatibility	HPEProLiant DL360 / ML350 Gen10 servers
OS/API Support	CUDA, OpenCL, Vulkan, DirectX 12; ISV-certified environments
Dimensions (approx.)	26.7 cm × 11.1 cm × 3.48 cm
