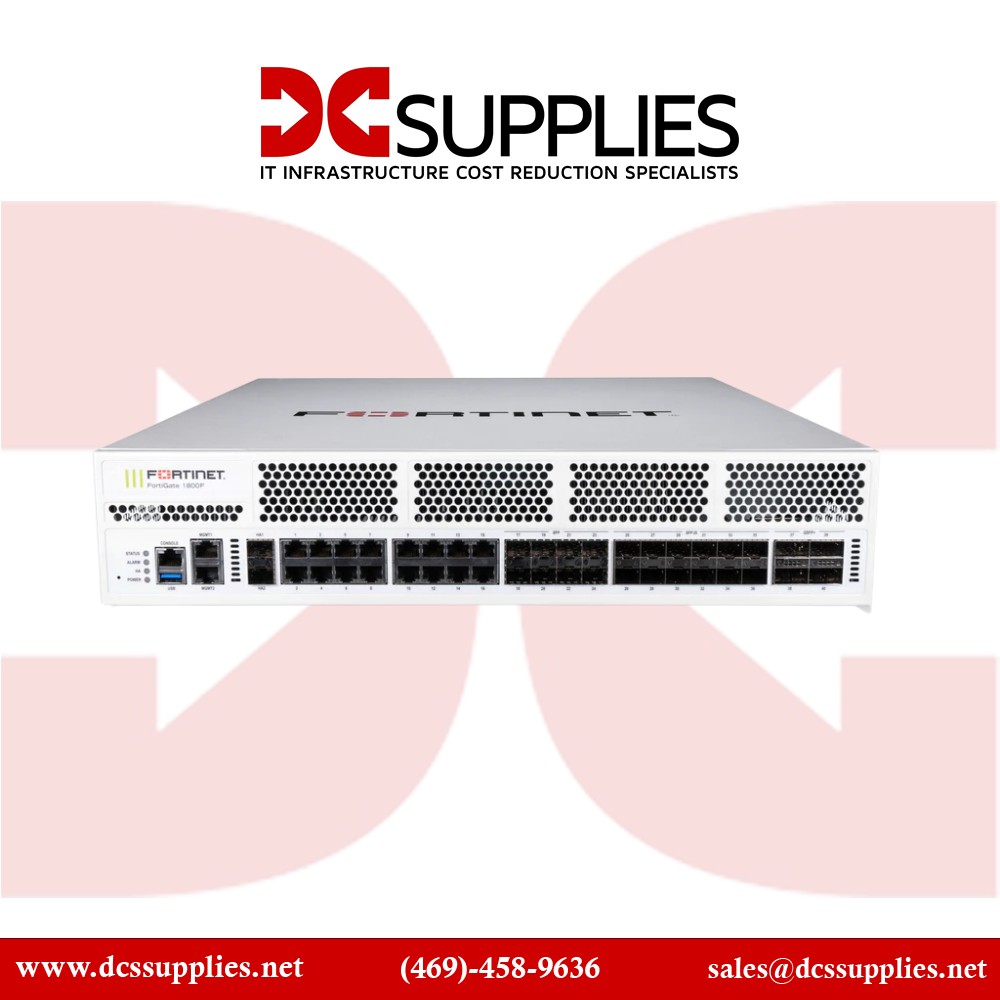

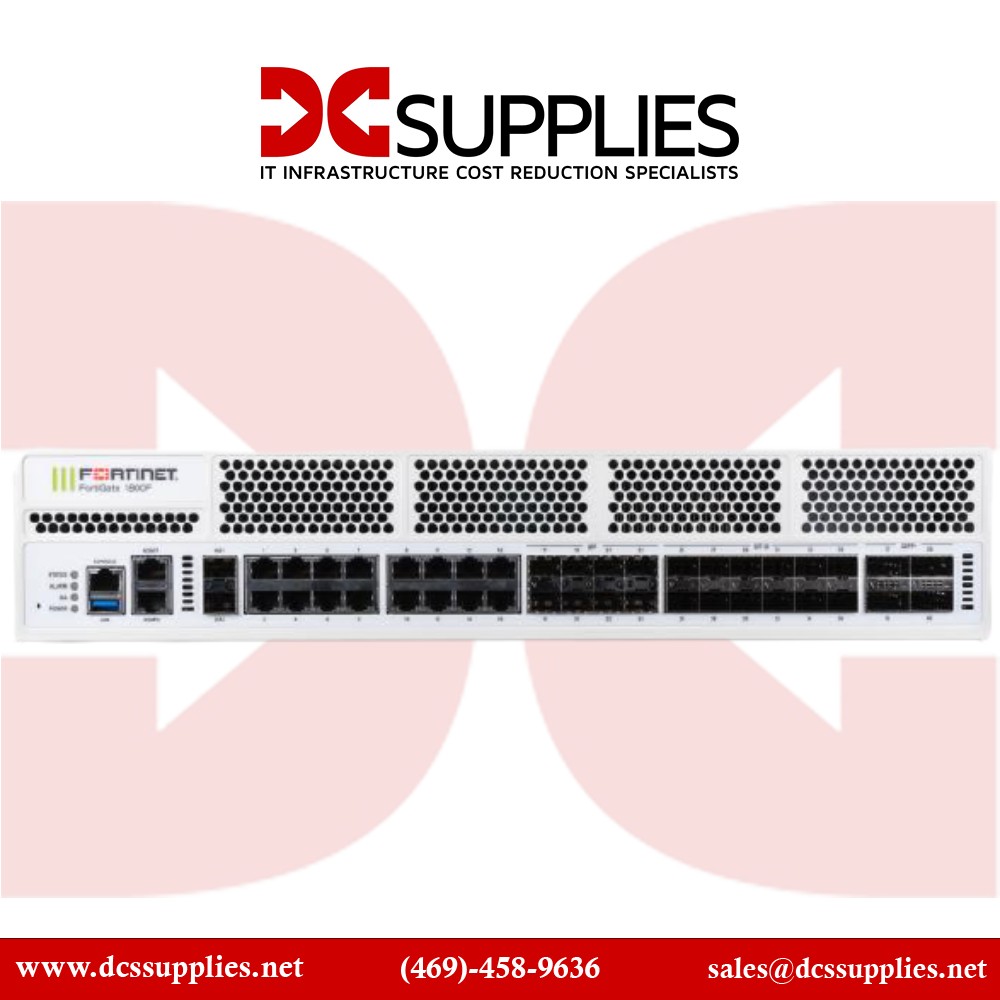

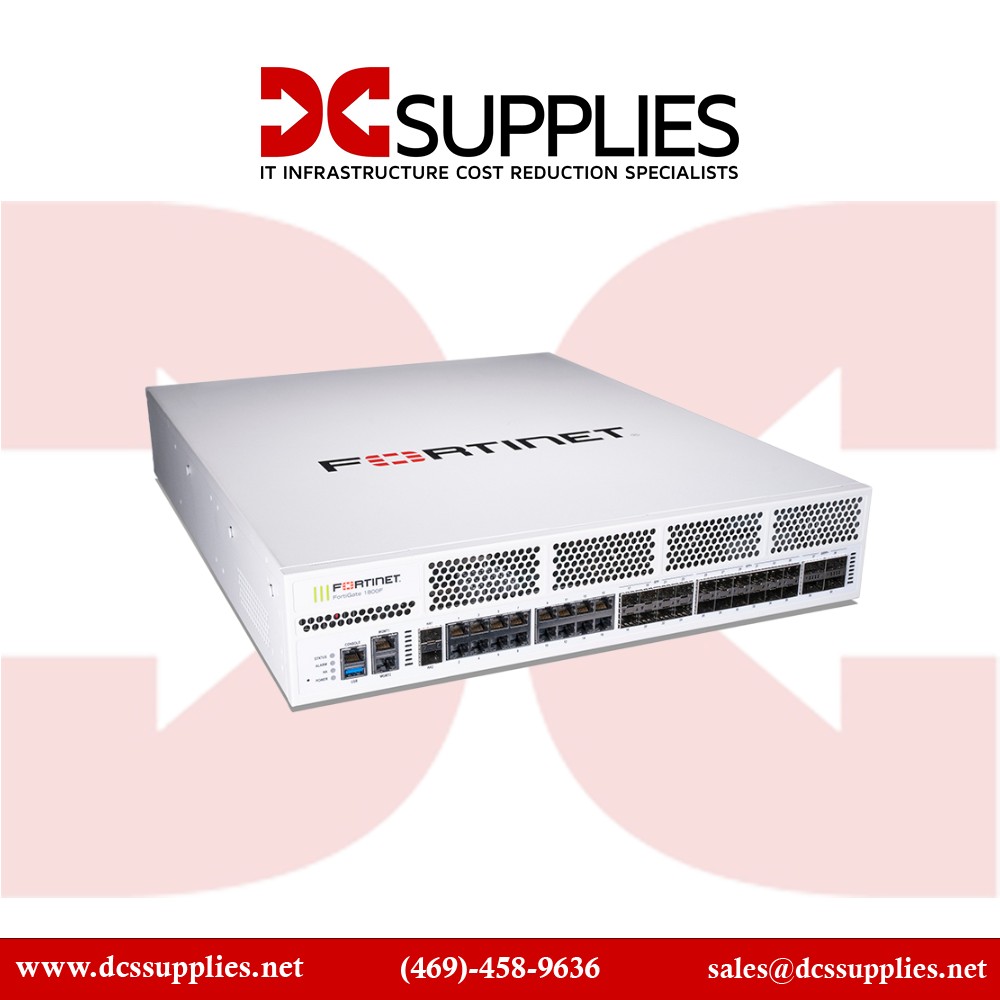

Fortinet FG-1801F FortiGate Network security firewall appliance

Fortinet FG-1801F

High-Performance Next-Gen Firewall for Large Enterprises

The Fortinet FG-1801F is a high-end next-generation firewall tailored for large enterprises, service providers, and data center cores. It delivers multi-gigabit throughput, advanced security services, and flexible connectivity×ensuring robust, low-latency protection for demanding IT environments.

Features :

This firewall is engineered for ultra-high performance with up to 198 Gbps of firewall throughput and hardware-accelerated SPU NP7 and CP9 processors for real-time policy enforcement. Its high-density interface options make it equally at home segmenting large campuses or providing multi-tenant separation in data centers. Integrated advanced threat protection includes IPS, SSL inspection, and NGFW features, ensuring security without compromising performance.

Advanced Options :

The FG-1801F supports large-scale deployments with up to 12 million concurrent sessions, 100,000 firewall policies, high VPN tunnel capacity, and clustering capabilities for redundancy and scaling. With dual hot-swappable power supplies, redundant NVMe storage, and chassis designed for 24/7 uptime, it's built for mission-critical environments where downtime is not an option.

Product Key Features

• Ultra-high firewall throughput (up to 198 Gbps)
• Rich connectivity: QSFP28, SFP28, SFP+, and GE ports
• Advanced threat protection: IPS, SSL inspection, NGFW
• Dual 960 GB NVMe SSD storage for logging/HA
• Hardware SPU acceleration for low latency (~3.2 μs)
• High scalability: millions of sessions and VPN tunnels

---

Reliability & Performance :

Designed to thrive in continuous, high-traffic environments, the FG-1801F features dual redundant AC power supplies that are hot-swappable, maintaining uptime during maintenance. Dual 960 GB NVMe SSDs handle onboard logging, high availability, or analytics with ease. Thanks to SPU acceleration, it delivers consistent ultra-low latency×even under heavy inspection workloads×making it ideal for fast-paced enterprise and service provider networks.

Key Features :

• Firewall throughput: up to 198 Gbps
• Rich interface mix: 4 × 100GE/40GE QSFP28; 12 × 25GE SFP28/10GE SFP+; 8 × GE SFP; 18 × GE RJ-45
• Advanced security: IPS, SSL inspection, NGFW, Threat Protection
• Dual hot-swappable power supplies (AC/DC options)
• Dual 960 GB NVMe SSD storage for logs and HA
• Scales to millions of sessions and hundreds of thousands of policies

Specifications :

Specification	Details
Model Number	FG-1801F
Product Type	High-End Enterprise Firewall
Firewall Throughput (1518-byte)	198 Gbps
Firewall PPS	210 Mpps
IPS Throughput	13 Gbps
Threat Protection Throughput	9.1 Gbps
NGFW Throughput	11 Gbps
SSL Inspection Throughput	17 Gbps
IPsec VPN Throughput	55 Gbps
Interfaces	4 × 100GE/40GE QSFP28; 12 × 25GE SFP28/10GE SFP+; 8 × GE SFP; 18 × GE RJ-45; MGMT, HA, Console, USB ports
On-board Storage	Dual 960 GB NVMe SSD
SPU Acceleration	NP7 and CP9
Concurrent Sessions (TCP)	12 million
New Sessions/sec (TCP)	750,000
Firewall Policies	100,000
Power Supplies	Dual AC (100-240 VAC); optional DC
Latency (64-byte UDP)	~3.2 μs
Form Factor	2U Rackmount
Dimensions (mm)	88.4 × 438 × 536 mm
Weight	~13.8 kg
