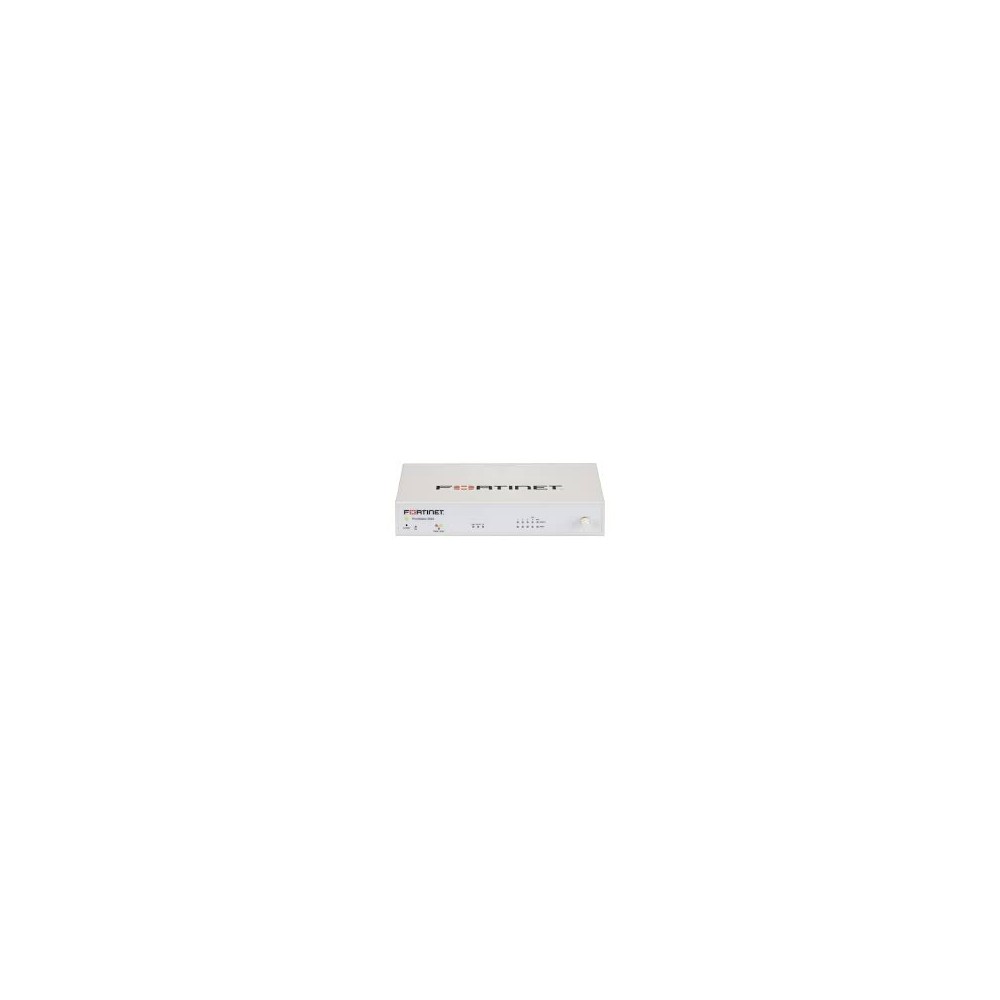

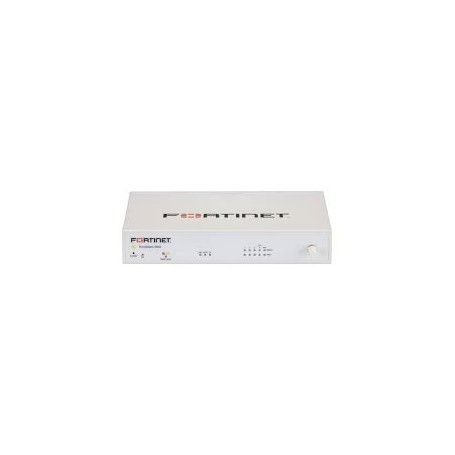

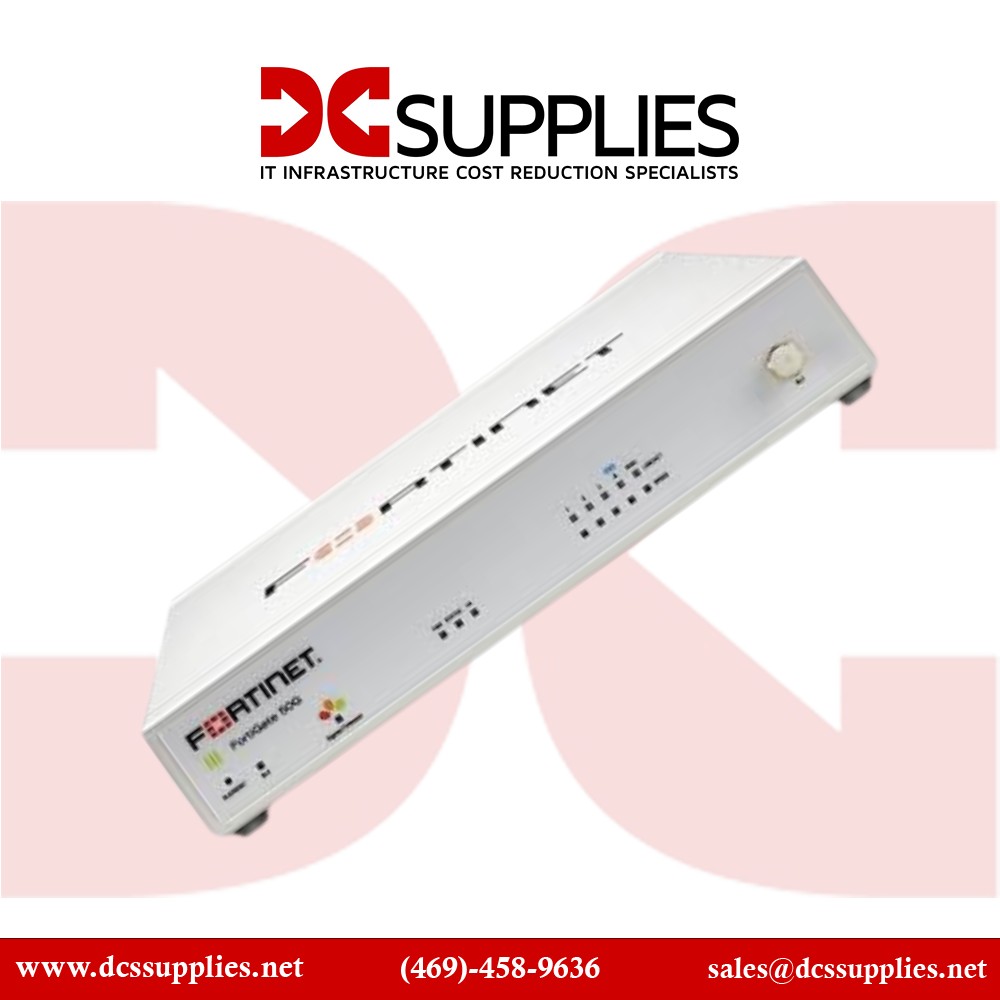

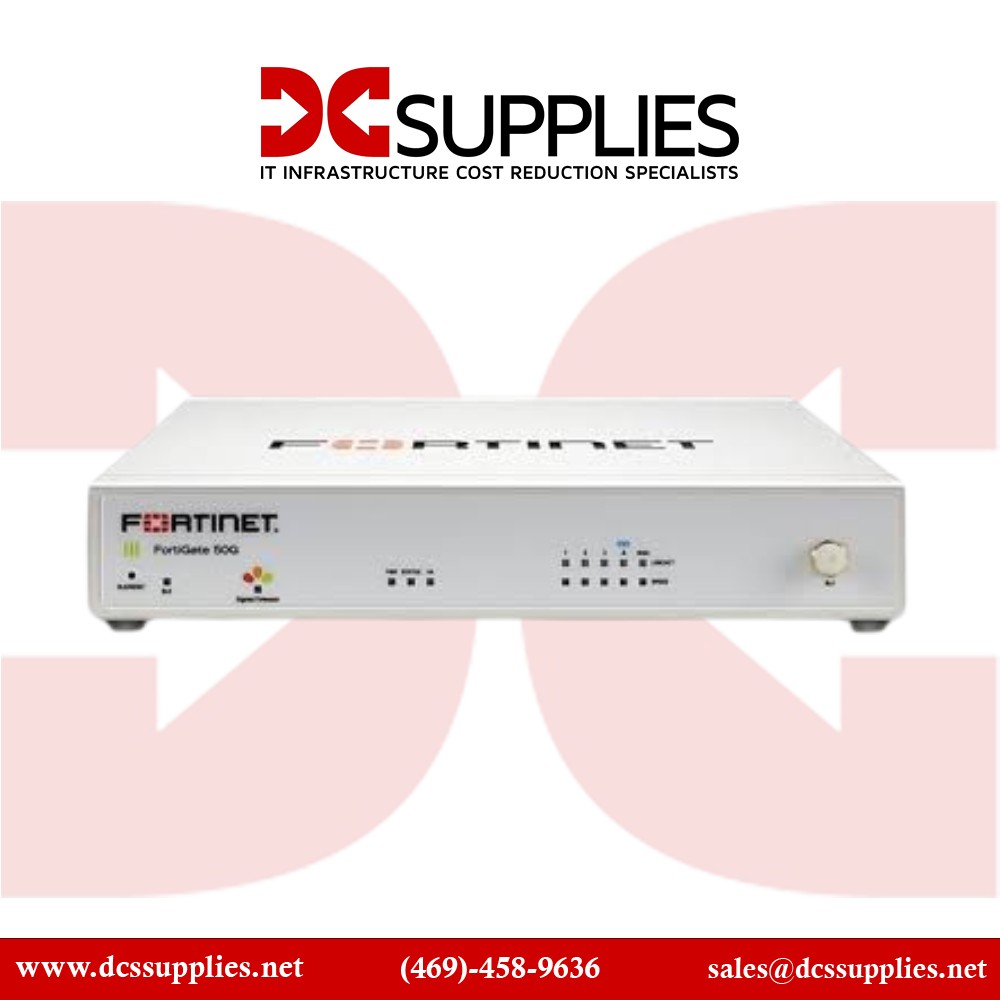

Fortinet FG-50G cloud managed security firewall appliance

Fortinet FG-50G

Managed Hardware Firewall Appliance - Next-Generation Firewall with SD-WAN

The Fortinet FG-50G is a next-generation firewall (NGFW) appliance designed for small to medium-sized businesses and distributed branch deployments, offering integrated SD-WAN and advanced AI-driven threat protection. It delivers enterprise-grade network security in a compact, fanless desktop form factor.

Features :

The FG-50G functions as a converged NGFW and SD-WAN device, powered by FortiOS and Fortinet's proprietary SD-WAN ASIC to provide high throughput with low latency and energy efficiency. It integrates tightly with the Fortinet Security Fabric and FortiGuard services to automate and optimize security across networks. This appliance is ideal for branch offices, remote sites, and small businesses needing real-time threat mitigation, intrusion prevention, SSL inspection, VPN, application and URL filtering.

Advanced Options :

Powered by the FortiASIC SP5 and SoC SOC4 architecture, the FG-50G delivers high performance across firewall, IPS, NGFW, IPsec VPN, and SSL inspection×without the power draw of traditional CPU-based devices. With desktop-friendly dimensions, the unit is silent (fanless) and versatile for wall or rack mounting×ideal for quiet offices or constrained network spaces. The appliance can be managed centrally via FortiCloud, FortiManager, or FortiAnalyzer for streamlined deployment and updates.

Product Key Features

• Gigabit firewall with SD-WAN acceleration and NGFW
• FortiGuard AI-powered threat protection services
• Fanless, compact, and energy-efficient desktop form factor
• High throughput: up to 5 Gbps firewall and 4.5 Gbps IPsec VPN
• Cloud-managed (FortiCloud, FortiManager, FortiAnalyzer)

---

Reliability & Performance :

Engineered for durability and compatibility, the FG-50G includes a Trusted Platform Module (TPM), Bluetooth Low Energy (BLE), and regulatory certifications (FCC, CE, UL, cUL, CB, USGv6). Its fanless design ensures silent, maintenance-free operation, while its energy-efficient architecture consumes just ~8-9 W. The integrated ASIC ensures consistent and efficient processing across security functions, while support for Fortinet's cloud-managed ecosystem ensures streamlined deployment, updates, and high-availability clustering.

Key Features :

• Gigabit-class firewall, IPS, NGFW, VPN, SSL inspection
• Integrated SD-WAN with ASIC acceleration
• FortiGuard AI-powered threat protection
• Compact, fanless desktop design
• Cloud-managed (FortiCloud, FortiManager, FortiAnalyzer)

Specifications :

Specification	Details
Model Number	FG-50G
Product Type	Managed Hardware SecurityFirewall Appliance (NGFW, SD-WAN)
Firewall Throughput	Up to 5 Gbps
IPS Throughput	Up to 2.25 Gbps
NGFW Throughput	Up to 1.25 Gbps
IPsec VPN Throughput	Up to 4.5 Gbps
SSL Inspection Throughput	Up to 1.3 Gbps
Concurrent TCP Sessions	720,000
New Sessions per Second	85,000

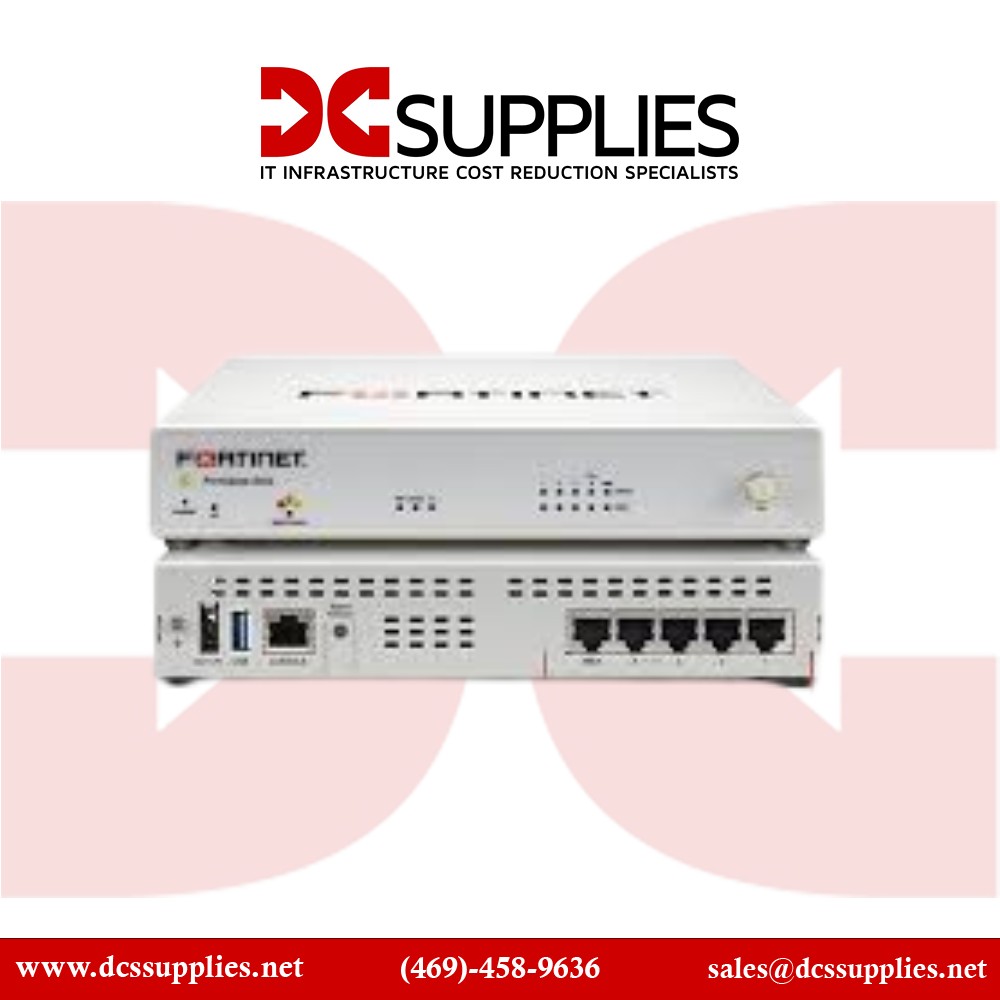

Ports	5× 1 GbE RJ45 (1 WAN, 3 LAN, 1 FortiLink), USB, Console
Form Factor	Fanless desktop (rack/wall mountable)
Power Consumption	~8.3 W average, ~8.9 W max
Dimensions (H×W×D)	1.6″ × 8.5″ × 6.3″ (40.5 × 216 × 160 mm)
Weight	~2.2 lbs (1 kg)
Additional Features	TPM, BLE, FortiASIC SP5, FortiGuard services, cloud-managed
Certifications	FCC, CE, UL/cUL, CB, USGv6
