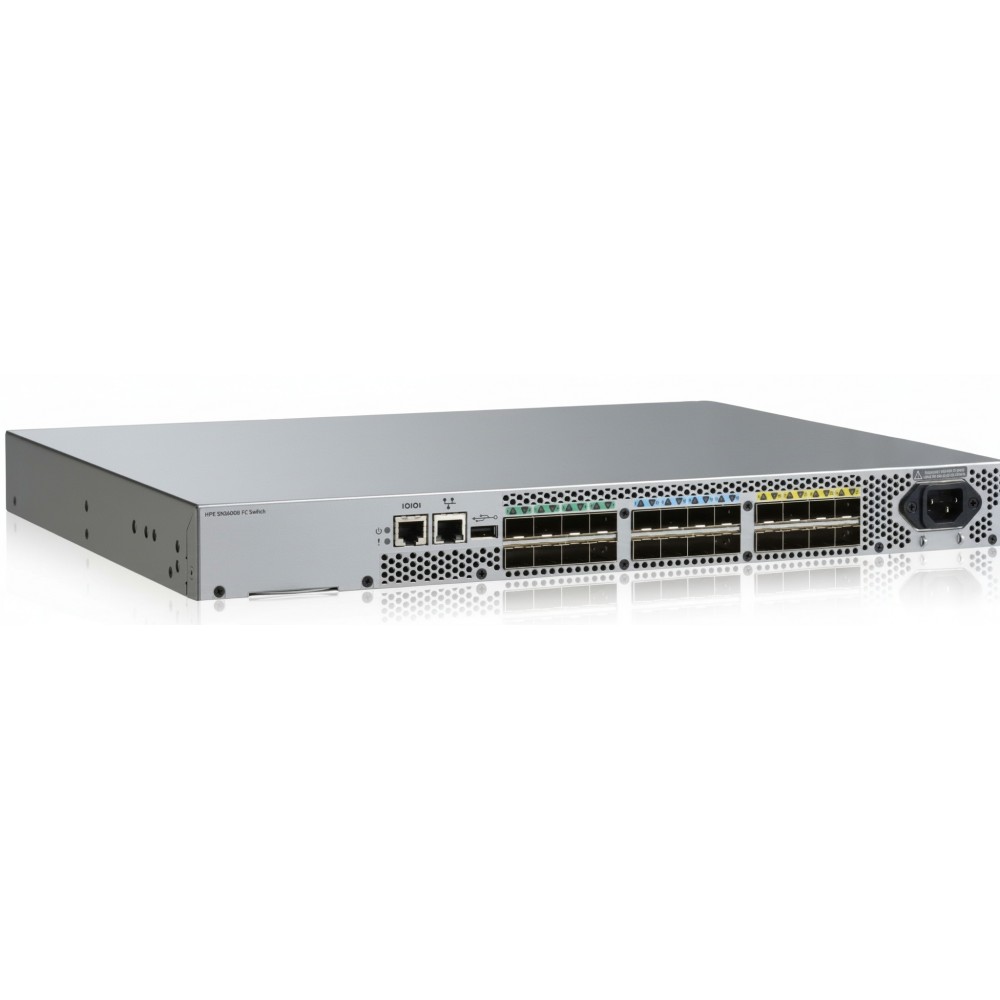

HPE Q1H70A Sn3600B 32Gb 24/8 Fibre Channel SAN Switch View larger

HPE Q1H70A SN3600B 32Gb 24/8 Fibre Channel SAN Switch

New

Entry‑level 32 Gb Fibre‑Channel Switch with 8 active ports
×




  • New

Detailed Specifications

HPE Q1H70A StoreFabric SN3600B 32 Gb Fibre Channel Switch

Overview

The HPE Q1H70A is a 1 RU rack‑mount Fibre Channel switch targeted at storage network engineers deploying Gen6 (32 Gbps) SAN fabrics who want a cost‑effective entry configuration with room to scale. It ships with 8 active 32 Gb Fibre Channel SFP+ ports and supports up to 24 physical ports (via Ports‑on‑Demand licensing increments) in the same chassis, enabling incremental growth in SAN connectivity. It is built for deployment in data‑centre storage racks, SAN edges and array‑to‑server fabrics, offering low latency (< 900 ns) cut‑through switching, and supports backward compatibility to 16 Gb and 8 Gb Fibre Channel links. The switch integrates with HPE’s StoreFabric B‑Series fibre‑channel ecosystem, enabling unified management, zoning, diagnostics and future‑proof migration paths.

Key Features

  • 8 × 32 Gbps Fibre Channel ports enabled, up to 24 physical ports supported

  • Supports auto‑sensing 8/16/32 Gb fibre‑channel speeds for migration flexibility

  • Ports‑on‑Demand licensing allows scaling without chassis replacement

  • Low latency switching (less than 900 ns) for flash‑ready storage fabrics

  • 1 RU form factor designed for SAN edge or rack‑mount consolidation

Technical Specifications

SpecificationValue
Brand HPE
Part Number Q1H70A
Product Type StoreFabric SN3600B 32 Gb Fibre Channel Switch
Fibre Channel Speed 32 Gbps per port (supports 16/8 Gbps backward)
Active Port Count 8 ports enabled out of 24 physical ports
Physical Port Count Up to 24 via PoD increments
Aggregate Bandwidth 768 Gbps full‑duplex
Maximum Frame Size 2,112 bytes (payload)
Port‑to‑Port Latency Less than approx. 900 ns
Form Factor (H × W × D) 1.70 in × 17.23 in × 17.45 in
Operating Temperature 0 °C to 40 °C
Non‑Operating Temperature –25 °C to 70 °C
License Option Ports‑on‑Demand to scale active ports
Compatible Fibre Optics 32 Gb, 16 Gb and 8 Gb SFP+ (LC)
