Detailed Specifications
Eaton 2POSTRMKITWM 2-Post Rack/Wall Mount Kit for 2U UPS
Overview :
The Eaton 2POSTRMKITWM is a hardware installation accessory for mounting select rackmount UPS systems and external battery modules in non-standard rack environments. It is used by data center technicians, network infrastructure installers, and facilities engineers who need to install UPS units in two-post rack frames or directly on walls where traditional four-post rack rails are unavailable. The kit solves the challenge of secure physical installation for select 2U UPS systems when a full four-post rack isn't present.

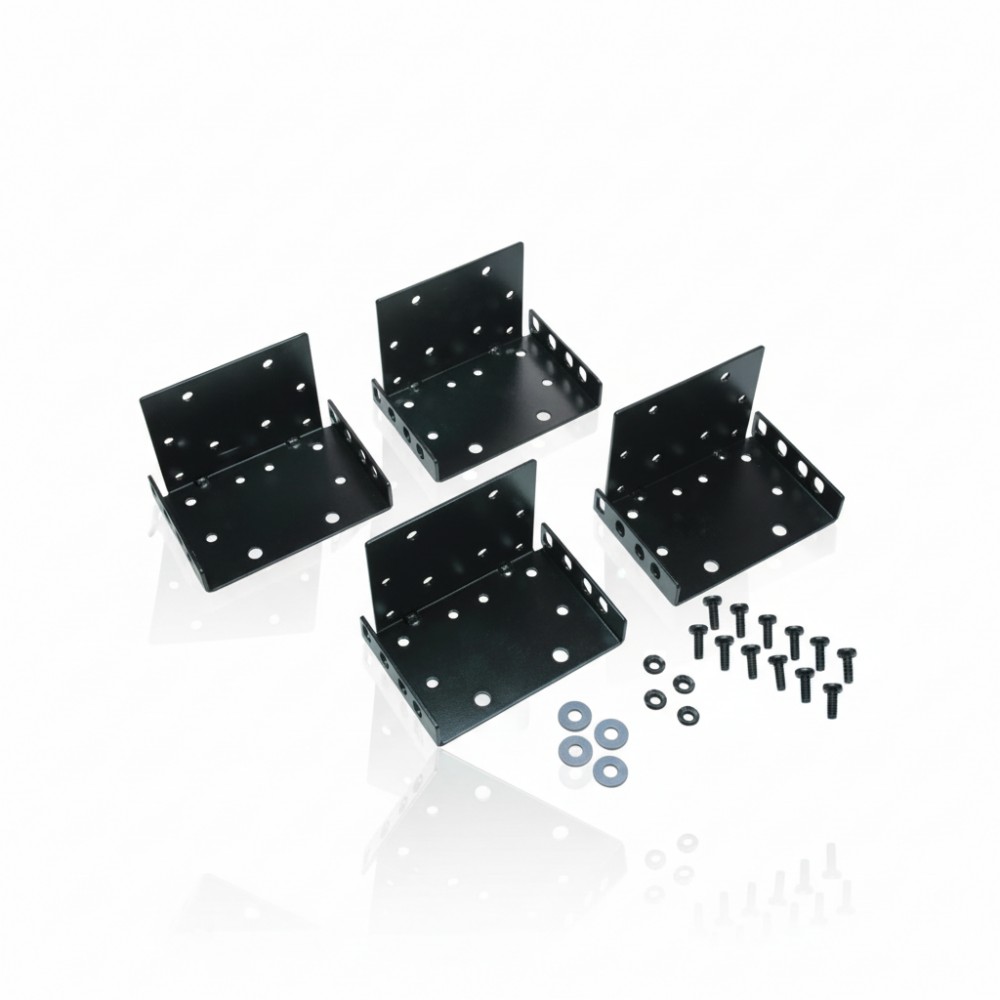

This kit consists of steel mounting brackets engineered to support a single rackmount UPS or battery pack with a maximum load capacity of ~150 lb (68 kg). It enables the UPS to be supported from the front posts or wall surface, translating a standard 2U rackmount footprint to 2-post or wall attachment points without custom fabrication.
Mechanically, the adapter brackets interface with vertical rack posts or wall mount anchors; they are sized for compatibility with Eaton/Tripp Lite SmartPro and SmartOnline 2U UPS systems and certain external battery modules. Typical installations are in network closets, light-duty racks, telco frames, or utility rooms where floor space is constrained but conditioned AC power protection is still required to support IT infrastructure.
Integration focuses on physical support only × the 2POSTRMKITWM does not provide any electrical, network, or environmental monitoring capabilities. It simply adapts rackmount UPS hardware for mounting form factors that don't have rear rack rails. This accessory is not suitable for weight-intensive equipment beyond its rated load or for racks without compatible vertical rail spacing.
A practical deployment is installing an Eaton/Tripp Lite 2U UPS in a minimalist two-post rack feeding networking equipment in a small IDF closet. It also enables wall mounting of the UPS in branch offices where rack infrastructure is absent. This kit should not be used as a universal mount for unrelated 2U devices without verifying weight and rail alignment.
Key Features
- Adapter brackets for 2-post rackmount or wallmount installation
- Supports select Eaton/Tripp Lite 2U UPS systems and battery packs
- Steel construction with black finish for structural support
- Rated for ~150 lb (68 kg) maximum supported load
- Includes mounting hardware for UPS and battery pack install
Technical Specifications
| Specification | Detail |
|---|
| Brand | Eaton |
| Part Number | 2POSTRMKITWM |
| Product Type | 2-Post Rack/Wall Mount Kit |
| Supported Devices | Select Eaton/Tripp Lite 2U UPS & battery packs |
| Mounting Options | 2-post rackmount, wallmount |
| Maximum Load Capacity | ~150 lb (68 kg) |
| Construction Material | Steel |
| Finish | Black |
| Rack Height Support | 2U standard (front posts) |
| Dimensions (approx) | ~2.6″ × 2.6″ × 3.9″ (bracket unit) |
| Weight | ~2.0 lb |
| Included Hardware | Mounting brackets, screws |
| Compatibility Notes | Vertical rail depth >4″ for some installs |
| Warranty | Limited lifetime |
| Compliance | RoHS compliant |
