Detailed Specifications

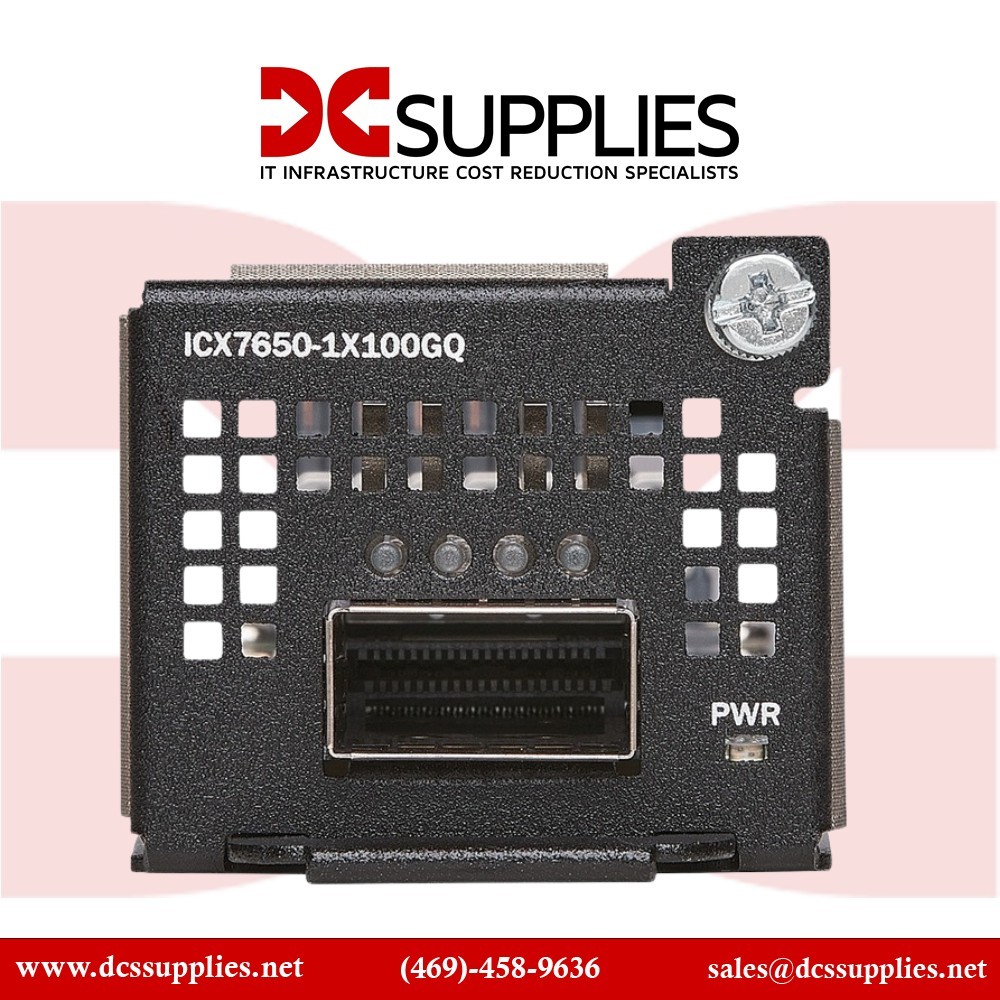

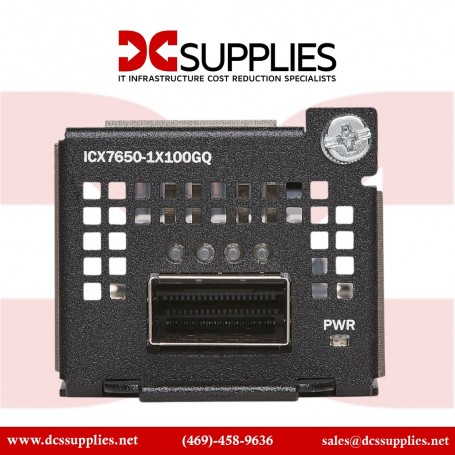

Ruckus ICX7650-1X100GQ – 100GbE QSFP28 Expansion Module
Overview :
The Ruckus ICX7650-1X100GQ is a high-performance 100 Gigabit Ethernet (GbE) QSFP28 expansion module designed for the Ruckus ICX 7650 series switches. This module provides a single 100GbE port, enabling rapid data transfer and scalability for modern networking demands. It supports both 100GBase-X and 40GBase-X standards, offering flexibility in network architecture and performance optimization. Ideal for data centers and enterprise networks requiring high bandwidth and reliability, the ICX7650-1X100GQ ensures efficient handling of data-intensive applications. Its seamless integration with the ICX 7650 series allows for enhanced uplink capabilities, facilitating high-speed connectivity and future-proofing network infrastructures. This module is particularly beneficial for environments where high throughput and low latency are critical, such as in high-performance computing, cloud services, and large-scale data aggregation scenarios.
Key Features :
High-Speed Connectivity: Supports 100GbE QSFP28 for rapid data transfer.
Flexible Standards Support: Compatible with both 100GBase-X and 40GBase-X standards.
Seamless Integration: Designed for easy installation into ICX 7650 series switches.
Enhanced Scalability: Enables future-proofing of network infrastructures.
Low Latency: Optimized for high-performance applications requiring minimal delay.
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | ICX7650-1X100GQ |
| Product Type | 100GbE QSFP28 Expansion Module |
| Port Type | QSFP28 |
| Data Rate | 100 Gbps |
| Standards Supported | 100GBase-X, 40GBase-X |
| Compatibility | Ruckus ICX 7650 Series Switches |
| Form Factor | Plug-in Module |
| Power Consumption | Typical: 5.64 W; Maximum: 7.38 W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 10% to 90% (non-condensing) |
| Dimensions (H x W x D) | 0.5 x 2.2 x 7.5 inches |
| Weight | 0.2 lbs |
| Warranty | 1 Year |
