Detailed Specifications

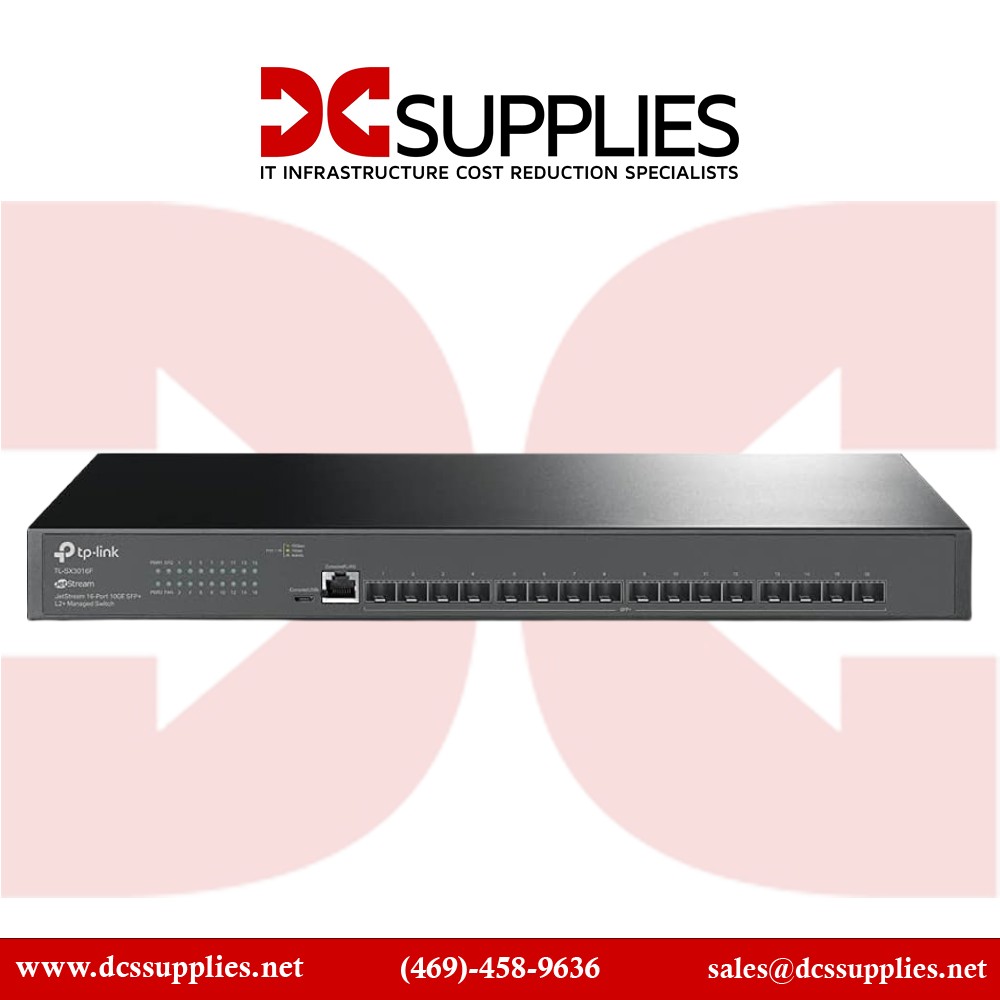

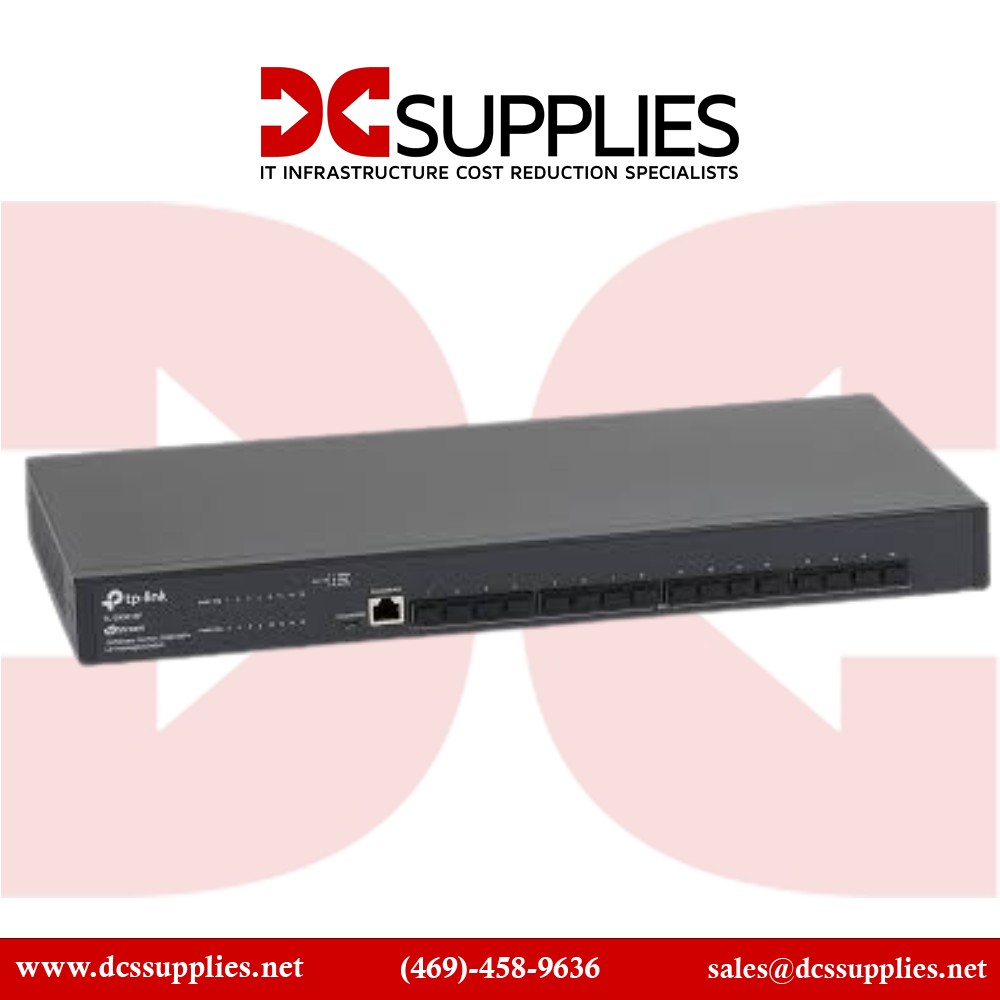

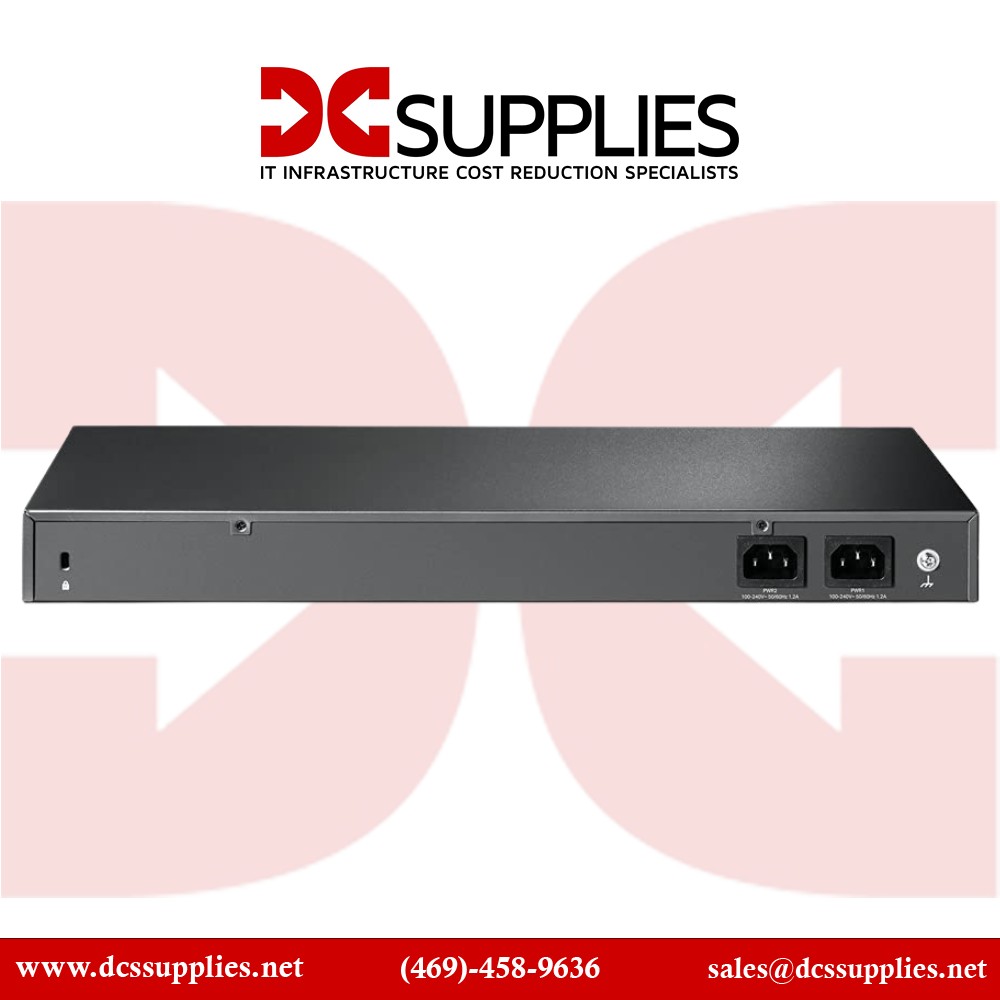

Enterprise-grade networking with blazing-fast 10G fiber connections. The TP-Link TL-SX3016F delivers robust Layer 2+/3 Lite management, high-speed switching, and advanced security×ideal for data centers, business backbones, and scalable network infrastructures.
Enterprise-Level Performance and Scalability :
Designed to power growing business networks, the TL-SX3016F features 16 SFP+ 10Gbps ports and a massive 320 Gb/s switching capacity. From high-performance servers to bandwidth-heavy workgroups, this managed switch ensures ultra-low latency and uninterrupted throughput even during peak loads. Its static routing, QoS, and IGMP snooping functionalities allow IT teams to prioritize critical traffic and segment networks efficiently.
Advanced Management and Reliability :
The switch offers flexible management options via an intuitive web interface or a powerful command-line interface (CLI). Supporting SNMP, RMON, and Syslog protocols, the TL-SX3016F provides real-time network insights, making monitoring and troubleshooting simple. Its durable, rack-mountable chassis fits standard 19-inch racks, while the energy-efficient design keeps power usage to a minimum without compromising on performance.
Product Key Features
- 16 x 10Gbps SFP+ fiber ports for high-speed fiber connectivity
- 320 Gb/s switching capacity ensures lightning-fast data transfer
- Advanced Layer 2 & Layer 2+ support including Static Routing, IGMP, Link Aggregation
- Flexible management: Web GUI, CLI, SNMP, and RMON protocols
- Enterprise-grade security and access control capabilities
- Energy-efficient design compliant with green IT standards
- Rack-mountable form factor with durable metal housing
Technical Specifications :
| Specification | Details |
|---|
| Model Number | TL-SX3016F |
| Ports | 16 x SFP+ (10Gbps) Fiber Ports |
| Switching Capacity | 320 Gbps |
| Forwarding Mode | Store-and-Forward |
| Layer 2 Features | Static Routing, IGMP Snooping, QoS, Link Aggregation |
| VLAN Support | Yes, up to 4K VLANs |
| Management | Web GUI, CLI, SNMP, RMON |
| Power Consumption | Approx. 50W |
| Dimensions | 440 x 250 x 44 mm |
| Weight | 3.5 kg |
| Operating Temperature | 0°C to 40°C |
