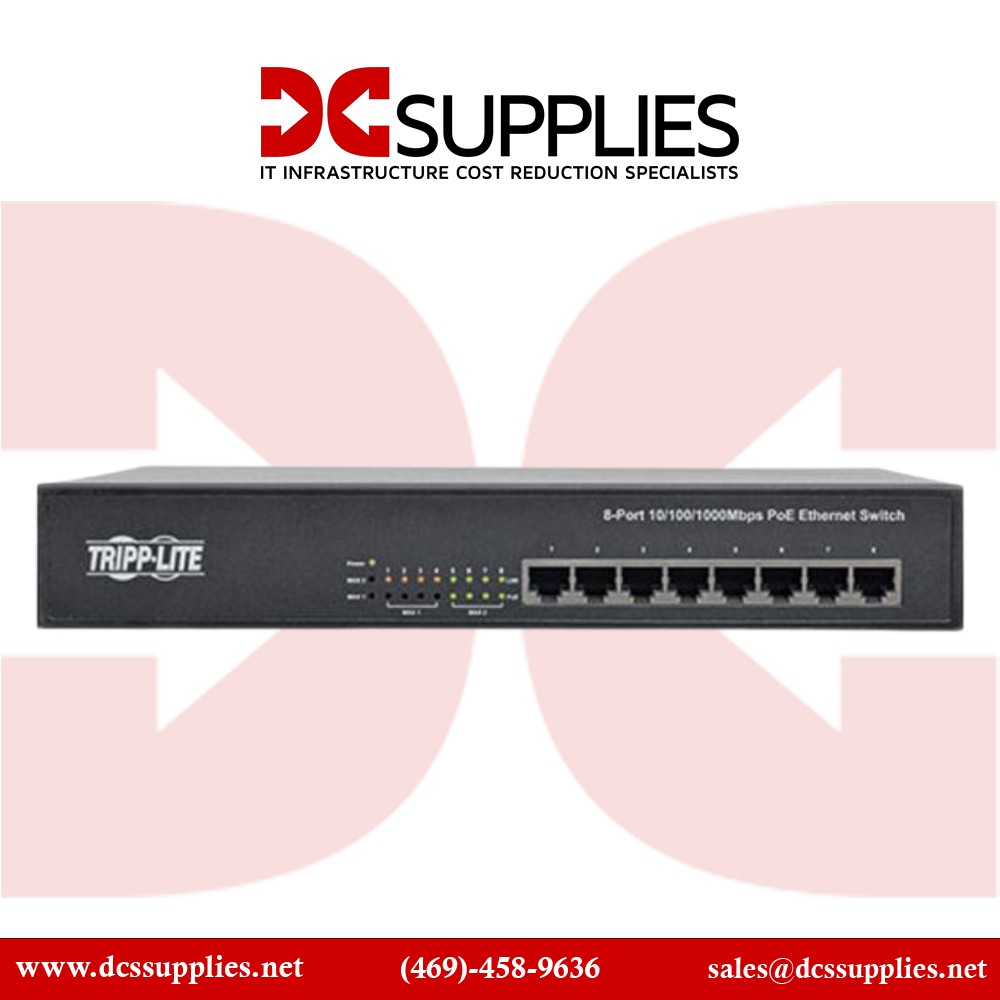

Tripp Lite NG8POE 8-Port Rack-Mount Desktop Gigabit Ethernet Unmanaged Switch

Tripp Lite NG8POE

8-Port Rack-Mount Desktop GigabitUnmanagedSwitch

The Tripp Lite NG8POE 8-Port Rack-Mount/Desktop GigabitEthernetUnmanagedSwitch provides high-speed networking with integrated Power over Ethernet (PoE+) support. Designed for small businesses, workgroups, and offices, it combines reliable Gigabit performance with the ability to power IP phones, wireless access points, security cameras, and other PoE -enabled devices directly through the Ethernet connection..

Product Overview :

This UnmanagedSwitch offers eight auto-negotiating Gigabit ports, all supporting PoE+ with a maximum power output of 30 watts per port and a shared power budget of up to 120 watts . By reducing the need for separate power adapters, the NG8POE simplifies installations and minimizes cabling requirements. Plug-and-play functionality ensures easy deployment with no software configuration required. Auto MDI/MDIX crossover detection further simplifies connectivity. With a switching capacity of **16 Gbps**, the NG8POE delivers smooth, high-performance communication across all connected devices.

Installation & Design :

Whether mounted in a rack or placed on a desktop, the NG8POE features a compact, fanless design that operates silently, making it well-suited for office, studio, or retail environments. Its energy-efficient operation complies with IEEE 802.3az standards, reducing power consumption during low network activity while maintaining uninterrupted connectivity..

Product Key Features

• **8x RJ45 10/100/1000 Mbps auto-negotiating ports
• **8 PoE+ ports** with up to **30W per port** power delivery
• **120W total PoE budget** for powering devices

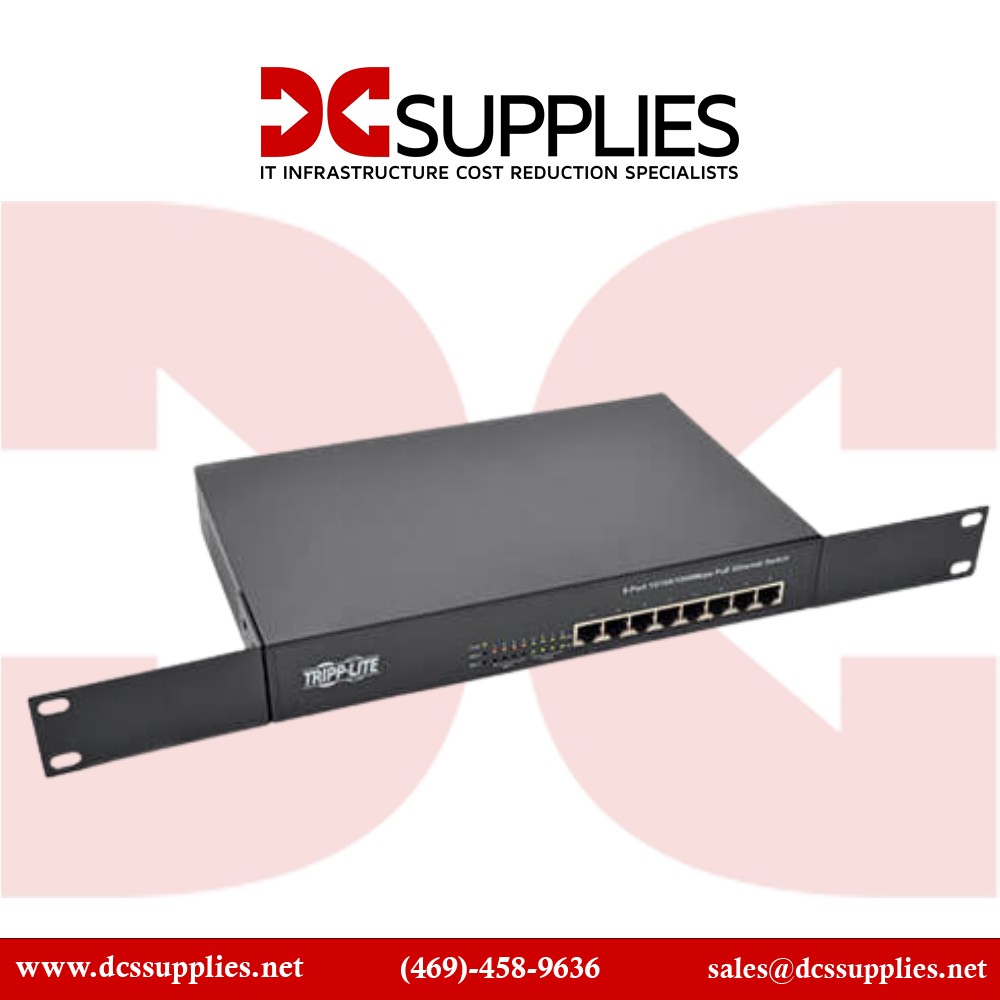

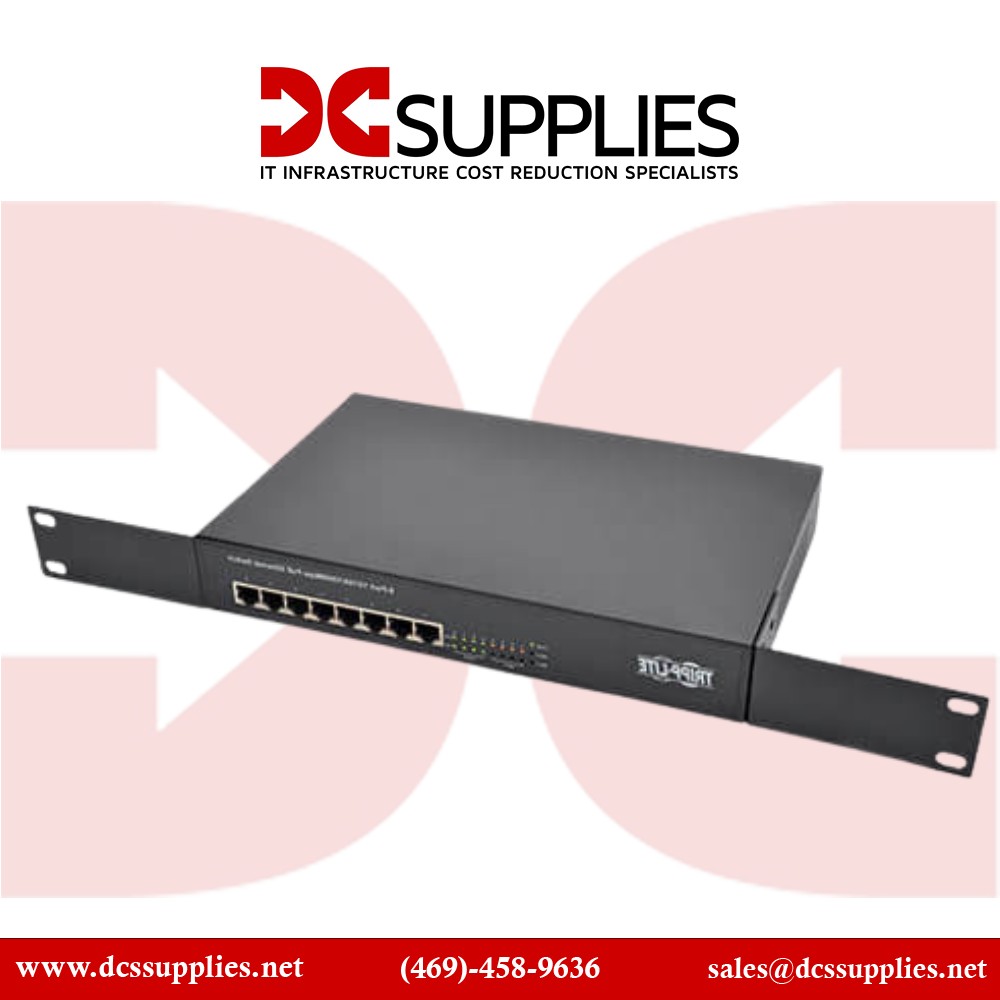

• Rack-mountable or desktop installation flexibility
• **Plug-and-play Unmanaged ** operation with **auto MDI/MDIX**
• **Fanless, silent design** for office environments

---

Reliable Performance with Integrated PoE :

The Tripp Lite NG8POE ensures consistent Gigabit connectivity while powering essential network devices via PoE +. Its fanless design guarantees silent operation, while the robust power budget makes it ideal for IP-based office environments. With IEEE standard compliance, auto-learning MAC address capability, and **jumbo frame support**, this switch delivers dependable performance for everyday networking and PoE deployments..

Key Features :

• **8x 10/100/1000 Mbps RJ45 ports with PoE+ support
• Delivers up to 30W per port, 120W total power budget**
• **16 Gbps switching capacity with jumbo frame support
• **Plug-and-play Unmanaged design , no configuration required
• Rack-mount or desktop installation options
• **Silent fanless operation** with energy-efficient technology

Technical Specifications :

Specification	Details
Model Number	NG8POE
Product Type	UnmanagedGigabitEthernetSwitch with PoE+
Number of Ports	8x RJ45 10/100/1000 Mbps
PoE Support	PoE+ (IEEE 802.3af/at), up to 30W per port
Total PoE Budget	120W
Switching Capacity	16 Gbps (2 Gbps per port full duplex)
Jumbo Frames	Up to 9,000 bytes
MAC Address Learning	Auto-learning and auto-aging
Cooling	Fanless
