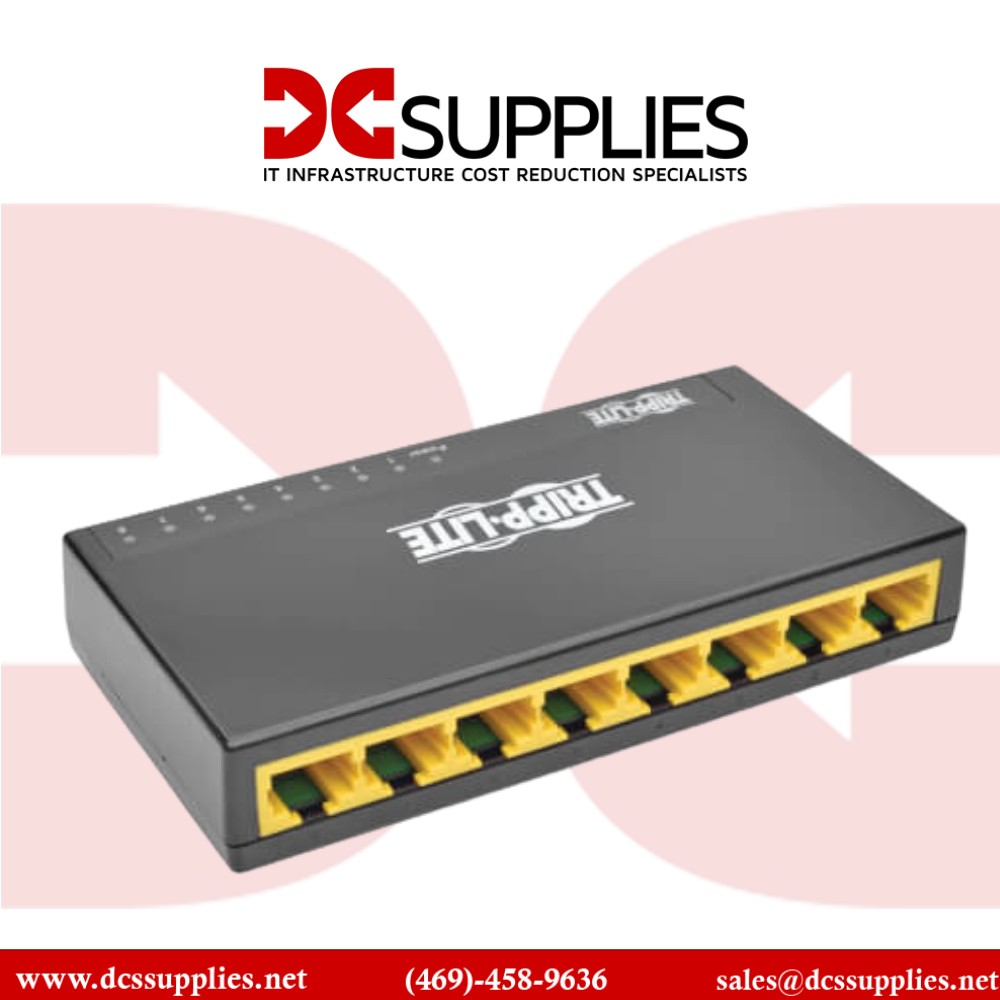

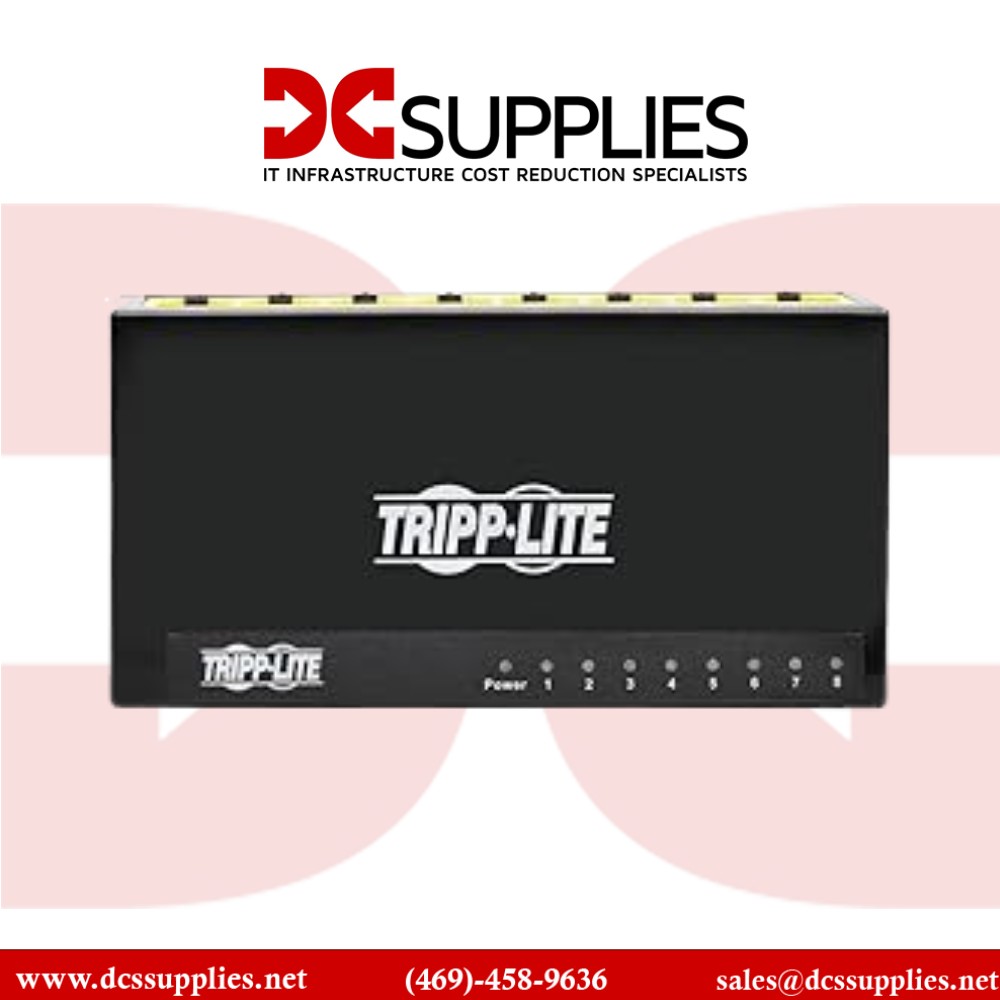

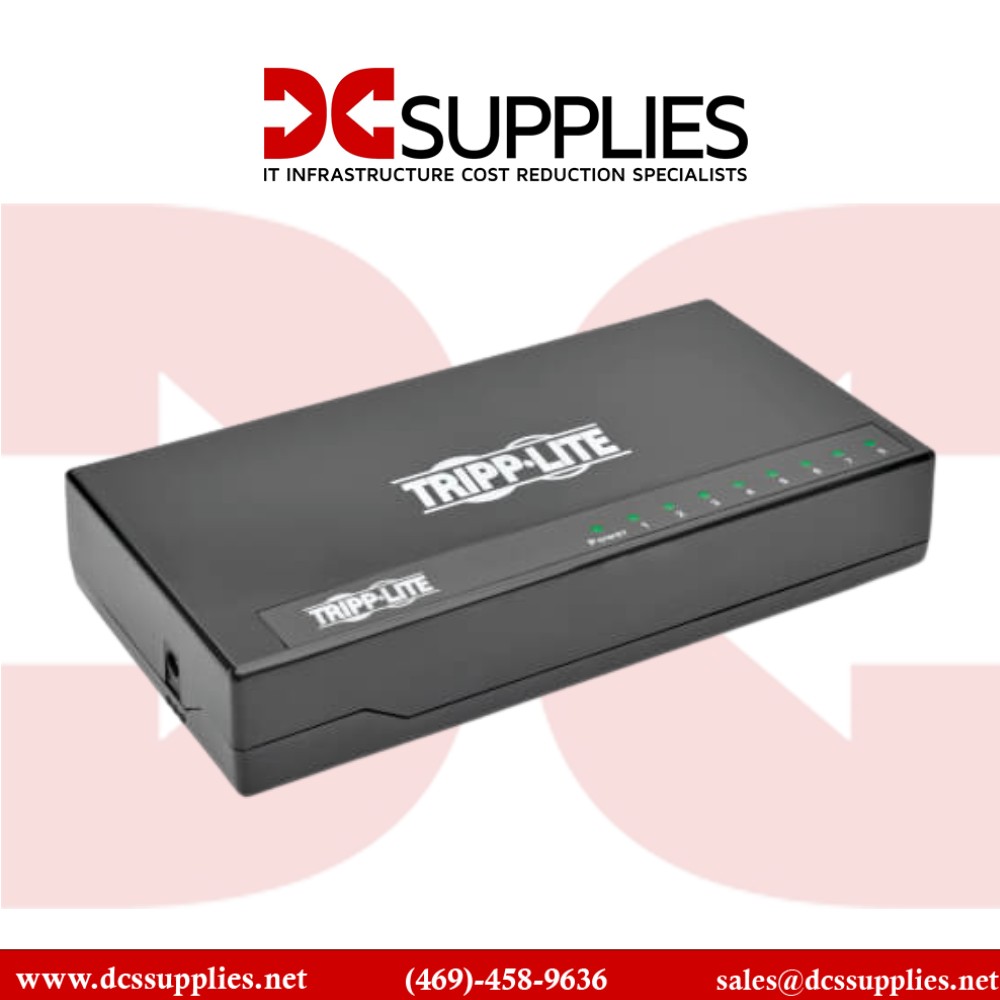

Tripp Lite NG8P 8-Port 10/100/1000 Mbps Desktop GbE Unmanaged Switch - Plastic Housing

TrippLite NG8P

8-Port Desktop Gigabit UnmanagedSwitch - Plastic Housing

The TrippLite NG8P 8-Port Desktop Gigabit Ethernet UnmanagedSwitch expands network capacity for small offices, home offices, workgroups, and creative environments. Offering true Gigabit performance, it enables smooth transfer of large files such as high-resolution graphics, CAD projects, and HD videos.

Expanded Overview :

With eight auto-negotiating Ports , the NG8P allows multiple devices×PCs, printers, storage drives, VoIP phones, and media systems×to connect simultaneously at Gigabit speeds. Its Unmanaged , plug-and-play design makes deployment simple, requiring no software configuration or advanced setup. Auto MDI/MDIX detection ensures seamless integration without crossover cables.

Built for efficiency, the NG8P delivers a switching capacity of 16 Gbps, ensuring reliable communication and minimal latency across all Ports. Jumbo frame support up to 9k bytes enhances throughput and network responsiveness for high-bandwidth applications.

Designed for modern environments, the NG8P features a lightweight plastic housing and silent, fanless operation. Its energy-efficient technology automatically reduces power consumption on inactive Ports , lowering costs while maintaining performance. This makes it an excellent solution for quiet office spaces, studios, and desktop networking setups.

Product Key Features

• 8x 10/100/1000 Mbps auto-negotiating RJ45 Ports
• 16 Gbps switching capacity with full duplex support
• Energy-efficient IEEE 802.3az compliant design
• Fanless operation with compact plastic housing
• Plug-and-play setup with auto MDI/MDIX detection
• Supports jumbo frames up to 9,000 bytes

---

Reliability & Performance :

The TrippLite NG8P provides the right balance of speed, efficiency, and affordability in a compact desktop form factor. Its fanless plastic housing ensures quiet operation, while compliance with IEEE networking standards guarantees broad device compatibility. Whether used in a home office or a small business network, the NG8P delivers dependable Gigabit connectivity for daily operations.

Key Features :

• 8x RJ45 Gigabit Ethernet Ports with auto-negotiation
• 16 Gbps total switching capacity (2 Gbps per port full duplex)
• Plug-and-play Unmanaged design, no configuration needed
• Supports jumbo frames up to 9,000 bytes
• Energy-efficient IEEE 802.3az compliant operation
• Fanless plastic housing with silent desktop performance

Technical Specifications :

Specification	Details
Model Number	NG8P
Product Type	UnmanagedGigabitEthernetSwitch
Number of Ports	8x RJ45 10/100/1000 Mbps
Switching Capacity	16 Gbps (2 Gbps per port full duplex)
Jumbo Frames	Up to 9,000 bytes
Flow Control	IEEE 802.3x (full duplex), back pressure (half duplex)
MAC Address Learning	Auto-learning and auto-aging
Standards Compliance	IEEE 802.3i, 802.3u, 802.3ab, 802.3az
Power Supply	External 5V DC adapter (100-240V AC input)
Power Consumption	Approx. 1.5-2W (typical)
Indicators	Power LED, link/activity LEDs per port
Form Factor	Desktop
Housing Material	Plastic
Cooling	Fanless
