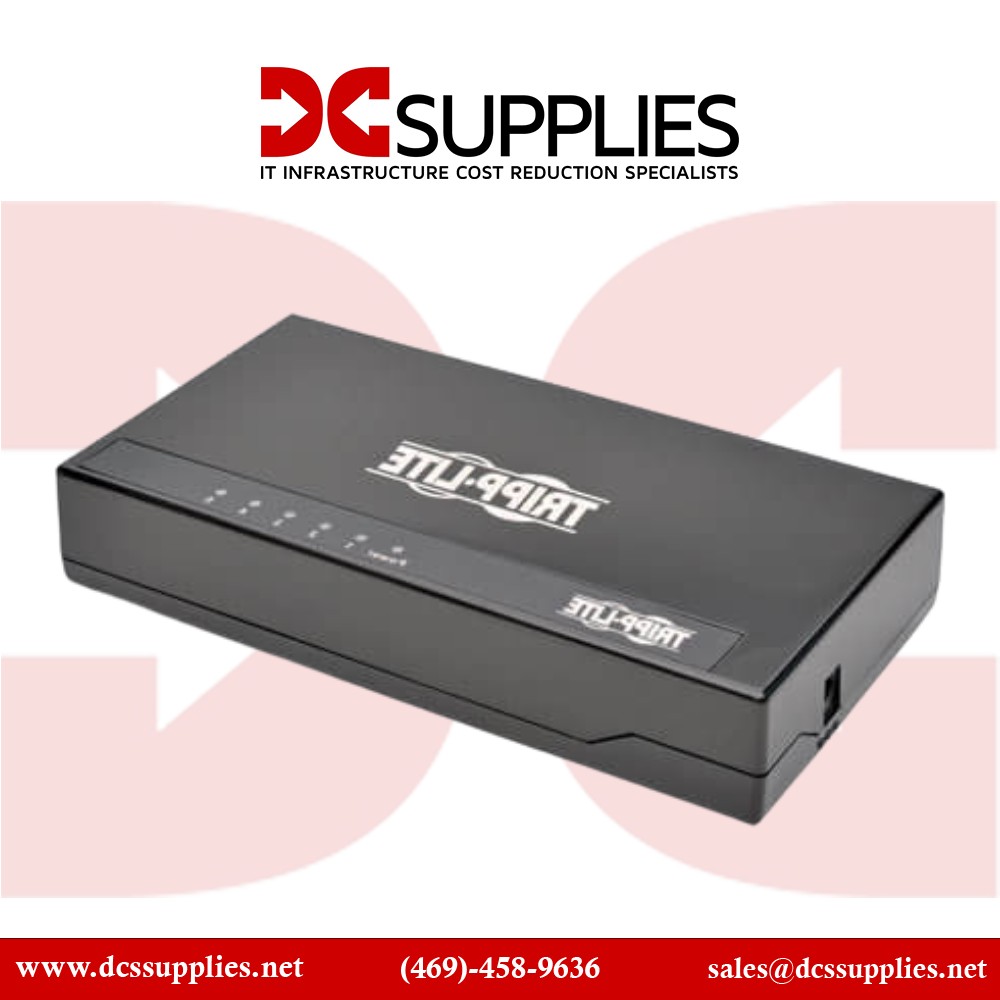

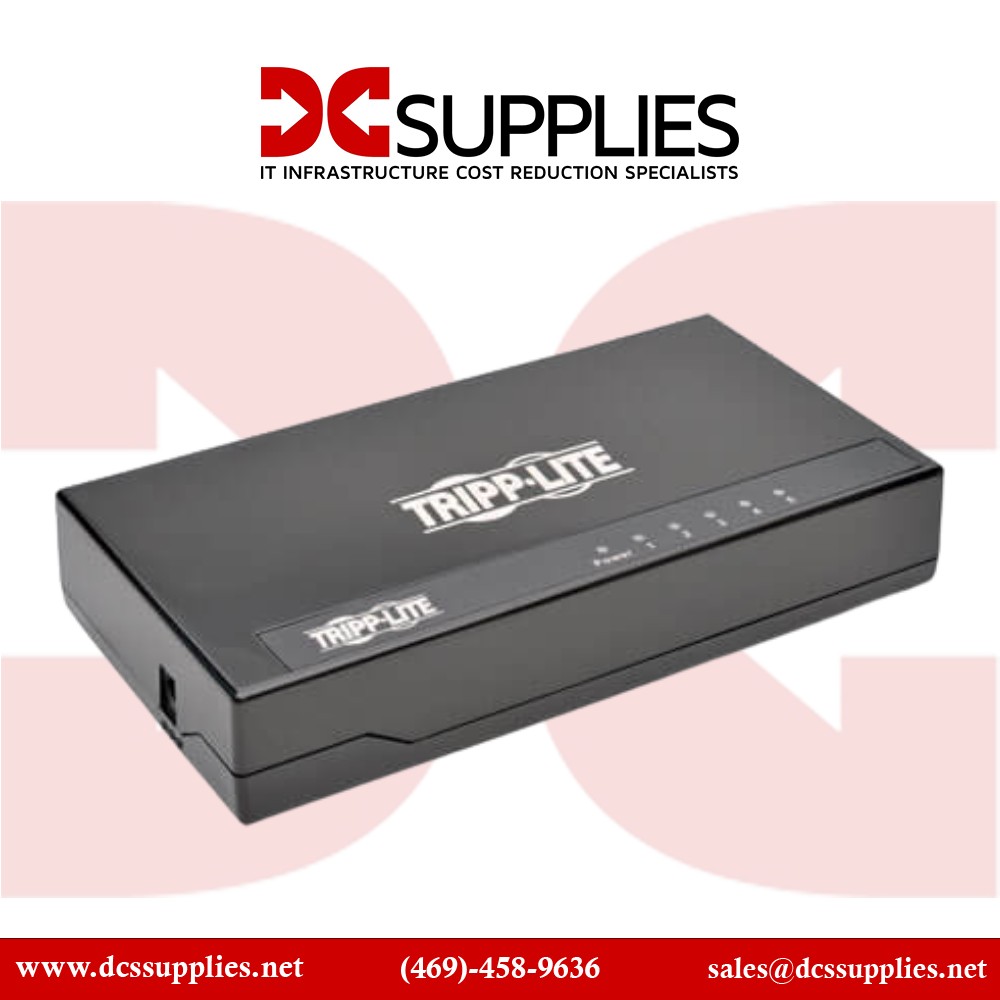

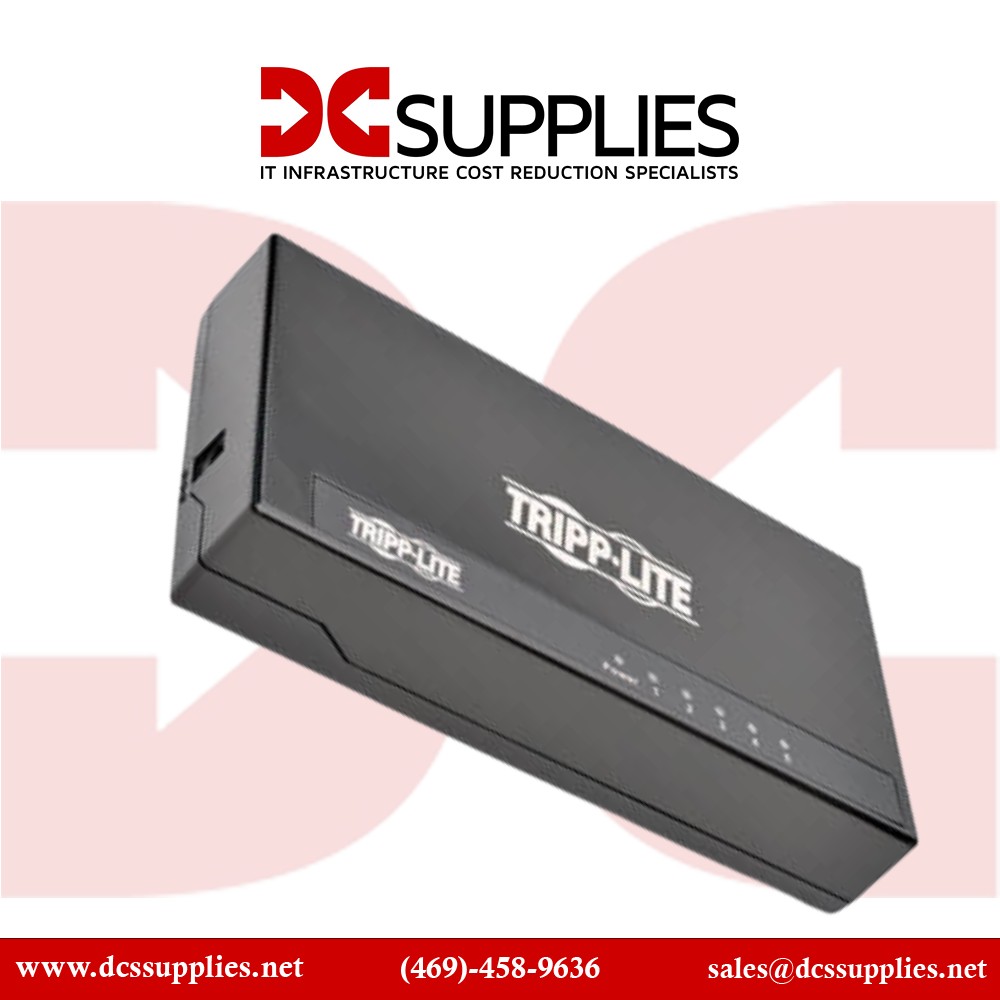

Tripp Lite NG5 5-Port 10/100/1000 Mbps Desktop GbE Unmanaged Switch - Metal Housing

Tripp Lite NG5

5-Port Desktop GigabitUnmanagedSwitch - Metal Housing

The Tripp Lite NG5 5-Port Desktop GigabitUnmanaged Ethernet Switch provides reliable, high-speed connectivity for home offices, small businesses, and workgroups. Designed to expand your network capacity, it delivers seamless Gigabit Ethernet speeds that make file sharing, multimedia streaming, and large data transfers fast and efficient.

Expanded Overview :

This compact desktop Switch offers five auto-negotiating RJ45 Ports supporting 10/100/1000 Mbps speeds. With plug-and-play convenience, the NG5 requires no configuration, making it easy to deploy in any environment. Auto MDI/MDIX detection eliminates the need for crossover cables, ensuring flexible device connectivity.

Built to handle demanding workloads, the NG5 provides a total Switching capacity of 10 Gbps with full duplex support, enabling smooth, lag-free communication across multiple devices. Support for jumbo frames up to 9k bytes enhances throughput for large file transfers and multimedia applications.

Encased in a durable metal housing, the NG5 is engineered for long-lasting use. It operates silently with a fanless design, making it ideal for noise-sensitive spaces such as offices, studios, and conference rooms. Its energy-efficient architecture, compliant with IEEE 802.3az standards, ensures minimal power consumption without sacrificing performance.

Product Key Features

• 5x 10/100/1000 Mbps auto-negotiating RJ45 Ports
• 10 Gbps Switching capacity with full duplex support
• Durable all-metal housing for long-term reliability
• Plug-and-play Unmanaged design with auto MDI/MDIX detection
• Energy-efficient operation with IEEE 802.3az support
• Fanless, silent desktop performance

---

Reliability & Performance :

The Tripp Lite NG5 combines efficiency, reliability, and durability in a compact Unmanaged switch. Its fanless metal housing provides a robust build, while energy-efficient technology minimizes power usage. With auto-learning MAC address support, jumbo frame capability, and compliance with key Ethernet standards, it ensures dependable Gigabit performance for everyday networking tasks.

Key Features :

• 5x Gigabit Ethernet RJ45 Ports with auto-negotiation
• 10 Gbps total Switching capacity (2 Gbps per Port full duplex)
• Rugged all-metal housing with fanless silent design
• Supports jumbo frames up to 9,000 bytes
• Energy-efficient IEEE 802.3az compliant operation
• Plug-and-play Unmanaged design with auto MDI/MDIX

Technical Specifications :

Specification	Details
Model Number	NG5
Product Type	UnmanagedGigabitEthernetSwitch
Number of Ports	5x RJ45 10/100/1000 Mbps
Switching Capacity	10 Gbps (2 Gbps per Port full duplex)
Jumbo Frames	Up to 9,000 bytes
Flow Control	IEEE 802.3x (full duplex), back pressure (half duplex)
MAC Address Learning	Auto-learning and auto-aging
Standards Compliance	IEEE 802.3i, 802.3u, 802.3ab, 802.3az
Power Supply	External 5V DC adapter (100-240V AC input)
Power Consumption	1 Watt (max)
Indicators	Power LED, link/activity LEDs per port
Form Factor	Desktop
Housing Material	Metal
Cooling	Fanless
