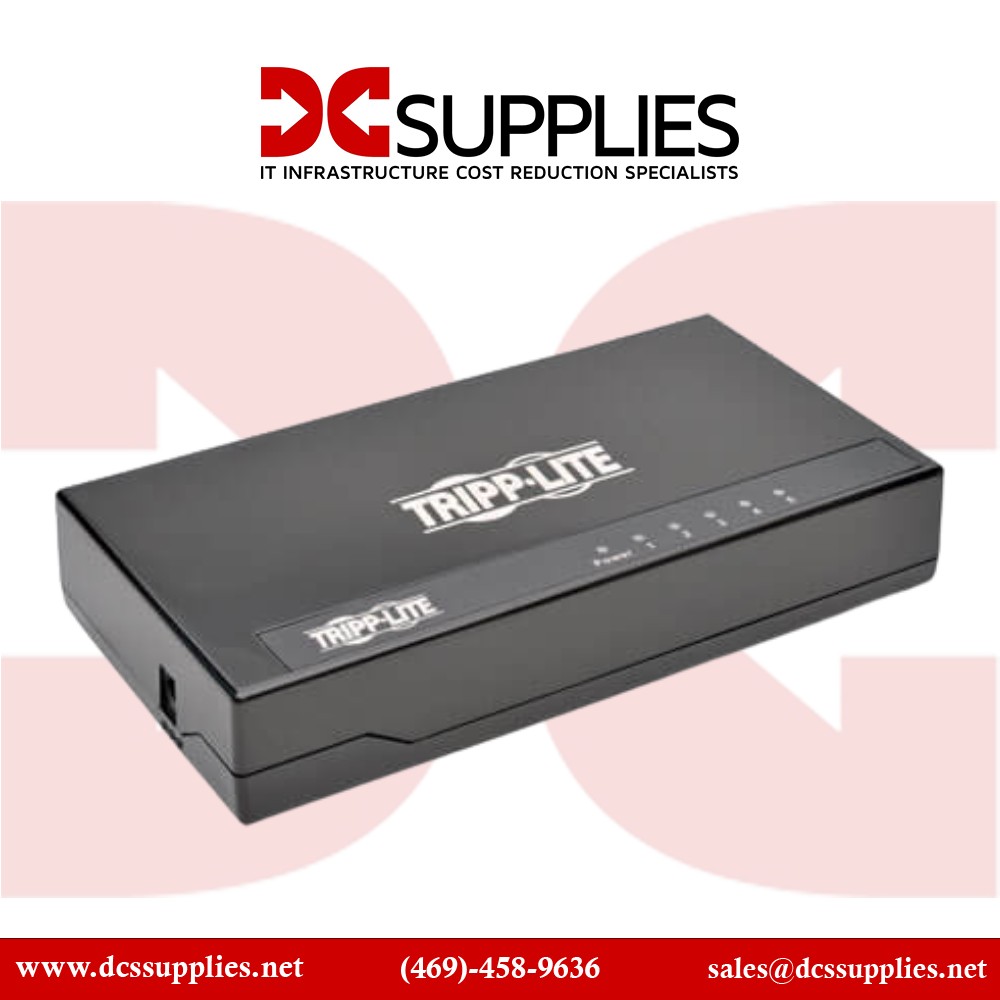

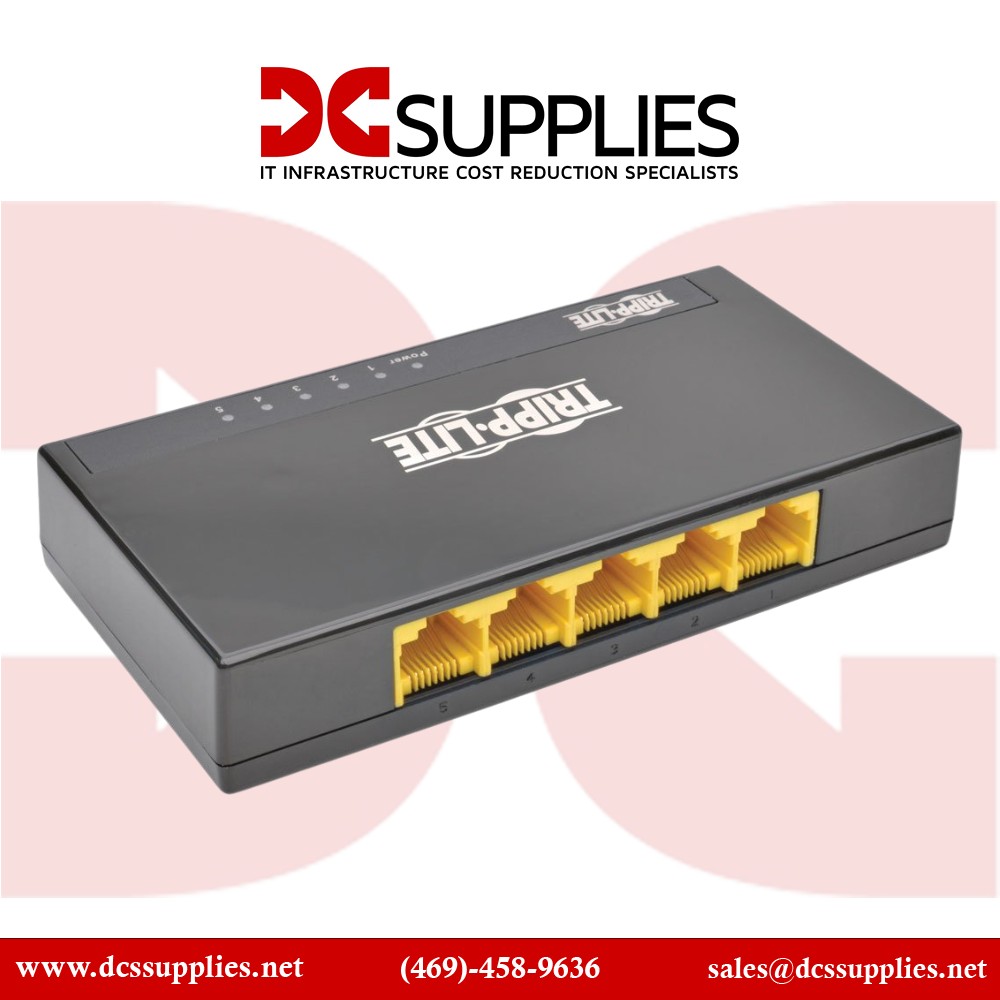

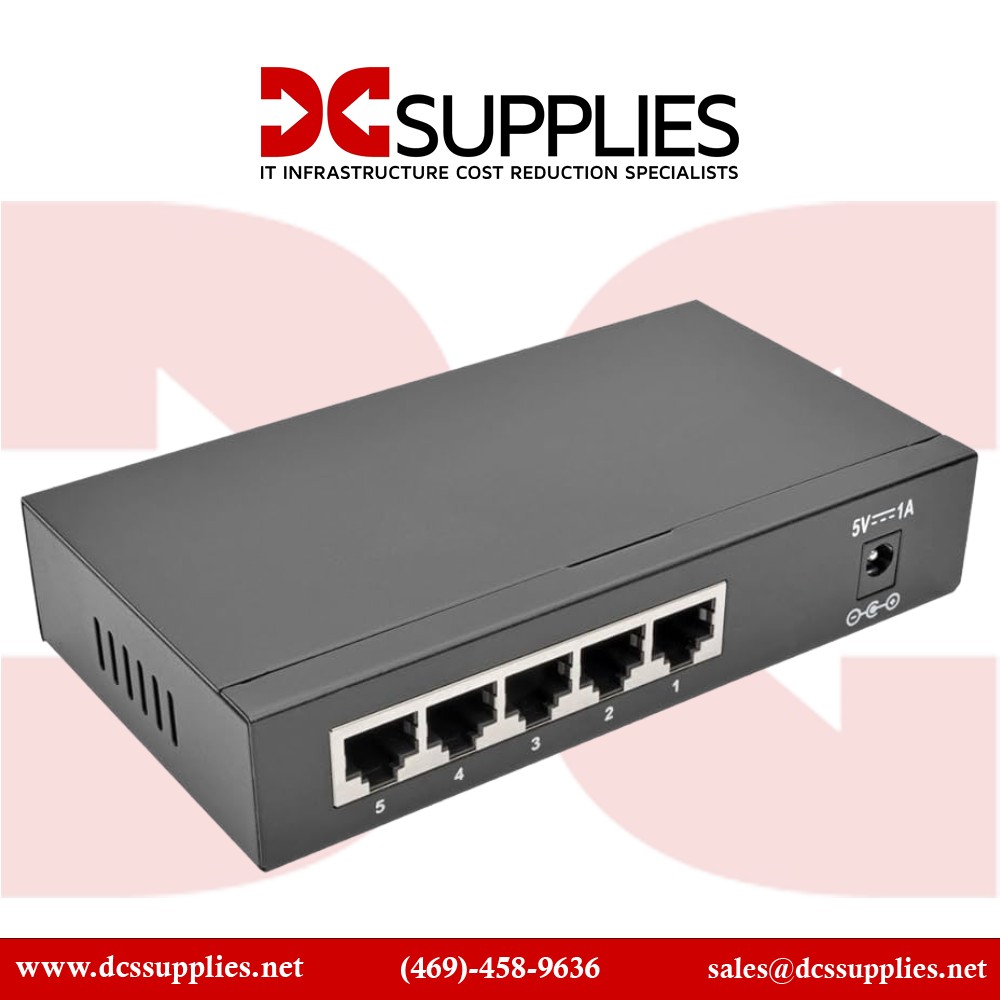

Tripp Lite NG5P 5-Port Desktop Unmanaged Ethernet Switch

New

5-Port Desktop GbE Unmanaged Switch with Plastic Housing
×




  • New

Detailed Specifications

Tripp Lite NG5P

5-Port Desktop Gigabit Unmanaged Ethernet Switch

The Tripp Lite NG5P 5-Port Desktop Gigabit Ethernet Switch is designed for home offices, small businesses, and workgroups that need reliable high-speed connectivity. With support for Gigabit speeds, it enables efficient sharing of bandwidth-intensive files such as CAD drawings, HD videos, and multimedia projects.

Expanded Overview :

Built for simplicity, the Unmanaged NG5P Switch offers plug-and-play installation with no configuration required. Just connect your devices and instantly expand your network capacity. Auto-negotiation and auto MDI/MDIX detection ensure seamless connectivity for PCs, printers, NAS devices, and VoIP phones.

This desktop Switch provides smooth, stable performance thanks to IEEE 802.3x flow control, which ensures uninterrupted transfer of large files across your network. Jumbo frame support up to 9k enhances throughput for applications requiring efficient data handling.

Compact and lightweight, the NG5P is energy-efficient, consuming just 1 watt of power while automatically reducing energy use on inactive Ports. Its fanless design ensures silent operation, making it an excellent fit for noise-sensitive environments such as offices, studios, and conference rooms.

Product Key Features

  • 5x RJ45 10/100/1000 Mbps auto-negotiating Ports
  • 10 Gbps Switching capacity with full duplex support
  • Energy-efficient IEEE 802.3az compliant design
  • Fanless, silent operation with durable plastic housing
  • Plug-and-play setup with auto MDI/MDIX detection

Reliability & Performance :

The Tripp Lite NG5P delivers reliable Gigabit performance with a total Switching capacity of 10 Gbps, allowing each port to support up to 2 Gbps in full duplex mode. Its energy-saving features, compliance with IEEE networking standards, and support for jumbo frames make it an ideal solution for both basic and advanced networking needs. Whether you are streaming video, transferring files, or managing multiple workstations, the NG5P ensures efficiency without downtime.

Key Features :

  • 5x 10/100/1000 Mbps RJ45 Ports
  • 10 Gbps Switching capacity (2 Gbps per port full duplex)
  • Supports IEEE 802.3x flow control and jumbo frames (9k)
  • Plug-and-play Unmanaged design, no configuration required
  • Energy-efficient IEEE 802.3az compliant
  • Fanless, silent desktop operation

Technical Specifications :

SpecificationDetails
Model Number NG5P
Product Type Unmanaged Gigabit Ethernet Switch
Number of Ports  5x RJ45 10/100/1000 Mbps
Switching Capacity 10 Gbps (2 Gbps per port full duplex)
Flow Control IEEE 802.3x (full duplex), back pressure (half duplex)
Jumbo Frames Up to 9,000 bytes
MAC Address Learning Auto-learning and auto-aging
Standards Compliance IEEE 802.3i, 802.3u, 802.3ab, 802.3az
Power Supply External 5V DC adapter (100–240V AC input)
Power Consumption 1 Watt (max)
Input Plug Type NEMA 1-15P with 5 ft. detachable cord
Indicators Power LED, link/activity LEDs per port
Form Factor Desktop, fanless
Material Plastic
Dimensions (H x W x D) 0.87 x 2.58 x 4.96 in (2.2 x 6.6 x 12.6 cm)
Weight 0.19 lbs (0.09 kg)
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -10° to 70°C (14° to 158°F)
Humidity 10%–90% non-condensing
