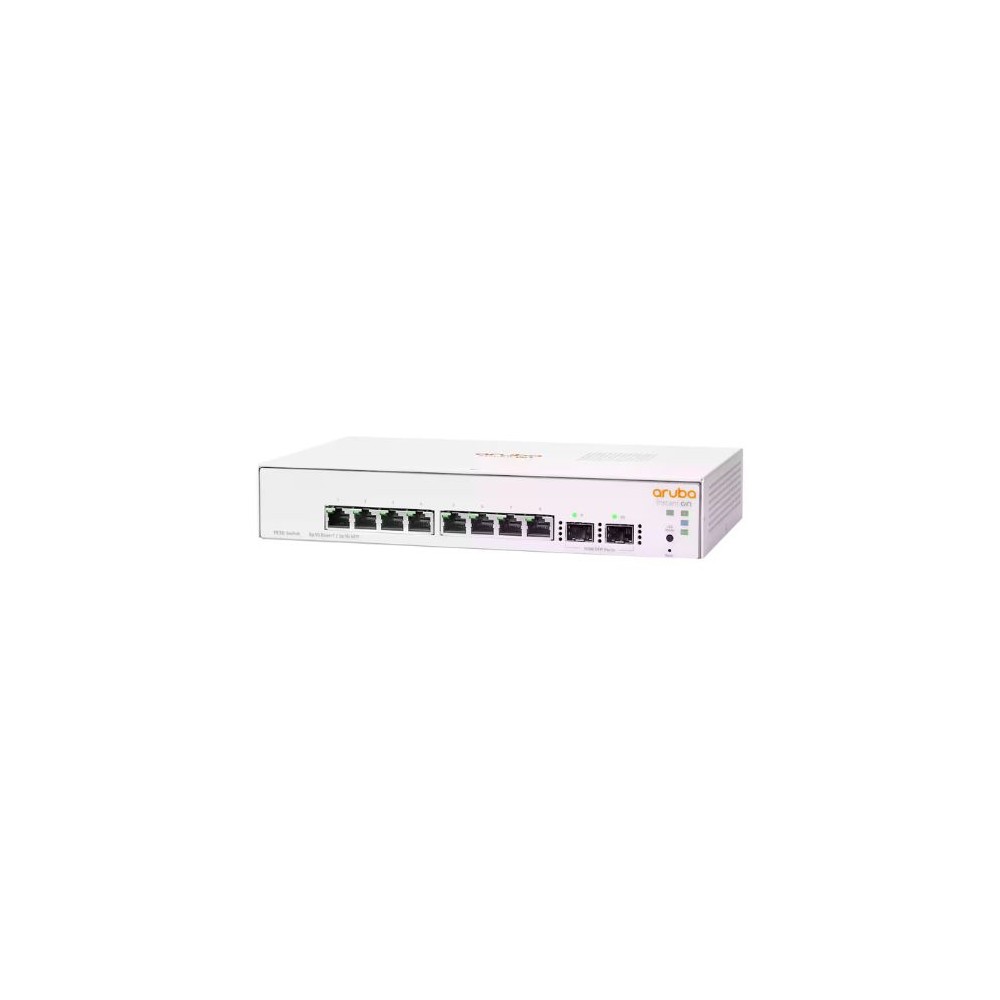

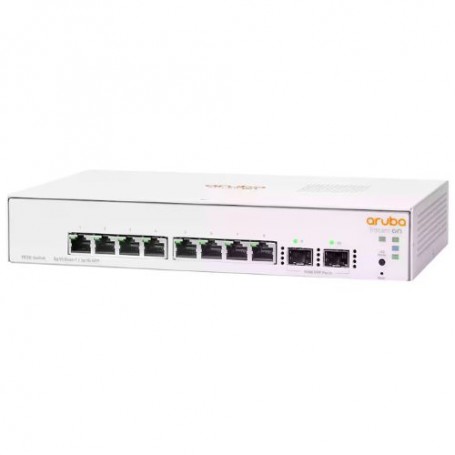

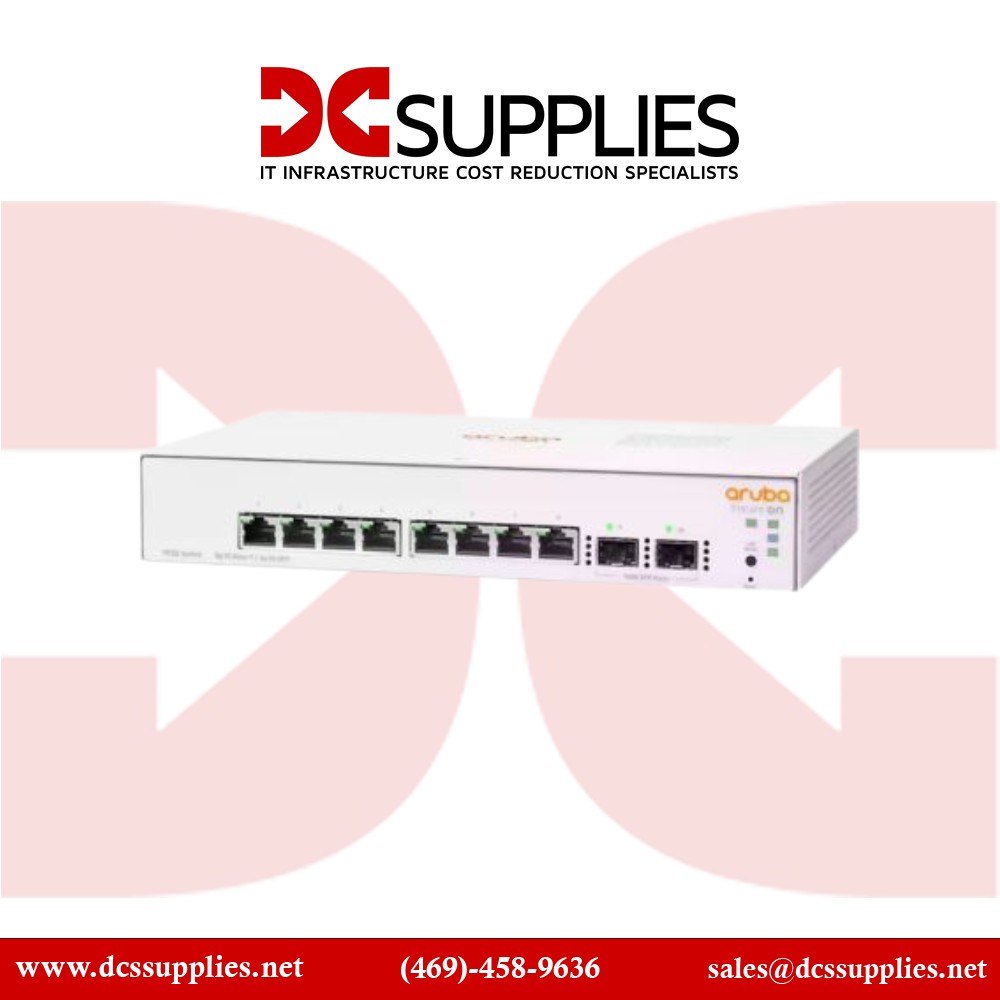

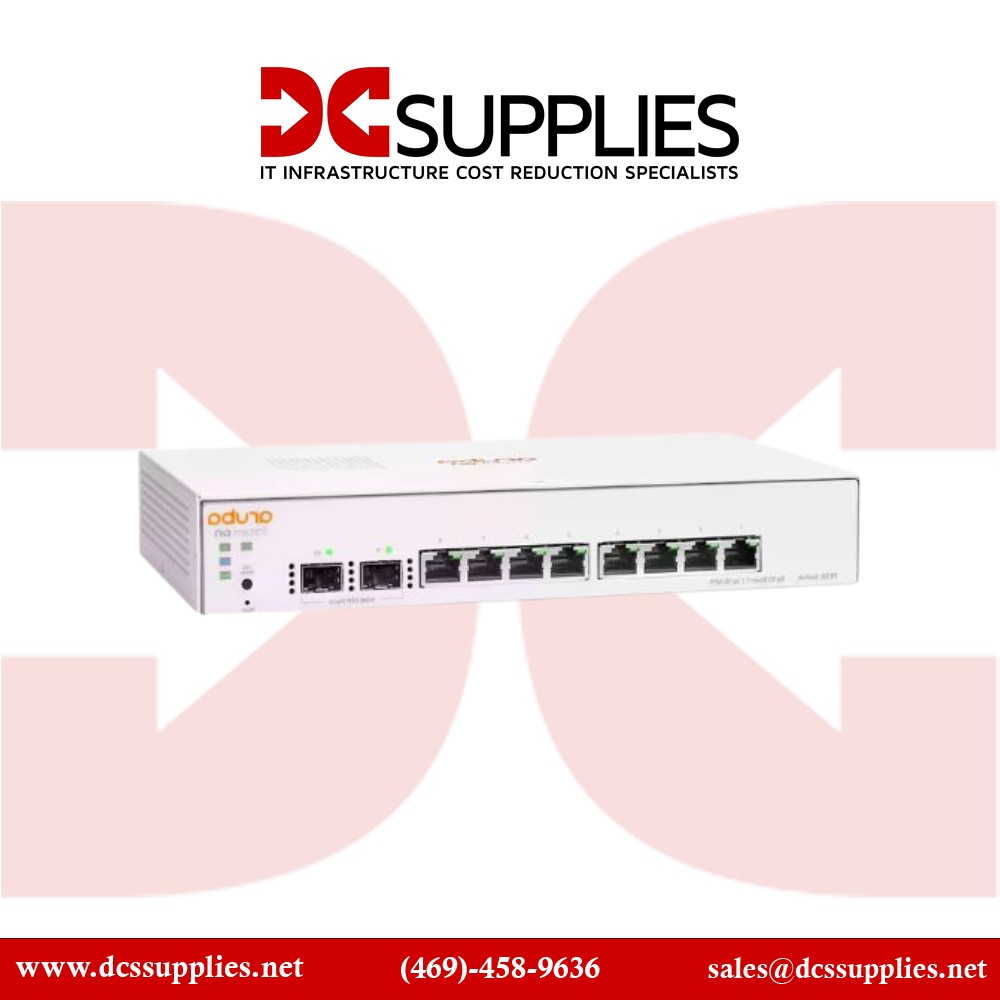

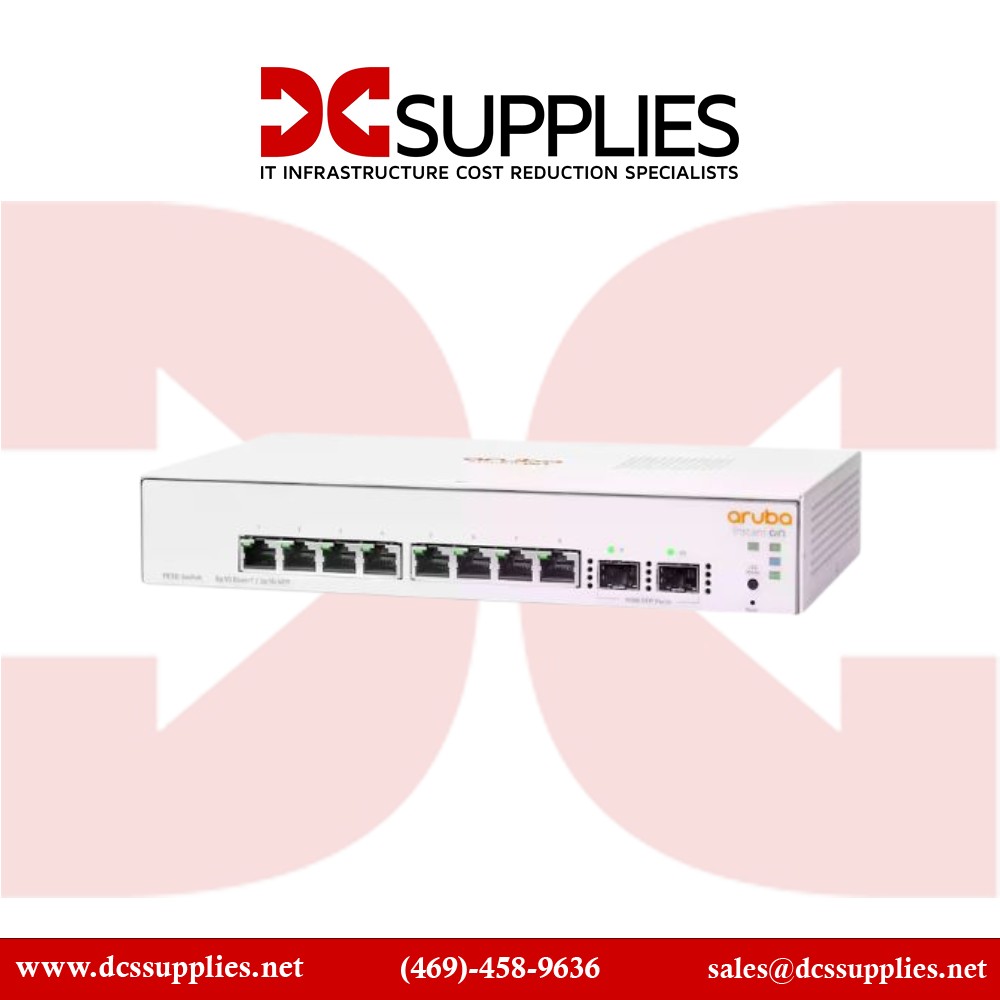

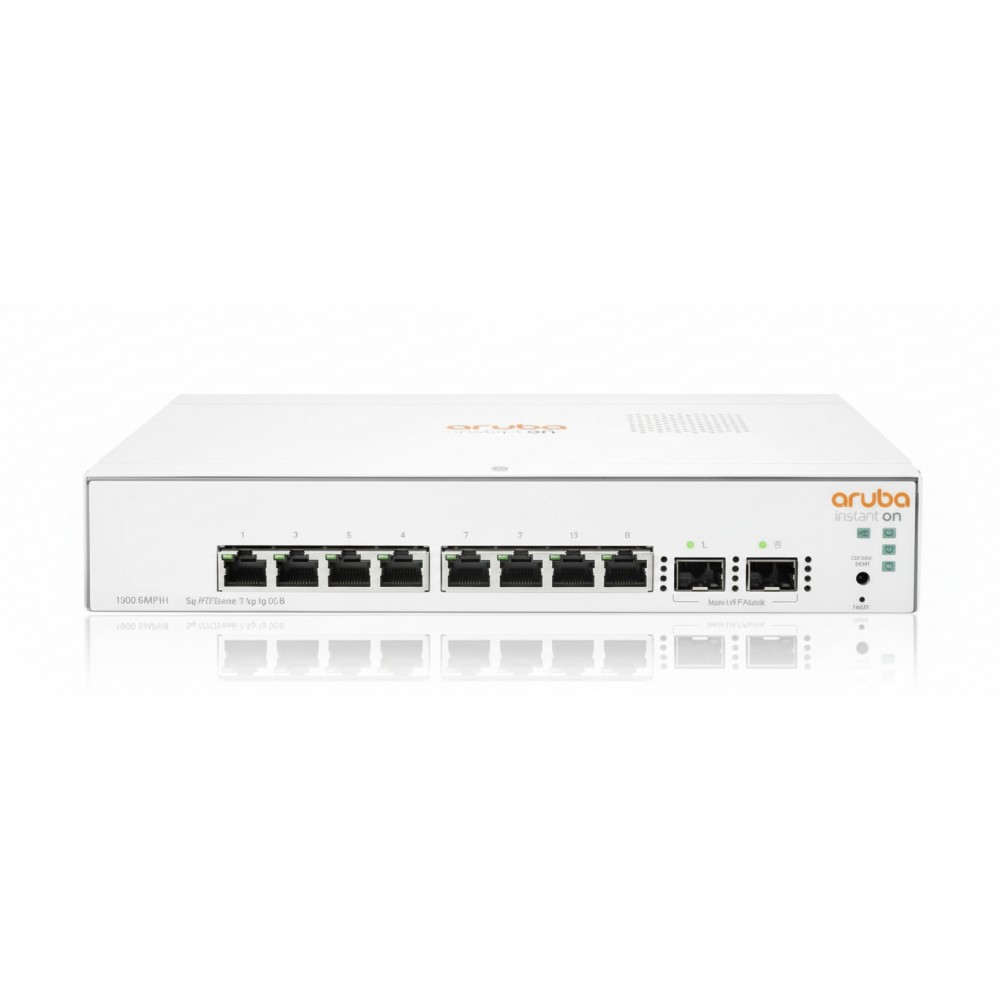

HPE Aruba JL680A Ethernet Switch View larger

HPE Aruba JL680A Instant On 1930 8G Ethernet Switch

New

HPE Aruba JL680A Instant On 1930 8G Ethernet Switch Compact High-Performance.
×




  • New

Detailed Specifications

HPE Aruba

JL680A

Instant On 1930 8‑Port Gigabit + 2 SFP Smart‑Managed Switch

The HPE Aruba JL680A Instant On 1930 is an 8‑port Gigabit smart‑managed switch with two dedicated 1 GbE SFP uplinks, providing 10 fixed ports in a compact, fan‑less design ideal for office settings. Designed for small business and branch office applications, it delivers gigabit speeds with smart Layer 2+ features, intuitive cloud or local management, and enterprise‑style security—all at a budget‑friendly price.

Features

Part of the Instant On 1930 series, the JL680A supports automated plug-and-play deployment using the mobile app or cloud portal, with full fallback to a local web GUI. As an energy-efficient, fanless device, it operates silently—making it a great fit for conference rooms or quiet office spaces—while delivering up to 20 Gbps switching capacity and 14.88 Mpps throughput.

Advanced Options

Supporting Layer 2+ features like VLANs, link aggregation, STP/RSTP/MSTP, IPv4 static routing, ACLs, IGMP snooping, and 802.1X security, it ensures robust network segmentation and protection. Built-in DoS monitoring safeguards against malicious traffic, providing enterprise-level reliability and control without added licensing costs.

Product Key Features

  • 8 × 10/100/1000 Mbps RJ‑45 ports

  • 2 × 1 GbE SFP fiber uplink ports

  • Fan‑less, ultra-quiet operation (0 dB)

  • Smart‑managed with cloud/mobile and local GUI

  • Layer 2+ features: VLAN, LACP, STP, IGMP, ACLs, static routing

  • Integrated security: 802.1X, DoS protection

Reliability & Performance

The JL680A packs powerful Layer 2+ capabilities into a silent, energy-efficient package. It delivers stable gigabit performance with enterprise-grade security, ideal for voice, video, and data traffic in small office or retail environments. With a limited lifetime warranty and intuitive management, it provides a reliable foundation for growing networks while supporting easy expansion through its SFP uplink ports.

Key Features (Bullet List)

  • 8 RJ‑45 Gigabit Ethernet ports

  • 2 1 GbE SFP uplink ports

  • Fan‑less design for silent operation

  • Cloud/mobile app + local web GUI management

  • Layer 2+ features (VLANs, LAG, STP, IGMP snooping)

  • Security: ACLs, 802.1X, DoS protection

Specifications :

SpecificationDetails
Model Number JL680A
Product Series Aruba Instant On 1930
Ports 8 × 10/100/1000 Mbps RJ‑45 + 2 × 1 GbE SFP uplink
Switching Capacity 20 Gbps
Max Throughput 14.88 Mpps (10 Mb frame)
Forwarding Rate 14.88 Mpps
Layer Features VLAN, LACP (4 trunks), STP/RSTP/MSTP, IGMP snooping
Layer 3 Features IPv4 static routing
Security ACLs, 802.1X, DoS protection
Management Instant On mobile/cloud, local web GUI, SNMP
Form Factor Desktop or rack-mountable (1U brackets included)
Power Consumption Max 11 W, Idle 6.2 W (external AC, 100–240 V 50/60 Hz)
Operating Environment 0–40 °C, up to 10,000 ft altitude
Dimensions 10 × 6.28 × 1.73 in (254 × 160 × 44 mm)
Weight 2.55 lb (1.16 kg)
Warranty Limited lifetime warranty; 24×7 phone support first 90 days
