Detailed Specifications
HPE Aruba

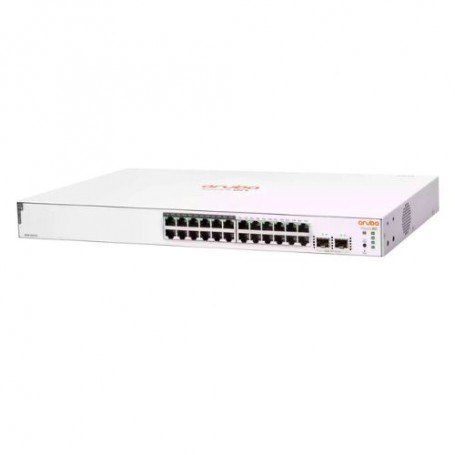

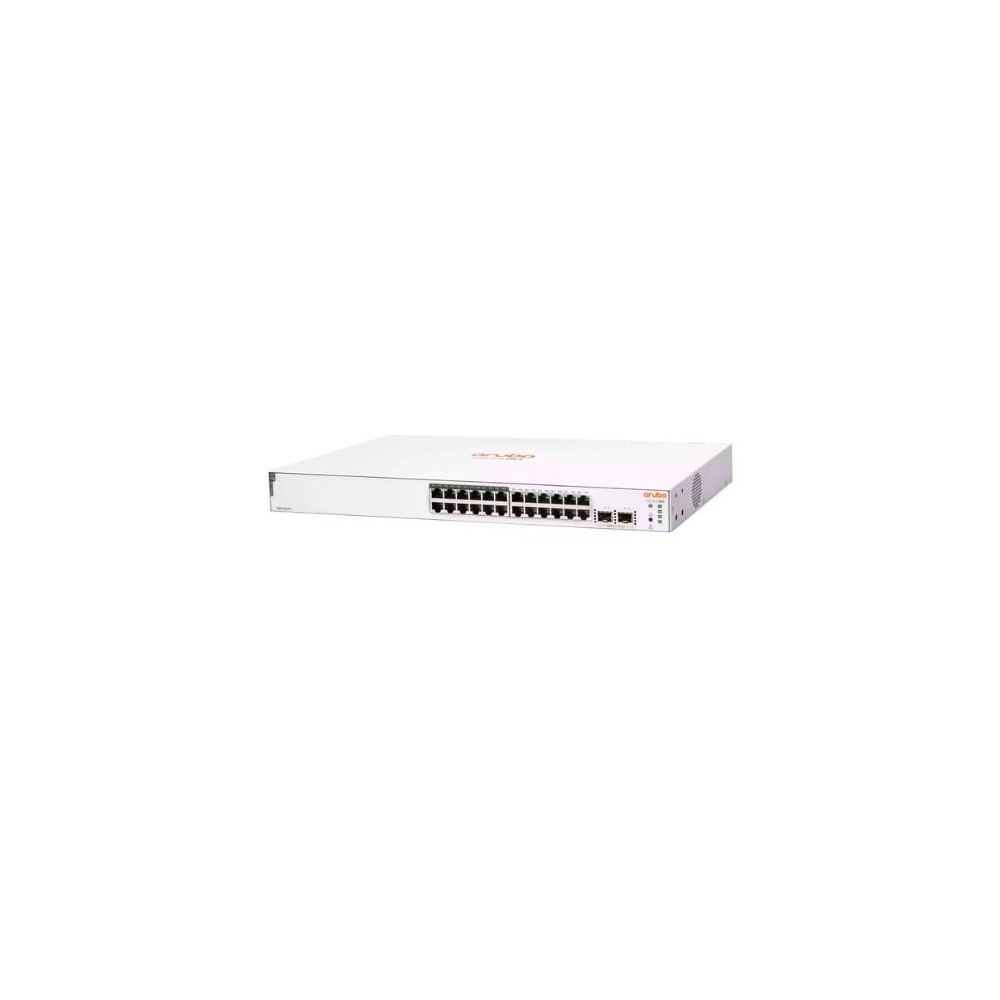

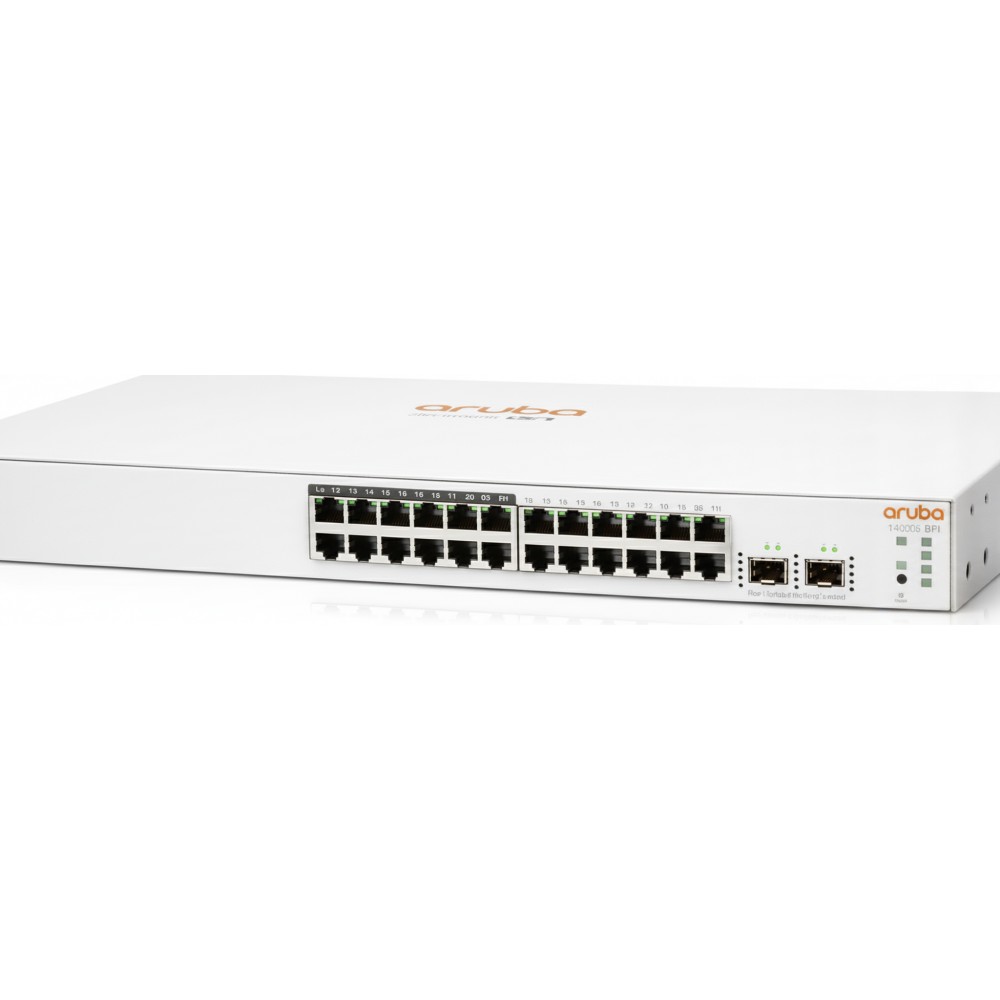

Instant On 1830 24-Port Gigabit Switch (12-Port Class 4 PoE, 2× SFP, 195 W)
The HPE Aruba JL813A delivers a powerful yet user-friendly networking solution for small to medium businesses. With 24 gigabit Ethernet ports×12 supporting Class 4 PoE×and 2 fiber SFP uplinks, it provides 195 W total power to devices like IP cameras, access points, and VoIP phones. Featuring smart-managed Layer 2 capabilities, cloud/mobile manageability, and no extra licensing fees, it's ideal for evolving network demands.
Features
The 1830 series allows full management via Instant On cloud/mobile app or locally via secure web GUI. Layer 2 features, VLANs, QoS, link aggregation, SNMP, storm control, and integrated TPM-based protection safeguard your infrastructure×all included with the hardware.
Advanced Options
The compact, rackable 1U metal chassis supports silent operation (optional fan) and robust performance.
Product Key Features
24× Gigabit RJ-45 ports (12× PoE+ with Class 4 support)
195 W PoE budget across 12 ports (30 W max per port)
2× 1 Gbps SFP fiber uplinks
52 Gbps switching capacity, 38.68 Mpps throughput
Smart-managed Layer 2: VLANs, QoS (802.1p, DSCP), LACP, STP/RSTP
Cloud/mobile & local web-based management - no subscription
Reliability & Performance
Powered by an 800 MHz ARM processor, 512 MB RAM, 256 MB flash, and 1.5 MB packet buffer, this switch reliably handles heavy traffic (MTBF ≈ 96 years). Dual power scheduling and port scheduling optimize energy use, while storm control, DoS protection, and TPM-based authentication enhance security. Fan-cooled for consistent performance, the JL813A offers silent operation ideal for offices and closets. Installation flexibility includes rack kit, desktop, wall, or under-desk mounting.
Key Features (Bullet List)
24× RJ-45 + 2× SFP ports
12-port Class 4 PoE+ support (195 W budget)
Layer 2 smart-managed features
Dual management modes: cloud/app & local web GUI
Security: VLAN, storm control, DoS prevention, TPM
Flexible mounting: 1U rack, wall, under-desk, tabletop
Specifications :
| Specification | Details |
|---|
| Model Number | JL813A |
| Product Type | Smart-Managed Gigabit Ethernet Switch with PoE+ |
| Data Ports | 24× RJ-45 10/100/1000 Mbps |
| SFP Uplinks | 2× 1 Gbps fibers |
| PoE Standard | IEEE 802.3at (Class 4) |
| PoE Budget | 195 W total, 30 W per port max |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.68 Mpps |
| Packet Buffer | 1.5 MB |
| CPU & Memory | 800 MHz ARM Cortex-A9, 512 MB RAM |
| Flash | 256 MB |
| Layer-2 Features | VLANs, QoS, STP/RSTP, LACP, IGMP Snooping |
| Security | Storm/DoS control, TPM, Access Control |
| Management | Instant On App, Cloud Portal, Local Web GUI |
| Power Supply | Internal, 100-240 VAC |
| Power Consumption | Max 237 W, Idle 13.4 W |
| Cooling | Fan-cooled (17 dB operational noise) |
| Physical Size | 443 × 253 × 44 mm (1U) |
| Weight | 3.47 kg |
| Operating Temp/Humidity | 0-40 °C, 15-95% RH non-condensing |
| Warranty | Limited Lifetime (phone/chat for 2 years) |
