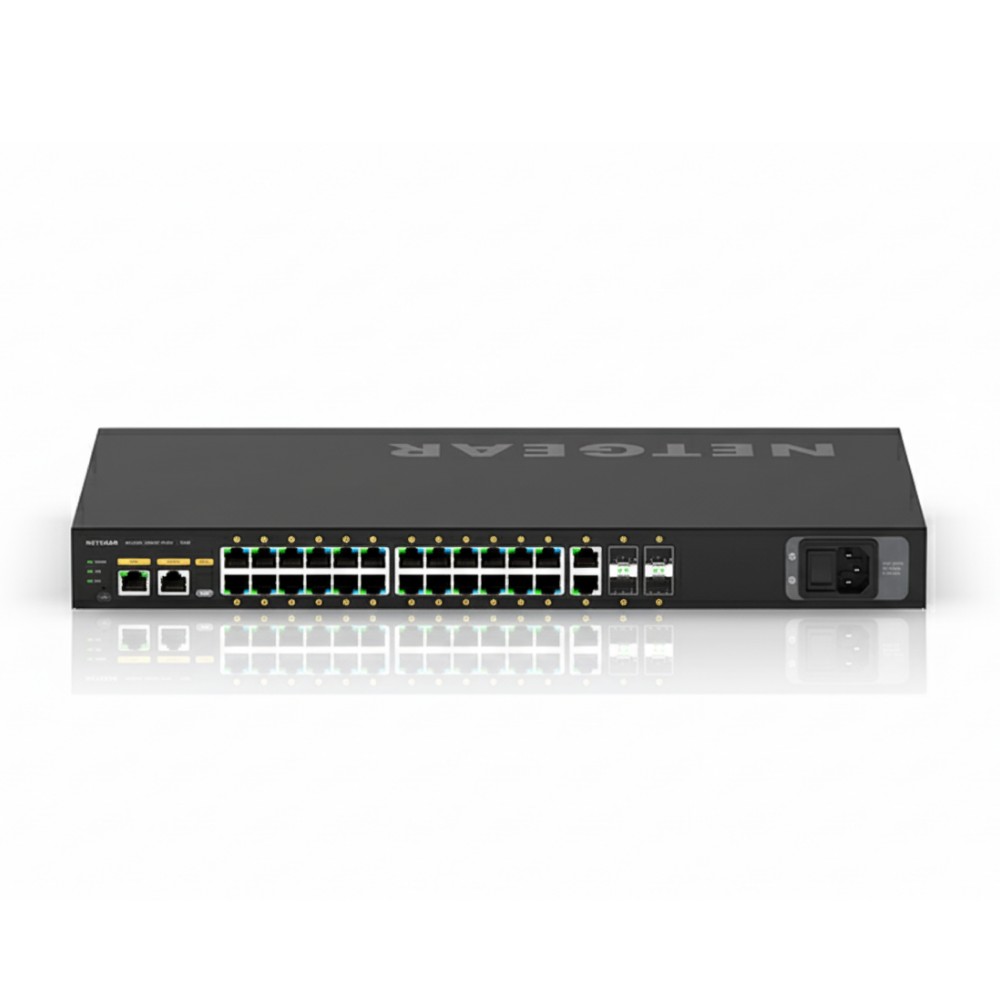

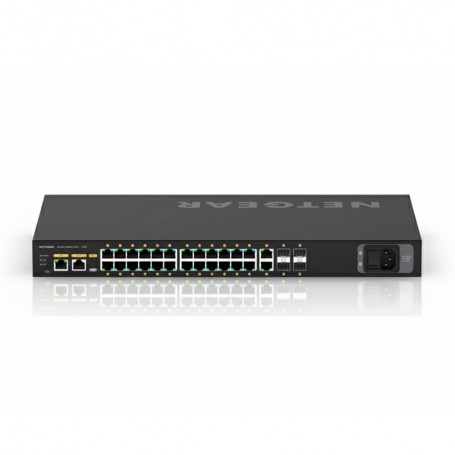

NETGEAR GSM4230P-100NAS AV Line M4250-26G4F PoE+ 24X1G PoE 300W View larger

Netgear GSM4230P-100NAS 26-Port PoE+ Managed AV Line Switch

New

In Stock

24-Port PoE+ Managed AV Line Switch
×




$1,175.00

  • New

Detailed Specifications

Netgear GSM4230P-100NAS 26-Port PoE+ Managed AV Line Switch

Overview

The Netgear GSM4230P-100NAS, part of the M4250 AV Line, is a purpose-built managed switch engineered specifically for professional audio-visual over IP (AVoIP) deployments. Unlike standard enterprise switches that require extensive manual configuration for multicast traffic, the GSM4230P features a dedicated AV web-based interface. This allows integrators to deploy pre-configured profiles for common protocols such as Dante, Q-SYS, and AES67, significantly reducing setup time and technical friction in the field.

The hardware configuration includes 24 Gigabit Ethernet ports with PoE+ support, providing a 300W total power budget to drive endpoints like IP cameras, touch panels, and audio interfaces. Additionally, two dedicated copper ports and four SFP slots provide flexible uplink options for campus or studio backbones. Designed for discreet installation, the unit supports reversible mounting, allowing ports to face the front or rear of a rack, and features quiet cooling modes for noise-sensitive environments. This switch bridges the gap between complex IT networking and the immediate needs of AV professionals, ensuring reliable, low-latency performance for high-bandwidth media streams at the edge or within a centralized equipment room.

Key Features

- Pre-configured AV profiles for Dante, NDI, and AES67.
- 300W PoE+ budget across 24 Gigabit Ethernet ports.
- Reversible mounting for flexible rack cable management.
- Dedicated AV web interface for simplified port mapping.

Specifications

Brand Netgear
Part Number GSM4230P-100NAS
Product Type Managed PoE+ Switch (AV Line)
Total Ports 30 (24x 1G PoE+, 2x 1G Copper, 4x 1G SFP)
PoE Budget 300W (802.3at PoE+)
Switching Capacity 60 Gbps
Forwarding Rate 44.64 Mpps
Form Factor 1U Rackmount (Reversible)
Acoustic Noise 34dB @ 25°C
Dimensions 440 x 257 x 43.2 mm
Weight 4.30 kg
Management AV UI, Web UI, CLI, SNMP, Netgear Insight
Operating Temperature 0° to 50°C

Frequently Asked Questions

Does this switch support AVB (Audio Video Bridging)?

Yes, the GSM4230P supports AVB; however, it requires an optional electronic license (sold separately) to enable these specific features.

Can the fans be turned off for quiet environments?

The switch features a "Fan Off" mode for completely silent operation, provided the internal temperature remains within safe limits and the PoE load is low.

Is the management interface different from standard Netgear switches?

Yes, it includes a specialized AV UI that uses color-coded port mapping and pre-defined profiles for media protocols, alongside the traditional IT-focused GUI.
