Netgear GS752TX-300NAS 48-Port Gigabit Managed Ethernet Switch View larger

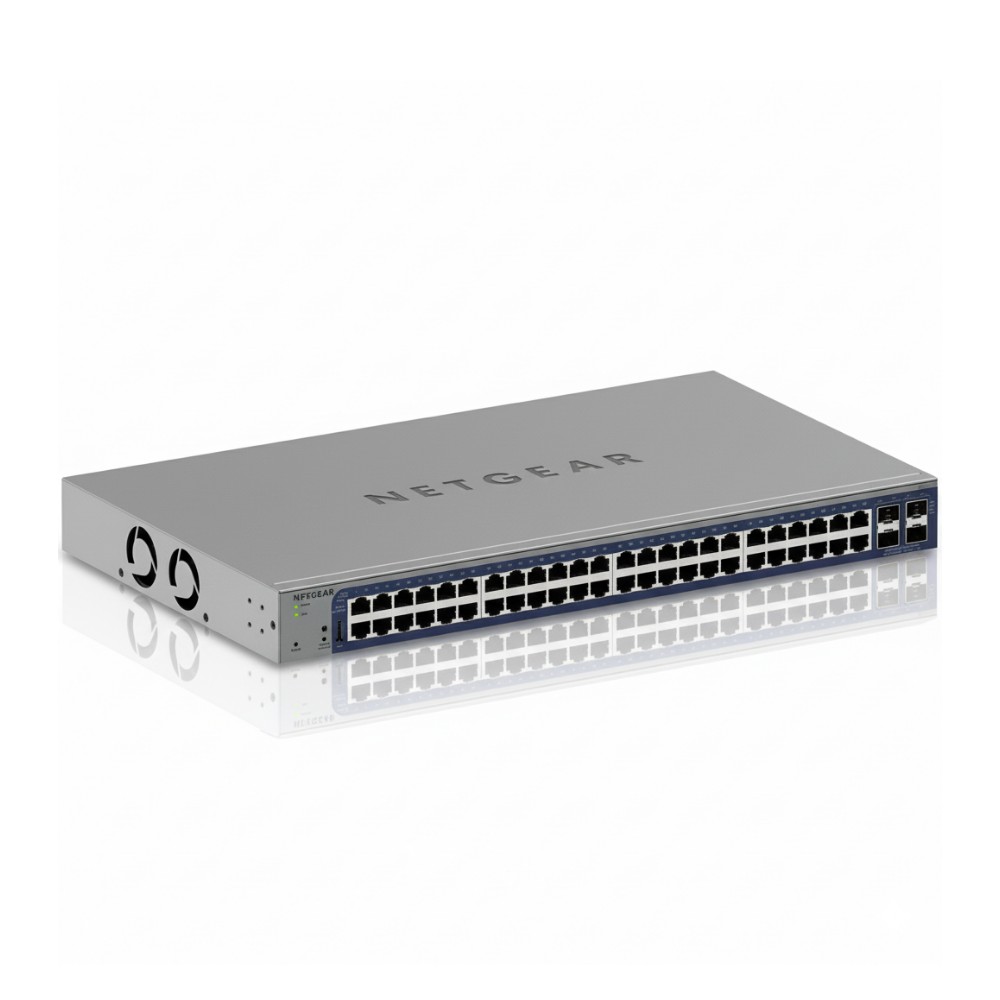

Netgear GS752TX-300NAS 48-Port Gigabit Managed Ethernet Switch

GS752TX-300NAS

New

In Stock

48-Port Gigabit Stackable Smart Switch
×




$540.00

Detailed Specifications

Netgear GS752TX-300NAS – 52-Port Gigabit Smart Managed Pro Stackable Switch

Overview :

The Netgear GS752TX-300NAS, a cornerstone of the S3300 Smart Managed Pro series, is engineered for small-to-medium businesses requiring high-density copper connectivity with a future-proof 10G backbone. This 52-port switch bridges the gap between standard access layer switches and high-performance core distribution. It features 48 dedicated Gigabit ports alongside four 10GbE ports—two SFP+ and two 10GBASE-T—providing versatile uplink or stacking options without sacrificing standard port count.

In campus or branch office environments, the GS752TX excels as a cost-effective solution for high-bandwidth applications such as server virtualization or high-speed NAS storage. Its stacking capability allows up to six units to be managed as a single logical entity, offering 40Gbps of stacking bandwidth and simplified administration. The L2+ feature set includes static routing, which offloads basic inter-VLAN routing tasks from the core router to improve overall network efficiency. Designed for reliability, it includes a robust hardware architecture and a user-friendly web-based management interface, making it an ideal choice for IT teams looking to scale their infrastructure without the complexity of fully managed, CLI-only enterprise switches.

Key Features :

Four dedicated 10G ports for uplinks or stacking.

Stack up to six units for 288-port density management.

L2+ static routing for efficient inter-VLAN traffic.

Energy Efficient Ethernet (IEEE 802.3az) compliance.

Specifications :

Brand Netgear
Part Number GS752TX-300NAS
Product Type Smart Managed Pro Switch
Total Ports 52
10/100/1000 Mbps Ports 48
10GBASE-T (Copper) Ports 2
10G SFP+ (Fiber) Ports 2
Switching Capacity 176 Gbps
Stacking Bandwidth 40 Gbps (Bi-directional)
MAC Address Table 16K entries
VLANs Supported 256
Power Consumption 48.3 W (Max)
Dimensions 440 x 257 x 43 mm
Operating Temperature 0° to 50° C

Frequently Asked Questions :

Does this switch support Power over Ethernet (PoE)?

No, the GS752TX-300NAS is a non-PoE model. For PoE+ requirements, the GS752TXP is the equivalent model within the S3300 series.

Can I mix different S3300 models in a single stack?

Yes, you can stack any combination of S3300 series switches (24-port or 48-port, PoE or non-PoE) up to a maximum of six units using the 10G ports.

What is the benefit of having both 10GBASE-T and SFP+ ports?

This hybrid configuration provides deployment flexibility; 10GBASE-T allows for cost-effective 10G copper connections over Cat6a/7 cables, while SFP+ supports long-range fiber links.
