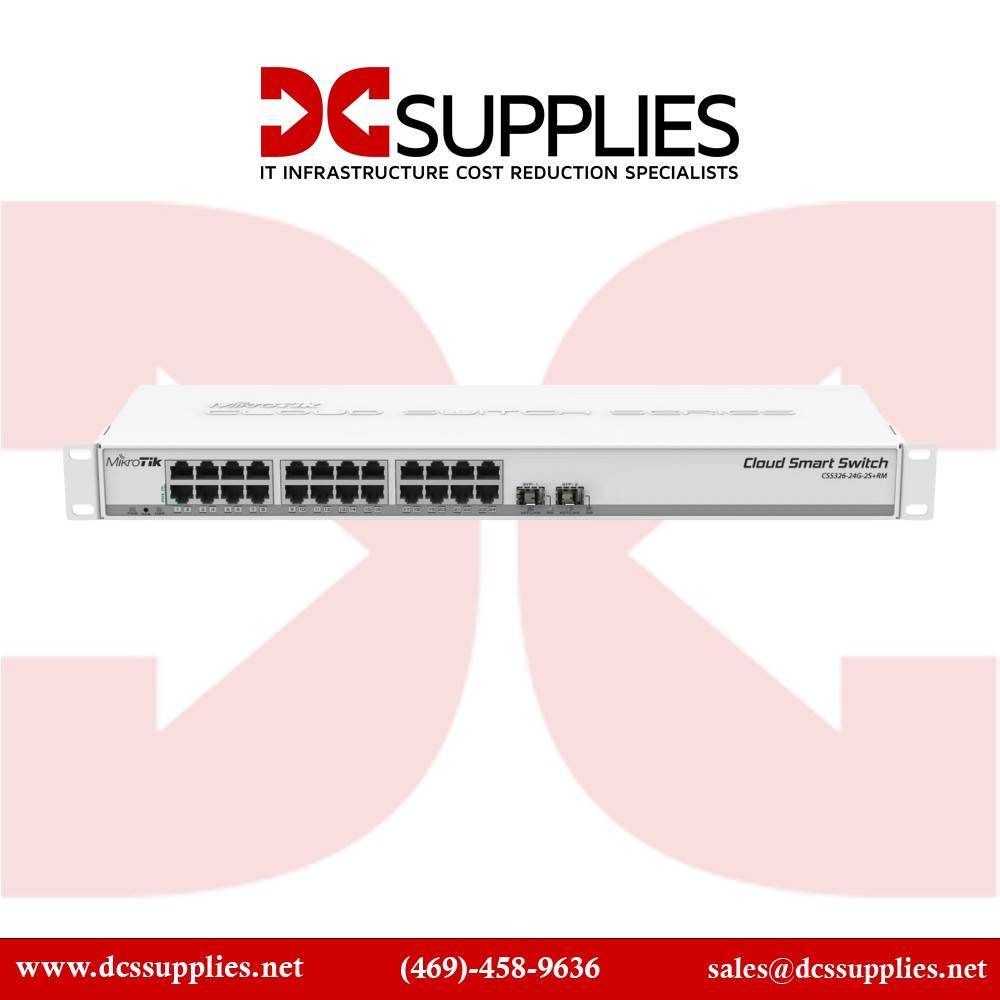

MikroTik - CSS326-24G-2S+RM - Cloud Smart Switch 326-24G-2S+RM with 24x Gigabit Ethernet

New

MikroTik - CSS326-24G-2S+RM -...

×




  • New

Detailed Specifications

MikroTik CSS326-24G-2S+RM

Cloud Smart Switch – 24× Gigabit Ethernet + 2× 10G SFP+

The MikroTik CSS326-24G-2S+RM Cloud Smart Switch is a versatile and cost-effective Layer 2 managed switch, ideal for office networks, data closets, or enterprise environments. With 24 Gigabit Ethernet ports and 2 high-speed 10G SFP+ ports, it delivers a solid backbone for both copper and fiber-based infrastructure.

Features

Designed to deliver essential switching functionality at a competitive price point, the CSS326-24G-2S+RM runs MikroTik’s intuitive SwitchOS, offering features like VLAN configuration, port mirroring, and traffic shaping. The two 10G SFP+ ports provide lightning-fast uplinks, ideal for connecting to high-speed storage or aggregation switches.

Advanced Options

With a slim 1U rackmount form factor and silent, fanless operation, this switch is perfect for deployment in office environments, small data centers, or enterprise edge applications where noise and energy consumption matter.

Product Key Features

    •  24× Gigabit Ethernet ports for high-performance wired connectivity

    •  2× 10G SFP+ ports for ultra-fast uplinks or fiber links

    •  Managed Layer 2 switching with MikroTik’s SwitchOS

    •  Rackmount design perfect for business and enterprise use

    •  VLAN, port isolation, traffic monitoring, and broadcast control

    •  Fanless cooling for silent, energy-efficient operation

Reliability & Performance

The CSS326-24G-2S+RM is engineered for uninterrupted operation with non-blocking throughput and switching capacity of up to 52 Gbps. Its fanless cooling system ensures long-term reliability with zero maintenance, while its intuitive web-based UI makes management and monitoring simple for both IT professionals and network-savvy users.

Key Features :

    • 24× 10/100/1000 Mbps RJ45 ports

    • 2× 1/10G SFP+ uplink ports

    • Layer 2 Smart Managed with SwitchOS

    • Fanless rackmount design (1U height)

    • Supports VLANs, isolation, traffic shaping, and monitoring

    • Easy web-based interface

    • Silent, energy-efficient operation

SpecificationDetails
Model Number CSS326-24G-2S+RM
Product Type Cloud Smart Switch (Layer 2)
Operating System MikroTik SwitchOS (SwOS)
Ethernet Ports 24 × Gigabit RJ45
SFP+ Ports 2 × 10G SFP+
Switching Capacity 52 Gbps
Forwarding Rate 77.4 Mpps
RAM 128 KB
Dimensions 440 × 144 × 44 mm
Mounting 1U Rackmount
Power Input 100–240 V AC
Power Consumption Up to 19 W
Cooling Fanless (passive)
