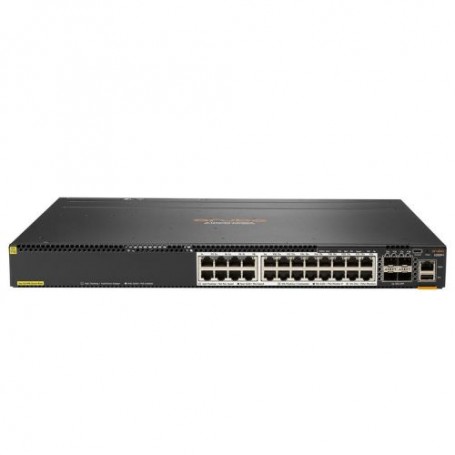

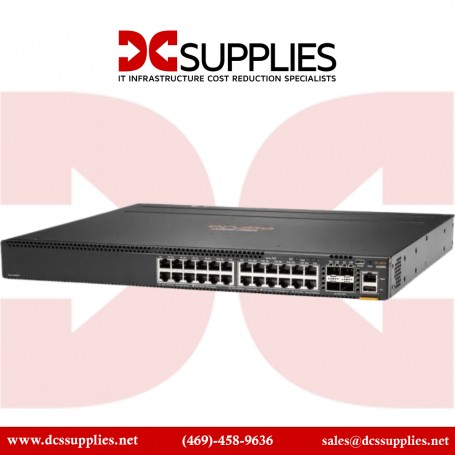

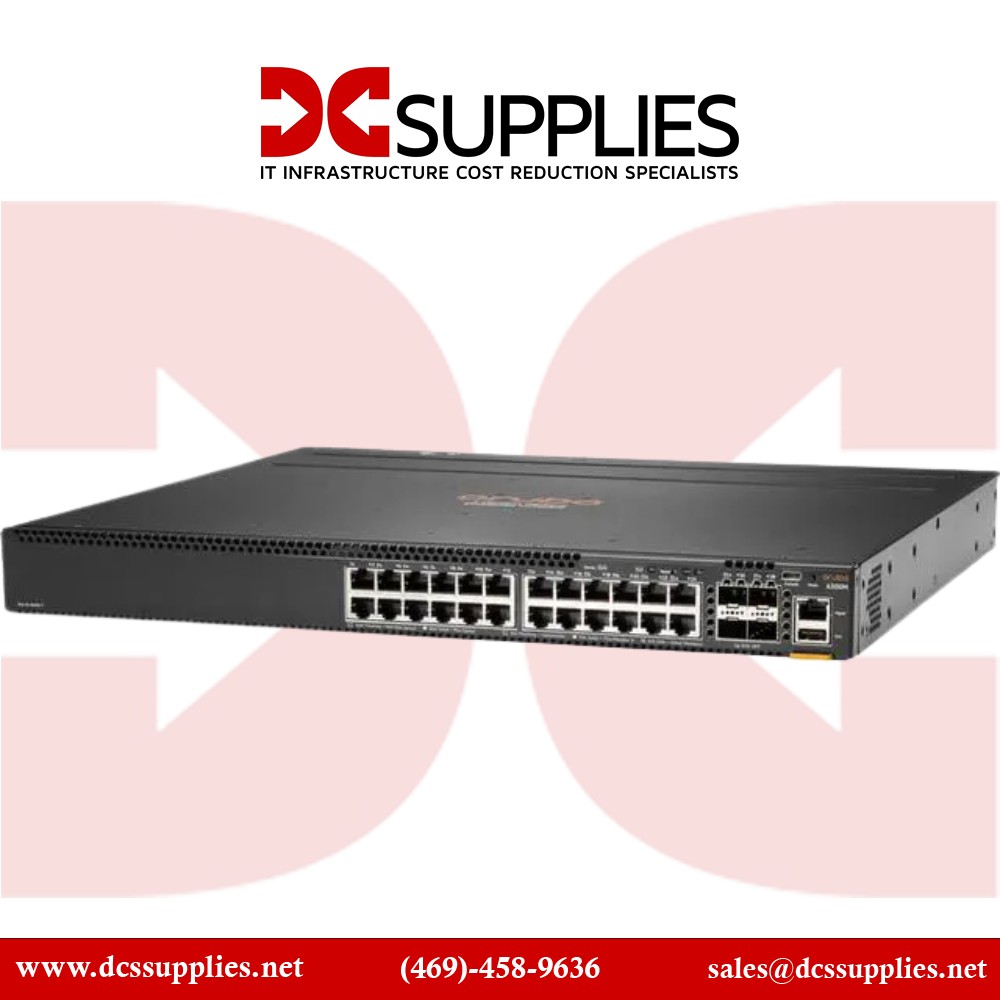

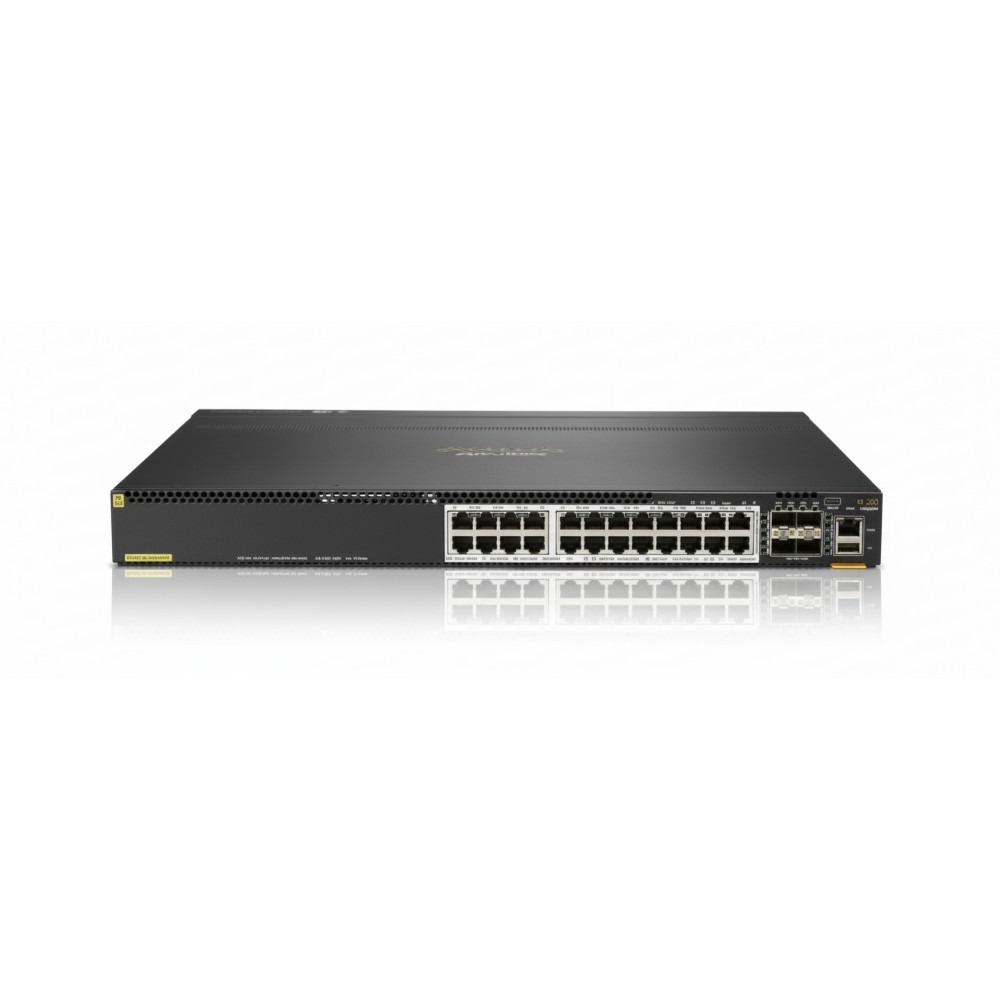

HPE JL660A

6300M 24-Port Ethernet Switch - 24× Multi-Gig PoE++ Ports, Modular Uplinks, Layer 3 Enterprise Switch

The HPE Aruba JL660A 6300M 24-Port Ethernet Switch is a high-performance modular switch tailored for enterprises looking to deploy secure, high-speed, and highly available access networks. With Multi-Gig PoE++ ports and full Layer 3 capabilities, it offers superior flexibility and scalability for growing IT environments.

Features

This 24-port switch is part of Aruba's powerful CX 6300 Series and runs on the AOS-CX operating system×designed to support campus, branch, and smart building networks. With support for 1G/2.5G/5G Ethernet and a total PoE power budget of 1440W, the JL660A enables dense device deployments without performance compromise.

Advanced Options

Its modular uplink design allows the installation of up to four SFP56 transceivers, each supporting speeds up to 50G. With built-in VSF stacking and support for redundant components, the JL660A delivers always-on performance, efficient management, and long-term investment protection.

Product Key Features

• • 24× Multi-Gig (1/2.5/5G) PoE++ ports for high-speed edge device connectivity

  • Supports 4× modular SFP56 uplinks (up to 50G per port) for flexible expansion

  • Advanced Layer 3 routing, QoS, and policy enforcement via Aruba AOS-CX

  • Generous 1440W PoE budget×ideal for APs, IP cams, and IoT endpoints

  • Stackable with Virtual Switching Framework (VSF) for simplified scaling

  • Hot-swappable power supplies and fans for nonstop network operations

Reliability & Performance

Engineered for enterprise resilience, the JL660A provides up to 880 Gbps of switching bandwidth and ~336 Mpps forwarding. With field-replaceable, hot-swappable power supplies and fans, this switch supports mission-critical applications while ensuring minimal downtime. Its rich software feature set includes Layer 3 routing, network analytics, segmentation, and robust security features.

Key Features (Bullet List)

• 24× 1G/2.5G/5G PoE++ RJ-45 access ports

• 4× modular SFP56 uplink slots (1/10/25/50G supported)

• 1440W total PoE budget (up to 60W per port)

• AOS-CX with Layer 2/3 switching and routing features

• 880 Gbps switching capacity, ~336 Mpps forwarding rate

• Supports VSF stacking, hot-swap PSU/fans

Specification	Details
Model Number	JL660A (Aruba CX 6300M)
Product Type	Layer 3 Managed Ethernet Switch
Access Ports	24× 1G/2.5G/5G PoE++ RJ-45
Uplink Ports	4× SFP56 modular (1/10/25/50G)
Switching Capacity	880 Gbps
Forwarding Rate	~336 Mpps
PoE Budget	1440W total; 60W max per port
Power Supply	Modular, hot-swappable (sold separately)
Operating System	Aruba AOS-CX
Dimensions	17.42 x 15.8 x 1.73 in (1U rackmount)
Weight	11.64 lbs (5.28 kg)
