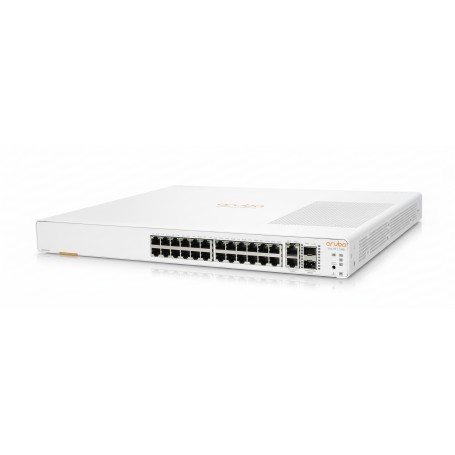

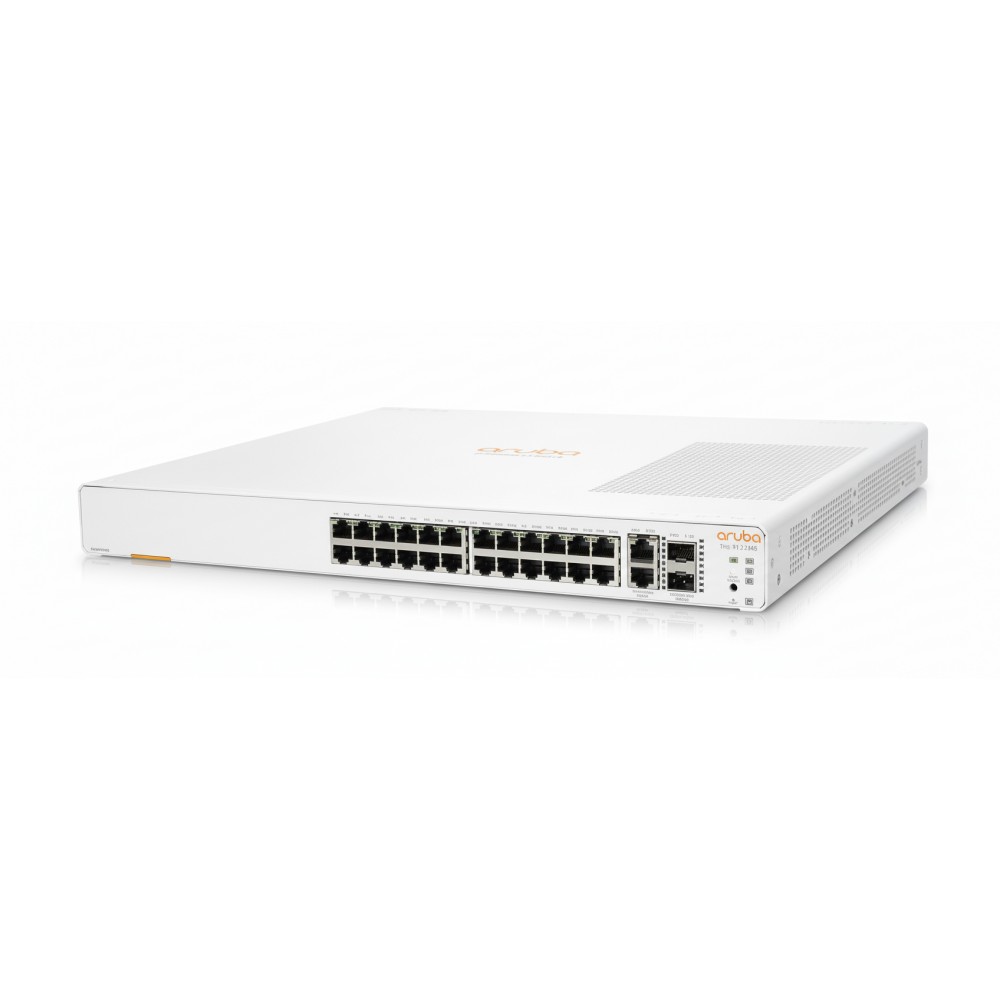

HPE JL806A

1960 Series - 24-Port Gigabit Layer 2+ Switch with 2× 10GBASE-T & 2× 10G SFP+ Uplinks

The HPE Aruba JL806A 1960 Series is a smart-managed, stackable Layer 2+ Ethernet switch tailored for growing businesses. It features 24 Gigabit ports and 4× 10G uplinks, blending simplified management with enterprise-grade performance and security in a compact 1U rackmount form.

Features

Equipped with two 10G copper and two 10G SFP+ ports, the JL806A connects seamlessly to servers, storage, or other switches×ensuring reliable bandwidth and minimal bottlenecks . The switch supports stacking of up to four units, allowing up to 96 access ports and 16 10G uplinks to be managed under a single IP address×via either the Instant On mobile/cloud portal or local Web GUI.

Advanced Options

This model offers rich Layer 2+ functionality, including VLANs, ACLs, link aggregation, and static routing. Security features such as IEEE 802.1X, ACLs, and DoS monitoring help protect your network infrastructure .

Product Key Features

• • 24× 10/100/1000 Mbps RJ-45 access ports

  • 2× 10GBASE-T copper + 2× 10G SFP+ uplink ports for high-speed backbone

  • Cloud and local Web-managed Layer 2+ with stacking of up to 4 units

  • Advanced security: ACLs, 802.1X, VLANs, plus DoS protection

  • Plug-and-play simplicity with Instant On app and cloud stacking

  • Ideal for small businesses needing bandwidth and scalability

Reliability & Performance

With a forwarding rate of ~95 Mpps and up to 128 Gbps switching capacity, this switch delivers dependable performance under heavy traffic Its fanless, rackmount design ensures quiet operation, while energy-efficient Ethernet further reduces power draw. A limited lifetime warranty backs long-term reliability .

Key Features :

• 24× Gigabit RJ-45 access ports

• 2× 10GBASE-T + 2× 10G SFP+ uplinks

• Smart-managed Layer 2+ with web/UI and cloud provisioning

• Supports stacking (up to 4 switches)

• Security: VLANs, ACLs, 802.1X, DoS protection

• Energy-efficient, fanless rackmount design

Specification	Details
Model Number	JL806A (Instant On 1960 24G 2XGT 2SFP+)
Access Ports	24× 10/100/1000 Mbps RJ-45
Uplink Ports	2× 10GBASE-T, 2× 10G SFP+
Switching Capacity	128 Gbps (non-blocking)
Forwarding Rate	~95 Mpps
Stacking	Up to 4 units via cloud/local stacking
Management	Instant On mobile/cloud, Local Web GUI, SNMP
L2 Features	VLANs, ACLs, Link Aggregation, STP/RSTP
L2+ Features	Static routing, DHCP snooping, DoS protection
QoS	CoS, DiffServ, traffic prioritization
Power	Internal PSU, ~40 W typical power draw
Cooling	Fanless design
Dimensions (HxWxD)	1.73″ × 17.42″ × 13.80″ (43.95×442.5×350.5 mm)
Weight	~3.95 kg
