HPE Aruba JL681A 10 ports Ethernet switch View larger
Previous Next

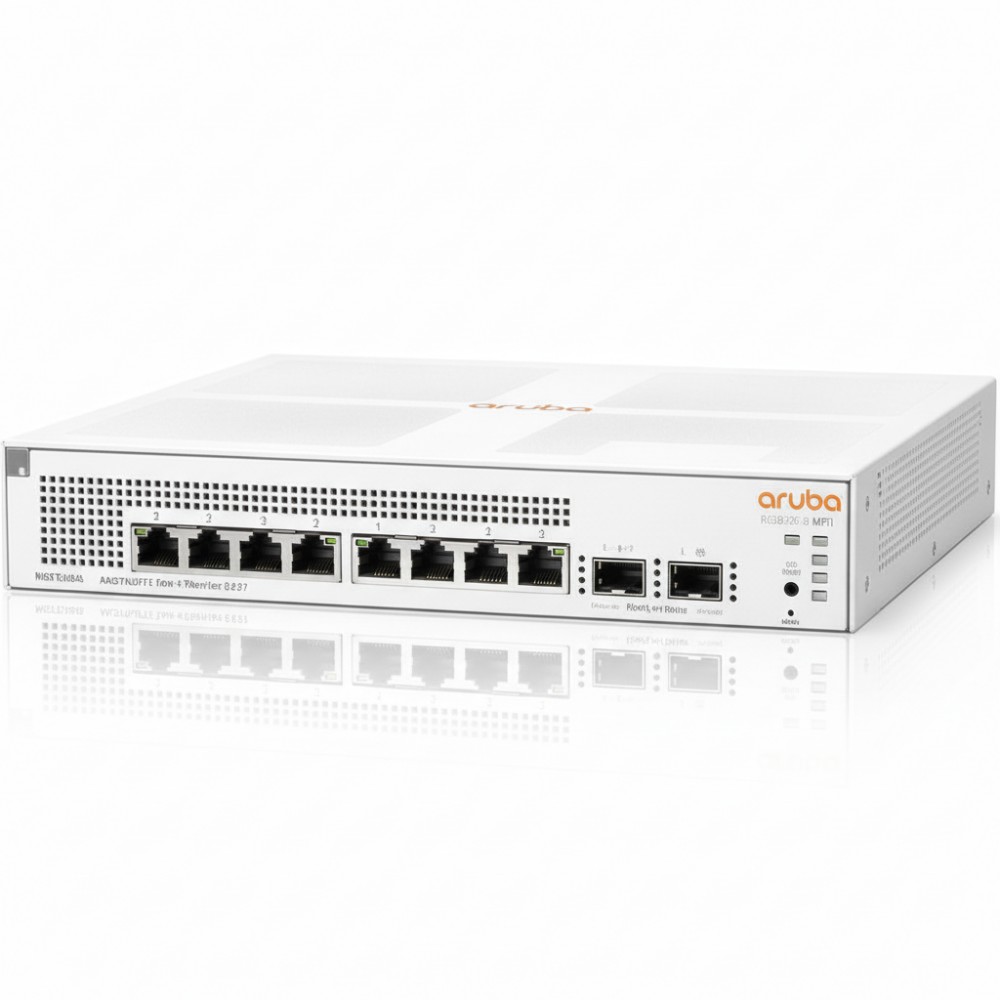

HPE Aruba JL681A 10 ports Ethernet switch

New

In Stock

HPE Aruba JL681A 10-Port Ethernet Switch Compact High Performance...

×




$215.00

  • New

Detailed Specifications

HPE JL681A

Instant On 1930 – 8‑Port Gigabit Class 4 PoE 2‑Port SFP Smart‑Managed Switch

The HPE Aruba JL681A Instant On 1930 is a compact, smart‑managed switch ideal for small businesses, home offices, or retail environments. With 8 PoE+ Gigabit ports and 2 SFP uplinks, it delivers reliable power and connectivity forWi‑Fi APs, security cameras, IP phones, and more—backed by Aruba’s easy-to-use management tools.

Features

Part of the Aruba Instant On 1930 series, the JL681A offers 124 W total PoE budget to power multiple edge devices without needing separate injectors. It supports VLAN segmentation, link aggregation, and DoS mitigation—helping small IT teams manage business networks efficiently.

Advanced Options

You can administer the switch either via the Instant On cloud/mobile app or using the onboard web GUI. Dedicated SFP ports allow uplink flexibility—full gigabit fiber links to your core network, ensuring stable backbone connectivity.

Product Key Features

  •  8× 10/100/1000 Mbps Gigabit RJ‑45 ports with Class 4 PoE (up to 30 W per port)

  •  2× dedicated 1 G SFP uplink ports for fiber or copper modules

  •  Smart‑managed Layer 2+ switch with Plug‑and‑Play simplicity

  •  Enterprise‑grade security: VLANs, 802.1X, DoS protection

  •  Cloud/mobile or local web GUI management via Instant On platform

  •  Compact and fanless for silent deployment in offices or small rack installs

Reliability & Performance

Built for always-on environments, this switch features energy-efficient Ethernet and a silent, fanless design—perfect for noise-sensitive spaces. Its hardware forwarding engine delivers up to 20 Gbps switching and 14.88 Mpps forwarding performance for dependable, low-latency throughputWith Aruba’s integrated security controls, it defends against network threats and secures wired access.

Key Features :

  • 8× 10/100/1000 Mbps RJ‑45 PoE+ ports (Class 4, 124 W total)

  • 2× 1 G SFP uplink ports

  • Smart‑managed Layer 2+: VLANs, STP, link‑aggregation, DoS protection

  • Ethernet efficiency: Energy Efficient Ethernet support

  • Management via cloud app or local web GUI

  • Fanless, silent operation, 1U form‑factor

SpecificationDetails
Model Number JL681A
Series Aruba Instant On 1930
Product Type Smart‑Managed Layer 2+ Gigabit Switch with PoE+
RJ‑45 Ports 8× 10/100/1000 Mbps (auto-sensing, PoE Class 4)
PoE Power Budget 124 W total
Uplink Ports 2× 1 G SFP
Switching Capacity 20 Gbps
Forwarding Rate 14.88 Mpps
Packet Buffer 1.5 MB
Management Interfaces Instant On Cloud/Web App, local GUI
Security Features VLAN, 802.1X, DoS protection, link aggregation, STP
Energy Features IEEE 802.3az Energy Efficient Ethernet
Dimensions (W×D×H) 10″ × 10″ × 1.73″ (254 × 254 × 44 mm)
Weight ~7.2 lbs (3.27 kg)
Power Consumption 11.7 W idle; ~150 W max (with PoE)
