Detailed Specifications

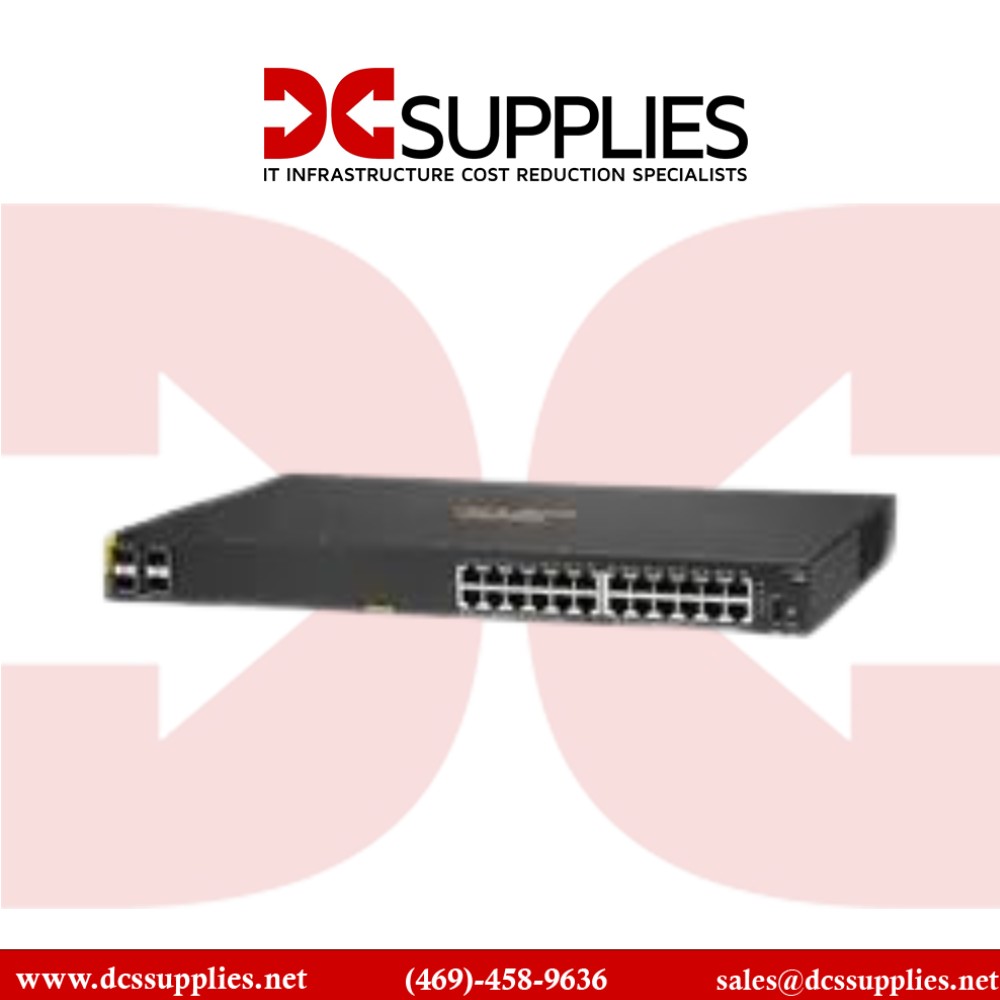

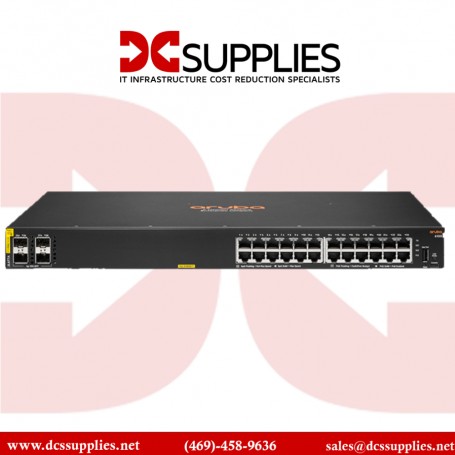

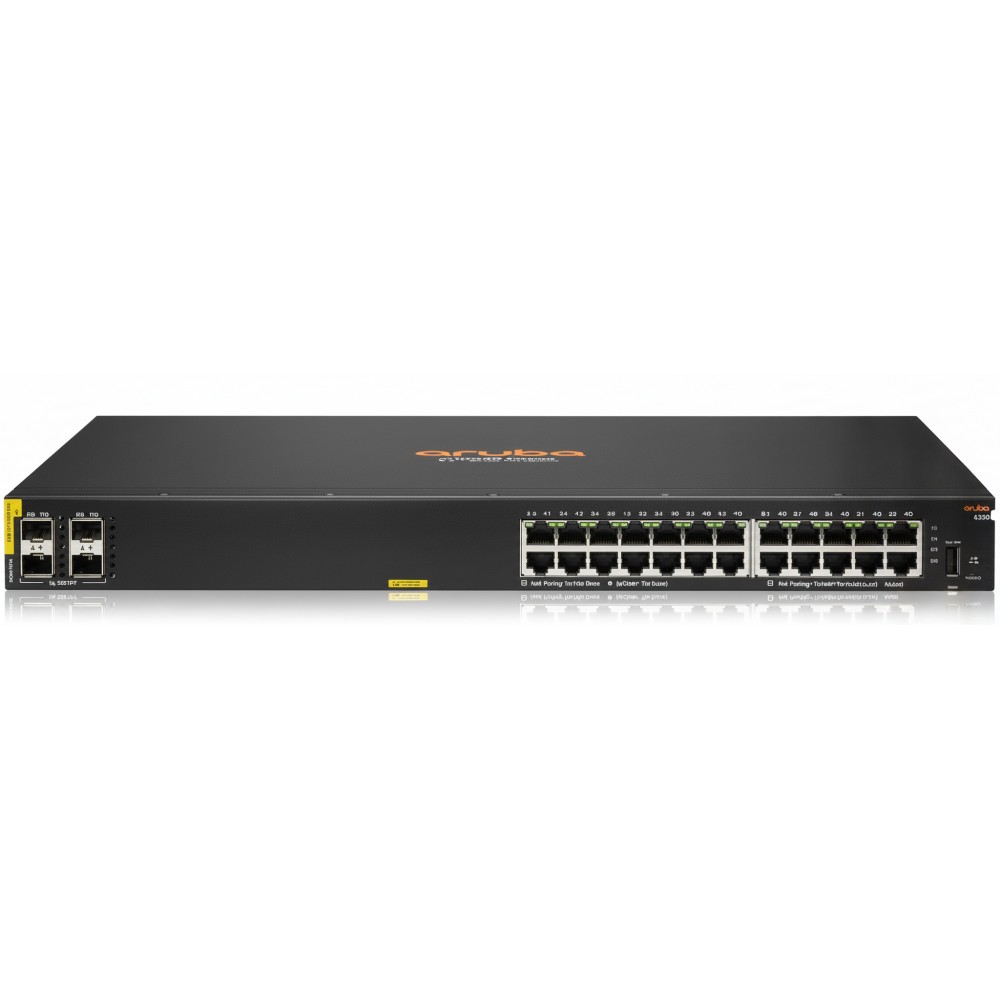

6100 24G 4SFP+ Ethernet Switch - Layer 2 Managed Gigabit Access Switch
The HPE Aruba JL678A 6100 switch is a high-performance, fanless Ethernet access switch designed for enterprise, SMB, and branch-edge deployments. With 24 Gigabit copper ports, four 1G/10G uplinks, and rich Layer 2 features, this compact 1U unit delivers secure, reliable connectivity in noise-sensitive environments.
Features
Powered by the modern AOS-CX operating system and Aruba ASIC, the JL678A delivers low-latency switching (<1.5 µs at 1 GbE, ~1.8 µs at 10 GbE) It combines essential Layer 2 features×VLANs, ACLs, QoS, IGMP snooping×with static L3 routing and IPv6, enabling efficient edge deployments without licensing fees .
Advanced Options
Its four SFP+ uplinks support 1 GbE or 10 GbE connections, ideal for uplinking to aggregation or core switches at high speed , eliminating bottlenecks and supporting high-bandwidth edge applications.
Product Key Features
24× 10/100/1000 Mbps RJ-45 access ports plus 4× 1/10 GbE SFP+ uplinks
Layer 2 switching with static routing, VLANs, ACLs, QoS, IPv6
Fanless, silent operation×ideal for open workspaces
Powered by Aruba AOS-CX with REST API, Aruba Central, and NetEdit support
Sophisticated security: 802.1X, DHCP snooping, ACLs
Compact form factor with powerful performance and low latency
Reliability & Performance
Built for 24/7 operation, the JL678A features fanless, side-to-side airflow for whisper-quiet operation . The AOS-CX platform ensures robust QoS, rapid reconvergence, and programmable APIs. Security features like 802.1X, DHCP snooping, and ACLs protect sensitive environments. Power consumption remains low×15 W idle, 33 W under full load
Key Features :
24× 10/100/1000 Mbps RJ-45 ports
4× 1G/10G SFP+ uplink ports
Fanless, silent, compact 1U form-factor
AOS-CX OS with REST API, Aruba Central, NetEdit compatibility
Layer 2 features: VLANs, ACLs, IGMP snooping, QoS
Static routing, IPv6 support, 802.1X, DHCP snooping
| Specification | Details |
|---|
| Model Number | JL678A |
| Product Series | Aruba CX 6100 |
| Product Type | Layer 2 Managed Switch (fanless, PoE-free) |
| RJ-45 Ports | 24× 10/100/1000 Mbps |
| Uplink Ports | 4× 1G/10G SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.2 Mpps |
| Latency | 1 GbE: 1.5 μs; 10 GbE: 1.8 μs |
| MAC Table | 8,192 entries |
| IPv4/IPv6 Host Tables | 1,024 / 512 entries |
| SVI Routes | 512 |
| Power Consumption | Idle 15 W; Max 33 W (no PoE) |
| Cooling | Fanless, side-to-side airflow |
| Management | Web UI, CLI, REST API, Aruba Central, NetEdit |
| Security & QoS | VLANs, ACLs, 802.1X, DHCP Snooping, QoS |
| Dimensions (W×D×H) | 17.4″ × 7.9″ × 1.7″ |
| Weight | ~6.8 lbs |
