Detailed Specifications
CX 6100 24G Class 4 PoE + 4 SFP+ Switch - Layer 2 Managed PoE Gigabit Access Switch

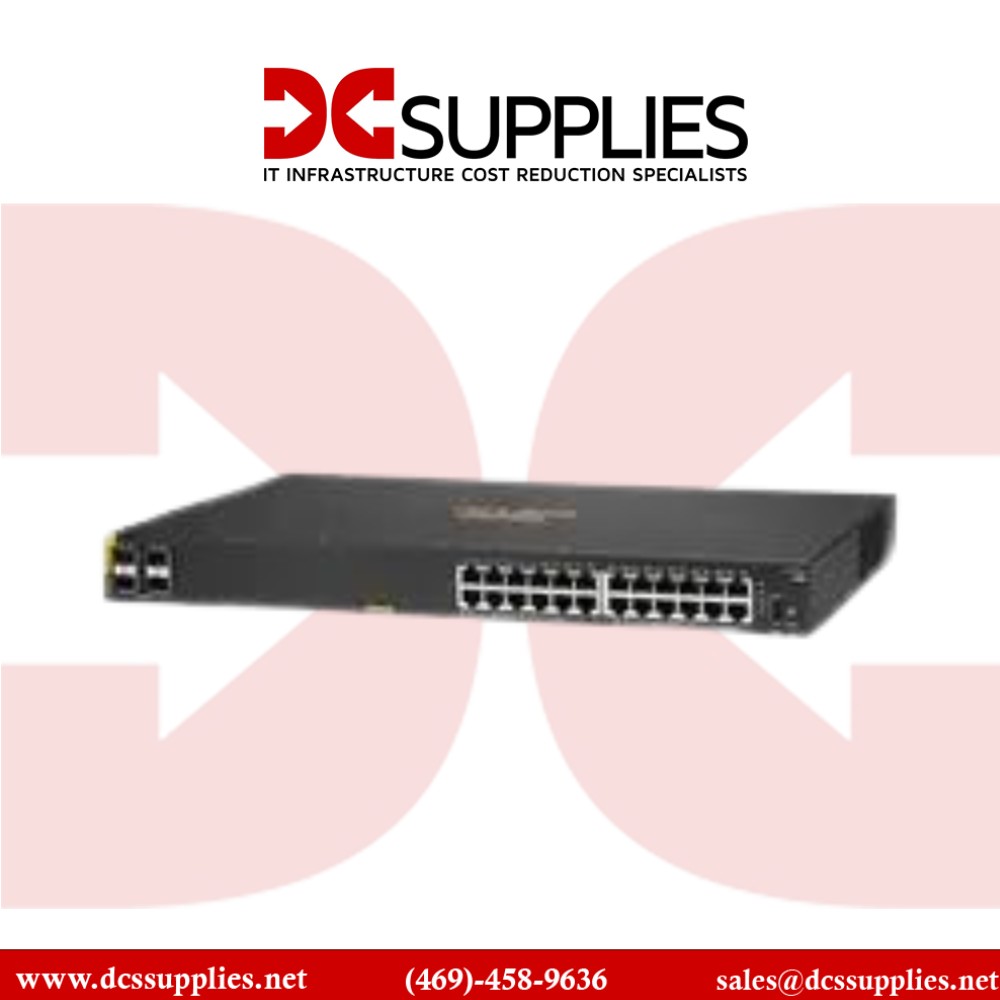

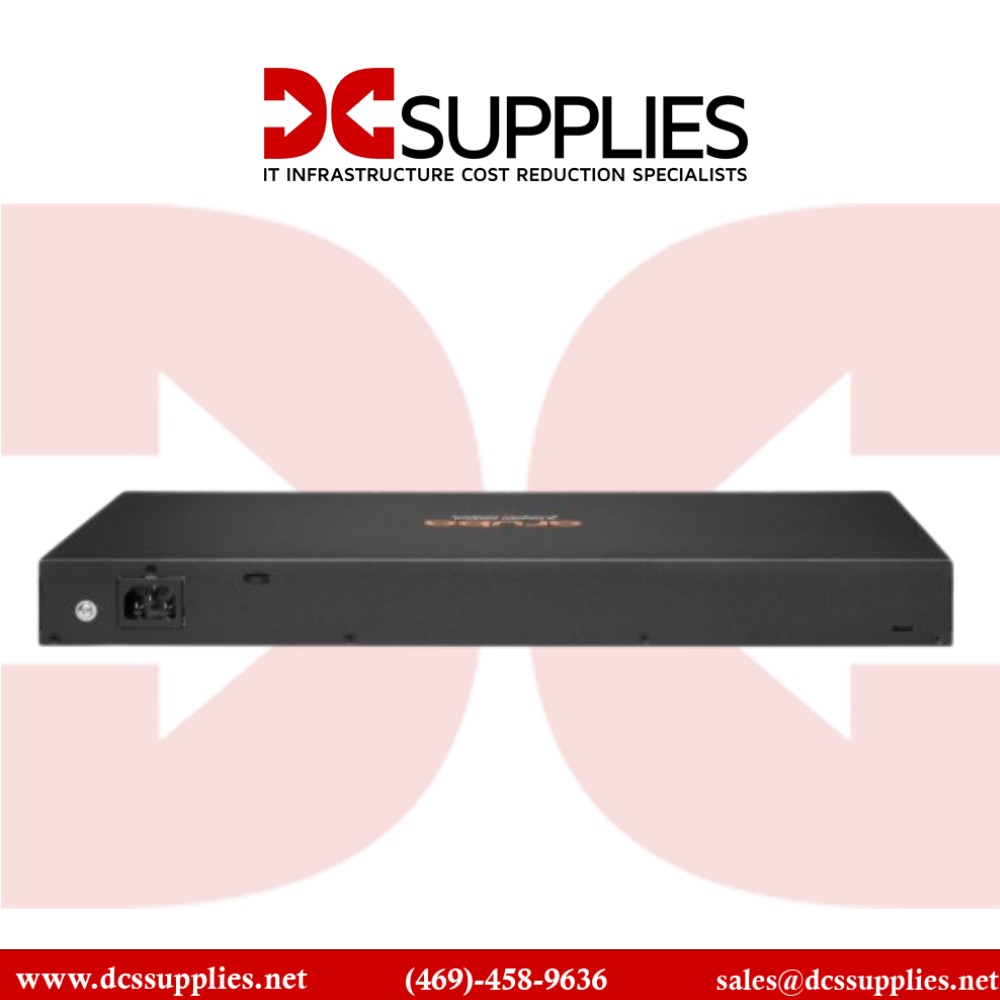

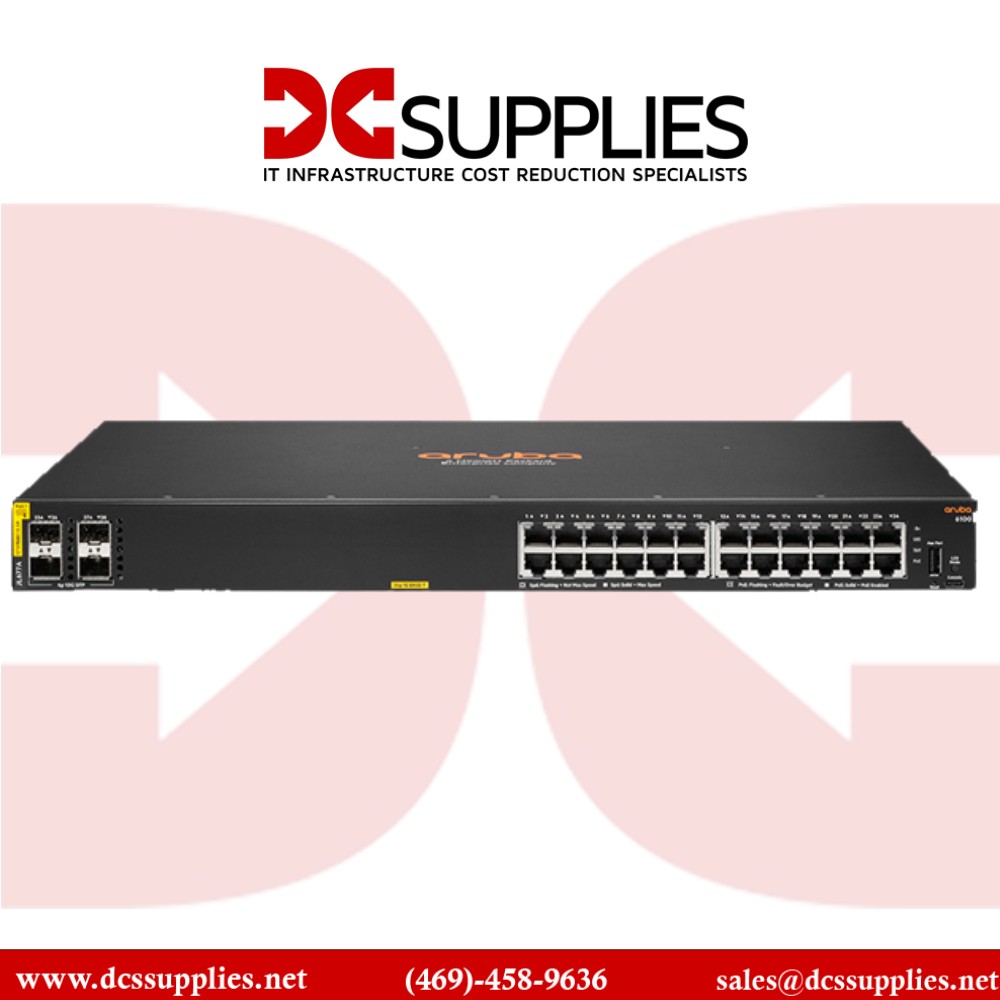

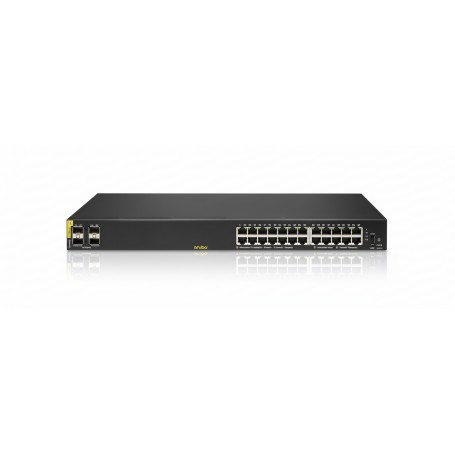

The HPE Aruba JL677A CX 6100 is a 28-port, fully managed Layer 2 switch delivering PoE+ power and high-speed uplinks in a compact, silent chassis. Tailored for SMBs, branch offices, and enterprise edge locations, this switch ensures secure, scalable, and cloud-ready access networking.
Features
Built on Aruba's programmable AOS-CX platform, the JL677A offers a consistent experience across the CX portfolio×web UI, CLI, REST APIs, Aruba Central, and NetEdit supported. With 370 W PoE, it powers wireless APs, PTZ cameras, VoIP devices, and more without external injectors
Advanced Options
Its four integrated 1G/10G SFP+ uplinks eliminate bottlenecks at the access layer, providing seamless connectivity to distribution or core switches
Product Key Features
24× Gigabit RJ-45 ports + 4× 1G/10G SFP+ uplinks
Up to 370 W total Class 4 PoE budget (30 W per port)
Layer 2 switching w/ static routing support
AOS-CX OS with REST APIs, Aruba Central & NetEdit ready
Fanless design enables silent operation
Robust security: ACLs, VLANs, DHCP snooping, IPv6
Reliability & Performance
This entry-level CX switch series ensures enterprise-grade reliability with low-latency ASICs, dynamic power saving, and silent fanless operation . Layer 2+ features include VLANs, ACLs, QoS, DHCP snooping, and static routing support×allowing basic inter-VLAN routing directly at the edge.
Key Features (Bullet List)
24× 10/100/1000 Mbps RJ-45 ports
4× 1G/10G SFP+ uplink ports
370 W PoE+ total (Class 4)
Fanless, silent design
AOS-CX OS with full automation support
Layer 2 switching + static routing; advanced security & QoS
| Specification | Details |
|---|
| Model Number | JL677A |
| Product Series | Aruba CX 6100 |
| Product Type | Layer 2 Managed Switch w/ PoE+ & Uplinks |
| RJ-45 Ports | 24× 10/100/1000 Mbps |
| Uplink Ports | 4× 1G/10G SFP+ |
| PoE Standard | IEEE 802.3af/at (Class 4) |
| Power Budget | 370 W total |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | ~95.23 Mpps |
| L2 Features | VLANs, ACLs, QoS, IGMP Snooping |
| L2+ Features | Static Routing, DHCP Snooping, IPv6 |
| Management | Web GUI, CLI, REST API, Aruba Central, NetEdit |
| Security Features | ACLs, 802.1X, RADIUS, DHCP Snooping |
| Cooling | Fanless (silent) |
| Dimensions | 17.4 × 12.0 × 1.73 in (1U) |
| Weight | ~6.8 lbs |
