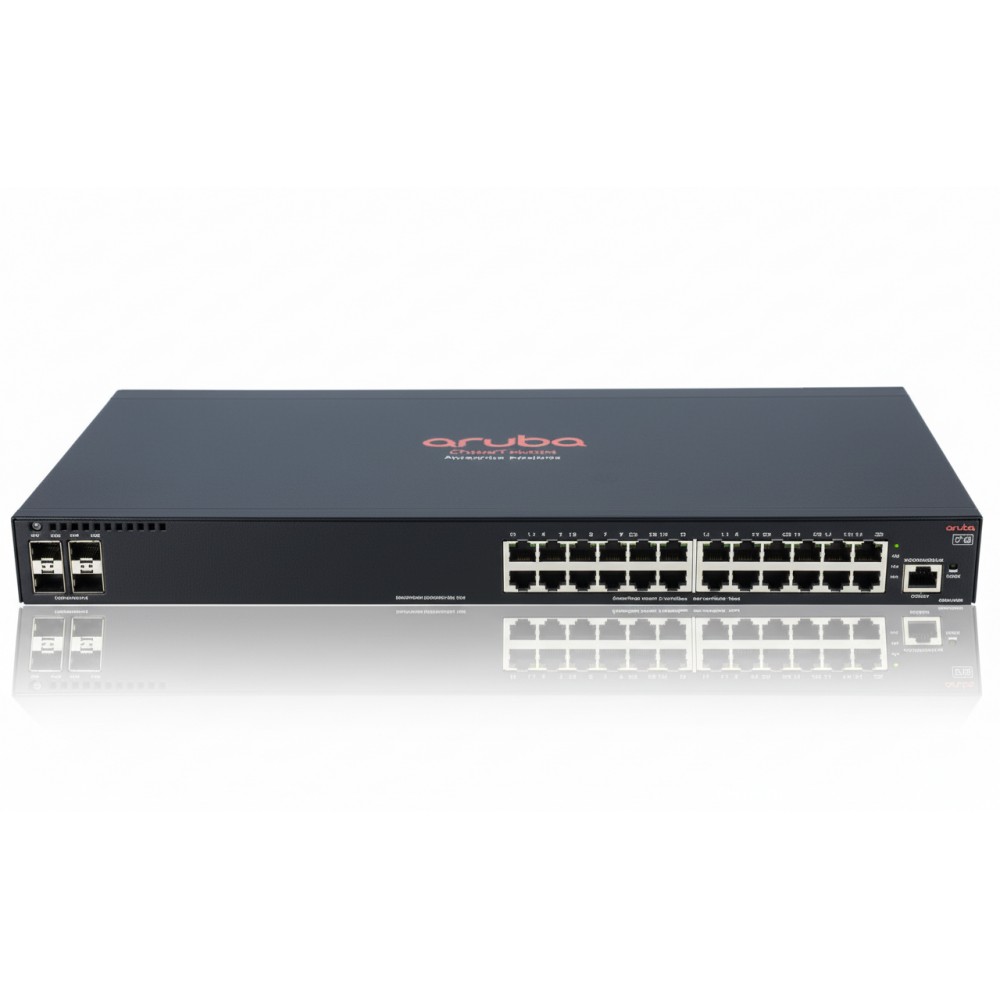

HPE Aruba JL259A Ethernet Switch View larger
Previous Next

HPE Aruba JL259A 2930F 24ports Ethernet Switch

New

In Stock

HPE Aruba JL259A High-Density 24-Port Gigabit Layer 3 Switch
×




$918.00

  • New

Detailed Specifications

HPE JL259A

Aruba 2930F 24‑Port Layer 3 Switch

The HPE Aruba JL259A 2930F is a Layer 3 managed access switch tailored for enterprise edge, SMB, and branch office environments. With 24 Gigabit Ethernet ports and four SFP uplinks, it provides essential connectivity for wired and wireless deployments. The switch is optimized for digital workplaces, offering advanced security and unified management via Aruba Clear Pass, Air Wave, or cloud-based Aruba Central.

Features :

Powered by Aruba's ProVision ASIC, the JL259A delivers low latency, robust throughput, and programmable SDN capabilities — ideal for handling modern traffic flows and future network demands . The inclusion of all essential Layer 3 protocols—with no licensing—simplifies deployment and routing, enabling static, RIP, OSPF, and IPv6 routing out of the box.

Advanced Options :

Stacking via VSF enables unified management of up to eight switches as a single entity, reducing complexity, and improving redundancy. The switch also supports Zero-Touch Provisioning, which automates initial setup and is well-suited for remote or minimal-IT deployments.

Product Key Features

  • 24× 10/100/1000 RJ‑45 ports plus 4× 1 GbE SFP uplinks

  • Full Layer 3 support: Static, RIP, Access OSPF, IPv6

  • Virtual Switching Framework (VSF) for stacking up to 8 units

  • Integration with Aruba ClearPass, AirWave, and Central for security and management

  • Zero-Touch Provisioning (ZTP) enabled for swift deployment

  • Enterprise-grade ProVision ASIC with 56 Gbps switching and 41.7 Mpps forwarding

Reliability & Performance :

Designed to operate reliably in challenging conditions, the JL259A runs from 0–45 °C and up to 5,000 ft elevation (10,000 ft derated) with 15–95% non-condensing humidity . Its energy-efficient design includes an 80PLUS Silver power supply and IEEE 802.3az EEE for reduced consumption. Side-to-side airflow keeps cooling efficient in dense rack environments. With a switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps, the JL259A delivers smooth, consistent performance for multi-gigabit traffic loads . Aruba’s Virtual Routing Redundancy Protocol (VRRP), LACP, STP, and SmartLink ensure resilience and uptime.

Key Features :

  • 24 autosensing 10/100/1000 GbE ports

  • Four 1 GbE uplink ports via SFP

  • Full Layer 3: Static, RIP, Access OSPF & IPv6

  • VSF stacking (up to eight switches)

  • Aruba ClearPass, AirWave & Central integration

  • Zero-Touch Provisioning & SDN-ready

  • Energy-efficient design with 80PLUS Silver & EEE

Specifications :

SpecificationDetails
Model Number JL259A
Product Type Layer 3 Managed Ethernet Switch
Ports 24× 10/100/1000 RJ‑45, 4× 1 GbE SFP uplinks
Switching Capacity 56 Gbps
Forwarding Rate 41.7 Mpps
ASIC Aruba ProVision
Layer 3 Protocols Static, RIP, Access OSPF, IPv6
Stacking VSF (up to 8 units)
Management Tools CLI, Web UI, SNMPv1/2/3, ClearPass, AirWave, Aruba Central, ZTP
Power Internal AC 100–240 VAC, 80PLUS Silver, EEE
Dimensions (HxWxD) 4.39×44.25×20.02 cm (1.73×17.42×7.88″)
Operating Temp/Humidity 0–45 °C, 15–95% non-condensing
Certifications UL, FCC, CE, RoHS, safety/EMC standards
Warranty Limited Lifetime
