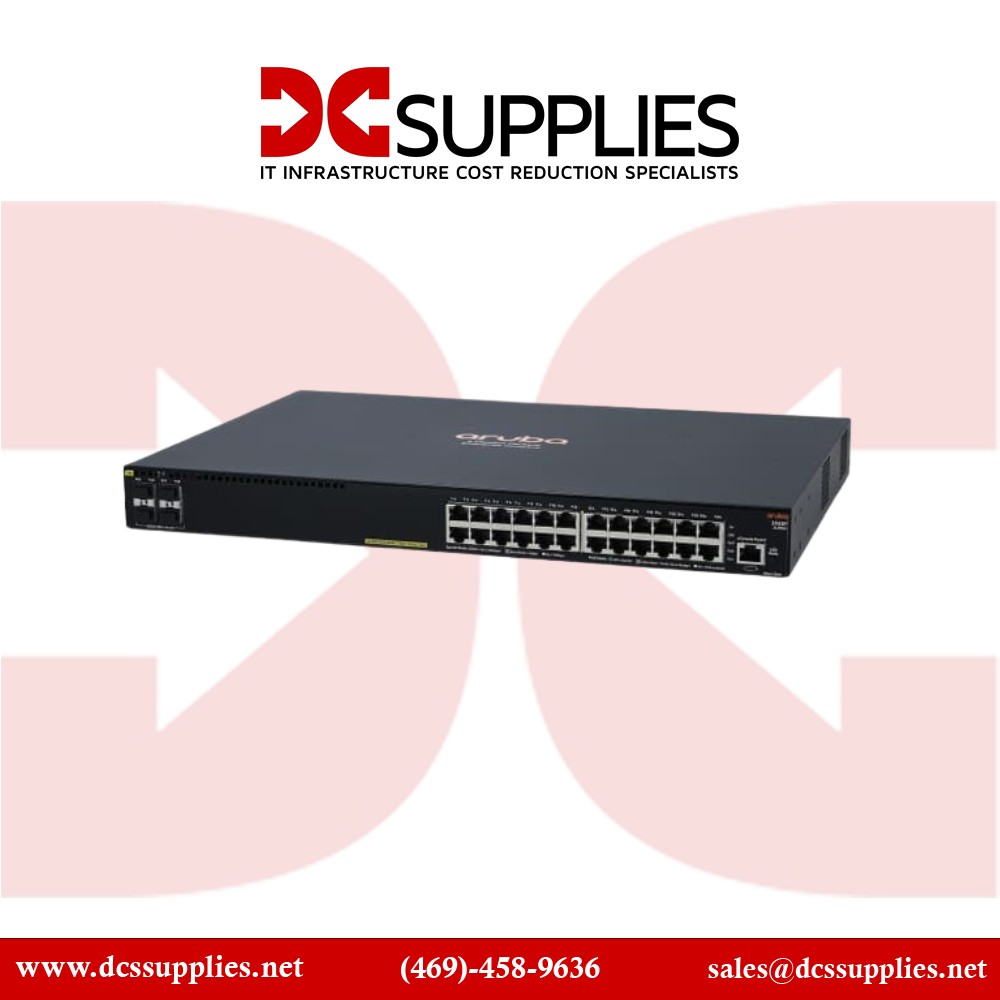

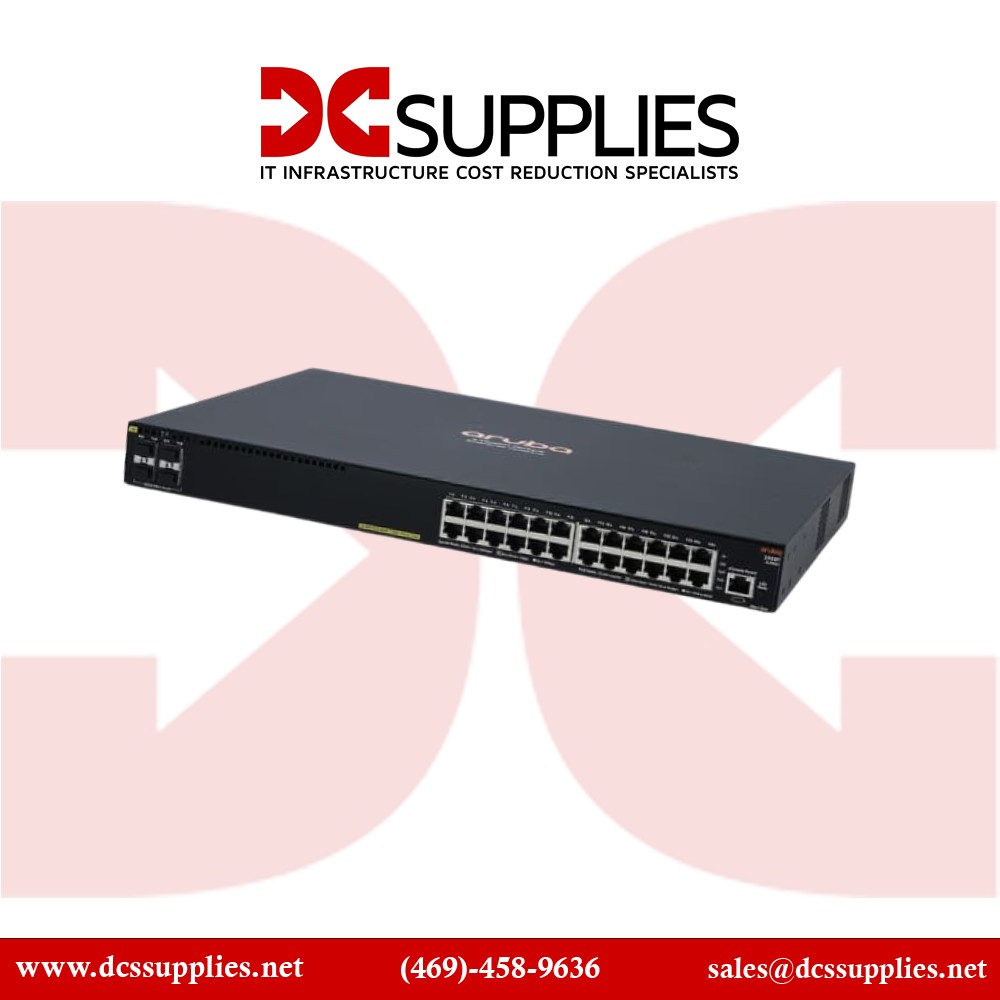

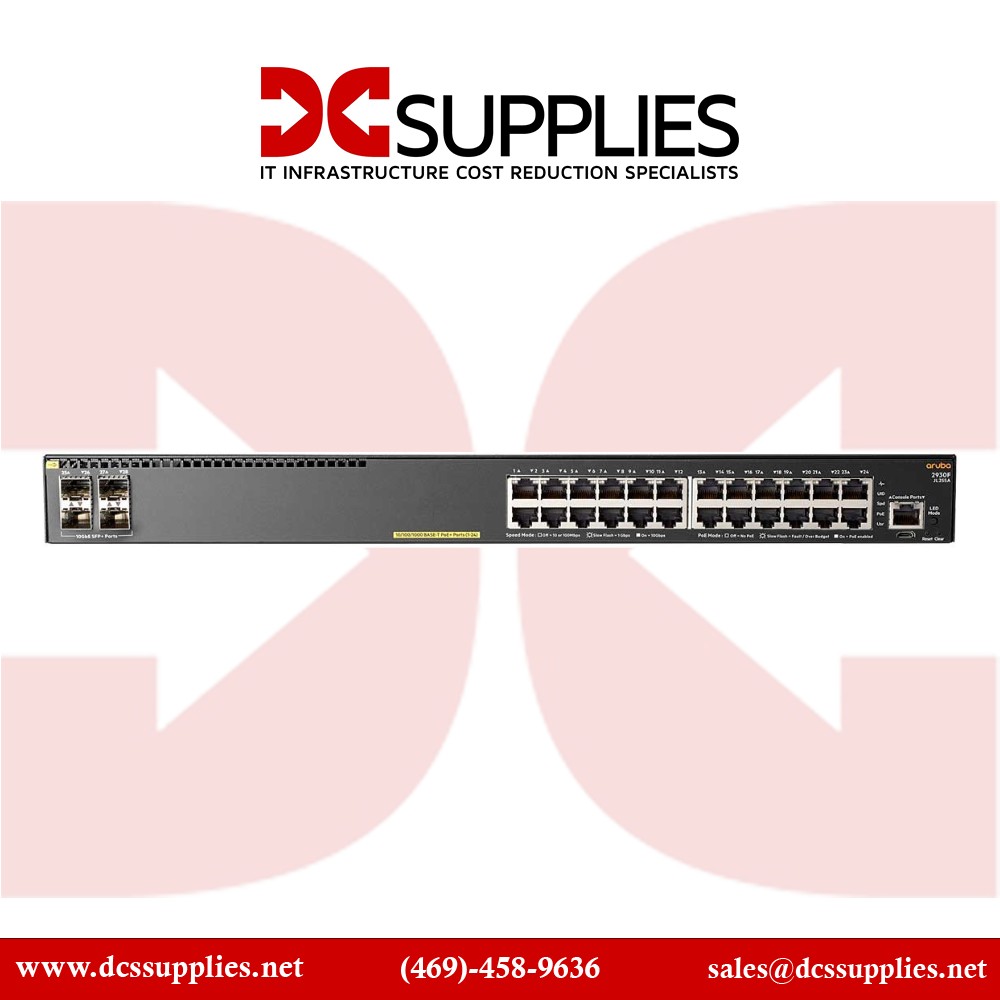

HPE Aruba JL255A 2930F 24ports Ethernet Switch

New

In Stock

HPE Aruba JL255A 2930F 24-Port Gigabit Ethernet Switch with PoE
×




$1,714.00

  • New

Detailed Specifications

HPE JL255A

Aruba 2930F 24‑Port PoE+ Layer 3 Switch

The HPE Aruba JL255A 2930F is a powerful Layer 3 access switch crafted for enterprise edge, SMB, and branch office deployments. With 24 PoE+ ports and 4 SFP+/10 GbE uplinks, it blends wired and wireless environments seamlessly, ideal for digital workplaces optimized for mobile users. It delivers advanced security, network management, and management simplicity through Aruba ClearPass, AirWave, and Central.

Features :

Built on a robust ProVision ASIC, the switch offers low-latency, buffer-rich performance and SDN programmability. Zero‑Touch Provisioning and VSF stacking (up to 8 units) simplify deployment and scaling. Its routing features—Access OSPF, RIP, static, IPv6—come ready out-of-the-box, with no additional licensing required.

Advanced Options :

Built on a robust ProVision ASIC, the switch offers low-latency, buffer-rich performance and SDN programmability. Zero‑Touch Provisioning and VSF stacking (up to 8 units) simplify deployment and scaling. Its routing features—Access OSPF, RIP, static, IPv6—come ready out-of-the-box, with no additional licensing required.

Product Key Features

  • 24× 10/100/1000 PoE+ ports with 370 W power budget

  • Four dual-speed SFP+/1 GbE or 10 GbE uplink ports

  • Layer 3—including RIP, Access OSPF, static routing, IPv6—no license

  • Supports VSF stacking (up to 8 units), ZTP provisioning

  • Integrated security/QoS with ClearPass, AirWave, Aruba Central

  • High-performance ASIC with 128 Gbps switching and 95 Mpps forwarding

Reliability & Performance :

Engineered for consistent performance under heavy PoE and uplink loads, the JL255A features a side-to-side cooling design and energy-efficient power supply (80PLUS Silver). It supports 370 W of PoE+ across all ports. The switch maintains operations at up to 45 °C and up to 10,000 ft altitude. Enterprise features like VSF stacking, hot-swappable power, and enterprise security standards ensure high uptime and easy maintenance.

Key Features :

  • 24 autosensing PoE+ Gigabit ports (IEEE 802.3at)

  • Four combo SFP+/1 GbE or 10 GbE uplinks

  • Layer 3 routing: RIP, Access OSPF, static, IPv6

  • VSF stacking up to 8 units

  • Zero-Touch Provisioning & Aruba Central support

  • Security/QoS: ACLs, RADIUS/TACACS+, sFlow, dynamic segmentation

Specifications :

SpecificationDetails
Model Number JL255A
Product Type Layer 3 Managed Switch
Managed Yes
Port Configuration 24× 10/100/1000 PoE+ + 4× SFP+/1 GbE/10 GbE uplinks
PoE Budget 370 W
Uplink Speed 1 GbE or 10 GbE via SFP+
Layer Support L3: RIP, Access OSPF, IPv6; Static Routing
Stacking VSF up to 8 units
ASIC ProVision, 128 Gbps switching, 95 Mpps throughput
Management Tools CLI, Web UI, SNMP, ClearPass, AirWave, Aruba Central, ZTP
Dimensions (H×W×D) 1.73″ × 17.42″ × 11.98″ (4.39 × 44.25 × 30.42 cm)
Weight ~10 lbs (4.5 kg) estimated
Power Input Internal AC (100–240 VAC)
Cooling Side-to-side airflow
Operating Temp 0–45 °C (32–113 °F), up to 10,000 ft
Humidity 15–95% non-condensing
Certifications 80PLUS Silver, safety and EMC approvals
Warranty 3‑Year standard HP HPE warranty
