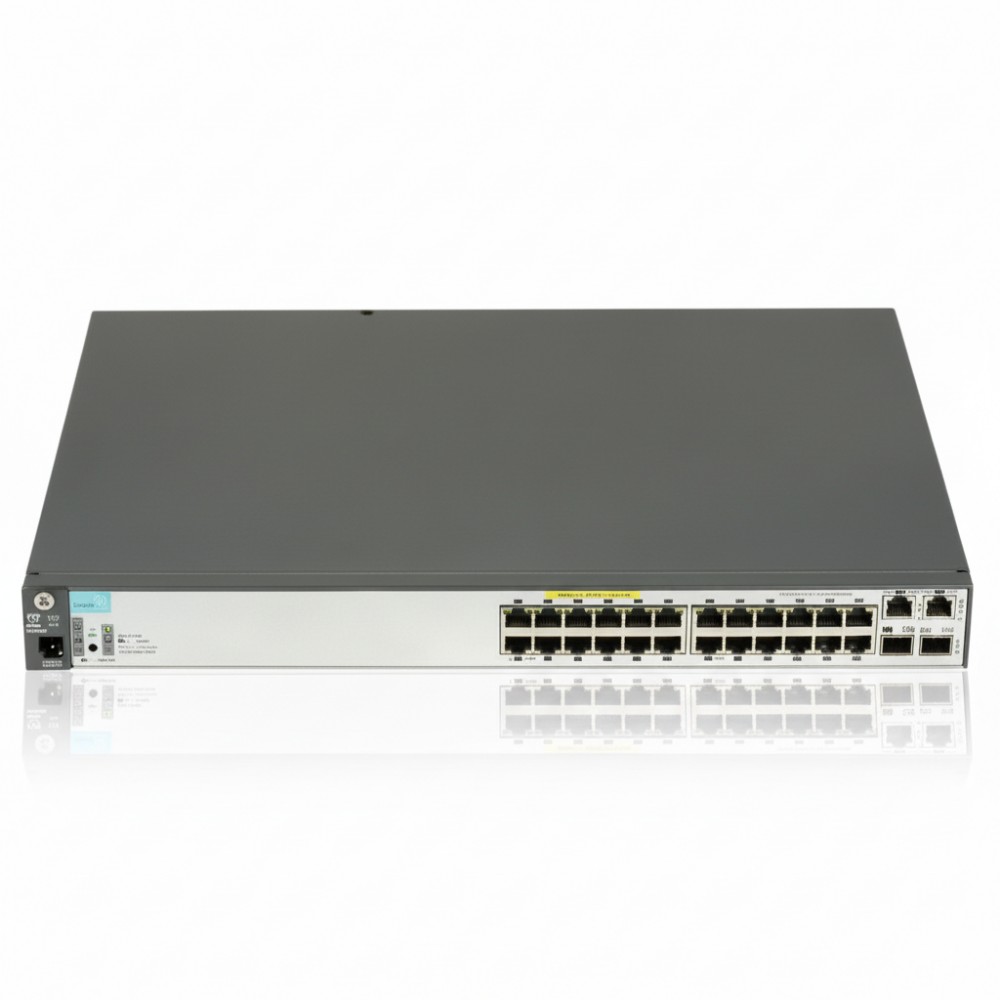

HPE Aruba J9625A 2620-24-PoE - switch - 24 ports - managed - rack-mountable View larger
Previous Next

HPE Aruba J9625A 2620 Ethernet switch managed 24 ports

New

HPE Aruba J9625A 2620 Ethernet switch managed 24 ports
×




  • New

Detailed Specifications

HPE J9625A

2620‑24‑PoE+ Managed Ethernet Switch – 24‑Port (Flexible Uplinks)

The HPE Aruba J9625A (2620‑24‑PoE+ model) is ideal for SMB environments that need reliable PoE delivery plus advanced network management. Supporting 24 PoE+ ports (IEEE 802.3at),it provides a 370 W internal power budget for IP cameras, VoIP phones, and APs, while also offering gigabit uplink flexibility via dual RJ‑45 or SFP slots

Features

This 1U rack-mountable switch supports static & RIP routing, ACLs, QoS, VLANs, link aggregation, and LLDP—providing robust network segmentation and traffic control.

Advanced Options

Enhanced security includes 802.1X, MAC lockdown, DHCP snooping, and ACL enforcement . IPv6 support comes baked in, manageable via web GUI, CLI, or SNMP.

Product Key Features

    •  24 × 10/100 PoE+ RJ‑45 ports, delivering up to 30 W each

    •  2 × 10/100/1000 RJ‑45 uplinks + 2 × mini‑GBIC (SFP) slots—dual‑personality flexibility

    •  Managed Layer 2+ switch with static & RIP routing, ACLs, VLANs, QoS

    •  Enterprise‑grade security: 802.1X, ACLs, MAC lockdown, DHCP snooping

    •  Energy‑Efficient Ethernet (IEEE 802.3az) and fanless desktop/rack‑mount design

    •  IPv6‑ready, SNMP/Web/CLI management, optional redundant external PSU

Reliability & Performance

Boasting Energy‑Efficient Ethernet and a quiet, fanless operation for desktop use, this switch excels in noise-sensitive environments. For rack deployment, fans activate for optimal cooling under load. With a Limited Lifetime Warranty and optional external PSU support, it offers long-lasting reliability for edge and access-layer installations .

Key Features (Bullet List)

  • 24 × 10/100 PoE+ ports (30 W each)

  • 2 × dual‑personality Gigabit RJ‑45 or SFP uplinks + 2 × SFP slots

  • Layer 2+ management: VLANs, ACLs, QoS, static & RIP routing

  • Security: 802.1X, DHCP snooping, MAC lockdown

  • Energy‑Efficient Ethernet, fanless or fan‑cooled depending on platform

  • IPv6-ready; manage via Web GUI, CLI, or SNMP

SpecificationDetails
Model Number J9625A (HPE Aruba 2620‑24‑PoE+)
Product Type Managed Layer 2+ Ethernet Switch
Port Count 24 × 10/100 PoE+ RJ‑45
Uplink Ports 2 × dual‑personality Gigabit RJ‑45/SFP + 2 × SFP
Switching Capacity 12.8 Gbps
Forwarding Rate 9.5 Mpps
Power over Ethernet IEEE 802.3at PoE+ (30 W/port); 370 W internal budget
VLANs Up to 512 active, 4096 total
Security ACLs, 802.1X, MAC lockdown, DHCP snooping
Management Web GUI, CLI, SNMP
Layer Support VLAN, QoS, static & RIP routing
IPv6 Support Yes
Energy Efficiency IEEE 802.3az, fanless desktop or active rack‑cooling
Redundant PSU Support Yes (external)
Dimensions (W×D×H) 17.44 × 14.5 × 1.73 inches (44.3 × 36.8 × 4.4 cm)
Weight 10.67 lb (4.84 kg)
Operating Temp 0°C–45°C (32°F–113°F)
Warranty Limited Lifetime
