Detailed Specifications

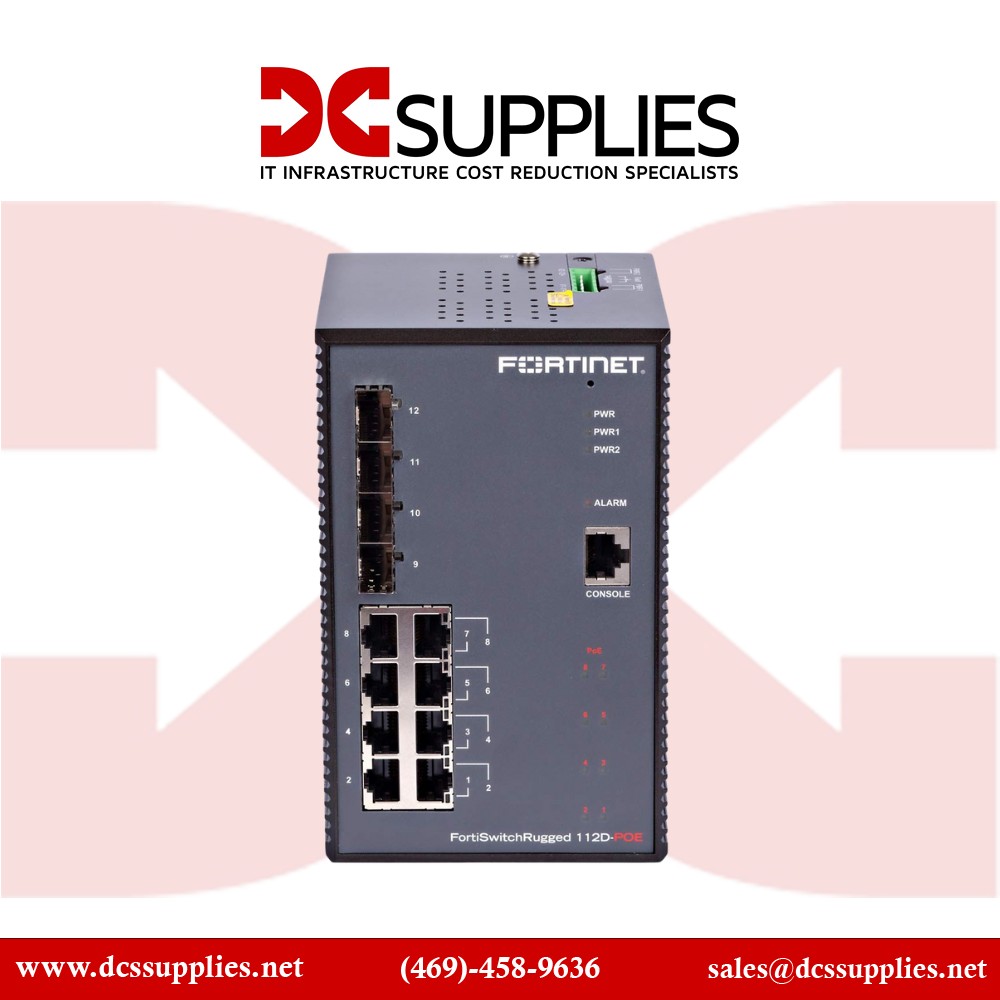

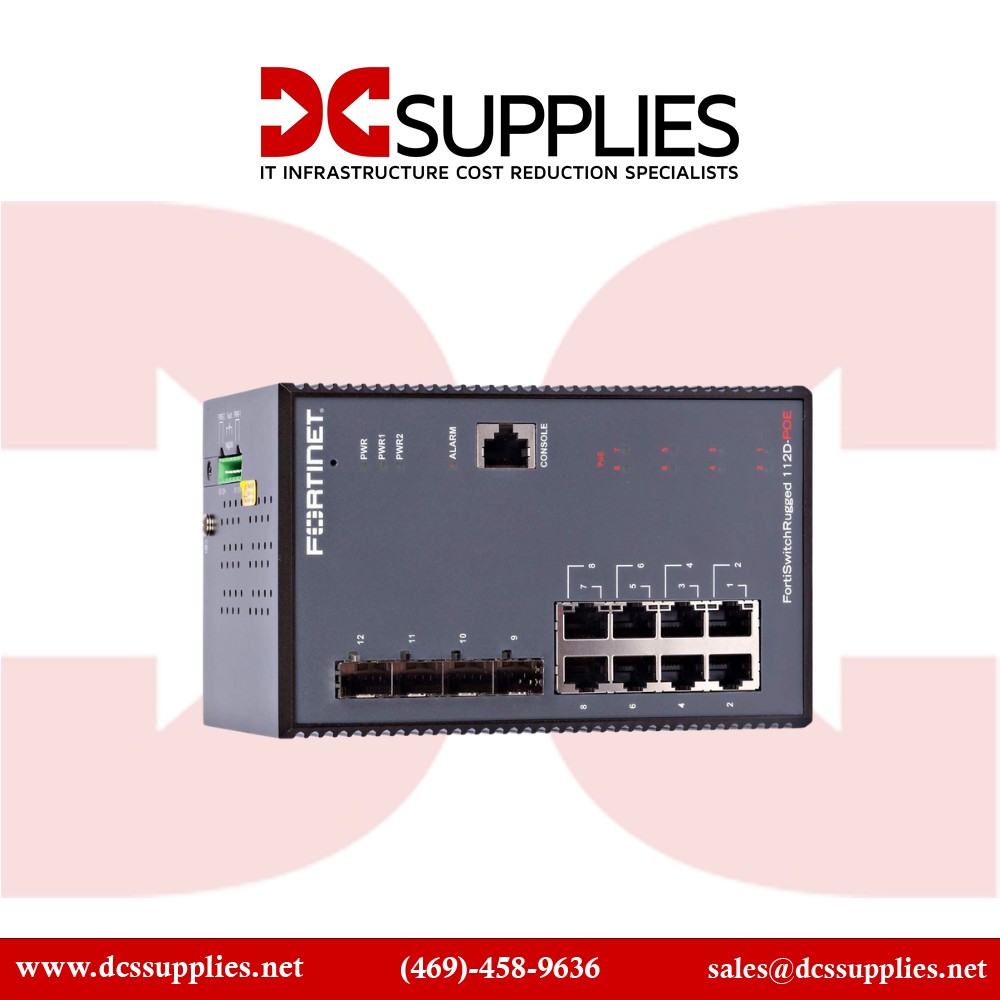

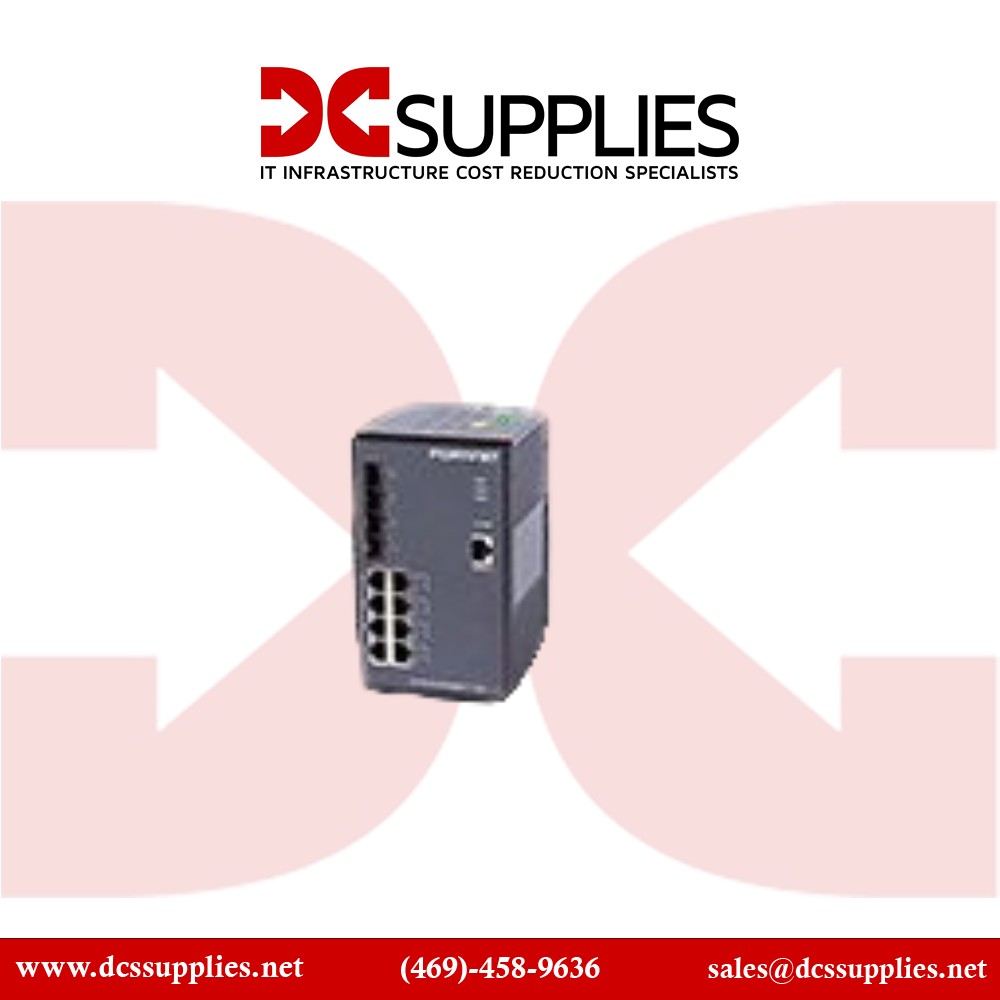

Fortinet FortiSwitch FSR-112D-POE
Rugged Managed PoE+ Switch - 8-Port Gigabit + 4 Combo SFP for Industrial Networks
The Fortinet FortiSwitch FSR-112D-POE is a rugged, managed PoE+ Ethernet switch designed for demanding industrial and outdoor deployments. Featuring 8 PoE+ Gigabit ports and 4 combo SFP uplinks, it delivers flexible power and high-performance data connectivity to network devices in harsh environments.
Features :
Built with a durable metal chassis and extended-temperature operation, the FSR-112D-POE supports full Layer 2 switching with VLAN segmentation, QoS prioritization, link aggregation, and multicast management. Its PoE+ capability delivers up to 30W per port, powering devices such as IP cameras, Wi-Fi access points, and industrial IoT equipment without separate power cabling.
Advanced Options :
The four combo SFP ports provide flexible fiber or copper uplinks for connecting remote network segments or expanding infrastructure. Flexible mounting options, including DIN rail and wall mounts, enable easy integration into industrial automation, transportation systems, and outdoor network settings.
Product Key Features
- 8 x Gigabit Ethernet PoE+ ports (up to 30W each)
- 4 x combo SFP uplinks for fiber or copper connectivity
- Ruggedized metal enclosure for harsh environments
- DIN rail and wall mount installation options
- Advanced Layer 2 switching with VLAN, QoS, and link aggregation
Reliability & Performance :
Designed for 24/7 industrial operation, the FSR-112D-POE delivers reliable performance with built-in surge protection and robust hardware components. Energy-efficient technology reduces consumption while maintaining consistent network connectivity in extreme temperatures.
Key Features :
- 8 x 10/100/1000 Mbps PoE+ RJ-45 ports (IEEE 802.3af/at)
- 4 x combo SFP ports for fiber/copper uplinks
- 24 Gbps switching capacity
- DIN rail or wall mount for flexible installation
- Extended temperature range and rugged construction
Specifications :
| Specification | Details |
|---|
| Model Number | FSR-112D-POE |
| Product Type | Rugged Managed PoE+ Ethernet Switch |
| Ports | 8 x 10/100/1000 Mbps PoE+ RJ-45, 4 x Combo SFP (fiber/copper) |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| Switching Capacity | 24 Gbps |
| VLAN Support | 802.1Q VLANs |
| QoS | Yes |
| Link Aggregation | Supported |
| Mounting Options | DIN rail, Wall mount |
| Operating Temperature | -40 °C to 75 °C |
| Dimensions (H x W x D) | Approx. 44 mm x 220 mm x 140 mm |
| Weight | Approx. 2.5 kg |
