Fortinet FS-624F Forti Switch managed 24 port poe Ethernet switch View larger
Previous Next

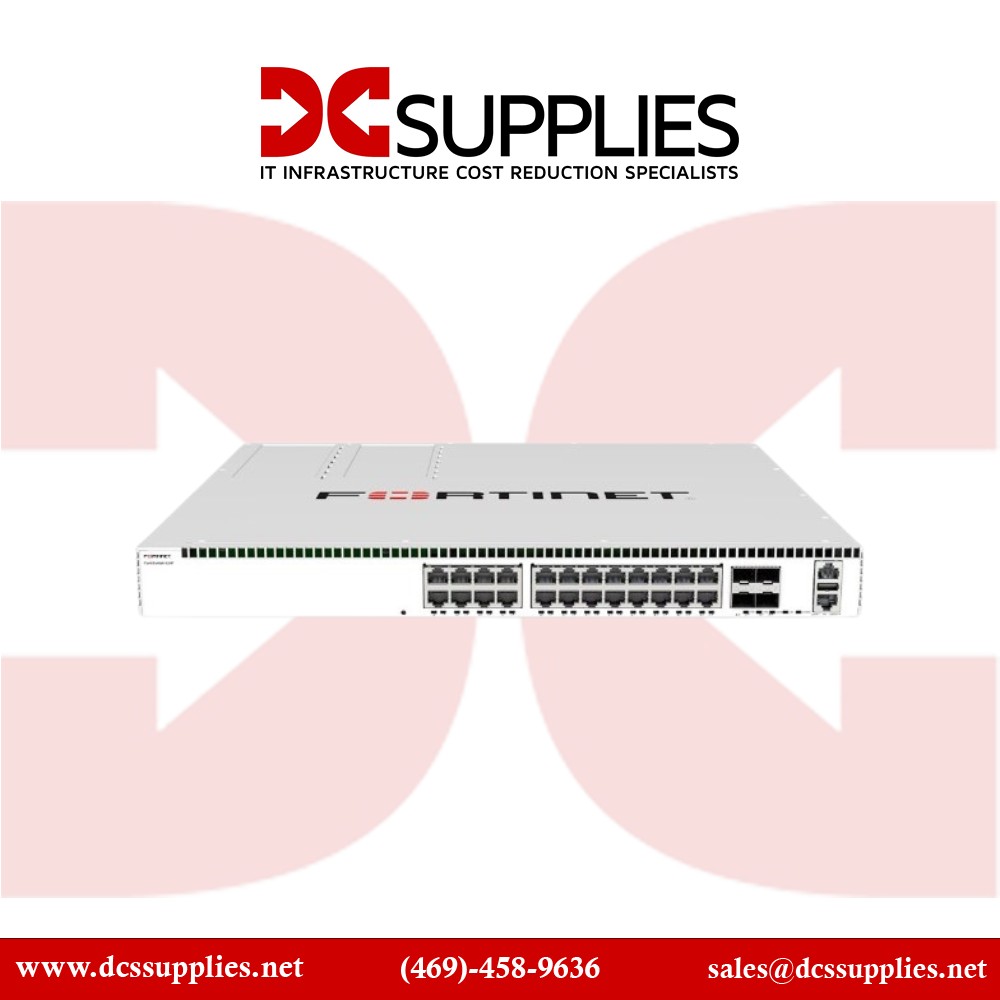

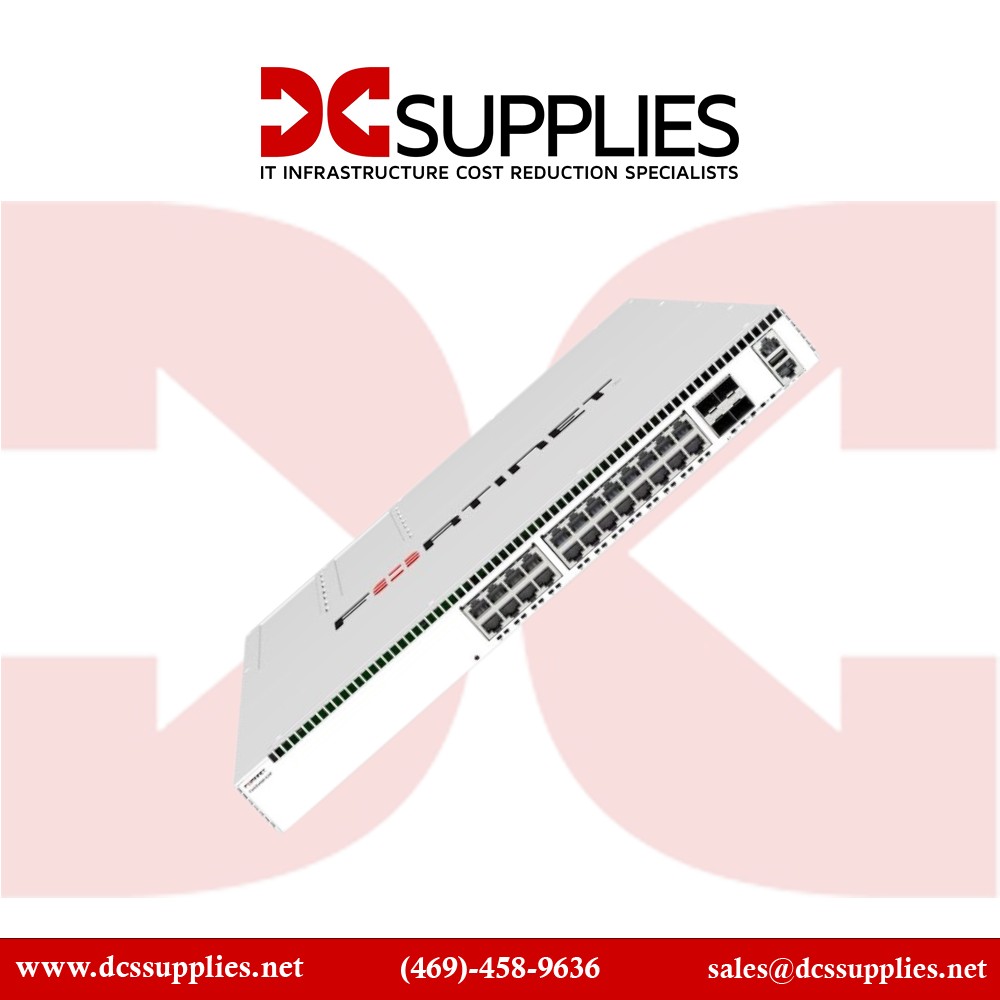

Fortinet FS-624F Forti Switch managed 24 port poe Ethernet switch

FS-624F

New

High-performance 5 GbE switch with 25 GbE uplinks.
×




Detailed Specifications

Fortinet FS-624F

FortiSwitch Layer 2/3 Managed Ethernet Switch – 24 × 5 GbE, 4 × 25 GbE MACsec

The Fortinet FS-624F FortiSwitch is a robust Layer 2/3 managed Ethernet switch designed for enterprise environments. Featuring 24 multi-gigabit RJ-45 ports, 25 GbE uplinks, and MACsec security, it delivers high-speed connectivity and secure data transmission—making it ideal for modern, secure campus networks.

Features :

The FS‑624F combines 24 × 5 GbE RJ‑45 access ports with four high‑capacity 25 GbE SFP28 uplinks to ensure exceptional performance and scalability. As a FortiGate-managed switch, it integrates seamlessly into the Fortinet Security Fabric via FortiLink, supporting centralized control, zero‑touch provisioning, and unified security enforcement.

Advanced Options :

With Layer 2 and Layer 3 feature sets—such as VLAN segmentation, dynamic routing, ACLs, MACsec encryption, and QoS—the FS‑624F is well suited for distributed campus networks, edge deployments, and high‑density environments. Its ~440 Gbps switching capacity and sub‑1 μs latency supports bandwidth‑heavy applications like virtualization, cloud services, and real‑time media.

Product Key Features

  • 24 × 5 GbE RJ‑45 access ports
  • 4 × 25 GbE SFP28 uplink ports with MACsec encryption
  • Layer 2/3 managed, FortiGate‑integrated via FortiLink
  • Rack‑mountable 1 U chassis with front‑to‑back airflow
  • High switching capacity (~440 Gbps), sub‑1 μs latency

Reliability & Performance :

Engineered for continuous operation, the FS‑624F includes front‑to‑back airflow for data center cooling environments and a compact 1 U rack‑mountable design. Enterprise‑grade architecture supports high‑resiliency protocols, extensive VLANs, link aggregation, and advanced QoS. FortiCare services provide updates, warranty coverage, and technical support to maximize uptime and performance.

Key Features :

  • 24 × 5 GbE RJ‑45 access ports
  • 4 × 25 GbE SFP28 uplink ports with MACsec encryption
  • Layer 2/3 managed, FortiGate‑integrated via FortiLink
  • 1 U rack‑mountable chassis, front‑to‑back airflow
  • ≈ 440 Gbps switching capacity, <1 μs latency

Specifications :

SpecificationDetails
Model Number FS-624F
Product Type Layer 2/3 Managed Ethernet Switch
Access Ports 24 × 1/2.5/5 GbE RJ‑45
Uplink Ports 4 × 10/25 GbE SFP28
MACsec Support Yes
Form Factor 1 U Rack‑mountable, front‑to‑back airflow
Switching Capacity ≈ 440 Gbps
Forwarding Performance ≈ 654 Mpps
Latency < 1 μs
RAM 4 GB DDR4
Interfaces 1 × Management RJ‑45; 1 × Console RJ‑45; 1 × USB 2.0 Type‑A
Environmental Operating: 0 °C to 45 °C
