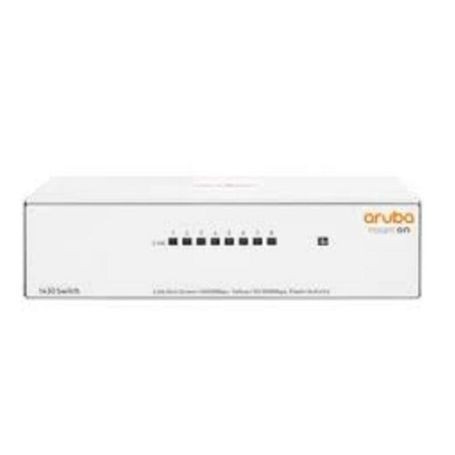

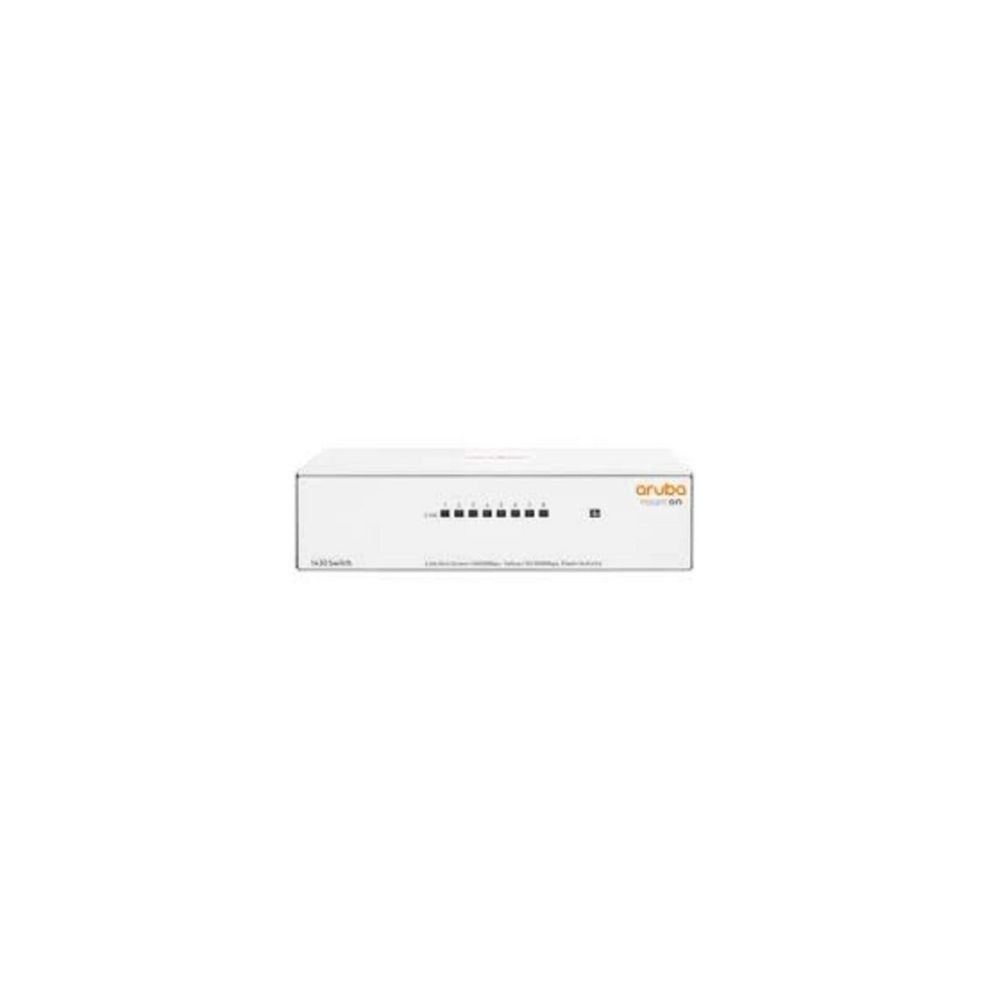

HPE Aruba R8R46-61001 Instant On 8 Ports Ethernet Switch View larger
Previous Next

HPE R8R46-61001 Aruba Instant On 1430 Series 8‑Port Gigabit Class 4 PoE Ethernet Switch

New

Fan‑less 8×1 GbE Class 4 PoE switch...

×




  • New

Detailed Specifications

HPE R8R46-61001

Aruba Instant On 1430 Series 8‑Port Gigabit Class 4 PoE Ethernet Switch

The HPE R8R46‑61001, part of the Aruba Instant On 1430 Series, is an easy-to-use unmanaged Gigabit Ethernet switch featuring eight RJ‑45 ports with 10/100/1000BASE‑T PoE (Class 4). With plug-and-play operation and no setup required, it's ideal for small businesses, branch offices, remote locations, or home office environments. Each port delivers up to 30 W of power, with a shared power budget of 64 W. The fan‑less design ensures silent operation—making it suitable for workspace or open-plan deployments. It's compatible with PoE‑powered devices such as access points, VoIP phones, surveillance cameras, or IoT sensors, offering reliable wired connectivity with built-in power.

Features

This switch is part of the Instant On 1430 family—a series of layer‑2 unmanaged Gigabit Ethernet switches tailored for simplicity and performance. The R8R46‑61001 model delivers full Gigabit throughput across all eight copper ports and offers up to 11.90 Mpps forwarding and 16 Gbps switching capacity. Class 4 PoE support allows each port to power devices requiring up to 30 W, within a total 64 W budget. It's powered via an external adapter (up to ~90 W input power), supporting flexible deployments where integrated PoE midspan isn't available. Energy‑Efficient Ethernet (EEE) support reduces power consumption during idle periods. Despite its unmanaged nature, it supports QoS for prioritizing voice/video traffic, jumbo frames, flow control, and Auto MDI/MDI‑X. The compact, table‑top or rack‑mountable form factor keeps deployment flexible in tight server racks or wall-mounted installations.

Advanced Options

Built for consistent performance and minimal setup, the R8R46‑61001 switch offers enterprise-level features in a simple unmanaged package. Its fan-less thermal design and external power supply keep internal heat low and reduce noise—ideal for quiet office environments. Power-over-Ethernet Class 4 ensures stable power delivery to connected devices like Aruba access points or VoIP phones. With support for Energy Efficient Ethernet (802.3az),

Product Key Features

  • 8 × Gigabit RJ‑45 ports with Class 4 PoE (30 W max per port)

  •  Total PoE budget of 64 W

  •  Unmanaged Layer 2 switching, plug-and-play

  •  Fan-less design for silent operation

  •  Switching capacity 16 Gbps, throughput ~11.9 Mpps

  •  Energy Efficient Ethernet (EEE), QoS, flow control, jumbo frames

Reliability & Performance

the switch conserves energy during idle periods. Auto-negotiation and Auto MDI/MDI-X support simplify cabling. QoS ensures smooth voice and video prioritization without admin overhead. Jumbo frame capacity and flow control enhance data transfer for connected storage or surveillance devices. The robust hardware ensures reliability, and support includes limited lifetime warranty and HPE chat assistance.rs.

Key Features :

    • 8 × 10/100/1000BASE‑T RJ‑45 ports

    • Class 4 PoE with 30 W per port, total budget 64 W

    • 16 Gbps switching capacity, up to 11.90 Mpps forwarding

    • Unmanaged plug-and-play operation

    • Fan-less, silent running

    • Energy Efficient Ethernet (EEE), QoS, jumbo frames, flow control

SpecificationDetails
Model Number R8R46‑61001
Product Type 8-Port Gigabit Unmanaged Ethernet Switch with PoE Ethernet Switch
Ports 8 × 10/100/1000BASE‑T RJ‑45 with PoE Class 4
PoE per Port Up to 30 W
Power Budget 64 W total
Switching Capacity 16 Gbps
Forwarding Rate ~11.90 Mpps
Features QoS, jumbo frames, flow control, Auto MDI/MDI‑X, EEE
Power Input External adapter (~90 W max)
Power Consumption ~90 W max, ~4.1 W idle
Cooling Fan‑less (passive)
Rack / Mount Options Desktop, wall, underside of table, rack using included brackets
Dimensions (W×D×H) ~17.7 cm × 15.0 cm × 3.7 cm (6.97″×5.91″×1.46″)
Weight ~0.77 kg (1.7 lb)
Warranty Limited Lifetime (with 24×7 phone/ chat support for first 90 days)
Certification PoE Class 4, energy compliant, safety standards per HPE
