HPER8R45-61001

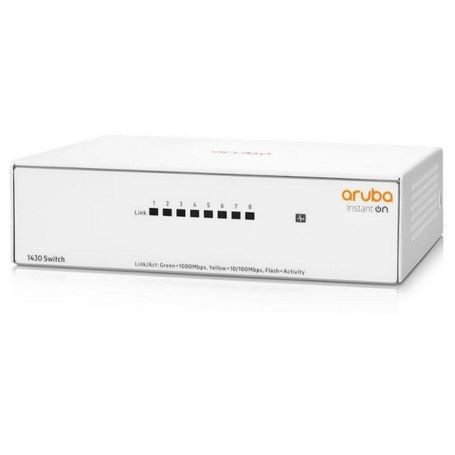

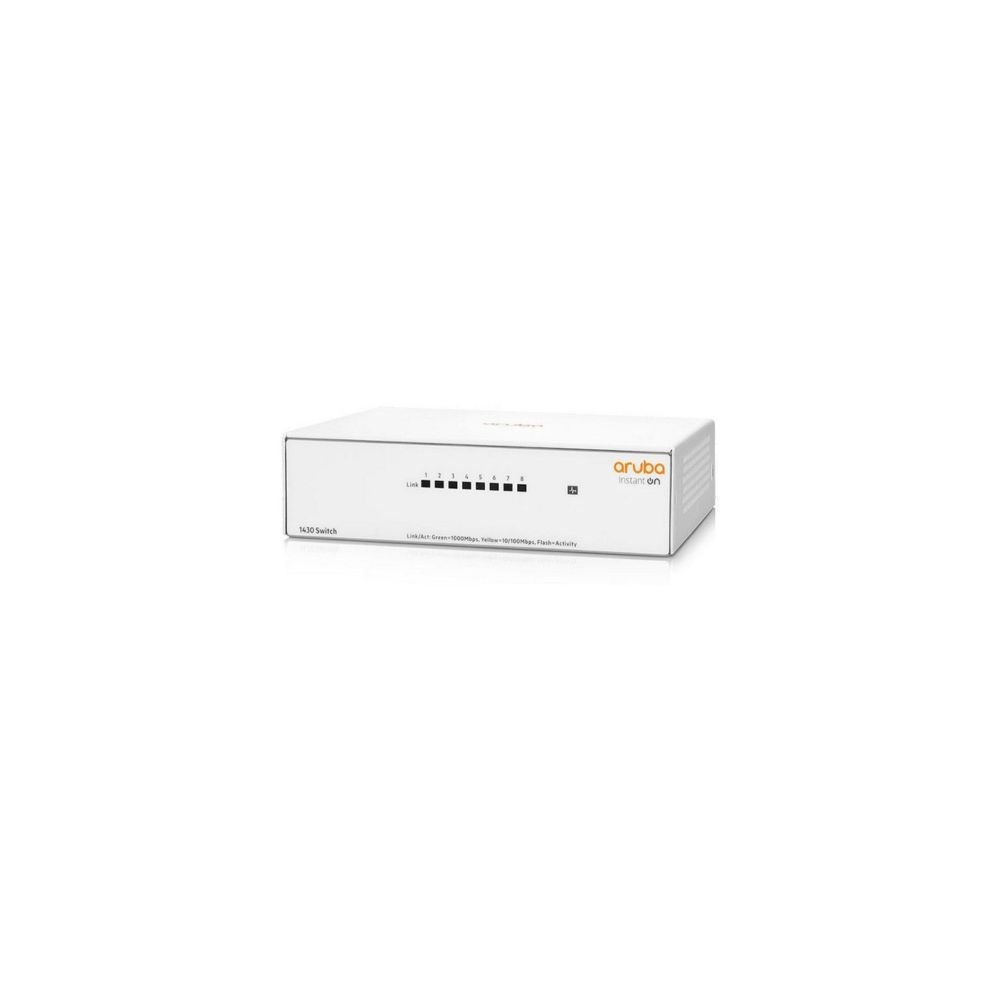

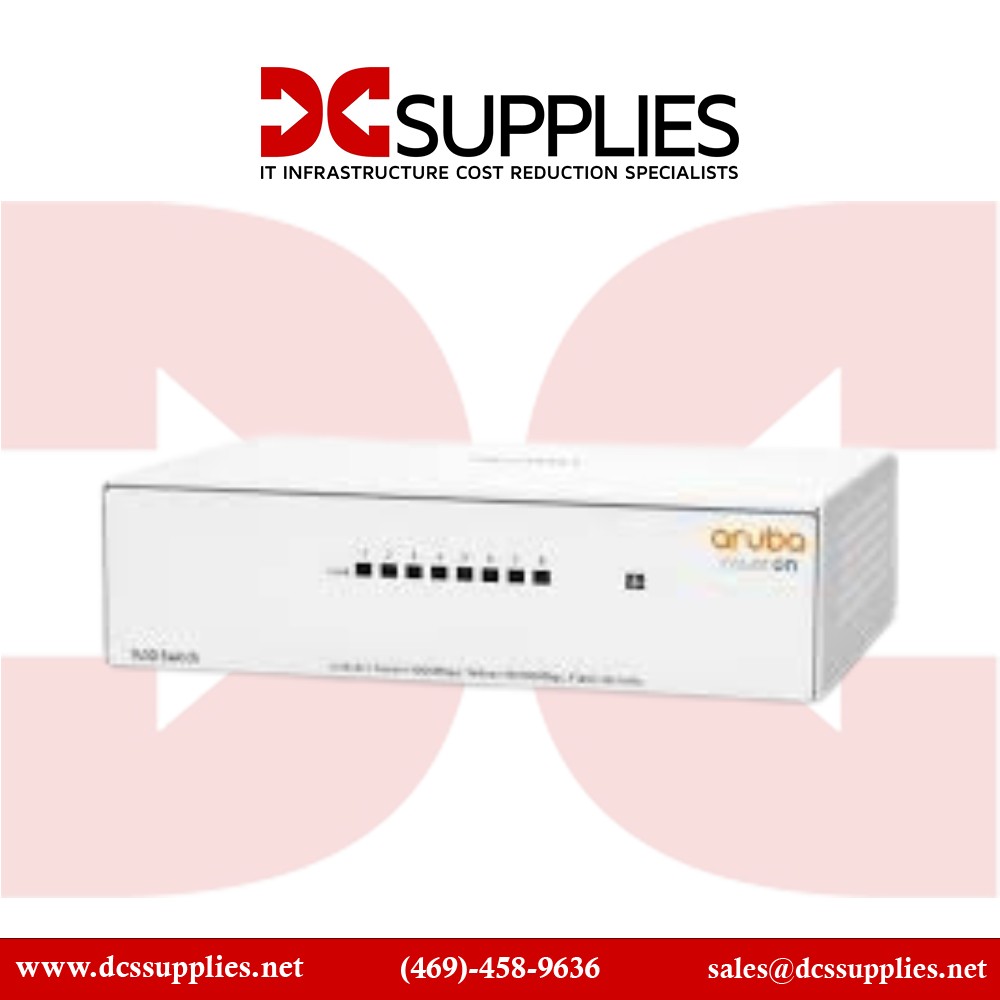

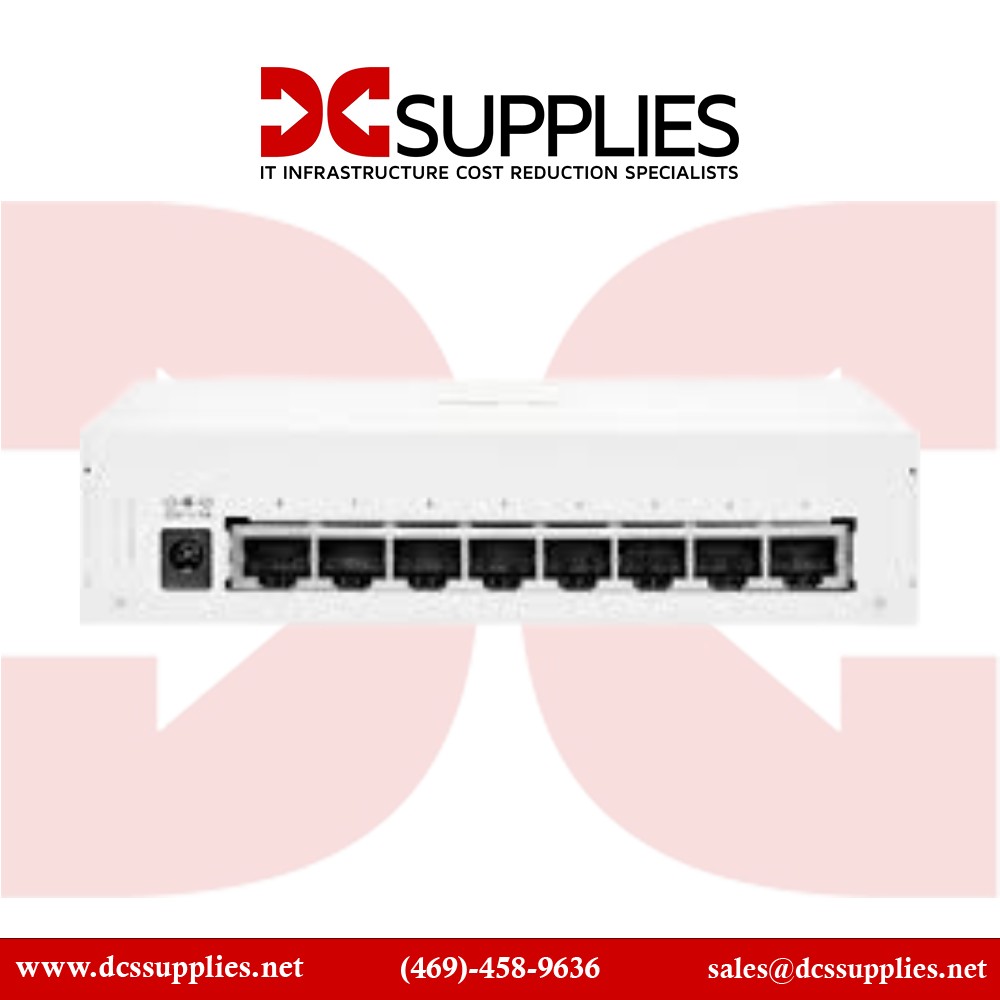

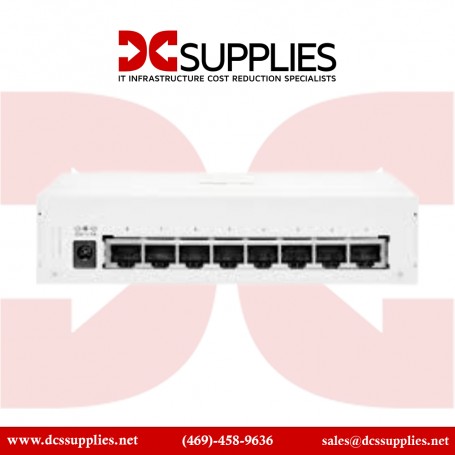

ArubaInstant 1430 8G Gigabit Ethernet Switch

The HPEArubaR8R45-61001 Instant On 1430 8G switch is an unmanaged, plug-and-play Gigabit Ethernet solution designed for small offices and home-based businesses. Featuring eight auto-sensing 10/100/1000 Mbps RJ-45 ports, this fan-less switch delivers silent, reliable network connectivity with zero configuration required. Perfect for connecting wireless access points, printers, VLAN-capable IP phones, or basic workstations, this switch simplifies deployment and ensures consistent performance in environments where ease of use and dependability are key.

Features

This unmanaged switch requires no user configuration×just power it on and connect devices. It supports Energy Efficient Ethernet (IEEE 802.3az) for reduced power draw during idle periods and provides built-in QoS prioritization for time-sensitive traffic such as voice or video. With flow-control and auto-MDI/MDI-X, cabling is simplified. Rated for Gigabit traffic across all eight ports, it handles typical small office workloads×file sharing, light streaming, and VoIP×with minimal latency (~1.8 µs under 1 Gbps load) and solid throughput. The Instant On warranty includes limited lifetime coverage and 24/7 chat support, giving confidence and peace of mind in routine office deployments.

Advanced Options

The Instant On 1430 8G switch delivers dependable performance in compact, low-maintenance environments. With a switching capacity of 16 Gbps and forwarding rate of approximately 11.9 Mpps, it handles standard Gigabit workloads seamlessly. Jumbo frame support and QoS prioritization enhance performance for large transfers and VoIP/video applications.

Product Key Features

• 8 × auto-sensing 10/100/1000 Mbps RJ-45 ports

• Completely unmanaged×zero configuration required

• Fanless design and Energy Efficient Ethernet (802.3az)


• QoS and flow control for optimized voice/video performance

• Supports jumbo frames (up to 9,216-byte)


• Limited lifetime warranty with 24×7 chat support

---

Reliability & Performance

The fanless form factor ensures quiet operation in noise-sensitive spaces, while the Energy Efficient Ethernet support reduces power consumption to just ~1.7 W at idle and ~12 W at full load. With 8,192 MAC address entries and a robust MTBF of over 500 years, it offers long-term, maintenance-free operation backed by Arubatrusted support.

Key Features :

• 8 × Gigabit Ethernet RJ-45 access ports

• Unmanaged, plug-and-play design (no setup needed)

• QoS and flow control (802.1p / DSCP)

• Energy Efficient Ethernet and fanless acoustics

• Jumbo frame support (up to 9,216 bytes)

• Wall, desktop, or under-table mounting supported

Specification	Details
Model Number	R8R45-61001
Product Type	Instant On 1430 8G Unmanaged Gigabit Ethernet Switch
Port Count	8 × 10/100/1000 Mbps RJ-45
Switch Type	Unmanaged Layer 2
Switching Capacity	16 Gbps
Forwarding Rate	~11.9 Mpps
Latency (1 Gbps)	~1.8 μs
Packet Buffer	2 Mb
MAC Address Table	8,192 entries
Jumbo Frame Support	Up to 9,216 bytes
Power Input	External AC 100-240 V
Power Consumption (Idle/Max)	~1.7 W / ~12 W
Operating Temp / Humidity	0 °C to 40 °C; 15-95% non-condensing
Dimensions (mm)	138 × 157 × 37
Weight	~0.59 kg
Mount Options	Wall, Tabletop, Under-table
Warranty & Support	Limited lifetime warranty; 24×7 chat support
