HPEJW669

(S2500-48T) ArubaS2500 48-Port 1 GbE + 4 × 10 GbE SFP/SFP+Mobility Access Switch

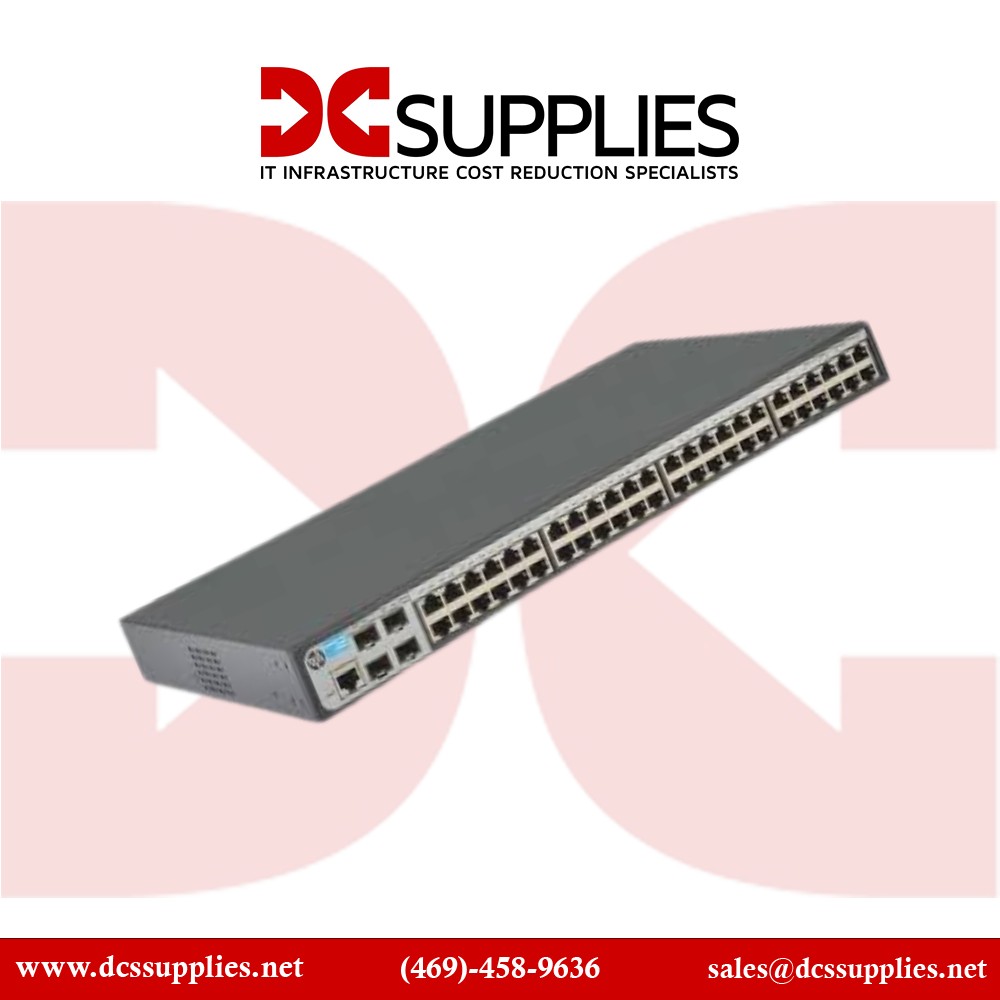

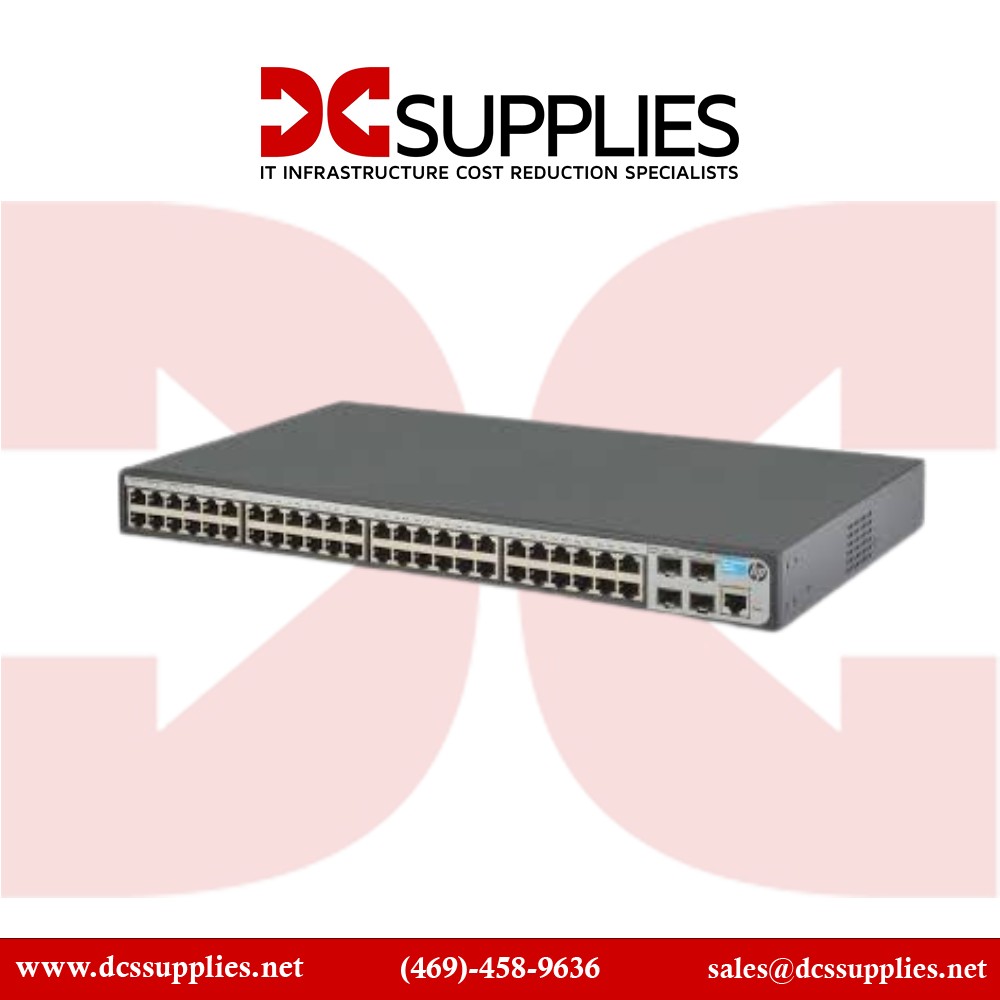

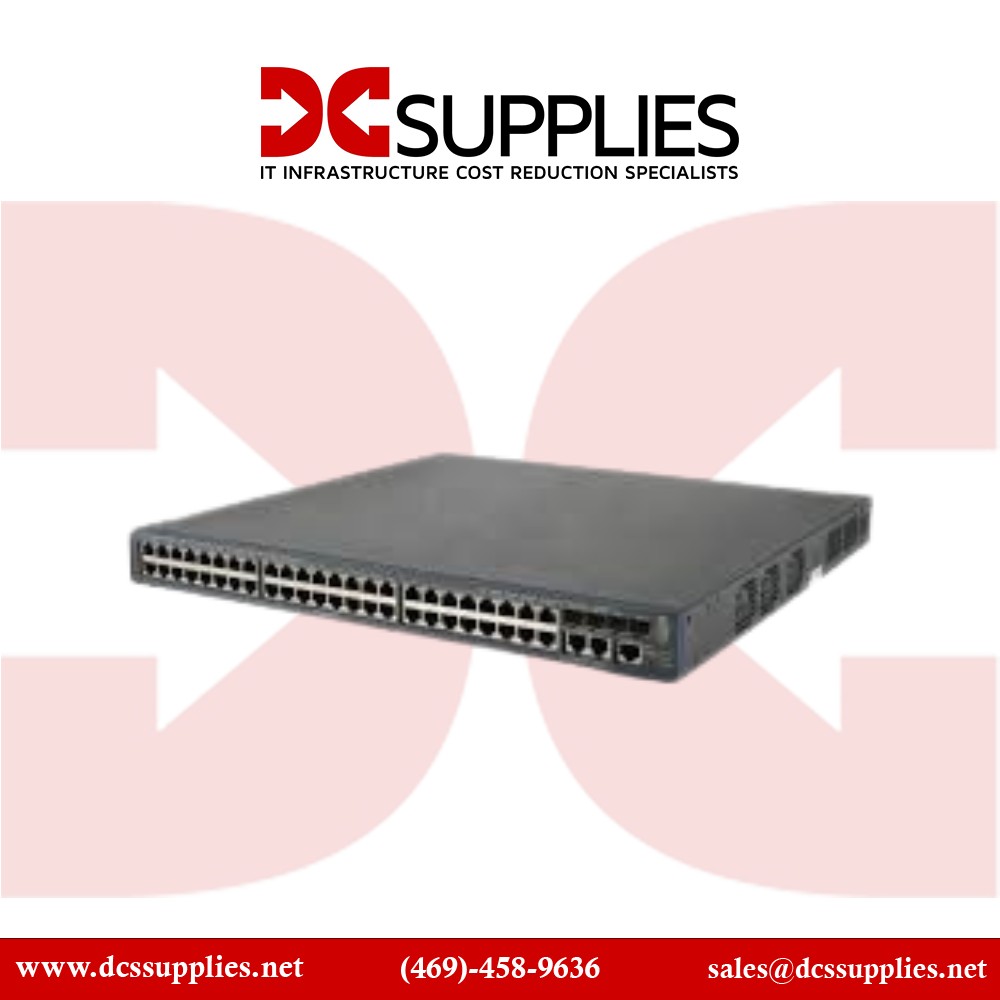

The HPEJW669-A S2500-48T ArubaMobility Access Switch is a robust Layer-2 switch featuring 48 Gigabit copper ports (10/100/1000Base-T) and four high-speed SFP+ fiber uplinks for 10 GbE connectivity. Designed for branch offices, education, hospitality, or small-to-medium enterprise deployments, it provides flexible stacking, PoE+ support, and role-based access control via ArubaMobility-Defined Network architecture. The refurbished unit is fully tested and certified, offering enterprise-grade switching at a lower cost while supporting wired user policy enforcement and high-density edge deployments.

Features

The S2500 series integrates role-based network access with wired client enforcement×whether directly connected or tunneled to an ArubaController×thus unifying policy across wired and wireless clients. Burgundy stacking is enabled via four integrated 10 GbE SFP/SFP+ uplink/stack ports, offering 40 Gbps stacking bandwidth. Aruba' allows multiple S2500 switches to act as one logical unit, easing management and scaling deployments. Leveraging ArubaClearPass, dynamic user roles are automatically assigned per-port, ensuring consistent VLAN, QoS, and security policy enforcement.

Advanced Options

Engineered for branch-edge reliability, the ArubaS2500-48T delivers dependable performance and low noise operation. The robust switching fabric supports up to 176 Gbps bandwidth and forwards at 131 Mpps with a MAC table size up to 12,000 entries.

Product Key Features

• 48 × 10/100/1000Base-T RJ-45 with PoE/PoE+ options

• 4 × 10 GbE SFP+ slots for uplinks or stacking

• Arubasupport for high-density stacking

• Role-based access enforcement via ArubaClearPass integration

• Layer-2 switching with QoS, VLAN tagging, ACLs, MACsec support

• PoE+ budget up to ~400 W for powering devices

---

Reliability & Performance

Integrated PoE+ on all 48 ports delivers up to 30 W per port, enabling IP cameras, phones, APs, and IoT devices without external injectors. Arubastacking enables resiliency and simplified configuration. Arubafirmware auto-configures new switches via zero-touch deployment, synchronized roles, and policy enforcement using ClearPass.

Key Features :

• 48 × RJ-45 Gigabit Ethernet ports (PoE/PoE+ optional)

• 4 × 10 GbE SFP+ uplink/stack ports

• Arubastacking support

• Policy enforcement via ArubaClearPass and role-based access

• Support for ACLs, VLANs, QoS, MACsec

• Zero-touch deployment and stack auto-join

Specification	Details
Model Number	JW669-A / S2500-48T (48 × 1GbE + 4 × SFP+ 10 GbE)
Product Type	ArubaMobility Access Layer-2 Switch (Refurbished)
Network Ports	48 × 10/100/1000Base-T RJ-45 (PoE/PoE+ option)
Uplink/Stack Ports	4 × 10 GbE SFP/SFP+
Switching Capacity	176 Gbps
Forwarding Rate	Up to 131 Mpps
MAC Table Size	Up to 12,000 entries
PoE Budget	Up to 400 W (802.3af/at)
Management Ports	1 × RJ-45 Serial Console; 1 × Gigabit Ethernet Out-of-Band; 1 × USB
Security Features	ACL, MACsec, Arubarole-based access
Stacking Support	Aruba(via 10 GbE SFP+)
Power Supply	Internal AC PSU; redundant PSU options
Dimensions (HxWxD)	~1.75″ × 17.5″ × 12.5″
Operating Environment	32-104 °F (0-40 °C)
Warranty	90-Day Replacement Warranty (Refurbished)
