Detailed Specifications
ICX8200-C08ZPOverview:

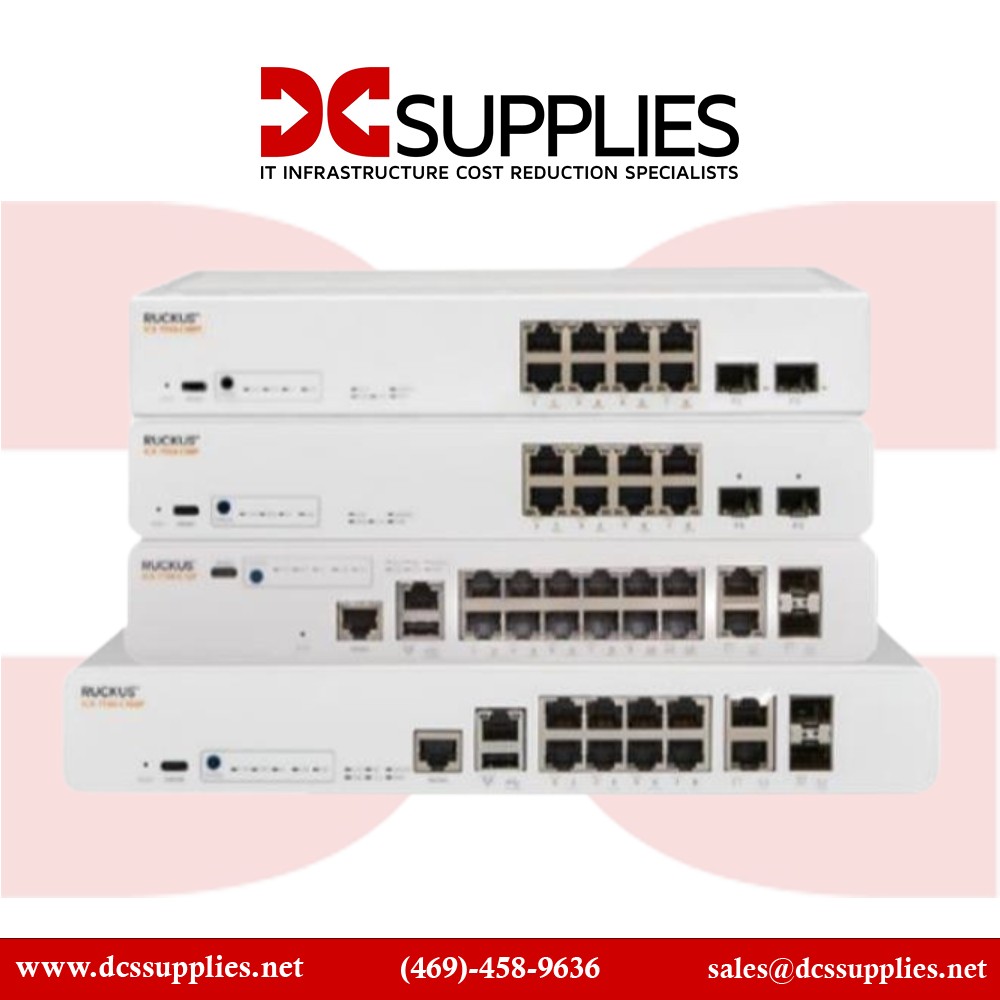

The Ruckus ICX8200-C08ZP is a compact, enterprise-grade Layer 3 access switch designed for edge deployments in campus and branch environments. It provides 8 PoE++ ports, delivering up to 240W of power, and 2 SFP28 uplink ports supporting speeds up to 25GbE. This switch is ideal for powering and connecting devices such as wireless access points, IP cameras, and VoIP phones, while offering high-speed uplink capabilities for backbone connectivity. Its small form factor and robust feature set make it suitable for space-constrained areas requiring reliable and scalable networking solutions.
Key Features:
8 PoE++ ports with 240W power budget
2× 25GbE SFP28 uplink ports
Layer 3 routing capabilities
Compact 1RU form factor
Cloud management ready
Specifications:
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | ICX8200-C08ZP |
| Product Type | Managed Multigigabit PoE++ Switch |
| Ports | 8× 10/100/1000/2500 Mbps RJ45 PoE++ |
| Uplink Ports | 2× 1/10/25GbE SFP28 |
| PoE Standard | IEEE 802.3bt (PoE++) |
| PoE Power Budget | 240W |
| Switching Capacity | 200 Gbps |
| Forwarding Capacity | 148 Mpps |
| Layer 3 Features | Static Routing, RIP, OSPF, VRF |
| Management Ports | 1× RJ-45 Ethernet, 1× USB Type-C Console |
| Stacking Support | Yes, up to 12 switches |
| Dimensions (W x D x H) | 17.3 × 10.3 × 1.7 inches |
| Weight | 7.5 lbs |
