Detailed Specifications

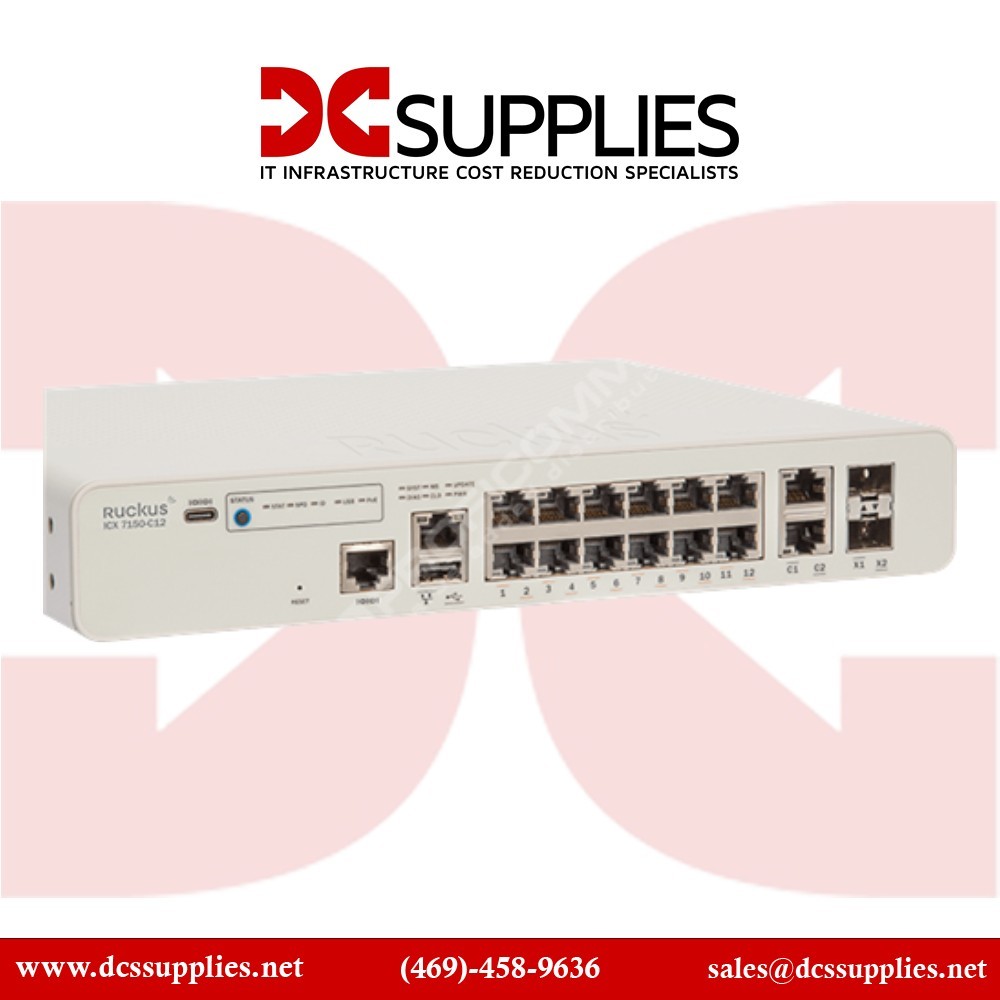

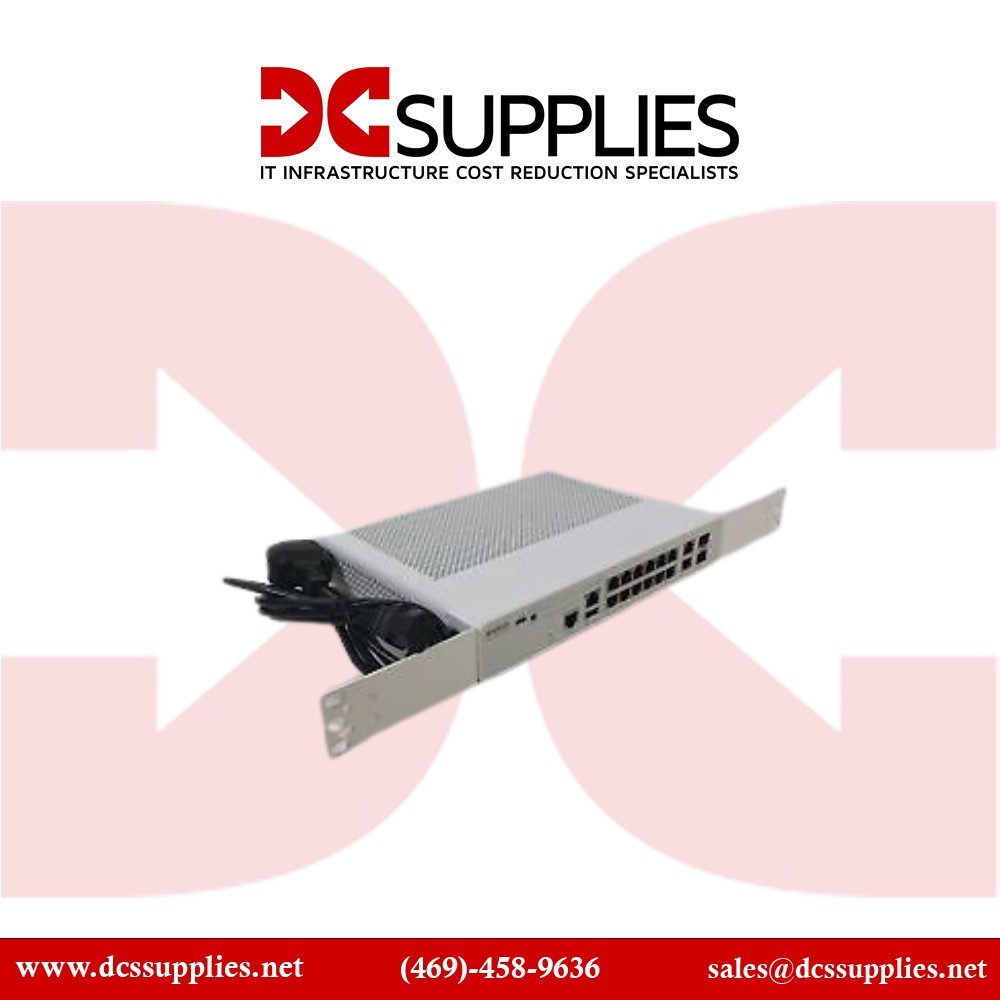

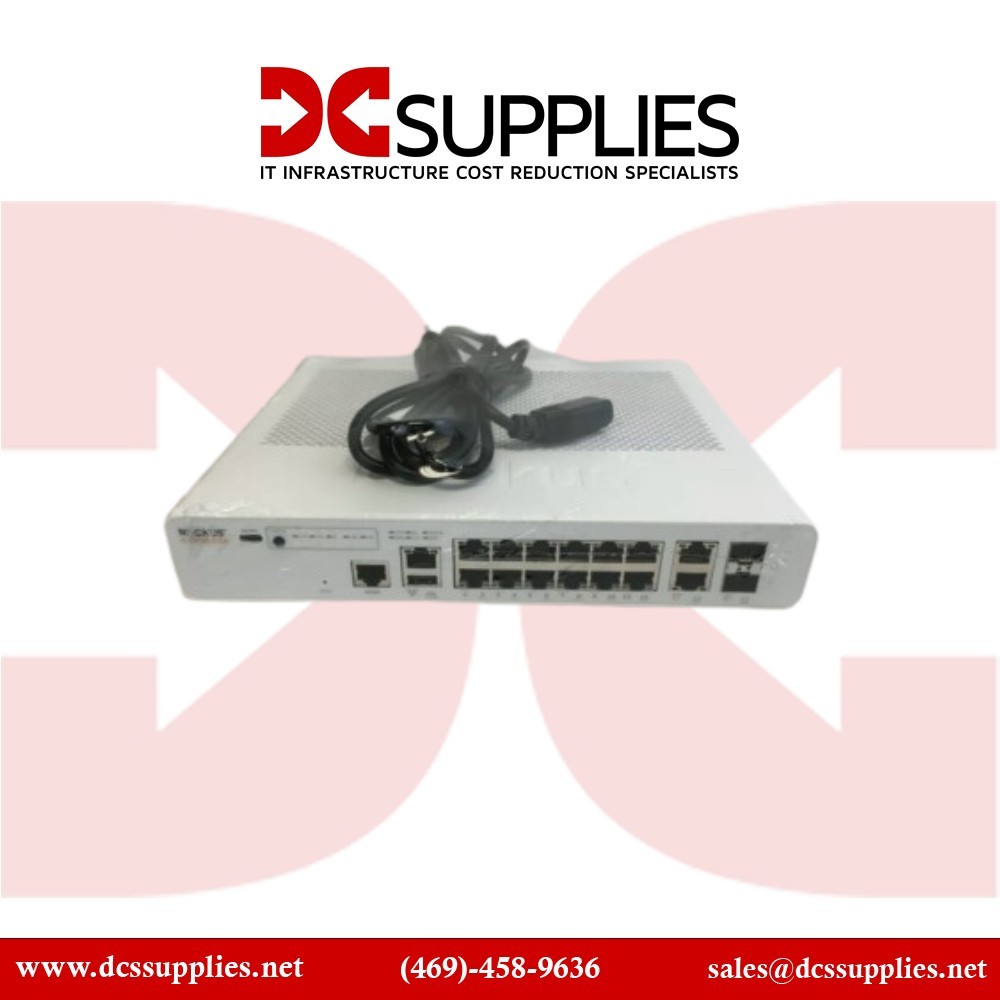

Ruckus ICX7150-C12P-2X10GR-RMT3 – 12-Port Managed PoE+ Switch with 10G Uplinks
Overview :
The Ruckus ICX7150-C12P-2X10GR-RMT3 is a compact, fanless Layer 3 managed switch designed for enterprise access deployments requiring Power over Ethernet Plus (PoE+) capabilities. It features 12 Gigabit Ethernet ports, all supporting PoE+ with a total power budget of 124W, making it suitable for powering devices like IP phones, access points, and surveillance cameras. The switch also includes two 1G RJ45 uplink ports and two 10G SFP+ ports, providing flexible connectivity options for high-speed uplinks or stacking configurations. With support for advanced Layer 3 features such as OSPF, VRRP, PIM, and Policy-Based Routing (PBR), it offers robust routing capabilities for complex network topologies. The RMT3 designation indicates that this model comes with three years of remote support, ensuring ongoing assistance and firmware updates. Its fanless design allows for silent operation, making it ideal for noise-sensitive environments like offices and classrooms.
Key Features :
12 PoE+ Ports: Delivers up to 124W total PoE power.
Dual 10G SFP+ Uplinks: Supports high-speed stacking or uplinks.
Layer 3 Routing: Includes OSPF, VRRP, PIM, and PBR.
Fanless Design: Ensures silent operation for noise-sensitive areas.
Three-Year Remote Support: Provides ongoing assistance and firmware updates.
Specifications
| Specification | Details |
|---|
| Brand | Ruckus Networks |
| Part Number | ICX7150-C12P-2X10GR-RMT3 |
| Product Type | Managed PoE+ Switch |
| Ports | 12 x 10/100/1000 Mbps (PoE+) |
| Uplink Ports | 2 x 1G RJ45, 2 x 10G SFP+ |
| PoE Power Budget | 124W |
| Layer 3 Features | OSPF, VRRP, PIM, PBR |
| Form Factor | Desktop |
| Cooling | Fanless |
| Operating Temperature | 0°C to 40°C |
| Dimensions (H x W x D) | 1.7 x 10.6 x 8.4 inches |
| Weight | 3.3 lbs |
| Remote Support | 3 Years |
| Compliance | TAA-Compliant |
