Detailed Specifications

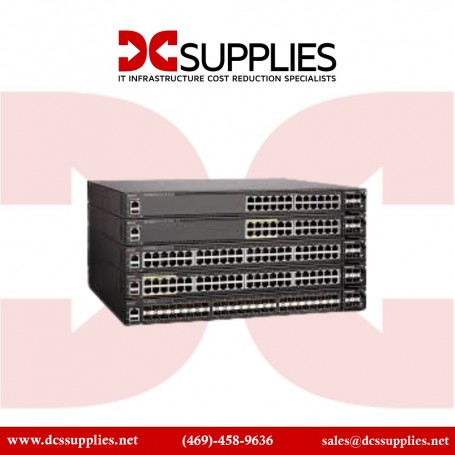

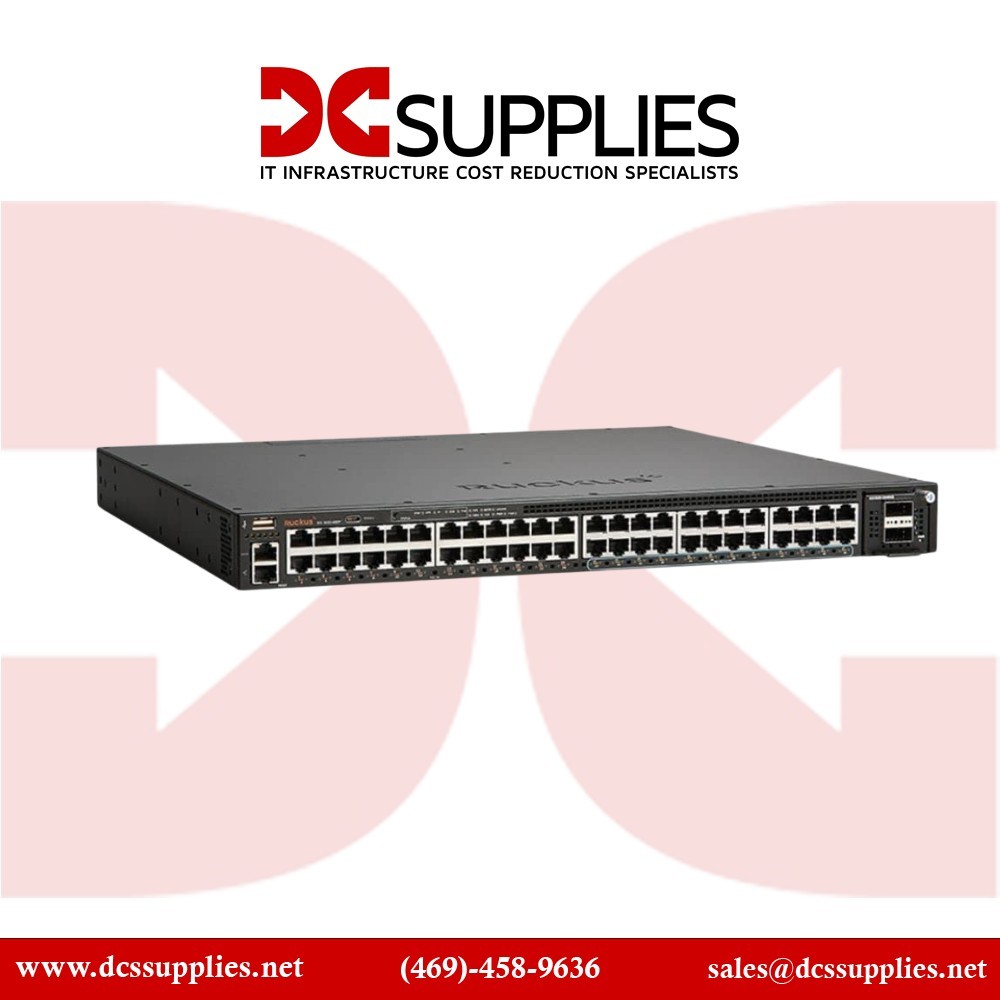

Ruckus ICX7650-48ZP-E2 – 48-Port Multigigabit PoE+ Switch with 40G Uplinks
Overview :
The Ruckus ICX7650-48ZP-E2 is a high-performance, stackable access switch designed for enterprise and campus environments. It features 48 ports, including 24 Multigigabit (100/1000/2500/5000/10000 Mbps) RJ45 PoE+ ports and 24 Gigabit RJ45 PoE+ ports, providing flexible connectivity options for various network devices. The switch supports Power over Ethernet (PoE), delivering up to 90W per port, making it suitable for powering devices like IP cameras, wireless access points, and VoIP phones. Equipped with four 40G QSFP+ uplink ports, the ICX7650-48ZP-E2 ensures high-speed connectivity to core networks or other switches, facilitating efficient data transfer across the network. Its modular design includes an expansion slot for additional modules, allowing for future scalability and adaptability to evolving network requirements. The switch is managed via Ruckus' SmartZone or Virtual SmartZone platforms, providing centralized control and monitoring capabilities. With a switching capacity of 1.128 Tbps and a forwarding rate of 839 Mpps, it offers robust performance to handle demanding network traffic. Designed for high availability, the ICX7650-48ZP-E2 supports front-to-back airflow and includes redundant power supplies and fan modules. Its compact 1U rack-mountable form factor ensures efficient use of data center space.
Key Features :
Multigigabit Ports: 24 x 100/1000/2500/5000/10000 Mbps RJ45 PoE+ ports for flexible device connectivity.
High PoE Power: Delivers up to 90W per port, supporting high-power devices.
High-Speed Uplinks: 4 x 40G QSFP+ ports for fast uplink connections.
Modular Design: Includes an expansion slot for future scalability with optional modules.
Advanced Management: Compatible with Ruckus SmartZone and Virtual SmartZone platforms for centralized management.
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus Networks |
| Part Number | ICX7650-48ZP-E2 |
| Product Type | 48-Port Multigigabit PoE+ Switch with 40G Uplinks |
| Ports | 24 x Multigigabit RJ45 PoE+ ports, 24 x Gigabit RJ45 PoE+ ports |
| Uplink Ports | 4 x 40G QSFP+ ports |
| Expansion Slot | 1 x Expansion slot for optional modules |
| PoE Standards | IEEE 802.3af, 802.3at, 802.3bt (up to 90W per port) |
| Switching Capacity | 1.128 Tbps |
| Forwarding Rate | 839 Mpps |
| MAC Address Table | 80,000 entries |
| DRAM | 4 GB |
| Flash Memory | 2 GB |
| Airflow | Front-to-back airflow |
| Power Supplies | 2 x RPS16-E 1000W AC PSUs included |
| Fan Modules | 2 x ICX-FAN12-E fan modules included |
| Form Factor | 1U rack-mountable |
| Dimensions (H x W x D) | 1.75 x 17.3 x 15.5 inches |
| Weight | 15.4 lbs |
