Detailed Specifications

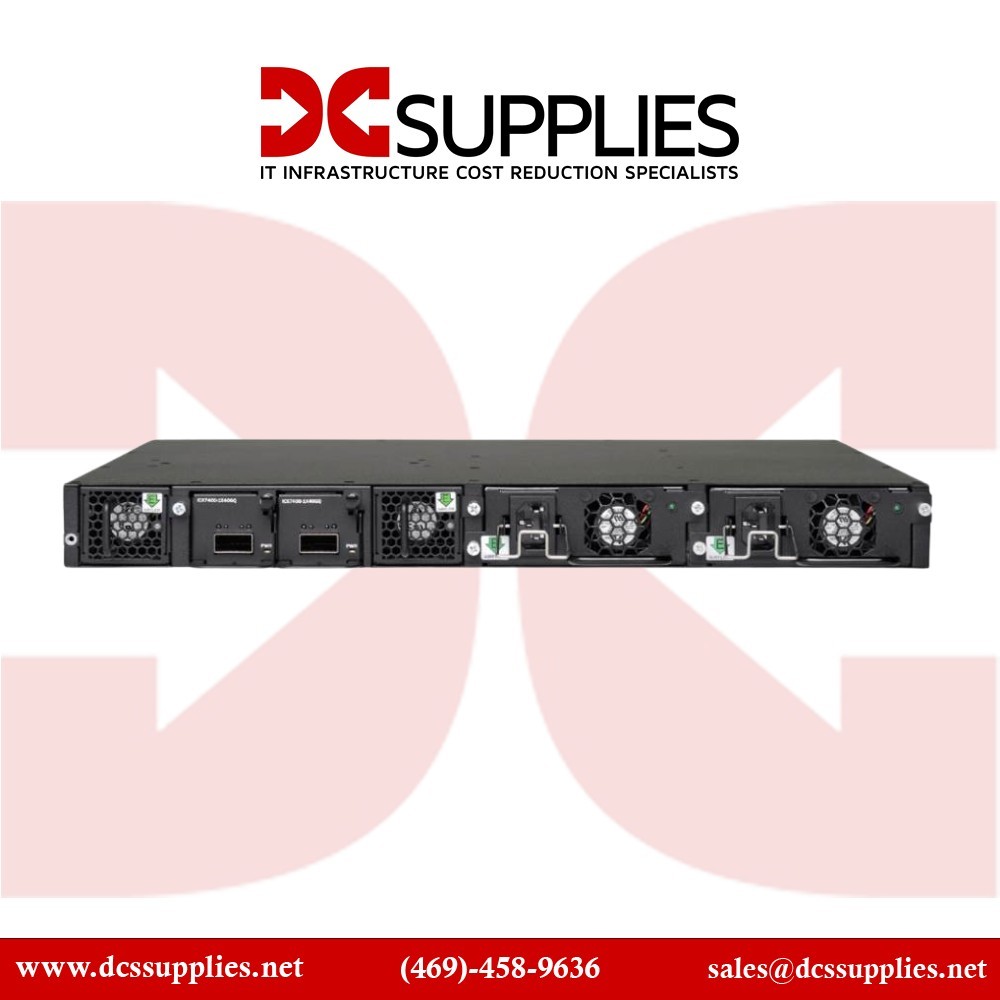

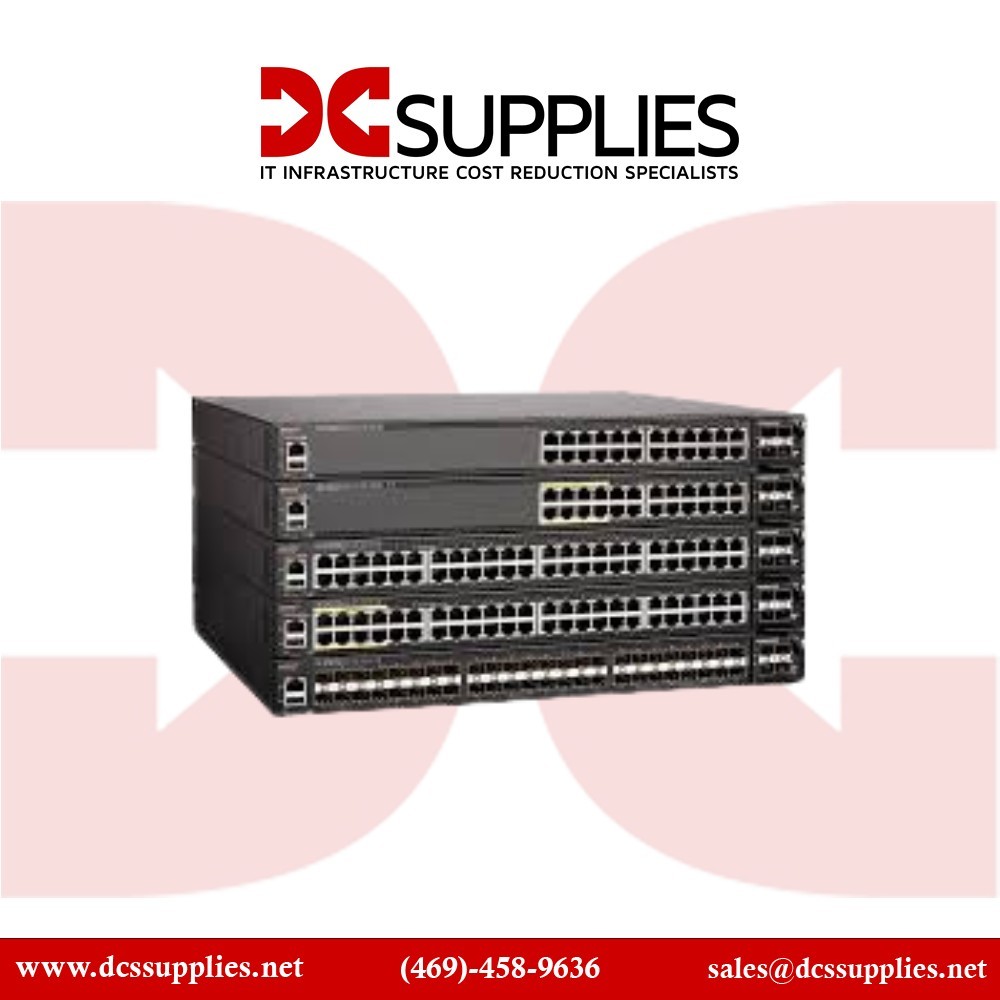

Ruckus ICX7150-48P-4X10GR-A – 48-Port PoE+ Switch with 4x10GbE Uplinks
Overview :
The Ruckus ICX7150-48P-4X10GR-A is a high-performance, stackable Layer 3 access switch designed for enterprise environments. It features 48 Gigabit Ethernet PoE+ ports, delivering up to 370W of total PoE power, suitable for powering devices such as IP phones, wireless access points, and surveillance cameras. The switch is equipped with four 10 Gigabit SFP+ uplink ports, providing high-speed connectivity for backbone or aggregation links. It supports advanced Layer 3 features including OSPF, VRRP, PIM, and PBR, enabling efficient routing and network traffic management. The ICX7150-48P-4X10GR-A is compliant with the Trade Agreements Act (TAA), making it suitable for U.S. federal government deployments. Its compact 1U form factor and hot-swappable components ensure ease of installation and maintenance in data centers or network closets. Designed for scalability, the switch supports stacking, allowing multiple units to operate as a single logical device, simplifying management and increasing redundancy.
Key Features :
48 x 10/100/1000 Mbps PoE+ ports
4 x 10 GbE SFP+ uplink ports
370W total PoE power budget
Layer 3 features: OSPF, VRRP, PIM, PBR
TAA-compliant for federal deployments
Specifications :
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | ICX7150-48P-4X10GR-A |
| Product Type | Layer 3 Stackable Access Switch |
| Ports | 48 x 10/100/1000 Mbps PoE+ |
| Uplink Ports | 4 x 10 GbE SFP+ |
| PoE Power Budget | 370W |
| Layer 3 Features | OSPF, VRRP, PIM, PBR |
| Stacking Support | Yes |
| Form Factor | 1U Rackmount |
| Power Input | 100–240V AC, 50/60Hz |
| Operating Temp | 0°C to 40°C |
| Storage Temp | -40°C to 70°C |
| Humidity | 10% to 90% (non-condensing) |
| Dimensions (H x W x D) | 1.73 x 17.3 x 10.5 inches |
| Weight | 7.5 lbs |
