Detailed Specifications

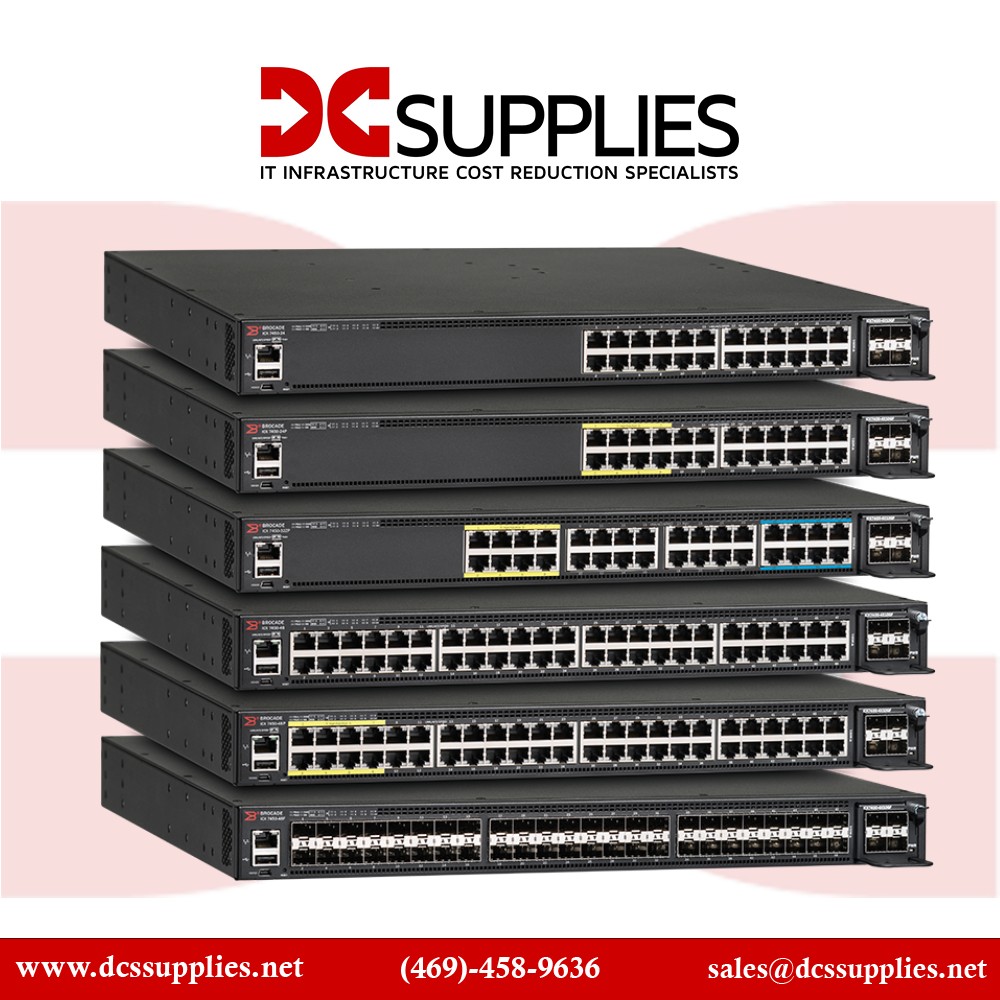

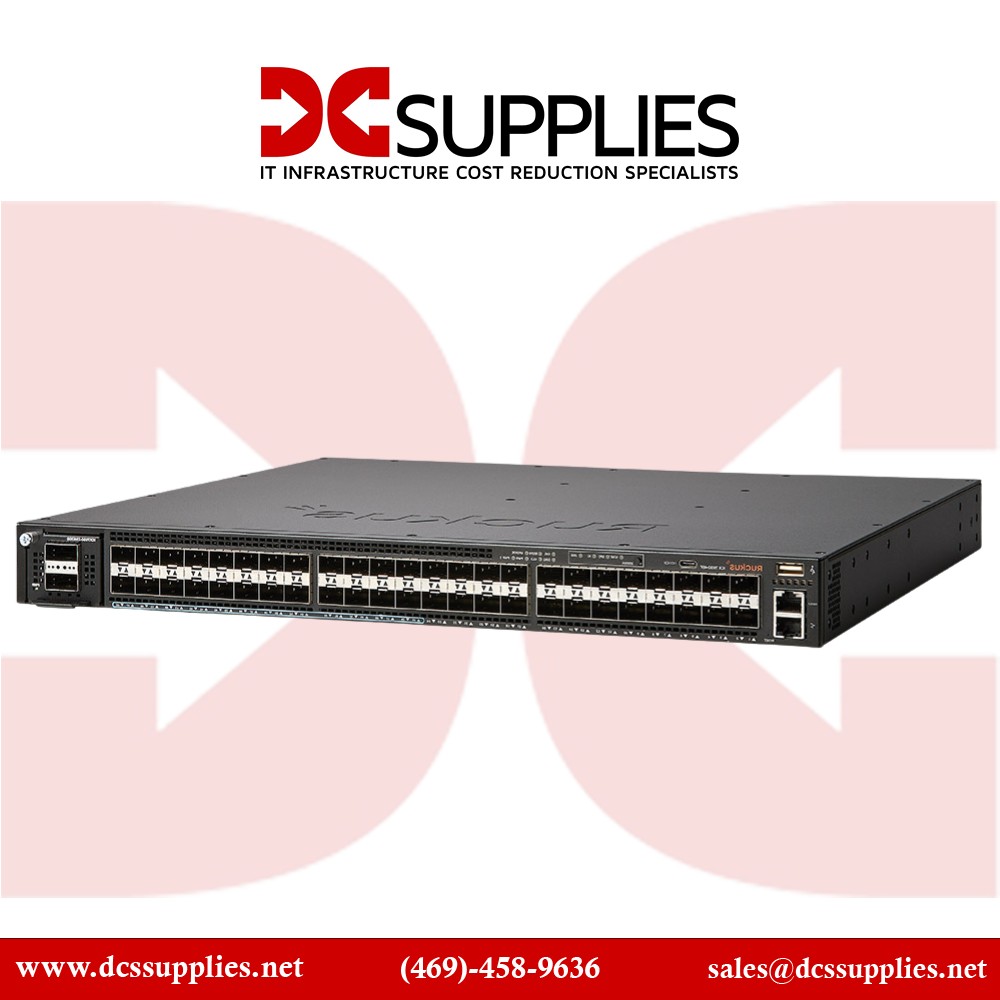

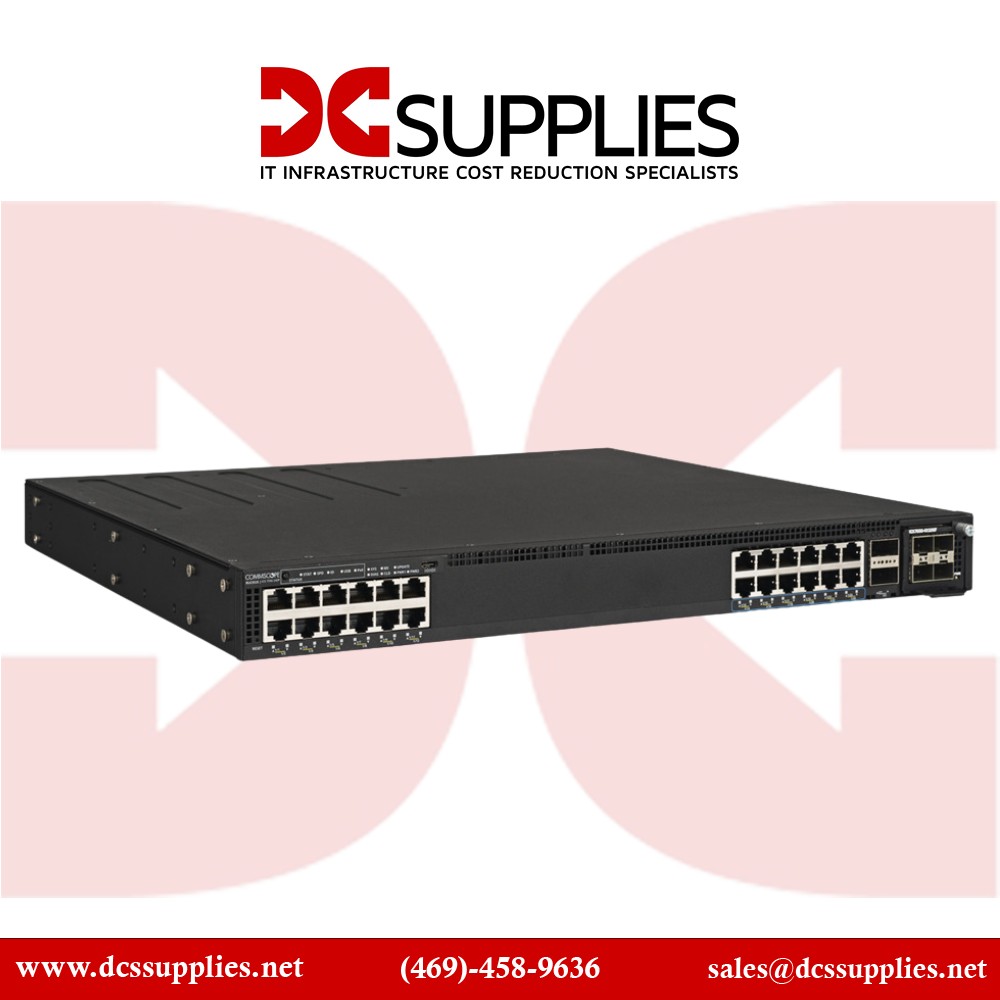

RUCKUS ICX7550-48ZP – Multi-Gigabit PoE++ Access Switch
Overview :
The RUCKUS ICX7550-48ZP is a 48-port stackable access/aggregation switch designed for enterprise campus and edge deployments, especially where high-density WiFi and multigigabit access are required. It supports up to 36 ports of 2.5 GbE RJ-45 and 12 ports of 2.5/5/10 GbE RJ-45, all with 802.3bt PoE++ delivering up to 90 W per port and a total PoE budget up to 2 000 W. This switch fits in a 1U rack-mount chassis and supports stacking of up to 12 switches to create a converged wiring-closet or data-centre edge fabric. It includes dual hot-swappable power supplies and redundant fan modules, and offers features such as MACsec encryption, IPv4/IPv6 routing, and QSFP28 uplinks for 40/100 Gbps between stacks. Integration with RUCKUS SmartZone or other management platforms enables unified wired-wireless operations.
Key Features :
36 × 2.5 GbE RJ-45 + 12 × 2.5/5/10 GbE RJ-45 ports with PoE++
Up to 90 W per port and ~2 000 W PoE budget
2 × 40/100 Gbps QSFP28 uplink/stacking ports
Stackable up to 12 units for 2400 Gbps aggregate bandwidth
Specification :
| Specification | Detail |
|---|
| Brand | RUCKUS |
| Part Number | ICX7550-48ZP |
| Product Type | Ethernet switch |
| Switching capacity (max) | 1 020 Gb/s |
| 1/2.5/5/10 GbE RJ-45 ports | 36 (2.5 Gb and above) |
| 1/2.5/5/10 GbE RJ-45 ports (alternate) | 12 |
| Uplink/stacking ports | Up to 2×100 GbE or 4×40 GbE |
| Maximum PoE budget | 2 000 W |
| PoE standard supported | 802.3bt (up to 90 W per port) |
| Maximum switches per stack | 12 |
| Aggregate stacking bandwidth | Up to 2 400 Gb/s |
| Physical dimensions (H×W×D) | 1.7 in × 17.3 in × 16 in |
| Weight (approximate) | 16.23 lbs |
| Routing protocols supported | Static, RIP, OSPF, BGP |
| Security features | MACsec, VRF, EEE (Energy Efficient Ethernet) |
| Redundant power option | Yes, hot-swappable power supplies/fans |
