Detailed Specifications

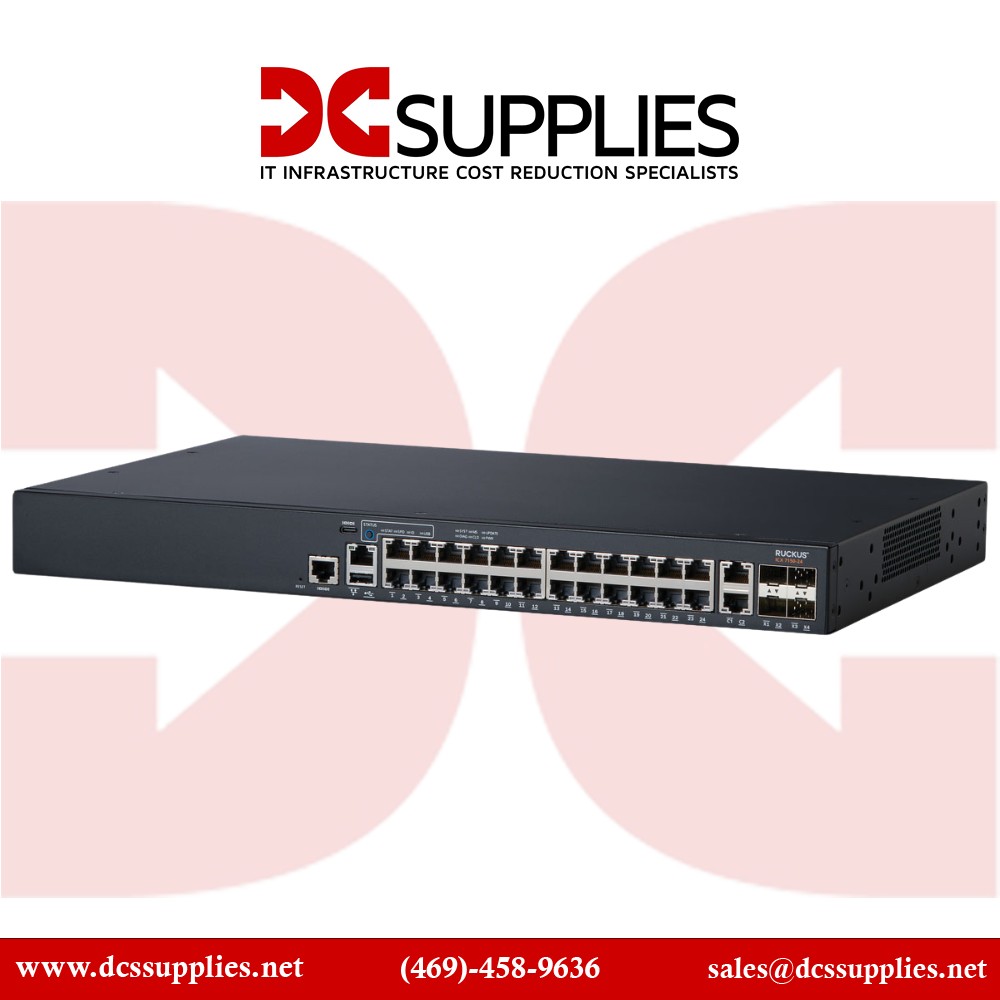

Ruckus ICX8200-24P – 24-Port PoE+ Managed Switch
Overview :
The Ruckus ICX8200-24P is a stackable, managed Ethernet switch designed for edge deployments in enterprise and campus networks. It provides 24 Gigabit Ethernet PoE+ ports and 4 SFP28 ports, delivering a total switching capacity of 248 Gbps and a forwarding rate of 184 million packets per second. The switch supports Layer 2 and Layer 3 features, including static routing, RIP, OSPF, VXLAN, and OpenFlow with hybrid port mode. With a 370 W PoE budget, it can power devices such as wireless access points, IP phones, and security cameras. The ICX8200-24P is ideal for branch offices, classrooms, and small data centers requiring high-performance connectivity with PoE support.
Key Features :
24× 1G PoE+ ports (802.3at)
4× 25GbE SFP28 uplink/stacking ports
370 W total PoE power budget
Layer 3 routing support (Static, RIP, OSPF)

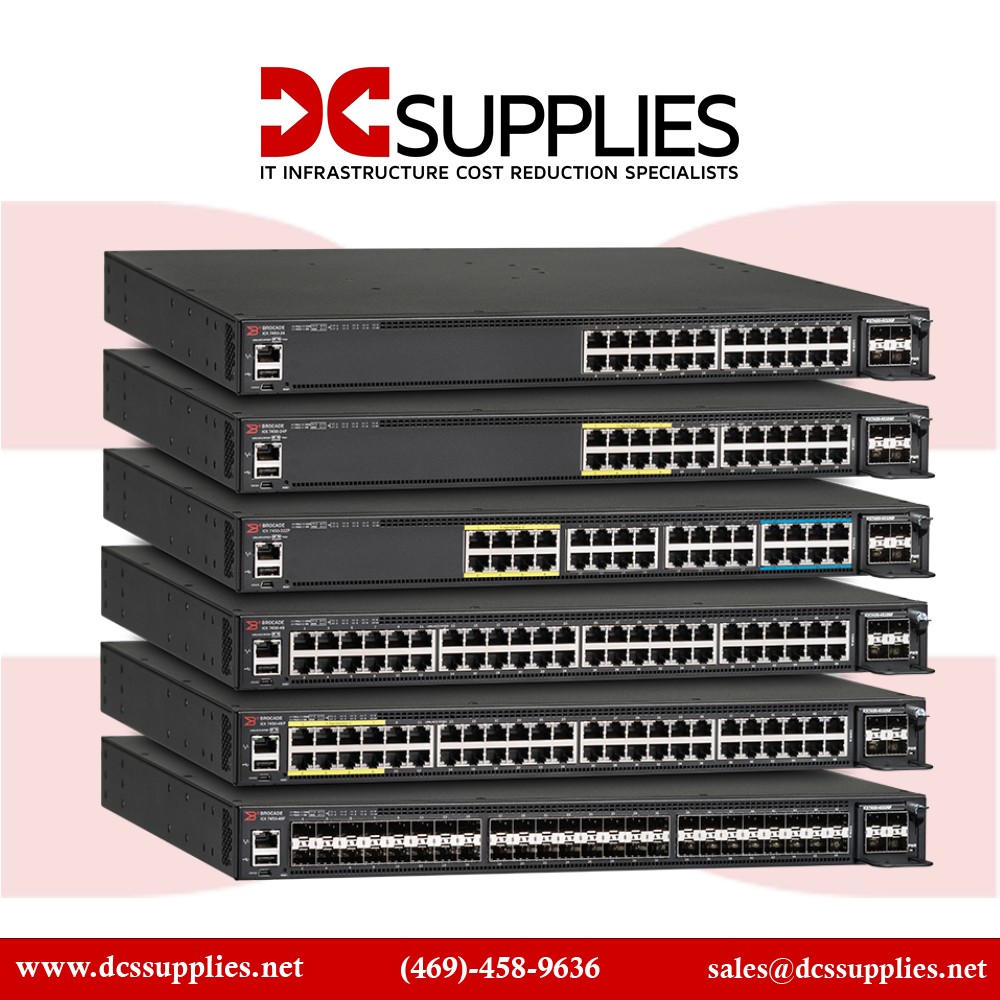

Stackable up to 12 switches with 1.2 Tbps aggregate bandwidth
Specifications
| Specification | Details |
|---|
| Brand | Ruckus |
| Part Number | ICX8200-24P |
| Product Type | Managed Ethernet Switch |
| Ports | 24× 1G PoE+ RJ45, 4× 25GbE SFP28 |
| Switching Capacity | 248 Gbps |
| Forwarding Rate | 184 Mpps |
| PoE Standard | 802.3at (PoE+) |
| PoE Budget | 370 W |
| Stacking Support | Yes, up to 12 switches |
| Stacking Bandwidth | 1.2 Tbps |
| Layer 3 Features | Static, RIP, OSPF |
| VXLAN Support | Yes |
| OpenFlow Support | Yes (Hybrid Port Mode) |
| Management Ports | 1× USB Type-C, 1× RJ-45, 1× USB |
| Airflow Direction | Front-to-back |
| Dimensions (W x D x H) | 17.3" x 10.2" x 1.7" |
| Weight | 10.5 lbs |
