APC SURT20KRMXLI Smart-UPS RT 20kVA 230V Rackmount View larger
Previous Next

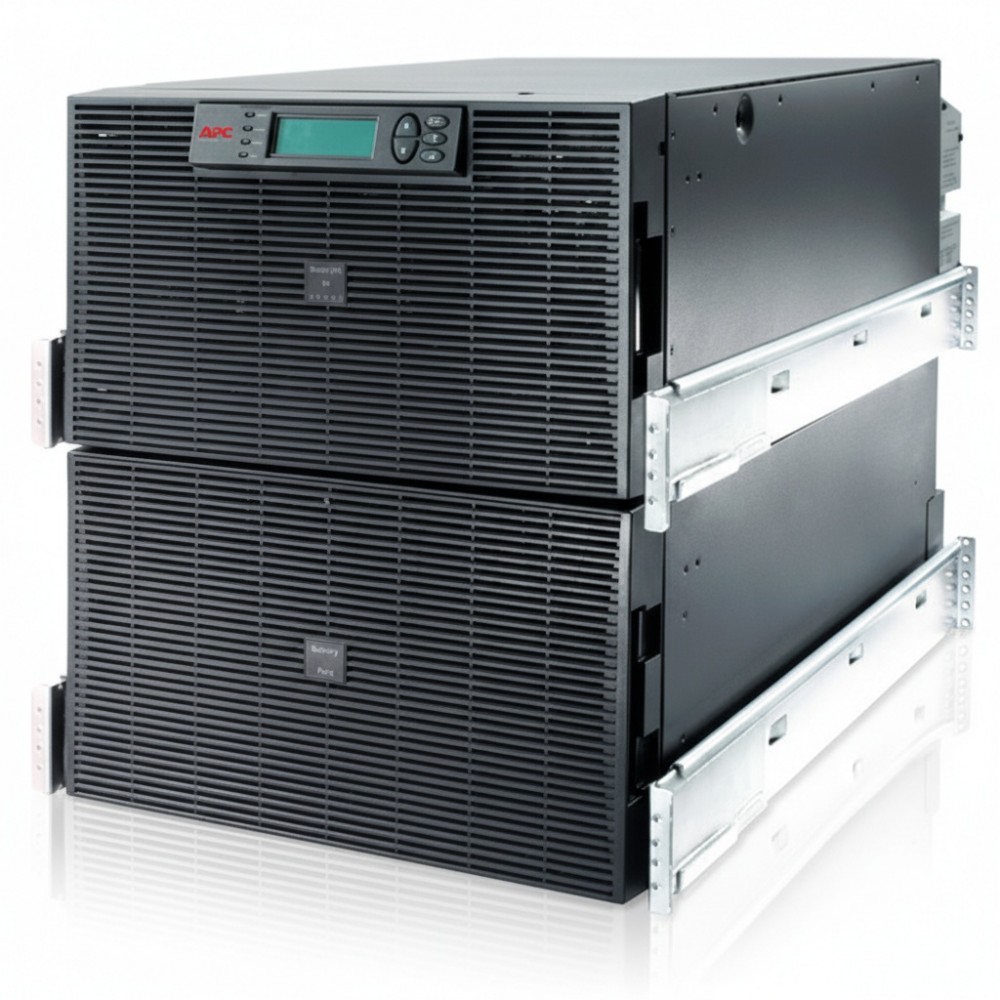

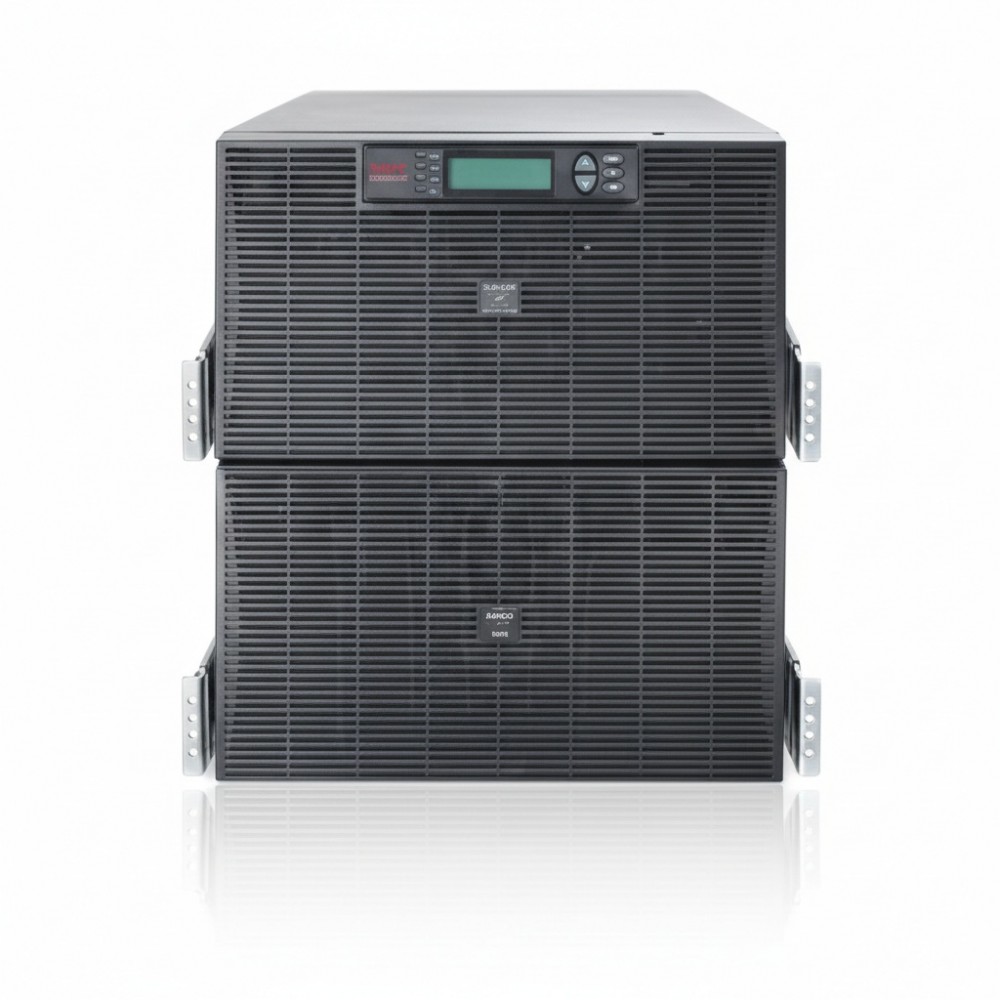

APC SURT20KRMXLI Smart-UPS RT 20kVA 230V Rackmount

SURT20KRMXLI

New

20kVA Double Conversion 12U Rack UPS.
×




Detailed Specifications

APC SURT20KRMXLI Smart-UPS RT 20kVA 230V Rackmount

Overview

The APC SURT20KRMXLI is a high-density, double-conversion online Uninterruptible Power Supply (UPS) engineered for mission-critical environments where power quality is non-negotiable. Designed for large-scale server rooms, data centers, and industrial facilities, this 20kVA/16kW unit provides zero transfer time between utility and battery power, ensuring continuous protection for sensitive electronics against surges, spikes, and total outages. Deployment is typically found in centralized IT infrastructures or edge computing hubs where high availability is the primary requirement.
The SURT20KRMXLI supports both single-phase and three-phase input/output configurations, offering significant flexibility for facility managers. Its rack-optimized 12U form factor integrates into standard 19-inch enclosures, though it can be deployed as a tower. For management, the unit includes an integrated Network Management Card (NMC) for remote monitoring via SNMP or web interface, allowing for proactive maintenance and environmental monitoring. By isolating the load from the raw utility power, it eliminates harmonic distortion and frequency fluctuations, making it an essential component for high-availability campus networks and medical imaging suites.

Key Features

  • True online double conversion for zero transfer time.
  • Scalable runtime via external battery pack integration.
  • Configurable 3:1, 3:3, or 1:1 phase power connectivity.
  • Integrated network management for remote UPS control.

Specifications

Brand APC
Part Number SURT20KRMXLI
Product Type Online Double Conversion UPS
Power Capacity 20kVA / 16kW
Nominal Output Voltage 230V (Configurable to 220V or 240V)
Input Voltage 400V 3PH / 230V 1PH
Rack Height 12U
Efficiency at Full Load 93.0%

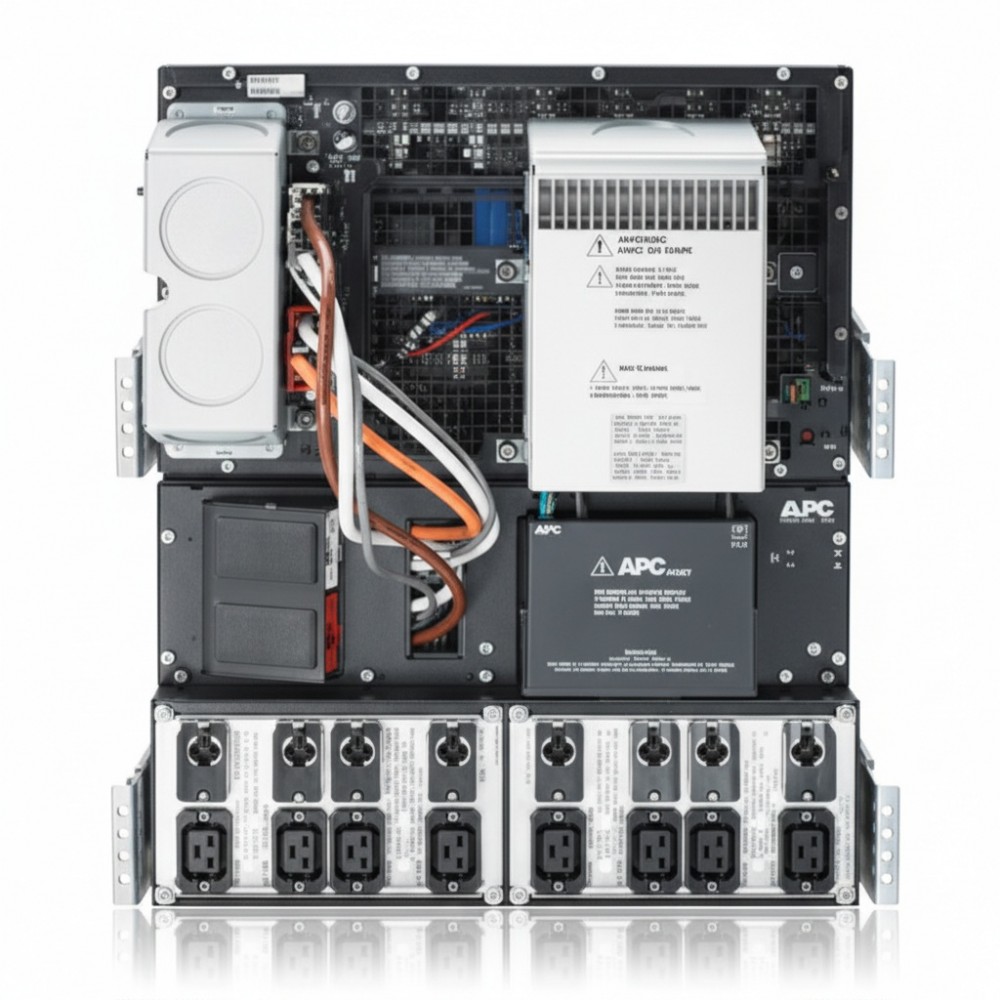

Output Connections Hardwire 3-wire (H N + G), Hardwire 5-wire (3PH + N + G)
Battery Type Maintenance-free sealed Lead-Acid
Interface Ports RJ-45 10/100 Base-T, Smart-Slot, RS-232
Operating Temperature 0 - 40 °C
Dimensions (H x W x D) 533 mm x 432 mm x 773 mm
Net Weight 247.73 kg
