Detailed Specifications

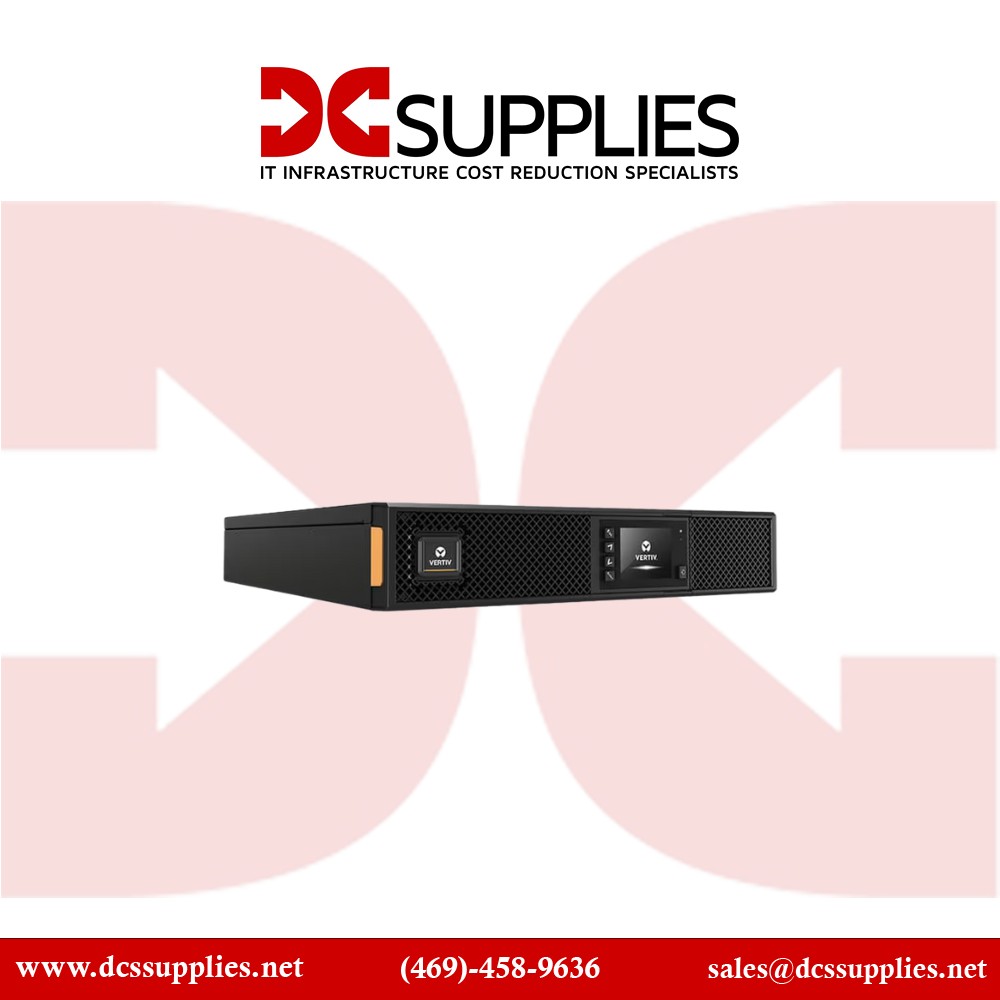

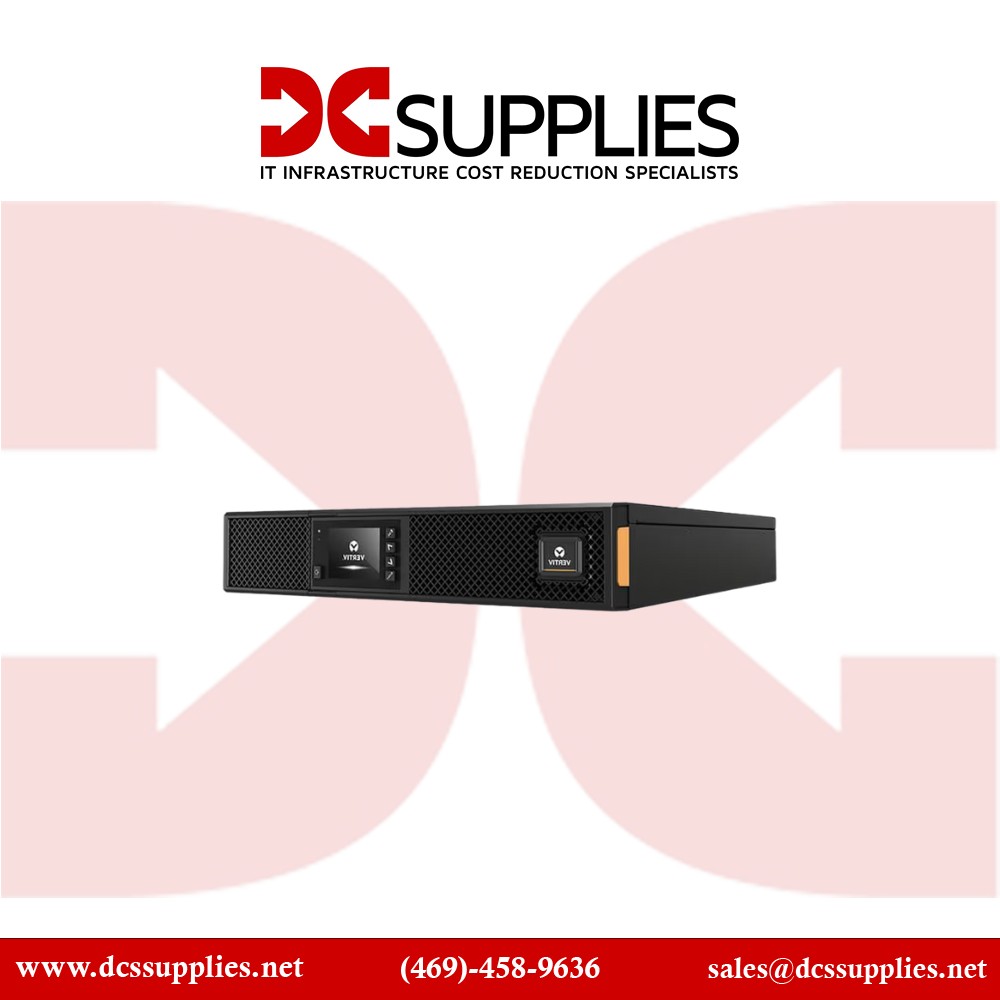

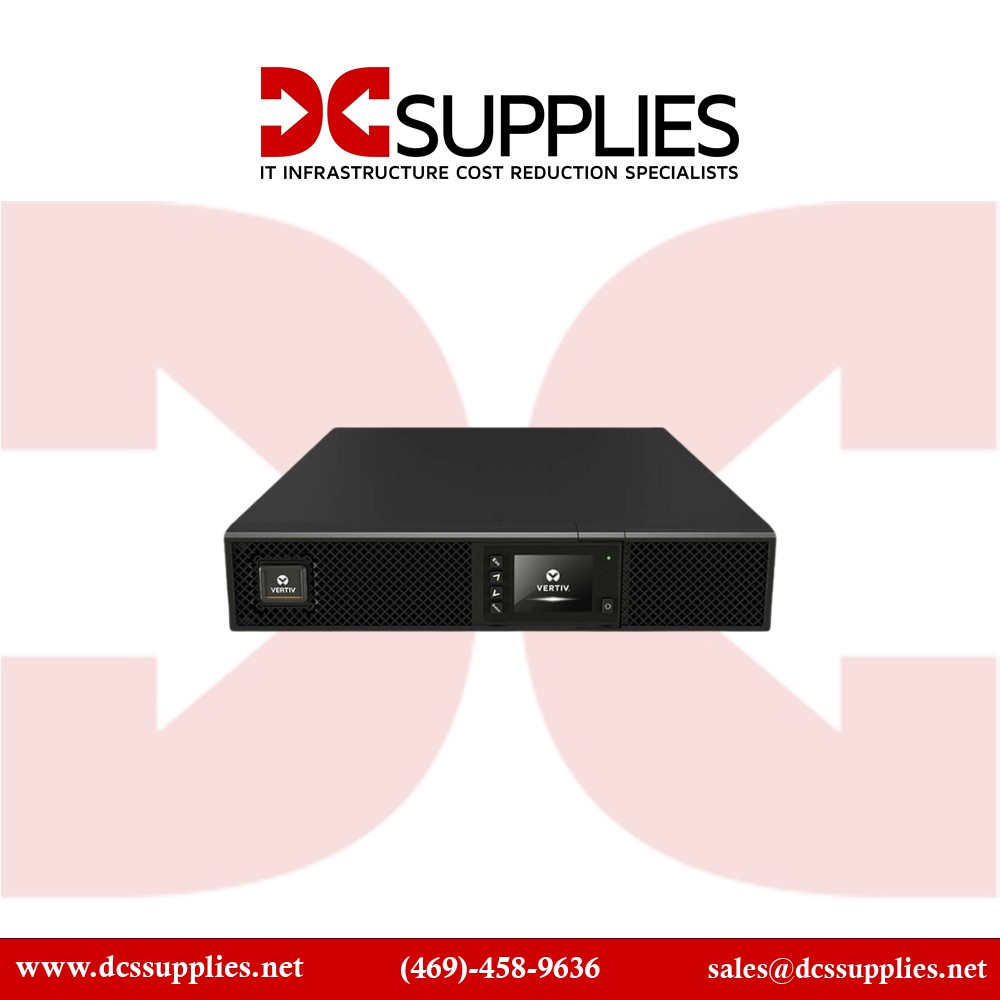

Liebert GXT5-1000LVRT2UXLTAAN GXT5 1000VA 120V UPS, Rack/Tower, Energy Star, TAA Compliant
Overview :
The Vertiv Liebert GXT5 TAA-compliant online UPS, with a capacity of 1000VA/1000W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure in centralized and edge applications. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. It can support a wide range of power environment including 110/115/120/125V AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. The UPS design includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is Energy Star 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. Add RDU101 SNMP/Webcard for remote management.
Specification :
| Manufacturer |
Vertiv |
|---|
| Manufacturer Part Number |
GXT5-1000LVRT2UXLTAA |
|---|
| Brand Name |
Liebert |
|---|
| Product Series |
GXT |
|---|
| Product Name |
GXT5 1000VA 120V UPS |
|---|
| Product Type |
Double Conversion Online UPS |
|---|
| Plug/Connector Type |
NEMA 5-15P |
|---|
| Receptacle Type |
NEMA 5-15R |
|---|
| Receptacle Detail |
6 x NEMA 5-15R |
|---|
| Emergency Power OFF |
Yes |
|---|
| Cord Length |
10 ft |
|---|
| Transfer Time |
0 ns |
|---|
| Phase |
Single Phase |
|---|
| Application/Usage |
Mission Critical Equipment,IT Equipment |
|---|
Power Description
| Load Capacity |
1000 VA/1000 W |
|---|
| Input Voltage |
120 V AC |
|---|
| Input Voltage Range |
60 V AC - 150 V AC |
|---|
| Output Voltage |
120 V AC |
|---|
| Input Current |
10 A |
|---|
| Output Current |
8.30 A |
|---|
| Input Frequency |
70 Hz |
|---|
| Waveform Type |
Pure Sine Wave |
|---|
| Circuit Breaker |
Yes |
|---|
| User Selectable Output |
Typical 120V User Selectable Output: 110/115/120/125VAC (user-configurable); ±3%
|
|---|
| Utility (AC) Mode Overload |
- >200% for 250ms
- 150- 200% for 50 seconds
- 125- 150% for 60 seconds
- 105-125% for 60 seconds
|
|---|
Physical Characteristics
| Product Color |
Black |
|---|
| Height |
3.4 |
|---|
| Width |
16.9 |
|---|
| Depth |
15.7 |
|---|
| Rack Height |
2U |
|---|
| Form Factor |
Rack/Tower |
|---|
| Weight (Approximate) |
37 lb |
|---|
