Detailed Specifications

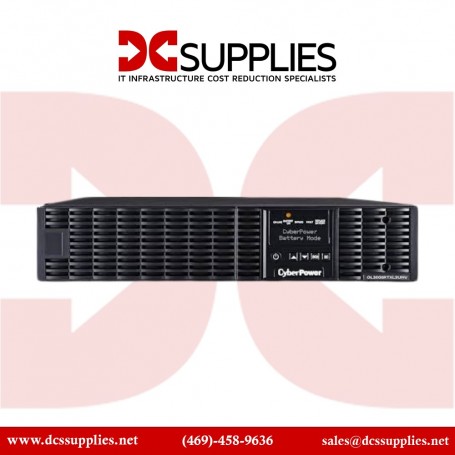

CyberPower OL3000RTXL2UHVN Smart App Online UPS System, 3000VA/2700W
Overview :
Built with a preinstalled RMCARD205 network management card that lets you remotely manage, monitor, and control your UPS using a standard web browser or network management system (NMS), the OL3000RTXL2UHVN Smart App Online UPS from CyberPower is a 2 RU rack/tower convertible device with double-conversion topology that provides battery backup and power protection via sine waveform output, plus surge protection to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology charges the battery up to 90% in four hours. It comes equipped with an output capacity of 3000VA / 2700W, features an input voltage range of 120-280 VAC @ 40-70 Hz, and has integrated circuitry for EMI/RFI filters. This Smart App UPS provides an integrated LCD panel for displaying real-time UPS vitals, such as the load/current level, runtime, battery level, temperature, input voltage, output voltage, battery in use, and more.
When running a full load, this UPS can power devices for up to 3.5 minutes. When running a half load, it will last for up to 11 minutes. The OL3000RTXL2UHVN offers two NEMA L6-20R outlets and one NEMA L6-30R outlet, all of which are equipped with battery and surge protection and can absorb up to 445 joules for keeping your devices safe against surges and spikes. Depending upon your needs, the outlets may also be configured as critical or non-critical, which allows for runtime prioritization for your devices. Other connections offered are a NEMA L6-20P input plug with a 10' cord, RS-323 serial, USB Type-B, RJ45 Ethernet, and RJ11 phone.
Specifications
| Product Name |
3000VA/2700W 0.9PF Pure Sine Wave 2U NEMA L6-20P 10 ft cord 2 NEMA L6-20R 3-Year |
| Product Type |
Double Conversion Online UPS |
| Receptacle Type |
NEMA L6-20R
NEMA L6-30R
|
| Product Family |
Smart App Online UPS |
| Backup / Run Time (Half Load) |
11 Minute |
| Backup / Run Time (Full Load) |
3.50 Minute |
| Load Capacity (VA) |
3000 VA |
| Replaceable Battery |
Yes |
| Energy Star |
Yes |
| Product Color |
Black |
| Rack Height |
2U |
| Plug / Connector Type |
NEMA L6-20P |
| Input Voltage Range |
120 V AC - 139 V AC
200 V AC - 240 V AC
|
| Form Factor |
Rack/Tower |
| Network Management |
SNMP/HTTP/CLI Remote Monitoring |
| Waveform Type |
Sine Wave |
| Input Voltage |
120 V AC
230 V AC
|
| Battery Chemistry |
Lead Acid |
| Input Frequency |
70 Hz |
| Battery Size |
12V |
| Environmentally Friendly |
Yes |
| Battery Capacity |
9000 mAh |
| Maximum Operating Temperature |
104°F (40°C) |
| Serial Port |
Yes |
| Number of Batteries |
6 |
| Battery Characteristics |
Sealed |
| EMI / RFI Noise Filter |
Yes |
| DC System Voltage |
12 V DC |
| Energy Saving |
ECO Mode Efficiency >97% |
| EPO Port |
Yes |
| USB (HID Compliant) Port |
Yes |
| Maximum Operating Elevation |
10000 ft |
| Maximum Storage Elevation |
50000 ft |
| Operating Humidity |
0% - 90% |
| Storage Relative Humidity |
0% - 95% |
| Storage Temperature |
-4°F (-20°C) - 113°F (45°C) |
| Transfer Time |
0 ns |
| Typical Battery Recharge Time |
4 Hour |
| Receptacle Detail |
2 x NEMA L6-20R
1 x NEMA L6-30R
|
| Sound Emission (A-Weighted) |
38 dB(A) |
| Country of Origin |
Philippines |
| Height |
3.5" |
| Width |
17" |
| Depth |
23.6" |
| Output Frequency |
60 Hz |
| Alarm |
Battery Mode
Low Battery
Overload
UPS Fault
|
| Product Series |
Smart App Online UPS |
| Dataline Protection |
RJ-11
RJ-45
|
| Load Capacity |
3000 VA |
| Product Model |
OL3000RTXL2UHVN |
| Overload Protection |
Yes |
| Surge Energy Rating |
445 J |
| Thermal Dissipation |
231.53 W |
| Limited Warranty |
3 Year |
| Software Included |
PowerPanel® Business |
| Output Voltage |
200 V AC
208 V AC
220 V AC
230 V AC
240 V AC
|
| Directly Connected Equipment Guarantee |
$400000Lifetime |
| Certifications & Standards |
UL 1778 |
| Stock Details |
| Manufacturer |
CyberPower |
| Manuf Part# |
OL3000RTXL2UHVN |
