Detailed Specifications

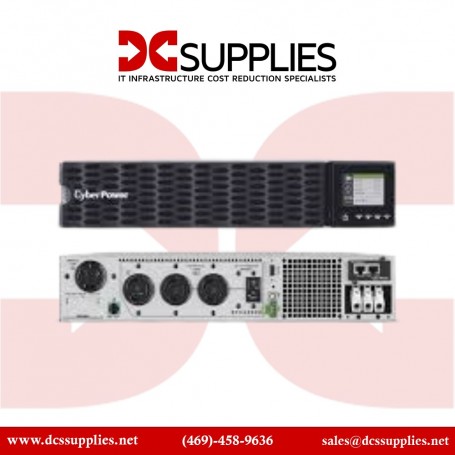

CyberPower OL6KRTHD Smart APP 6KVA/6KW/208 Online UPS
Overview :
The CyberPower Smart App Online OL6KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models - giving you more room to grow. The OL6KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.
For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL6KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.
The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus
Specifications
Product Name |
6KVA/6KW High Density Online Double-Conversion PF=1 2U Rack/Tower 200-240V 3-Year |
Product Type |
Double Conversion Online UPS |
Receptacle Type |
NEMA L6-20R
NEMA L6-30R
|
Product Family |
Smart App Online UPS |
Backup / Run Time (Half Load) |
4.90 Minute |
Backup / Run Time (Full Load) |
1.40 Minute |
Load Capacity (VA) |
6000 VA |
Replaceable Battery |
Yes |
Energy Star |
Yes |
Rack Height |
2U |
Plug / Connector Type |
Hardwired |
Input Voltage Range |
200 V AC - 240 V AC |
Form Factor |
Rack/Tower |
Network Management |
SNMP/HTTP Remote Monitoring |
Waveform Type |
Sine Wave |
Input Voltage |
230 V AC |
Battery Chemistry |
Lead Acid |
Input Frequency |
70 Hz |
Battery Size |
12V |
Environmentally Friendly |
Yes |
Battery Capacity |
6000 mAh |
Product Condition |
New |
Maximum Operating Temperature |
104°F (40°C) |
Serial Port |
Yes |
Number of Batteries |
12 |
Battery Characteristics |
Sealed |
EMI / RFI Noise Filter |
Yes |
DC System Voltage |
12 V DC |
Energy Saving |
ECO Mode Efficiency: 96% |
EPO Port |
Yes |
USB (HID Compliant) Port |
Yes |
Maximum Operating Elevation |
10000 ft |
Maximum Storage Elevation |
50000 ft |
Storage Relative Humidity |
0% - 95% |
Storage Temperature |
-4°F (-20°C) - 113°F (45°C) |
Transfer Time |
0 ns |
Typical Battery Recharge Time |
4 Hour |
Receptacle Detail |
2 x NEMA L6-20R
2 x NEMA L6-30R
|
Sound Emission (A-Weighted) |
66 dB(A) |
Country of Origin |
Taiwan |
Height |
3.4" |
Width |
17" |
Depth |
28.3" |
Output Frequency |
60 Hz |
Alarm |
UPS Fault
Low Battery
Battery Mode
Overload
|
Product Series |
Smart App Online UPS |
Load Capacity |
6000 VA |
Product Model |
OL6KRTHD |
Overload Protection |
Yes |
Protection Type |
Short Circuit
Backfeeding
|
Surge Energy Rating |
2430 J |
Thermal Dissipation |
472.72 W |
Limited Warranty |
3 Year |
Output Voltage |
200 V AC
208 V AC
220 V AC
230 V AC
240 V AC
|
Directly Connected Equipment Guarantee |
$300000Lifetime |
Stock Details |
Manufacturer |
CyberPower |
Manuf Part# |
OL6KRTHD |
