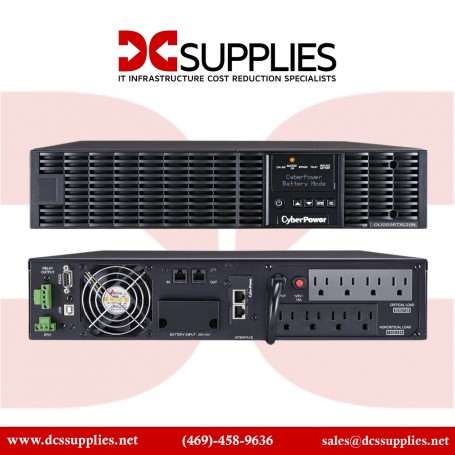

CyberPower OL2200RTXL2UN 2200VA Smart App Online UPS System

New

In Stock

2200VA online UPS with smart app support for enhanced power protection

×




$1,854.37

  • New

Detailed Specifications

CyberPower OL2200RTXL2UN

Smart App Online UPS System (2200VA / 1800W)

The CyberPower OL2200RTXL2UN is a high-capacity, advanced online UPS designed to safeguard mission-critical enterprise servers, network equipment, storage devices, and VoIP systems. With a robust 2200VA/1800W output capacity, pure sine wave output, and comprehensive remote management features via the pre-installed RMCARD205 network card, this 2U rackmount UPS provides reliable, continuous power protection. Its flexible form factor, rapid recharge, and extensive monitoring capabilities make it a perfect solution for demanding data centers and IT infrastructure.

Overview :

Built with double conversion technology, the OL2200RTXL2UN guarantees seamless power during outages or fluctuations, with zero transfer time. The integrated LCD panel offers real-time insights into load levels, battery health, input/output conditions, and temperature, enabling proactive management. Its support for an Extended Battery Module (EBM) extends runtime during extended outages, while Fast Charge Technology ensures batteries are ready quickly after use. This UPS supports remote management via PowerPanel® software and mobile apps, as well as SNMP management, providing administrators with complete control from anywhere. The unit's high surge energy rating and EMI/RFI filtering shield connected equipment from transient disturbances and noise, ensuring optimal performance.

Features :

The OL2200RTXL2UN is an advanced UPS system with features designed for high-end IT applications.

Product Key Features


Reliability & Performance :

With a typical runtime of approximately 20 minutes at half load, this UPS can handle power interruptions efficiently, providing ample time for orderly shutdowns or transfer. Its advanced circuitry includes surge protection rated at 1780 Joules, and its design complies with UL 1778 standards for safety and reliability.

Key Features :

Technical Specifications :

FeatureDetails
Model OL2200RTXL2UN
Capacity 2200 VA / 1800 W
Topology Double Conversion Online
Waveform Pure Sine Wave
Input Voltage 120 V or 230 V (auto-sensing)
Input Frequency 40-70 Hz (auto-sensing)
Output Voltage 120 V or 230 V (auto-sensing)
Runtime (Half Load) Approx. 20 minutes
Runtime (Full Load) Varies depending on load, typically around 8 mins
LCD Display Yes
Receptacles 8 x NEMA 5-15R (or compatible depending on region)
Management Interface RMCARD205 network management card, PowerPanel software, mobile app
Connectivity USB, serial, SNMP (via network card)
Battery Type Lead Acid, Sealed
Battery Capacity Support for Extended Battery Modules
Certifications UL 1778, RoHS, Energy Star
Operating Temp 104°F (40°C)
Storage Temp -4°F to 113°F (-20°C to 45°C)
Transfer Time 0 ns
Surge Energy Rating 1780 Joules
Noise Level Typically around 55 dB(A)
