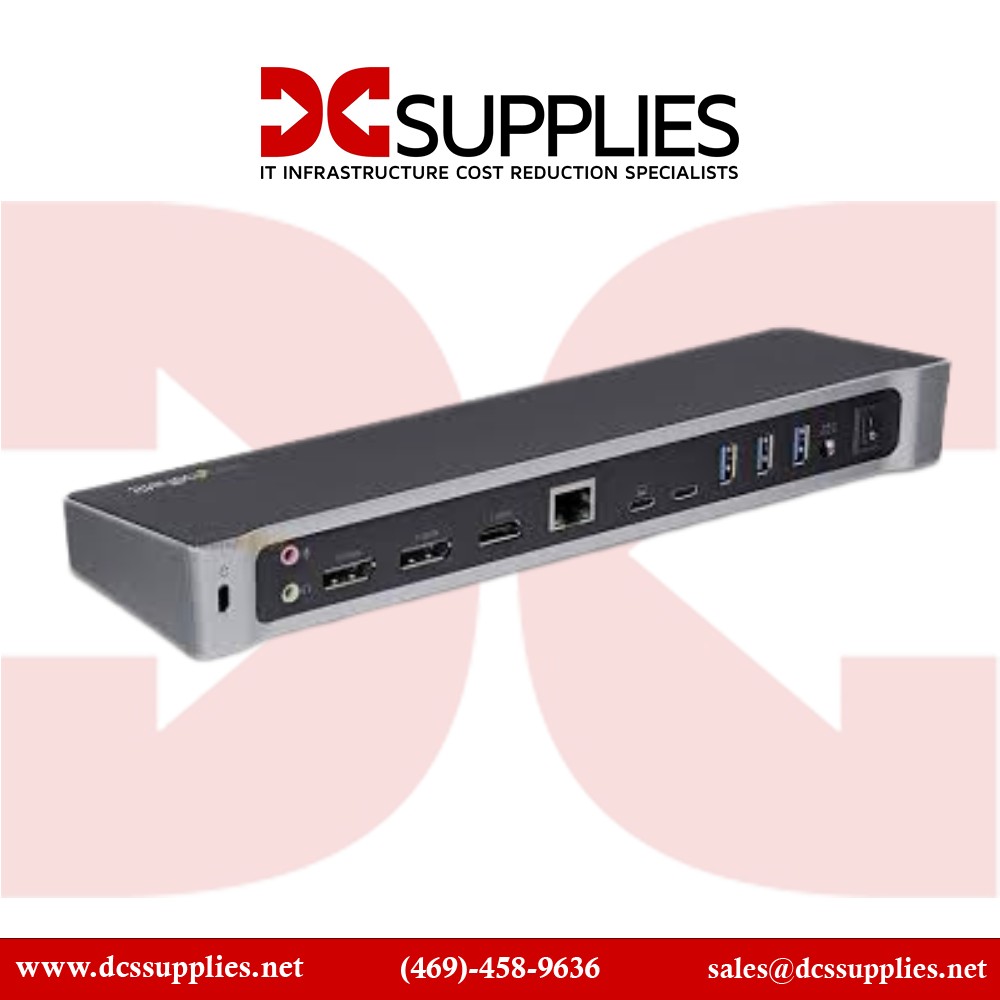

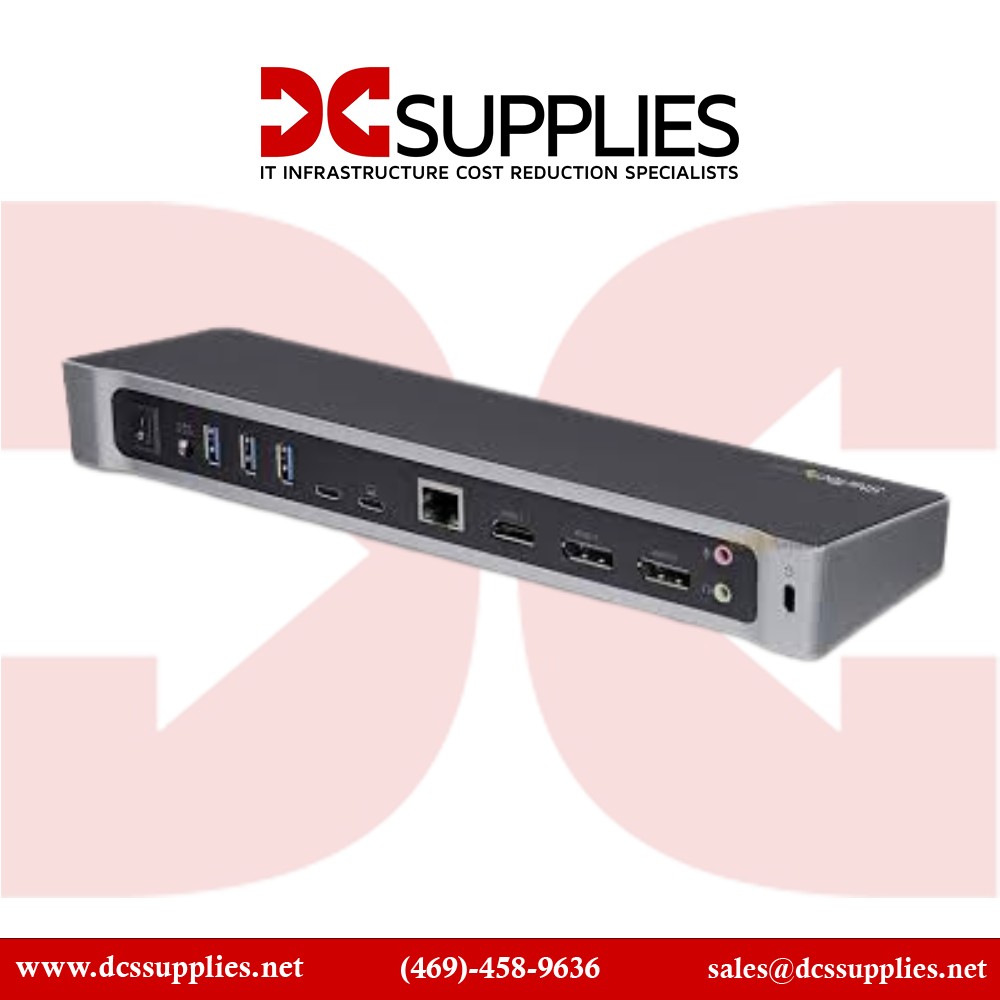

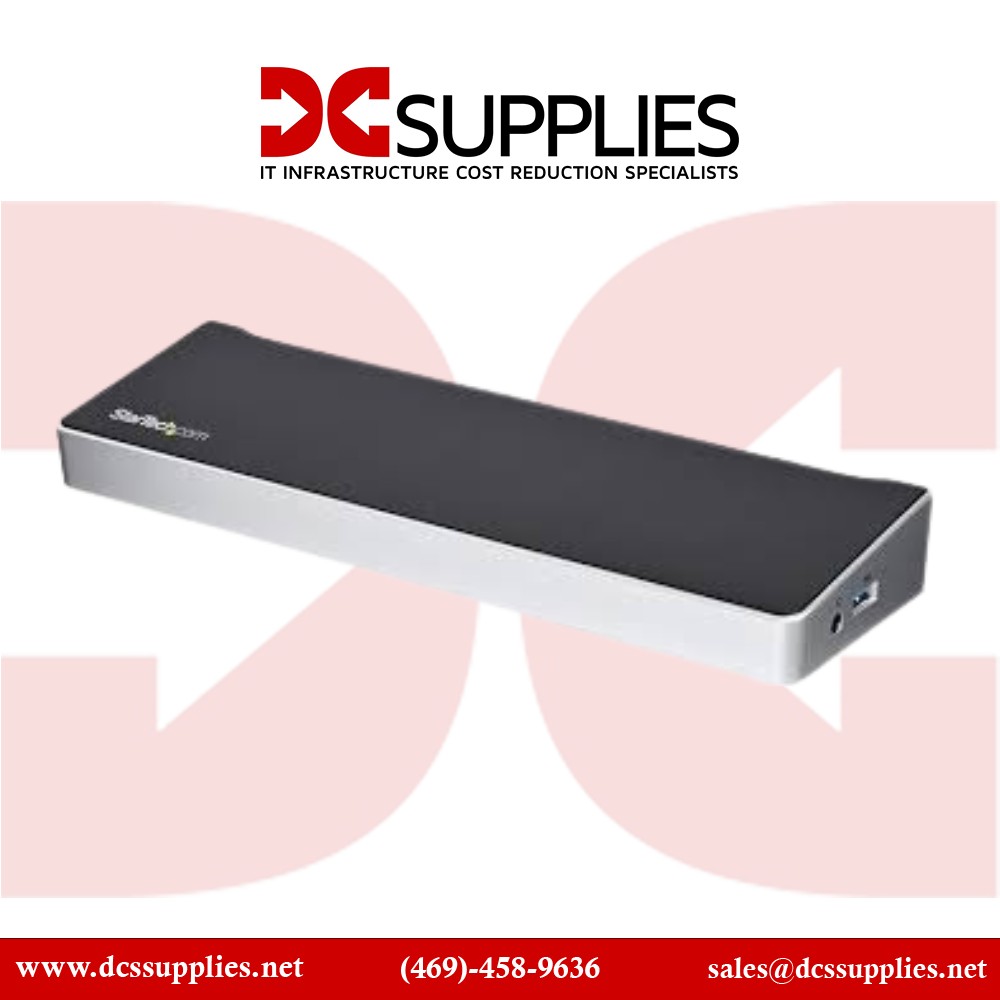

This triple-4K dock for Mac, DK30CH2DEP Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook, DK30CH2DEP or other USB-C laptop requiring additional ports.

You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity:

The 4K USB-C DK30CH2DEP docking station lets you create a three-monitor Ultra HD workstation. Connect:

• 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
• 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.

100W Power Delivery:

Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.

Powerful Connections:

This triple-monitor DK30CH2DEP docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories.

About this item:

• FLEXIBLE MONITOR OUTPUTS: USB-C dock supports dual or triple 4K monitor setups w/ up to dual 4K 60Hz on DisplayPort (DP++/DP) and up to 4K 30Hz on HDMI; Supports up to 3 extended displays on Macbook Pro/Air with Intel processor or Apple M1/M2 chip
• 100W POWER DELIVERY: Power & charge USB-C/Thunderbolt 3 and 4 workstation laptops & ultrabooks incl. Lenovo X1, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, Zbook & MacBook Pro 16
• FULL FEATURE DOCK: USB-C Dock w/ 3 video outputs (DP & HDMI), 100W PD, 4x USB-A & 1x USB-C, gigabit ethernet, headset port, separate speaker/mic audio ports, K-Slot for security & 1m/3.3' USB-C cable
• MORE USB DEVICE PORTS: USB 3.1 Gen 1 Docking Station has 5x USB 3.0 5Gbps Hub (4x USB-A, 1x USB-C), w/ 1x BC 1.2 (1.5A) fast charge always-on smartphone port, with or without laptop connection to dock
• EASY DEPLOYMENT: This universal USB Type-C port replicator supports Windows, macOS, Chrome OS & Ubuntu and includes DisplayLink update utilities for hassle-free IT management

Specifications:

• Actual Weight
  0.90 lb(s)
• Compatibility Notes
  Compatible Networks: 10/100/1000Mbps
  Full Duplex Support: Yes
  Maximum Data Transfer Rate: 5Gbps (USB 3.0), 2Gbps (Ethernet; Full-Duplex)
  Maximum Digital Resolution: 1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz
  2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p @60Hz
  1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz
  Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
• Contents
  Dock, USB-C cable, power adapter, anti-slip rubber pads, documentation
• General
  Color: Black

  Color: Silver

  Warranty Period: 3 years
• Physical Dimensions
  1.3"h x 10.6"w x 3.2"d
• Ports/Connectors
  (2) USB-C 3.0 (F)
  (4) USB A 3.0 (F) (one Fast-Charge, SuperSpeed)
  (2) DisplayPort (F)
  (1) HDMI (F)
  (1) RJ-45 LAN (F)
  (3) 3.5mm audio (F)
• Power Notes
  Input Current: 2.5A
  Input Voltage: 100~240AC
  Output Current: 7.5A
  Output Voltage: 20VDC
  Plug Type: N
  Power Delivery: 100W
  Power Source: AC adapter included
• Protocols
  Networking Protocol: Gigabit Ethernet
• Shipping Weight
  0.39 lbs
• Standards
  Compliant Standards: TAA
