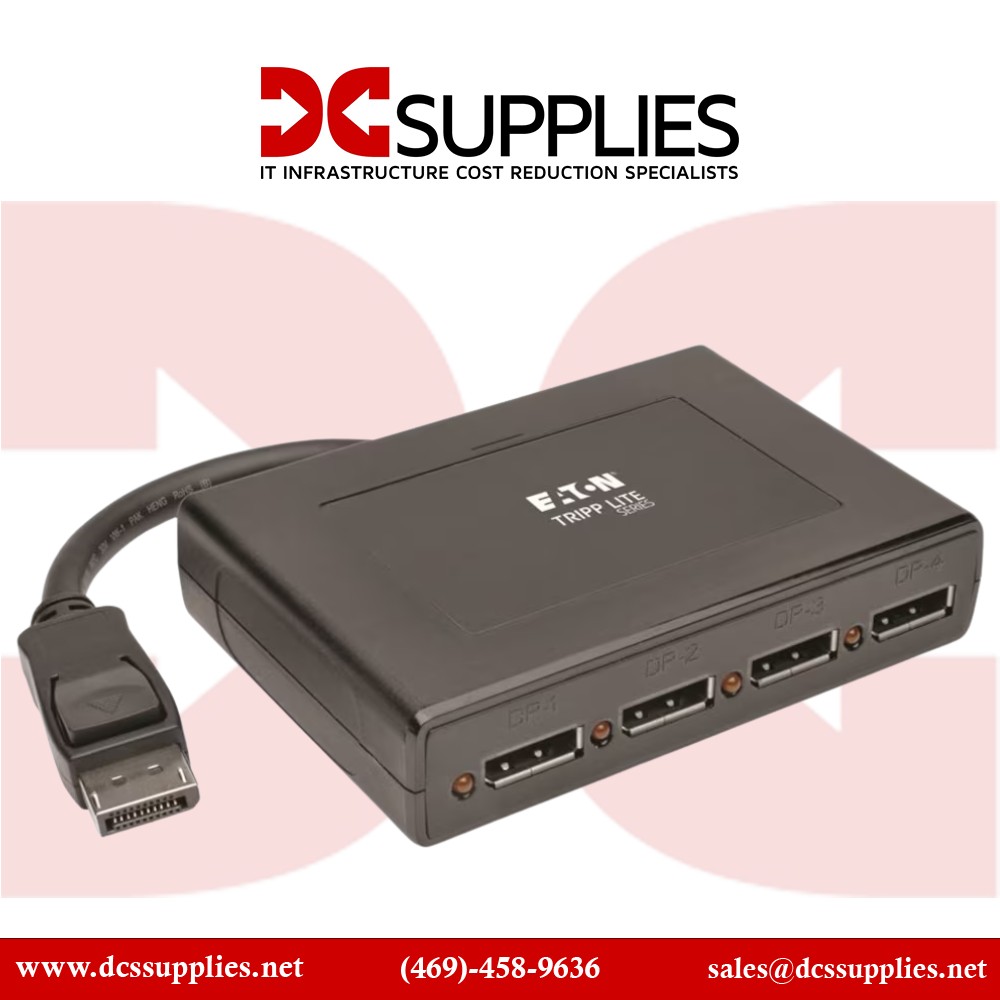

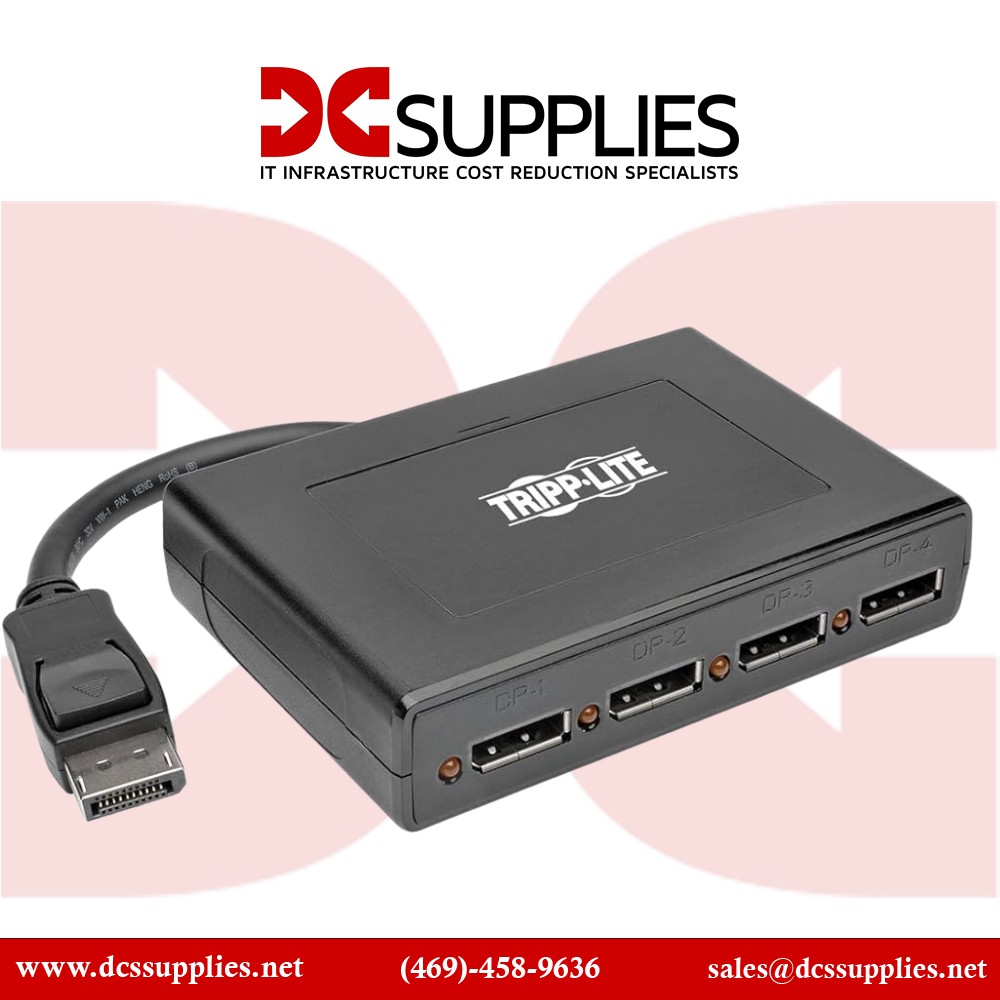

Tripp Lite B156-004-V2 4-Port DisplayPort MST Hub

TrippLite B156-004-V2

4-Port DisplayPort MST Hub Expand Your Multi-Monitor Setup with 4K UHD Resolution

The TrippLite B156-004-V2 is a high-performance 4-port DisplayPort MST Hub designed to expand a single DisplayPort output into four HDMI monitors. Perfect for professional environments such as digital signage, control centers, and multimedia presentations, it allows users to extend desktops, mirror content, or create large-scale video walls with stunning 4K resolution. Its straightforward plug-and-play design ensures quick setup and reliable performance across diverse applications.

Expanded Overview :

This MST Hub transforms one DisplayPort 1.2 source into four HDMI outputs, providing immense flexibility for multi-monitor configurations. Whether used to extend desktops, mirror displays, or build immersive video walls, it supports UHD resolutions at 60Hz for detailed, high-quality visuals. Its compatibility with DisplayPort 1.2 graphics cards, like AMD Radeon with Eyefinity, ensures seamless integration into existing systems.

Advanced Options :

Supporting features like HDCP, EDID, and DDC, the Hub guarantees smooth communication between source and displays, enabling protected content playback and optimal resolution management. Users should note the 21.6 Gbps shared bandwidth across the four monitors. The support for 7.1 surround sound formats, including Dolby TrueHD and DTS-HD, enhances multimedia applications, delivering both high-quality video and audio. Designed for durability and ease of use, the hub's plug-and-play operation minimizes setup time and complexity. The built-in 6-inch cable simplifies connections, making it suitable for both temporary setups and permanent installations.

Product Key Features

• Connects up to four HDMI monitors via DisplayPort 1.2 MST technology for extended, mirrored, or video wall configurations
• Supports UHD video resolutions up to 4K @ 60Hz with 48-bit Deep Color, delivering vibrant and crisp visuals
• Compatible with DisplayPort 1.2 graphics cards; backward compatible with earlier versions (1.1a)
• Supports HDCP, EDID, DDC, and multi-channel surround sound formats including Dolby TrueHD and DTS-HD
• Plug-and-play operation with no drivers needed; features a built-in 6-inch cable for simple installation
• Ideal for digital signage, control rooms, conference rooms, multimedia displays, and immersive video walls

---

Reliability & Performance :

Built for professional use, the Tripp Lite B156-004-V2 offers reliable performance with support for high-resolution UHD video and multi-channel audio. Its compatibility with a broad range of graphics cards and operating systems, combined with adherence to industry standards, ensures consistent, high-quality output. The robust construction and comprehensive feature set make this Hub an excellent choice for demanding environments requiring stable multi-monitor support.

Key Features :

• Expands a single DisplayPort 1.2 output into four HDMI monitors for versatile display configurations
• Supports 4K UHD resolution up to 60Hz with 48-bit Deep Color for vivid imagery
• Compatible with DisplayPort 1.2 graphics cards, backward compatible with earlier versions
• Supports HDCP, EDID, DDC, and multi-channel surround sound including Dolby TrueHD and DTS-HD
• Plug-and-play design with built-in 6-inch cable for easy installation
• Suitable for digital signage, control rooms, multimedia displays, and immersive video walls

Specifications :

Specification	Details
Model Number	B156-004-V2
Product Type	DisplayPort 1.2 MST Hub with four HDMI outputs
Supported Video Resolution	Up to 3840 x 2160 (4K) @ 60Hz
Video Bandwidth	21.6 Gbps (shared across four monitors)

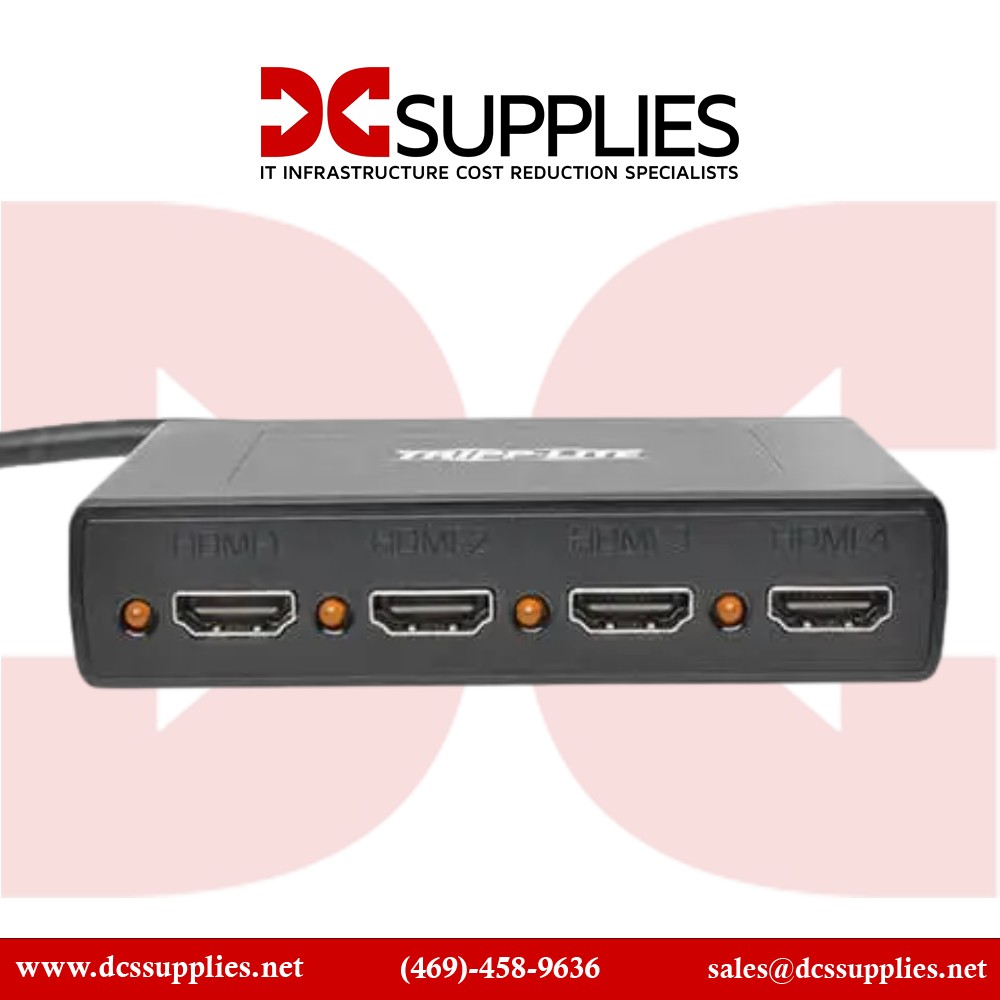

Number of Outputs	4 HDMI ports
Audio Support	7.1 Channel Surround Sound, Dolby TrueHD, DTS-HD
Connectivity	DisplayPort (Male), HDMI (Female)
Power	NEMA 1-15P AC power input (100-240V / 50/60Hz / 0.5A)
Dimensions	Approx. 4.5 x 2.0 x 1.0 inches
Weight	Approx. 0.6 lbs (272 g)
Operating System Compatibility	Windows, macOS, Linux, Chrome OS (plug-and-play)
