Overview

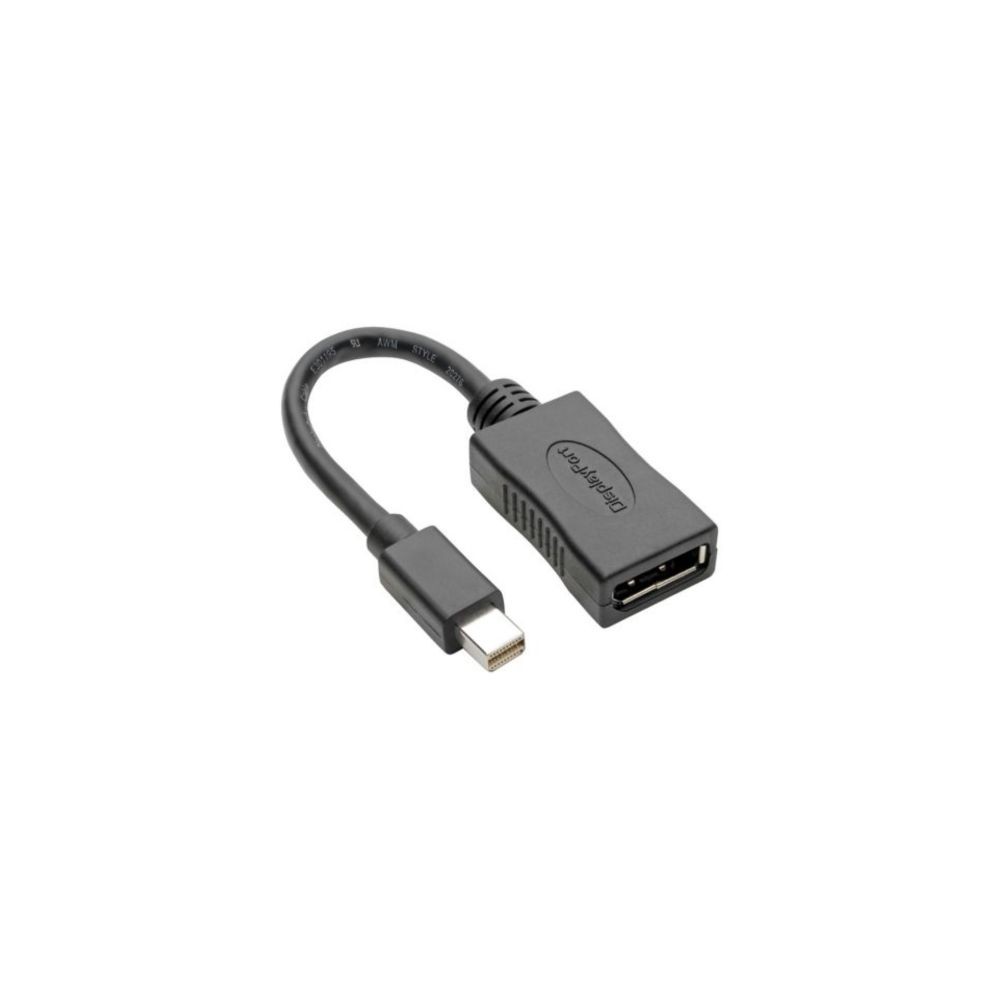

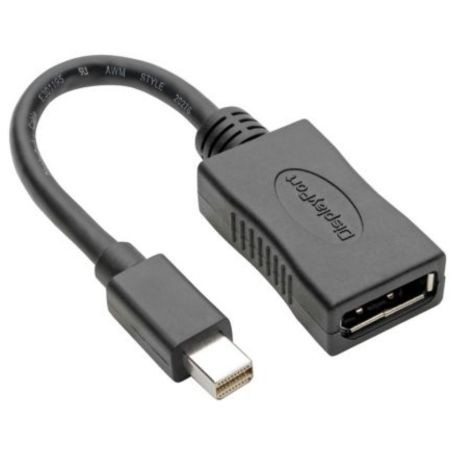

The Tripp Lite P139-06N-DP4K6B is a Keyspan Mini DisplayPort to DisplayPort adapter with a 6-inch cable. It connects a Mini DisplayPort or compatible Thunderbolt 1 or 2 output to a DisplayPort display input, allowing compatible computers and mobile devices to use an existing DisplayPort monitor, projector, or television.
Video and Audio Support
The adapter supports Ultra HD resolutions up to 3840 x 2160 at 60 Hz and carries digital audio alongside the video signal. It is designed for systems with a Mini DisplayPort or Thunderbolt 1 or 2 output and a display with a DisplayPort input.
Connector Configuration
The P139-06N-DP4K6B uses a Mini DisplayPort male connector on one end and a DisplayPort female connector on the other. The female DisplayPort end can connect to a standard DisplayPort cable leading to the display.
Construction and Signal Protection
The adapter uses molded nickel-plated connectors with gold-plated contacts. Foil-and-braid shielding helps protect the signal from EMI and RFI line noise, while integral strain relief provides additional flexibility at the cable connections.
Plug-and-Play Operation
The P139-06N-DP4K6B requires no software, drivers, or external power. Its compact 6-inch design can be carried with a laptop or stored with other display accessories.
Key Features
- Mini DisplayPort male to DisplayPort female connection
- Supports resolutions up to 3840 x 2160 at 60 Hz
- Transmits digital video and audio
- Foil-and-braid shielding with gold-plated contacts
- 6-inch compact adapter cable with plug-and-play operation
Applications
The P139-06N-DP4K6B can connect compatible laptops, desktops, tablets, Chromebooks, MacBooks, and other source devices with Mini DisplayPort or Thunderbolt 1/2 outputs to DisplayPort monitors, projectors, televisions, and digital signage displays.
DC Supplies Product Note
Verify the source device has a Mini DisplayPort or Thunderbolt 1/2 output and that the display accepts DisplayPort input. The adapter is a Mini DisplayPort-to-DisplayPort connection and does not convert to HDMI, DVI, or VGA.
Specifications
| Specification | Details |
|---|
| Brand | Tripp Lite |
| Part Number / MPN | P139-06N-DP4K6B |
| Product Type | Mini DisplayPort to DisplayPort Video Adapter |
| Product Line | Keyspan |
| Connector A | Mini DisplayPort Male |
| Connector B | DisplayPort Female |
| Technology | DisplayPort |
| Maximum Resolution | 3840 x 2160 (4K x 2K) |
| Maximum Refresh Rate | 60 Hz |
| Audio Support | Digital Audio |
| HDCP | 2.2 |
| Cable Length | 6 in. (15.24 cm) |
| Shielding | Foil and Braid |
| Contact Plating | Gold-Plated |
| Connector Plating | Nickel-Plated |
| Color | Black |
| Power | No External Power Required |
| Software / Drivers | Not Required |
| Product Weight | 0.19 lb |
| Compliance | RoHS |
| Warranty | Lifetime Limited Warranty |
| UPC | 037332210692 |
FAQs
What does the P139-06N-DP4K6B connect?
It connects a Mini DisplayPort or compatible Thunderbolt 1/2 source output to a DisplayPort display input.
Does the adapter support 4K at 60 Hz?
Yes. The adapter supports resolutions up to 3840 x 2160 at 60 Hz.
Does the P139-06N-DP4K6B carry audio?
Yes. It supports digital audio along with the video connection.
Does it require external power or drivers?
No. The adapter operates without external power, software, or drivers.
What is the cable length?
The integrated adapter cable is 6 inches (15.24 cm) long.
