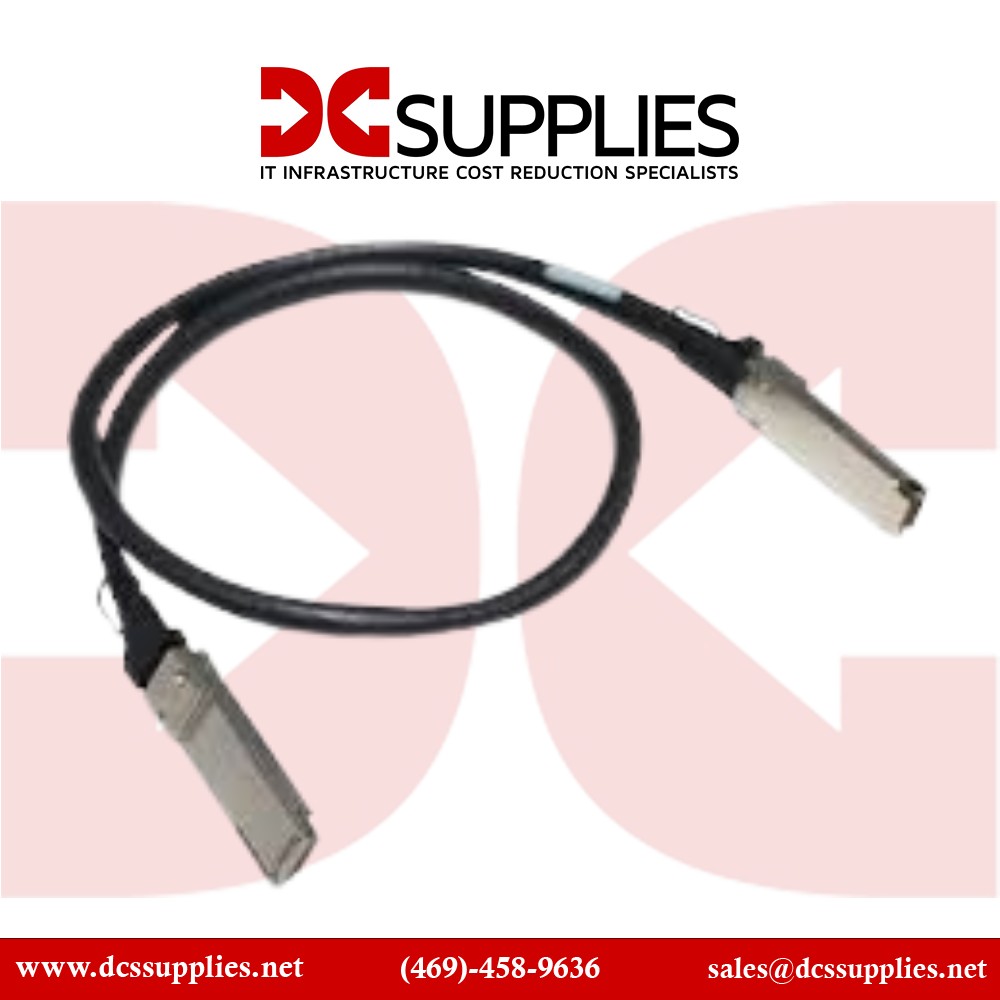

ENET JH234A-ENC 40GBASE-CR4 QSFP TO QSFP PAS Direct Attach Cable View larger
Previous Next

ENET JH234A-ENC 40GBASE-CR4 QSFP TO QSFP PAS Direct Attach Cable

JH234A-ENC

New

Compatible 1m 40G QSFP+ to QSFP+ passive DAC cable for HP Aruba
×




Detailed Specifications

ENET JH234A-ENC

40GBASE-CR4 QSFP TO QSFP PAS Direct Attach Cable

A 1-meter 40G DAC cable for high-speed, short-reach connections.

Overview :

The ENET JH234A-ENC is a 1-meter passive Direct Attach Copper (DAC) cable designed to provide high-speed 40 Gigabit Ethernet connections between QSFP+ ports. Fully compatible with HP Aruba X242 switches and similar QSFP+ hardware, it offers a cost-effective, low-latency solution for short-reach network interconnects in data center environments.

Features :

This DAC cable eliminates the need for optical transceivers by providing a direct QSFP+ to QSFP+ copper connection with minimal latency and power consumption. It supports the 40GBASE-CR4 standard, ensuring compatibility with a wide range of networking equipment. The 1-meter fixed length makes it ideal for interconnecting adjacent network equipment in racks or within the same rack space. With QSFP+ connectors on both ends, the cable is engineered for seamless plug-and-play deployment with HP Aruba X242 series and other compatible QSFP+ devices. The passive design simplifies installation and maintenance while maintaining reliable signal integrity and data throughput.

Product Key Features

Reliability & Performance :

Manufactured with durable materials, the JH234A-ENC cable supports robust and consistent performance in demanding data center environments. It operates within standard temperature ranges, ensuring stable connectivity. The hot-pluggable feature enables easy installation or replacement without network downtime, and its strict MSA compliance guarantees interoperability and long-term reliability.

Key Features :

Specifications :

SpecificationDescription
Model Number JH234A-ENC
Product Type 40GBASE-CR4 QSFP+ to QSFP+ Passive DAC Cable
Cable Length 1 meter
Data Rate 40 Gbps
Connector Type QSFP+
Supported Standard 40GBASE-CR4
Compatible Devices HP Aruba X242 series, other QSFP+ devices
Power Consumption Very low (passive cable)
Operating Temperature 0° to 70°C
Hot-pluggable Yes
Compliance QSFP+ MSA, RoHS
