Detailed Specifications

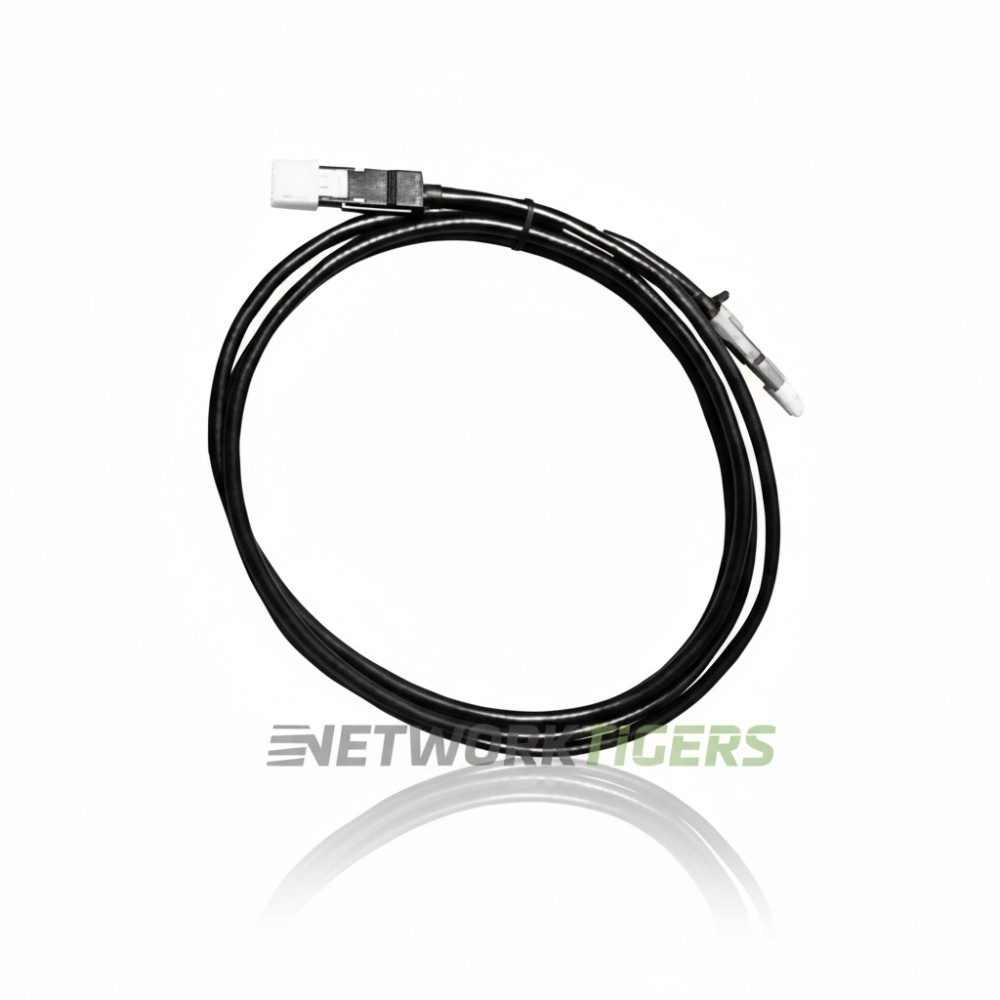

JL307A 100 G QSFP28-QSFP28 3 m Direct Attach Cable (DAC)
The HPE Aruba JL307A is a passive direct-attach copper (DAC) cable that links two QSFP28 ports with reliable 100 Gbps throughput over a 3 m channel. It's a cost-effective, low-latency solution perfect for data center and rack spine-to-leaf connectivity.
Features
Designed to connect QSFP28 ports, JL307A delivers a full 100 Gbps link using four lanes of 25 Gbps each via a twinax copper assembly. The 3 m length balances flexibility with performance, Built with an all-metal housing and 100 Ω differential impedance, this cable ensures excellent EMI shielding and signal stability.
Advanced Options
ideal for short interconnections inside racks or between adjacent ones . It supports digital diagnostics (DOM) for real-time monitoring×covering cable temperature, voltage, and signal integrity via QSFP modules.
Product Key Features
300GB enterprise-grade storage capacity
10,000 RPM for high-speed performance
SAS 6Gb/s interface ensures fast data transfer
Hot-swappable for zero-downtime maintenance
Compatible with HP ProLiant and enterprise servers
Durable, energy-efficient design for 24/7 uptime
Reliability & Performance
. Its passive design avoids active ICs, reducing power (<1.5 W per end) and complexity. The durable construction supports a typical industrial operating range (0-70 °C), with MSA compliance guaranteeing interoperability with a variety of vendor platforms
Key Features :
100 Gbps QSFP28-to-QSFP28 direct copper cable
3 m length, passive twinax design
Hot-pluggable with QSFP28 MSA compliance
Low power consumption (<1.5 W per end)
Digital diagnostics monitoring (DOM) via I²C
EMI-shielded metal housing, 100 Ω impedance
| Specification | Details |
|---|
| Model Number | JL307A |
| Type | Passive QSFP28 Direct-Attach Copper Cable |
| Length | 3 m (9.84 ft) |
| Data Rate | 100 Gbps (4 × 25 Gbps) |
| Connector | QSFP28 to QSFP28 |
| Impedance | 100 Ω differential |
| Power Consumption | <1.5 W per end |
| DOM Support | Yes (I²C interface) |
| Operating Temperature | 0-70 °C standard |
| Compliance | QSFP28 MSA, IEEE 802.3bm, RoHS, CE, FCC |
| Housing | All-metal EMI-shielded |
| Applications | 100G Ethernet, 4× InfiniBand EDR, 4×32G Fibre Channel, OTU4 |
