Detailed Specifications

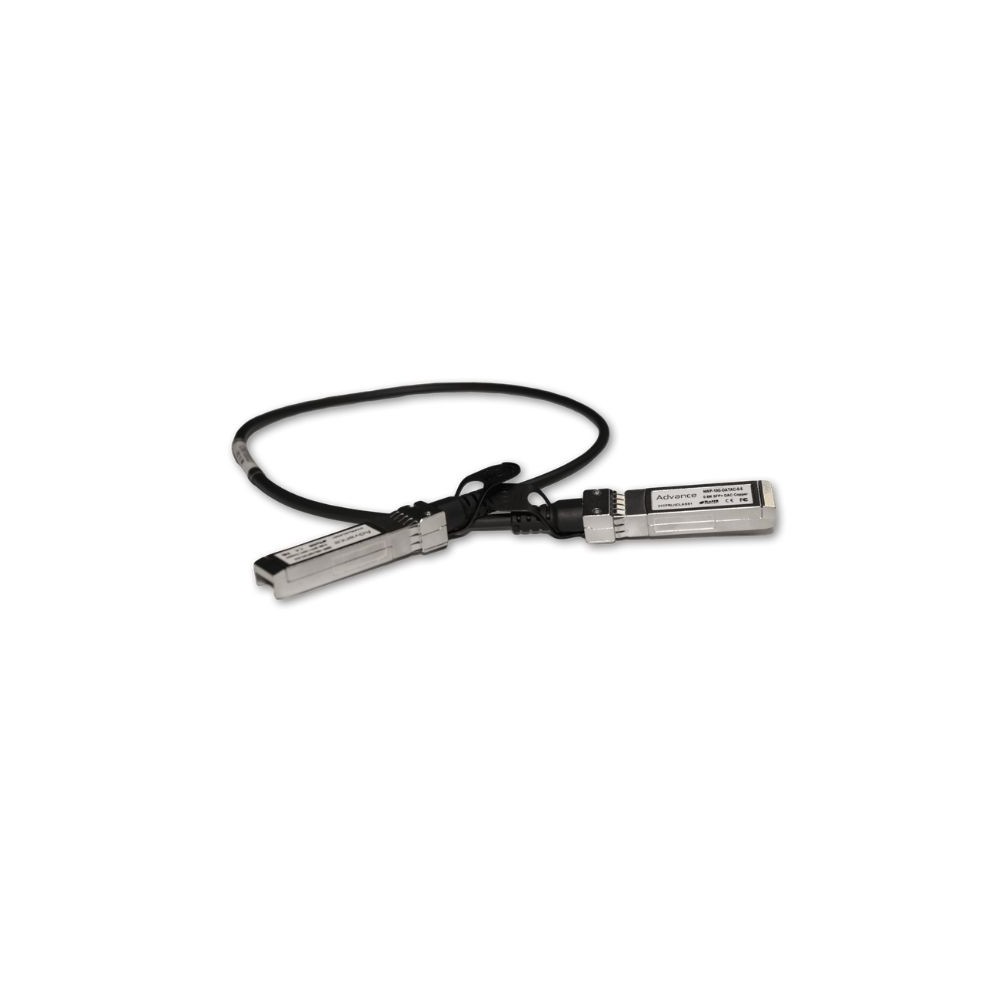

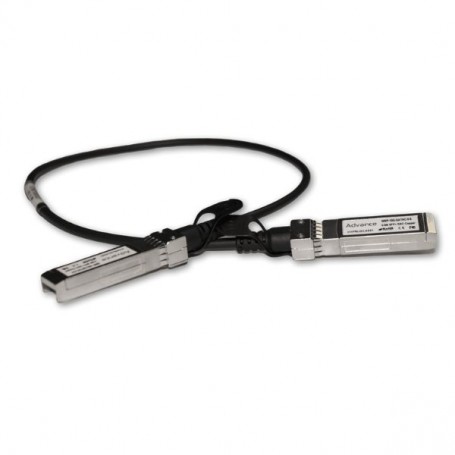

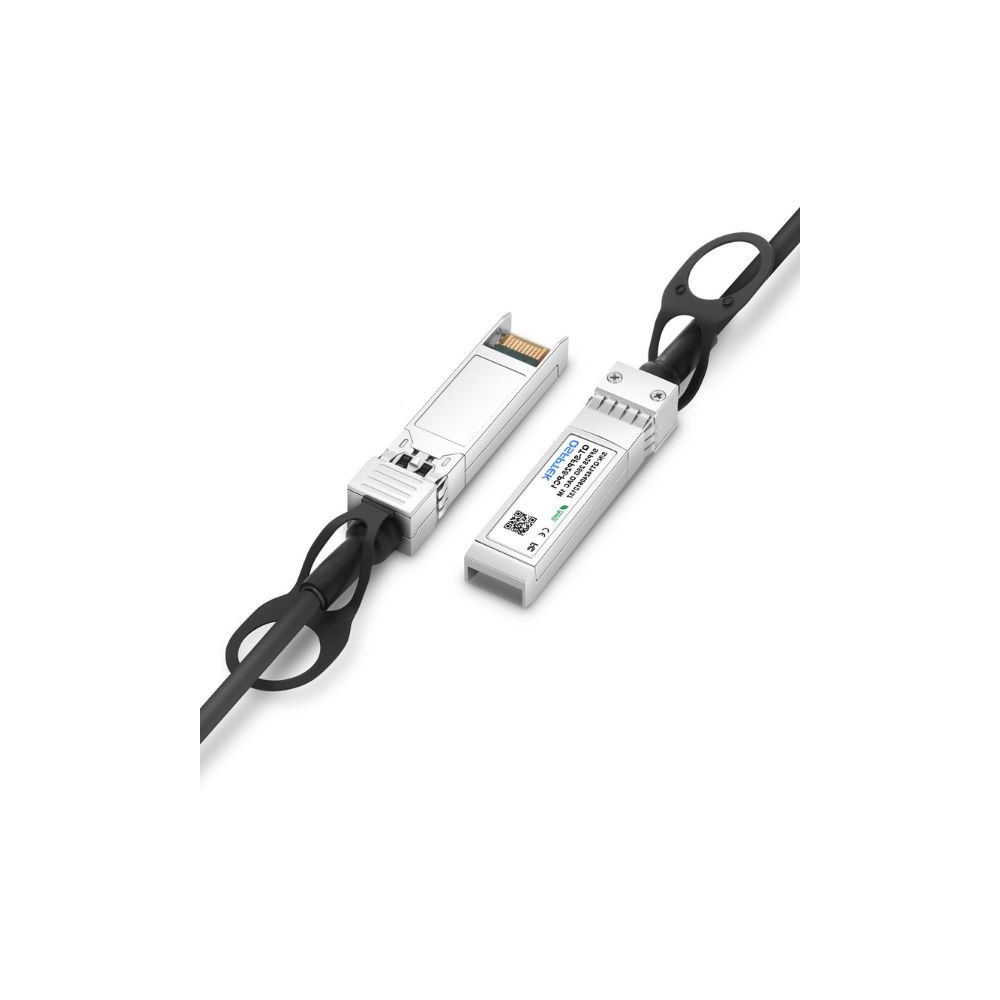

Ubiquiti UACC-DAC-SFP10-0.5M 10G SFP+ Direct Attach Cable
Overview
The Ubiquiti UACC-DAC-SFP10-0.5M is a passive direct attach copper (DAC) cable with SFP+ connectors at both ends for short-reach 10 Gigabit Ethernet links. It delivers 10 Gbps data rates with backward compatibility at 1 Gbps over a 0.5 m twinax copper assembly, suitable for rack-to-rack and adjacent-rack interconnects in enterprise and data center networks. The passive design eliminates the need for separate transceivers, reducing power draw and latency for high-speed connectivity between switches, servers, or other SFP+-equipped devices. Its compact length and PVC jacket make installation clean in dense cabling environments.
Key Features
Passive SFP+ to SFP+ twinax cable
10 Gbps with backward 1 Gbps support
0.5 m cable length
Low latency, low power draw
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | UACC-DAC-SFP10-0.5M |
| Product Type | Passive DAC Cable (SFP+ Direct Attach) |
| Connector Type | SFP+ male - SFP+ male |
| Supported Data Rates | 1 / 10 Gbps |
| Cable Length | 0.5 m (≈ 1.6 ft) |
| Cable Type | Twinax copper |
| AWG (Wire Gauge) | 24/30 |
| Jacket Material | PVC |
| Jacket Color | Black |
| Operating Temperature | 0 °C to 70 °C |
| Minimum Bend Radius | ~20 mm |
